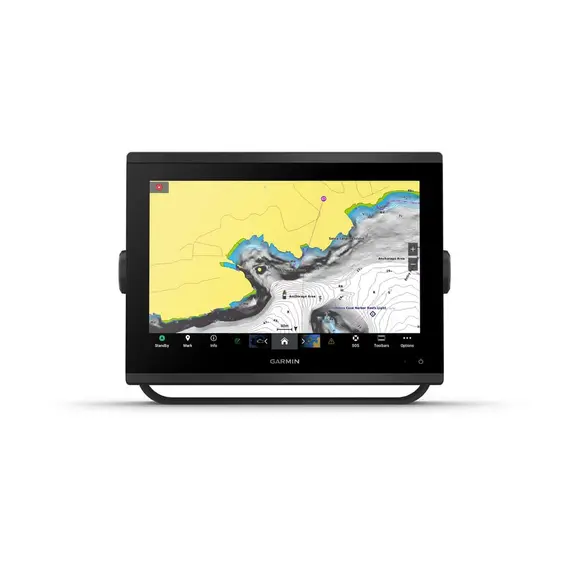

GPSMAP 1223xsv CHIRP Sonar with Worldwide Basemap

5602721
2,315.94
In stock

Enhanced resolution, faster processing and high visibility on a 12" display for improved performance

Includes advanced sonar with CHIRP, ClearVü, and SideVü capabilities

Garmin Sailassist feature provides comprehensive sailing information and controls

Integration with Bluechart sea charts for detailed mapping experience

FNI
  • List of product variants
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandGarmin Shipping fromCroatia Display size, inch12
Brand
Garmin
Voltage, V DC
10-32
EAN
753759250638
Operating temperature
-15°C to +55°C
Main features
Display size, inch
12
With transducer
No
NMEA0183
Yes
Bluetooth
No
Sonar module
Yes
Installation height, mm
201
Installation width, mm
296
Sea Charts
BlueChart g3, BlueChart g3 Vision, Garmin Navionics+, Garmin Navionics Vision+
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Resolution, mm
1280 x 720
Power consumption, W
26.5
Ethernet, ports
2
NMEA2000, ports
1
NMEA0183, ports
1
USB
1 x Micro-USB
GPS
GPS, Galileo, GLONASS
Sonar
CHIRP / Fishfinder, ClearVü, SideVü, RealVü 3D, FrontVü, LiveScope Down, LiveScope Forward, LiveVü Down, LiveVü Forward, LiveScope Perspective
Radar
GMR 18 HD+
AIS
Yes
Card slot
2 x microSD
Autopilot operation
GHC 50
Waterproof
IPX7
Dimensions, mm
308x228x82
Dimensions in packaging
Weight, kg
3
Additional Information
MPN
010-02367-02
Find similar

The latest series of GPSMAP devices by Garmin offers enhanced features, including improved resolution and faster processing capabilities. The multifunction display, measuring 12 inches, presents an optimized map interface that seamlessly integrates with Garmin's marine system. Notably, the display is designed to be highly visible even under direct sunlight.

The Garmin Sailassist feature provides a comprehensive range of information for sailing enthusiasts. This includes laylines, start line guidance, enhanced wind rose, heading and course-over-ground lines, true and apparent wind data, as well as controls for the tide, current, time, wind angle, drift, current, and wind speed, among others.

Users have the option to incorporate optional Bluechart sea charts, which leverage data from Garmin, Navionics, Auto Guidance technology, and other premium navigation features. These charts, available as Bluechart g3 and Bluechart g3 Vision, provide a comprehensive and detailed mapping experience.

With Garmin Marine Network, sharing information with other Garmin devices on your boat is effortless. This includes the exchange of maps, user data, radar data, and IP camera data, enhancing overall connectivity and collaboration.

The compatibility of the GPSMAP Plus with NMEA2000 and NMEA0183 standards allows for direct integration with various systems such as autopilots, digital switching, weather data, the FUSION Link audio system, media, VHF, AIS, and more. This broad compatibility ensures seamless connectivity and data exchange.

The device offers comprehensive sonar capabilities that are seamlessly incorporated. By simply adding transducers, you can access excellent sonar functions. The unit includes an integrated 1 kW CHIRP sonar, CHIRP ClearVü, and SideVü sonar. It even supports Panoptix sonar, which provides a panoramic view, along with premium Garmin sonar modules and a wide variety of transducers (sold separately). When connected to a network, combined units can share their internal sonar data with other devices on the network. Additionally, you have the flexibility to choose what information is displayed on the sonar screen, such as radar, time of day, or GPS speed.

Through the ActiveCaptain app, users can connect their GPSMAP device to Wi-Fi and access the free mobile app's features. This includes the OneChart feature, which provides access to charts, Smart Notifications, software updates, Garmin Helm, Garmin Quickdraw community, and more, enhancing the overall functionality of the device.

Thanks to the integrated ANT technology, connecting external devices to the GPSMAP Plus is simple and efficient. This includes devices like Quatix marine clocks, gWind Wireless 2 transducers, GNX Wind marine instruments, and radio remote controls, providing an expanded range of compatible accessories.

The JI939 connectivity allows for easy integration of data from various engines, including Yamaha engines, enabling seamless integration of engine information into the GPSMAP Plus.

The ONEHELM function consolidates third-party options onto a single page, offering a convenient overview of available features, such as EmpireBus Digital Switching.

Furthermore, the GPSMAP Plus supports PANOPTIX, enabling users to connect their chartplotter to PANOPTIX or PANOPTIX LIVESCOPE sonar (transducers sold separately). This integration provides real-time, comprehensive visibility of the underwater and side views around the boat, enhancing situational awareness for users.

The package includes the following items: GPSMAP 1223xsv chartplotter with a preinstalled microSD card, a power cable, a NMEA 2000 T-connector, a 2-meter NMEA 2000 drop cable, an 8-pin transducer to 12-pin sounder adapter cable, a bail mount kit with knobs, a protective cover, a flush mount kit with gasket, trim piece snap covers, and documentation. Additionally, it comes with an 18 HD+ Radar, which includes a GMR 18 HD+ radome, a mounting hardware kit, a 15-meter power cable, a 15-meter network cable, installation instructions, and a mounting template.

Additional materials

Owner's Manual (GPSMAP_x3_OM_EN-US.pdf, 14,425 Kb) [Download]

Installation Instructions (GPSMAP_7x3_9x3_12x3_Install_EN-US.pdf, 1,196 Kb) [Download]

Technical Manual (Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US.pdf, 989 Kb) [Download]
