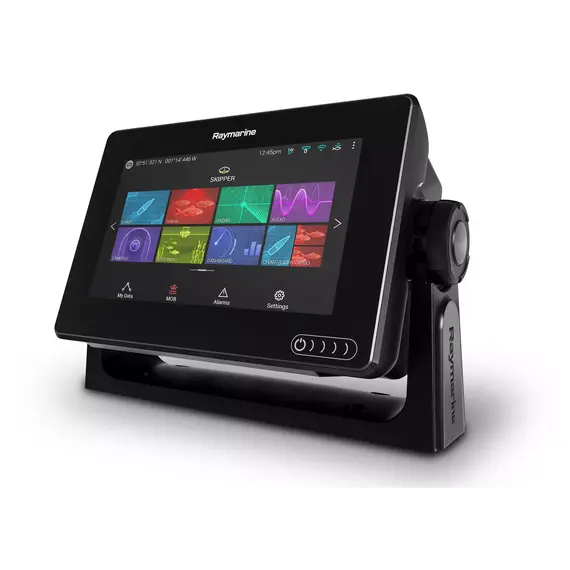

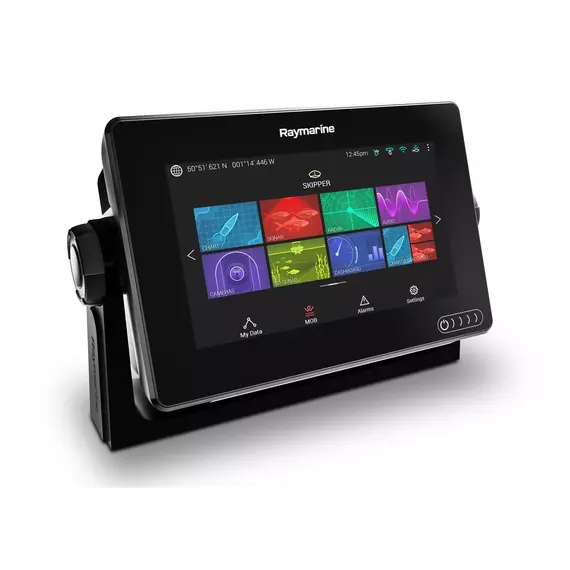

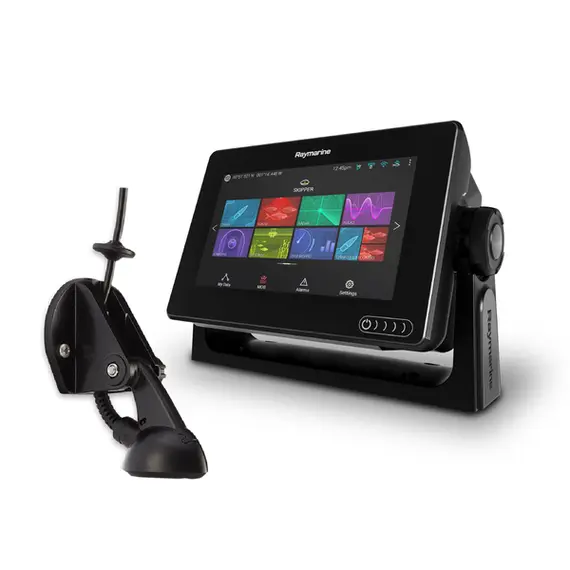

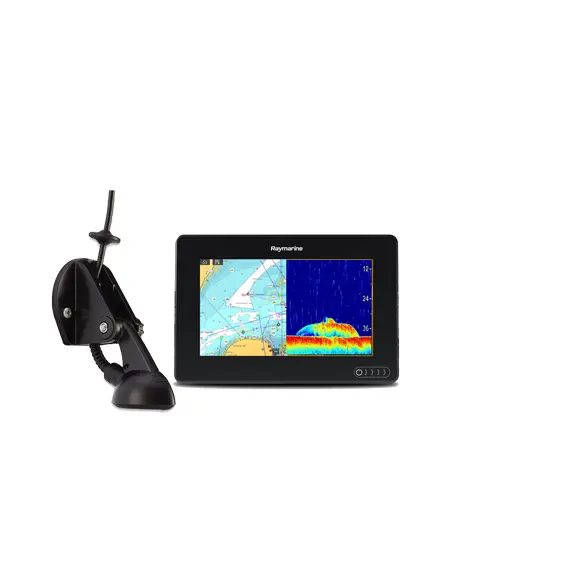

AXIOM 7 Touch with integrated Sonar and DownVision and CPT-100 DVS Transducer

E70364-02
956.95

Raymarine navigation multifunctional display AXIOM 7 DV CPT-100 DVS has all the benefits of the base model and is complemented by 600 W sonars, DownVision and the CPT-100 DVS transom transducer with the ability to use CHIRP technology at depths up to 600 feet. The transducer explores the underwater space and bottom relief with the measurement of depths and water temperature. This data can optionally be placed on seamless maps in Lighthouse, C-MAP or Navionics cartography.

Taxes
Fast delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance Model numberE70364-02

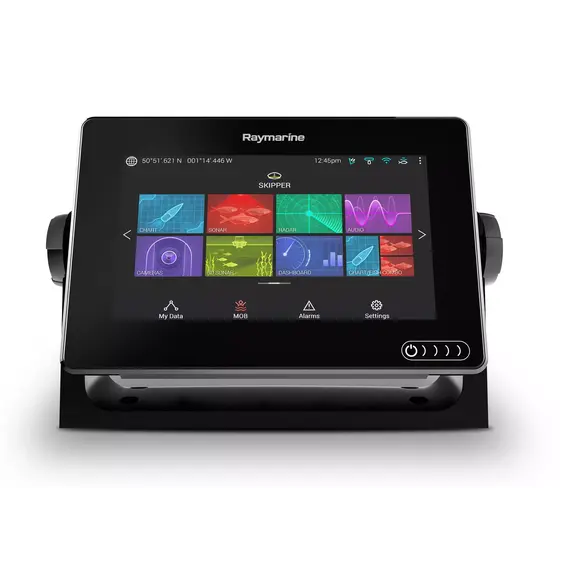

Raymarine continues to expand the capabilities of chartplotters to the heights of full-fledged marine displays. Marine computer AXIOM 7 DV CPT-100 DVS retains all the benefits of the base model:

  • high-performance 4-core processor;

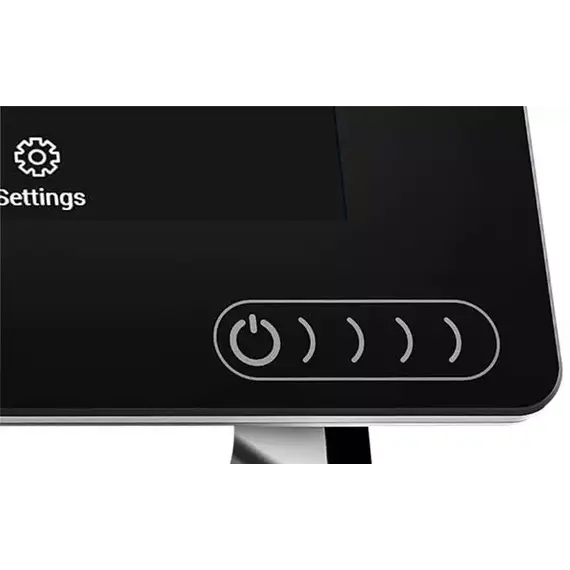

  • touch screen with anti-reflective coating;

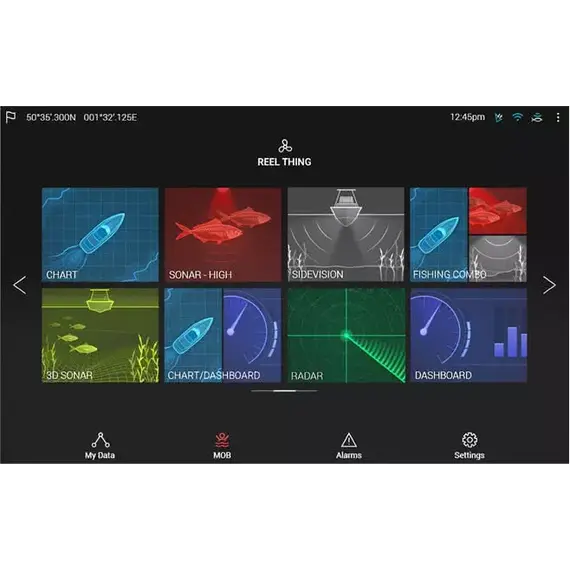

  • easy-to-use operating system;
  • built-in satellite 72-channel GPS/GLONASS receiver with a refresh rate of 10 Hz.

This allows you to calculate the route, control its compliance, determining the position of the vessel with great accuracy, record the progress of the boat in real time and display seamless maps with information.

The AXIOM platform allows you to expand the capabilities of your chartplotter using Raymarine navigation equipment in various combinations. This display model has the following enhancements with the addition of:

  1. 600W sonar.

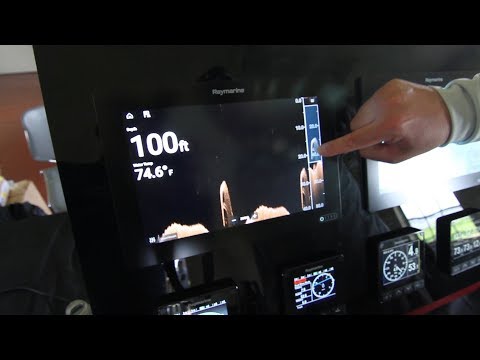

  2. CHIRP function DownVision .

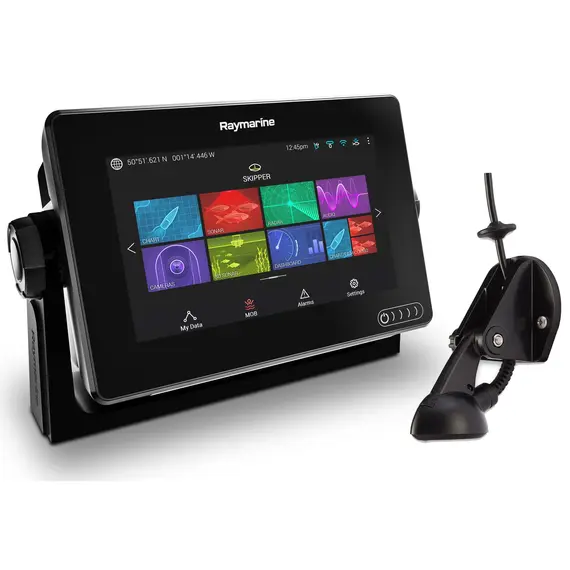

  3. Transom transducer CPT-100 DVS, which regulates the CHIRP technology.

As a result, you buy AXIOM 7 DV CPT-100 DVS as a full-fledged navigation computer that allows you to explore the underwater space at depths of more than 180 meters. The ship's display shows the bottom topography, indicating the depth and temperature of the water, finds the fish and displays in detail its location and number in real time. An indispensable assistant for both amateur fishermen and commercial fishermen.

Features of AXIOM 7 Touch with integrated Sonar and DownVision and CPT-100 DVS Transducer

    Brand
    Raymarine
    Voltage, V DC
    12 (8 to 16)
    Weight, kg
    1.52
    EAN
    00723193817551
    Operating temperature
    -25 to +55 °C
    Main features
    Model number
    E70364-02
    Display size, inch
    7
    With transducer
    No
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    120
    Installation width, mm
    188

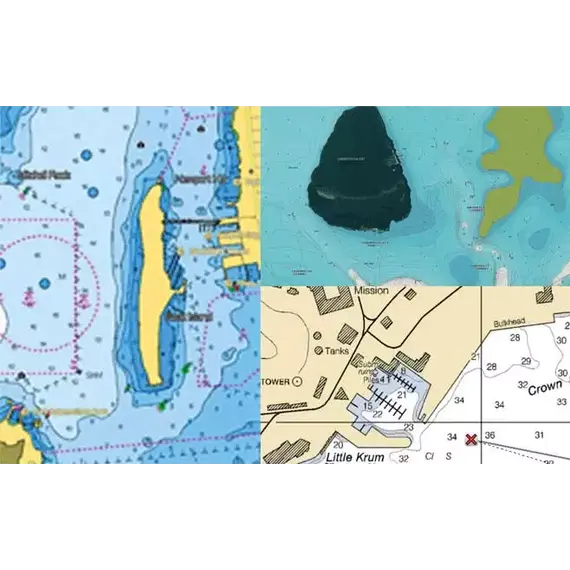

    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Touch screen
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    Yes
    Nautical chart support
    Yes
    Tablet control
    Yes
    Technical data
    Video/camera
    Up to 10 IP cameras
    Resolution, mm
    800 x 480 WVGA
    Brightness, nits
    1200
    Viewing angle, °
    60 / 70 / 70 / 70 (Top / Bottom / Left / Right)
    Power consumption, W
    10.02

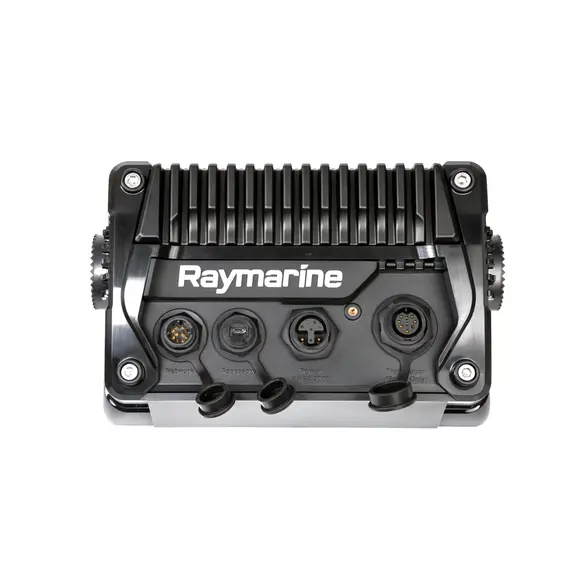

    Ethernet, ports
    Yes, 1x port (RayNet)
    NMEA2000, ports
    Yes, 1x port (Micro C)
    NMEA0183
    No
    SeaTalkNG
    Adapter cable necessary
    USB
    1x USB mircoAB
    GPS
    Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
    Sonar
    Integrated
    Radar
    Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
    AIS
    Yes, via NMEA2000
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C
    Thermal image
    FLIR AX8, M232, M300 series, M400, M500
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    250.4 x 133 x 76.4
