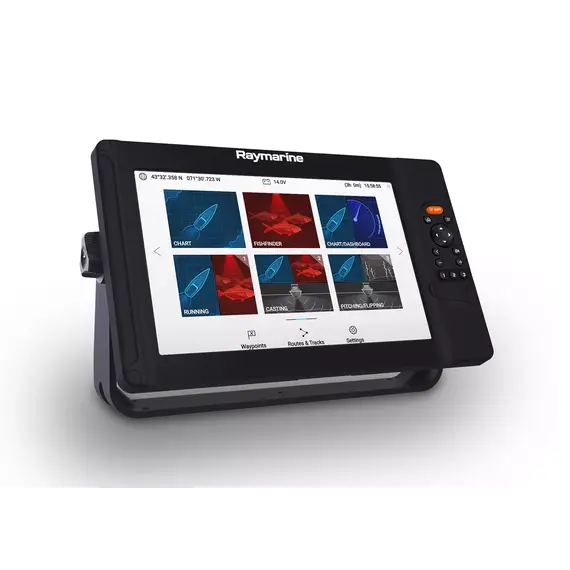

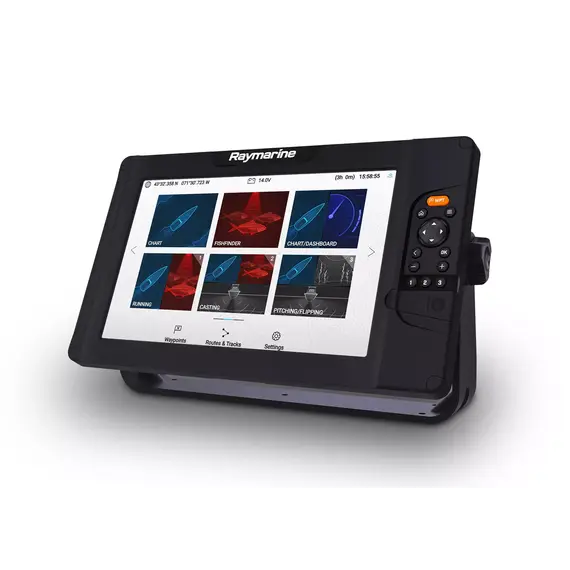

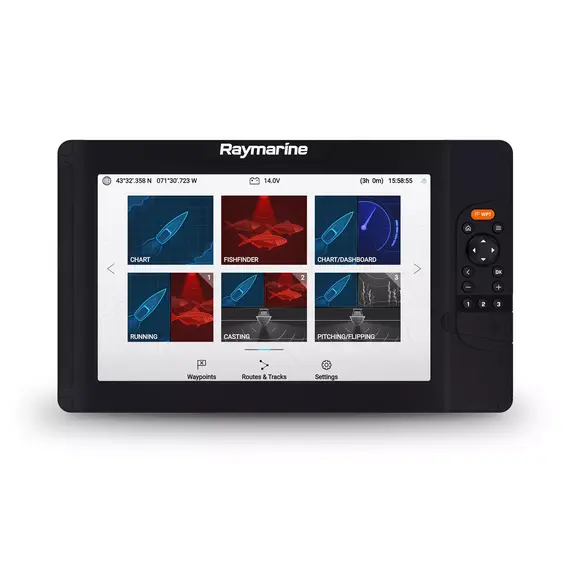

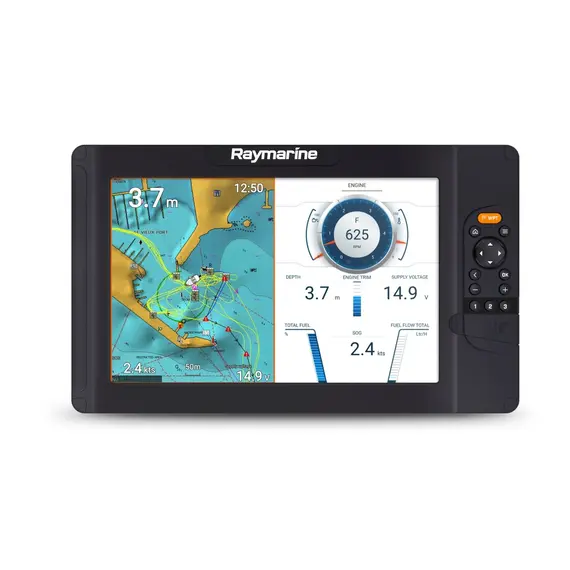

Element 12S with Buttons and CHIRP Sonar Module

955.25
In stock

The economical version of the Element 12S display performs functions for finding fish and coastal swimming: built-in high CHIRP sonar, support for maps from C-MAP and Navionics, built-in GPS antenna. Management - a keyboard with large buttons. A powerful 4-core processor, convenient and robust LightHouse operating system allow you to quickly receive and execute commands. Buy an inexpensive Element 12S marine display with everything you need to quickly find fish.

+
Add to Wishlist
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Model numberE70535 Display size, inch12 BrandRaymarine Shipping fromCroatia
Brand
Raymarine
Voltage, V DC
12V DC (8V - 16V DC)
Weight, kg
2.94
EAN
00723193828021
Operating temperature
-25 to +55 °C
Main features
Model number
E70535
Display size, inch
12
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
199
Installation width, mm
331
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
No
Nautical chart support
Yes
Tablet control
No
Technical data
Resolution, mm
1280 x 800 WXGA IPS Optically Bonded LCD
Brightness, nits
1500
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
25
NMEA2000, ports
Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
NMEA0183, ports
No
SeaTalkNG
Requires A06045 DeviceNet female (F) adapter cable - 400mm
GPS
Integrated GPS / GNSS receiver: GPS / GLONASS
Sonar
CHIRP / Fishfinder
Radar

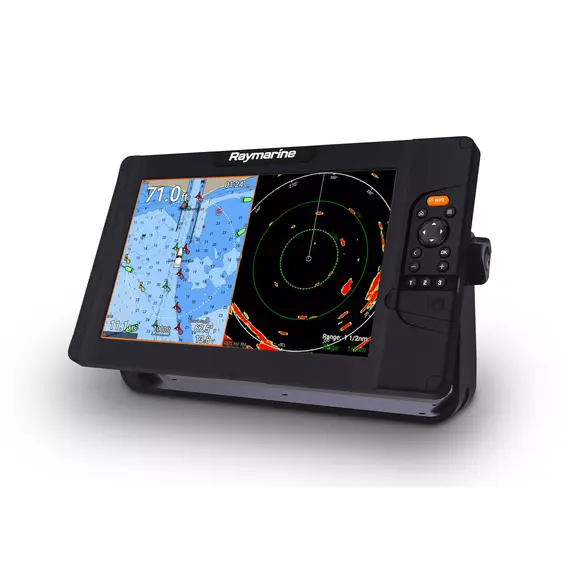

Quantum wireless CHIRP compatible Wi-Fi only connection
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
357 x 215 x 62
Find similar

With the Element line of marine displays, fishfinder leader Raymarine has responded to the desire of any fisherman to have a compact, affordable piece of equipment that performs the required functions with high quality. The Element 12S marine display is the embodiment of these wishes.

1. Built-in single-channel high CHIRP sonar with downwards field of view scans the underwater space, emitting signals of various frequencies. Returning as an echo, these signals form an image of fish, plants, sunken objects, bottom relief on the screen.

2. The built-in CHIRP sonar module and the built-in RealVision 3D technology provide a high quality 3D image with real-time transmission to the screen.

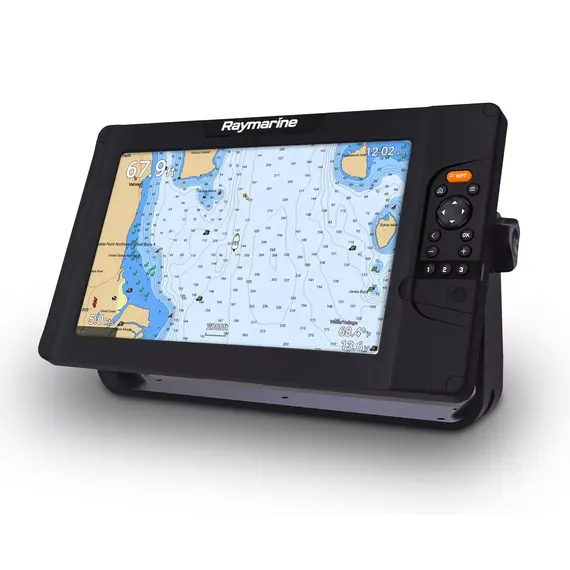

3. Operating system has an intuitive interface and is easy to operate with sufficient capacity. In addition to its LightHouse NC2 charts, it supports the best C-MAP and Navionics navigation charts. You have access to C-MAP 4D, Navionics+ and Navionics Platinum+ charts. Maps of regions are accompanied by a lot of information, as well as details of the water area and underwater space.

4. The built-in GPS antenna, when connected to the receiver, will make it possible to mark the places where the fish was found on the map. For this purpose, there is a special big red button.

You can program several hotkeys so you don't waste time looking for the information you need.

The LCD screen with a diagonal size of 12” shows a very bright and clear picture with a resolution of 1280×800.

Don't pay extra and buy the Element 12S marine display, which quickly finds fish and makes swimming safe.
