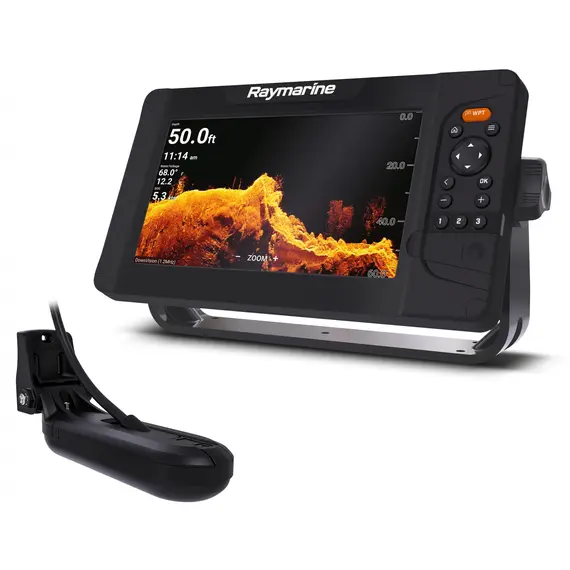

Element 9 HV with Buttons & Hypervision Sonar and HV-100 Transducer

81717
699.96
In stock

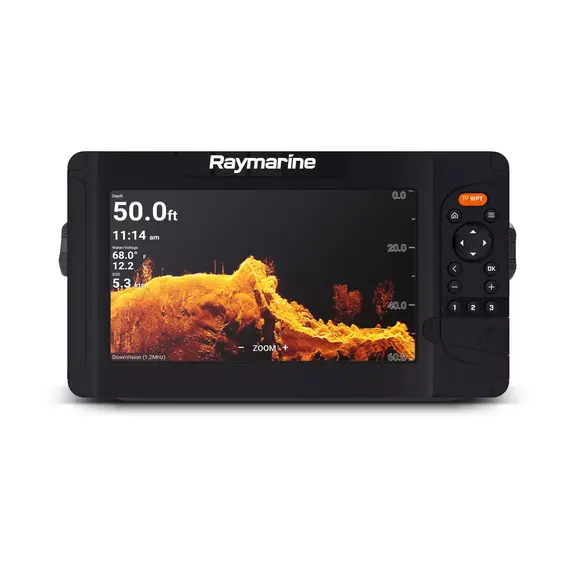

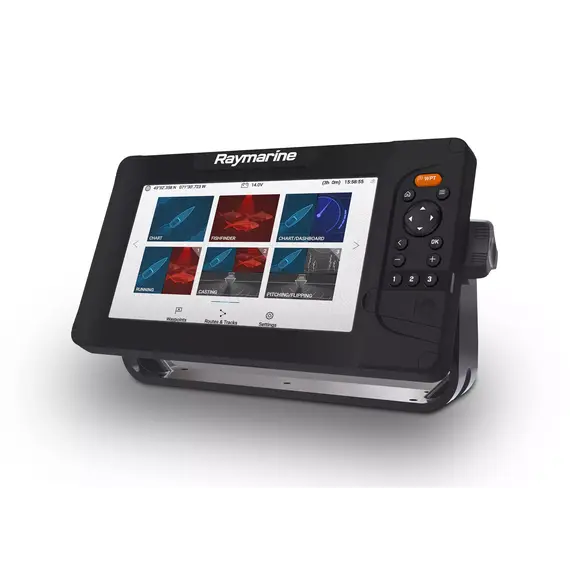

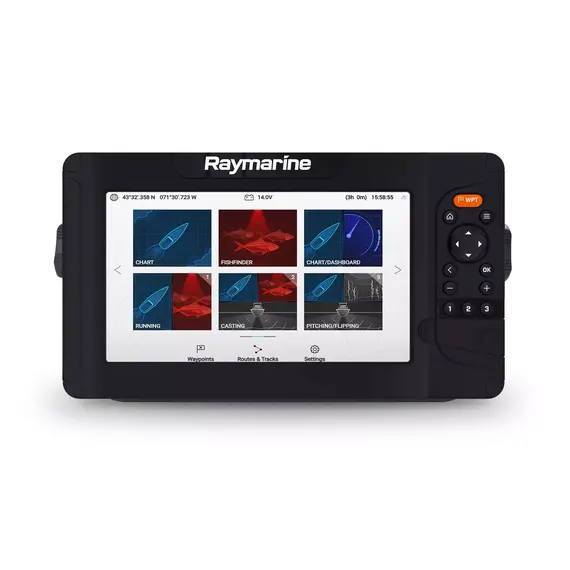

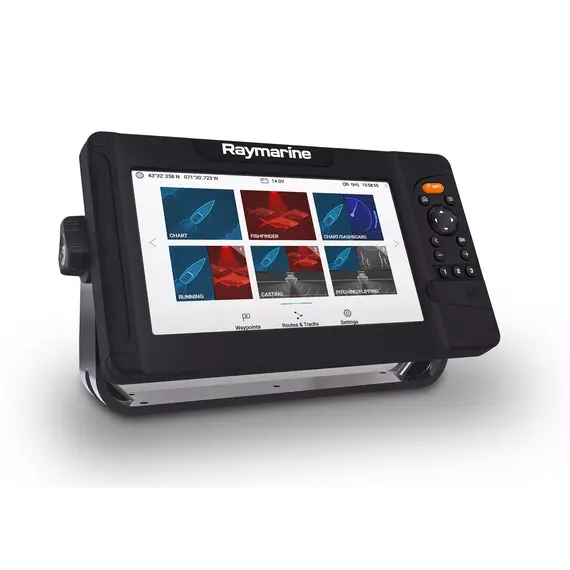

Raymarine knows a lot about successful fishing. We offer to buy Element 9 HV HV-100 - a marine display that works under the motto "less search, more fish." This model is equipped with the HV-100 transom transducer, which provides photographic quality images of underwater space. In one housing, the transducer combines sonars of different frequencies and technologies. Navigation maps from the best manufacturers are displayed seamlessly and quickly.

BrandRaymarine Shipping fromCroatia Model numberE70645-05 Display size, inch9
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12V DC (8V - 16V DC)
Weight, kg
2.5
EAN
00723193841297
Operating temperature
-25 to +55 °C
Main features
Model number
E70645-05
Display size, inch
9
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
145
Installation width, mm
269
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
No
Nautical chart support
Yes
Tablet control
No
Technical data
Resolution, mm
800 x 480
Brightness, nits
1500
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
20
NMEA2000, ports
Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
NMEA0183, ports
No
SeaTalkNG
Requires A06045 DeviceNet female (F) adapter cable - 400mm
GPS
Integrated GPS / GNSS receiver: GPS / GLONASS
Sonar
Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Radar
Quantum wireless CHIRP compatible Wi-Fi only connection
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
287 x 161 x 62
Find similar

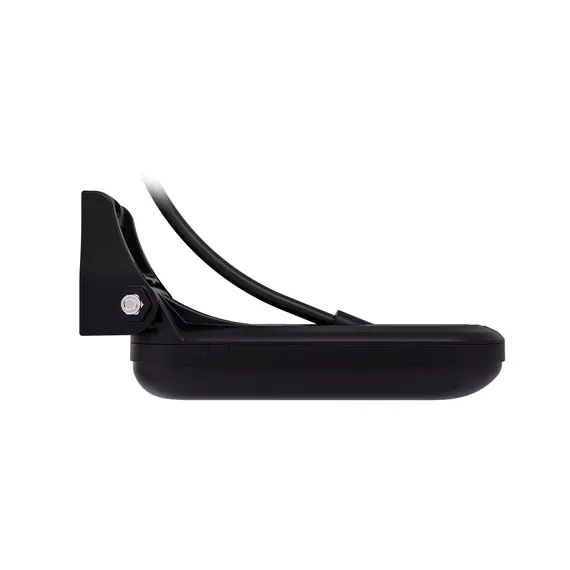

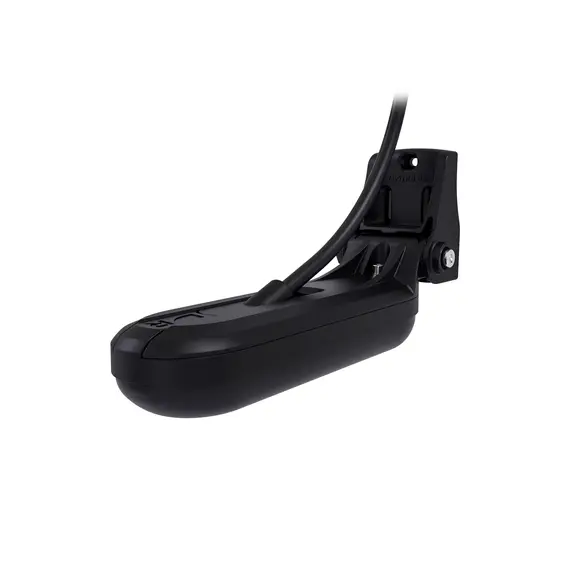

Great fishing with the Element 9 HV HV-100 marine display is guaranteed thanks to the HV-100 transom transducer that provides:

  • work in the mode of horizontal and vertical scanning;
  • support for three-dimensional image technology RealVision 3D;
  • use of frequencies 200 kHz, 350 kHz, 1.2 MHz;
  • implementation of the following CHIRP scanning technologies: HyperVision, DownVision, SideVision.

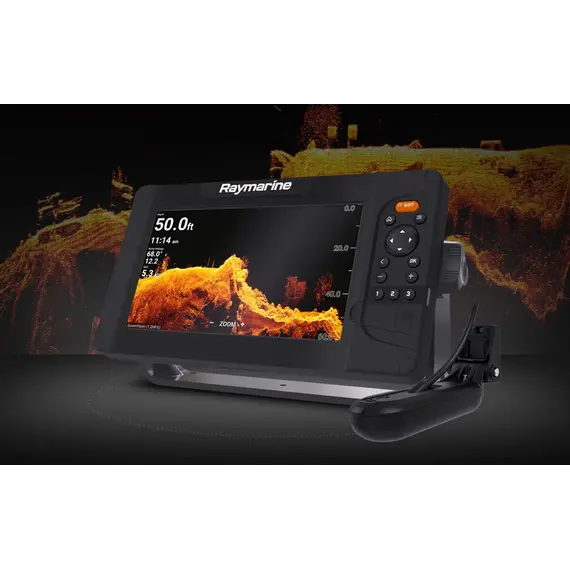

By selecting the right scan rate and technology for any particular situation, the transducer provides high-quality real-time 3D images of fish, plants, wrecks and bottom topography.

While searching for fish, you can record the location of schools or individuals to choose the best place to fish. To do this, use cards that are supported by the LightHouse operating system, which is easy to manage, but very capacious.

With the convenient and robust OS and a powerful processor, you can quickly display seamless LightHouse NC2, C-MAP 4D, Navionics+ and Navionics Platinum+ maps. It is not necessary to have the whole package, it is enough to have a map of the region where you plan to fish. You will mark on the map the places of accumulation of fish using the Waypoint button.

The cards of these systems are good because they are short sailing directions: they contain information about the tides, currents, fairways, shoals, etc. Depths are indicated by contours and shades of the same color; the locations of navigational aids are marked in real colors and contours.

To make fishing safe and productive, buy the Element 9 HV HV-100 marine display at an affordable price.

Additional materials

Manual (Element-Manual.pdf, 2,057 Kb) [Download]

Drawing (Element-Drawing.pdf, 2,439 Kb) [Download]

LightHouse Basic Instructions (LightHouse_Basic.pdf, 2,334 Kb) [Download]

LightHouse Advanced Instructions (LightHouse-Advanced.pdf, 6,332 Kb) [Download]

HV-100 Installation Instructions (Raymarine-shop_Element-HyperVision-HV-100-Transom-Transducer-Installation-instructions-87362-1-EN.pd, 1,130 Kb) [Download]

Articles about Element 9 HV with Buttons & Hypervision Sonar and HV-100 Transducer

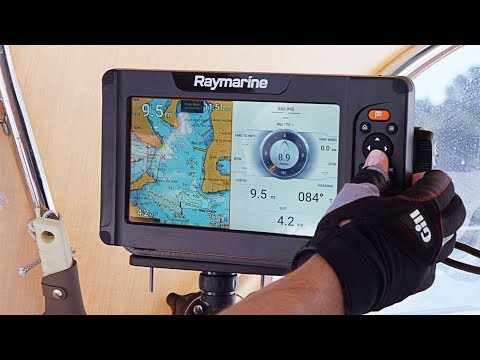

Raymarine Element Series Overview by SonarWars
