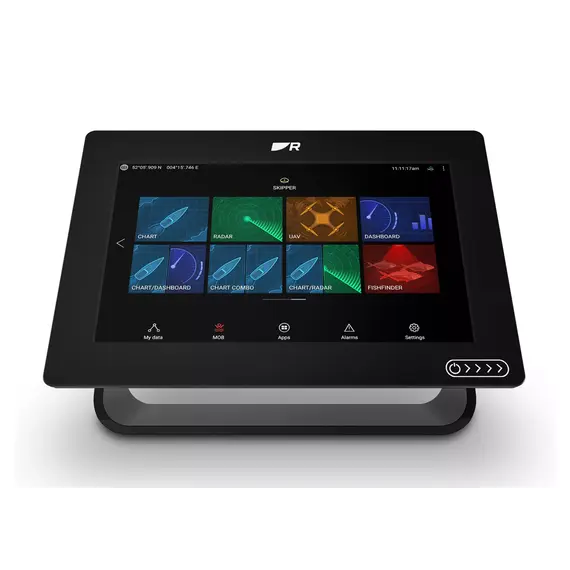

AXIOM+ 9 Touch

26177
1,301.14
1,495.00
You save: 193.86 €
In stock

Raymarine’s 9" multifunctional display Axiom+ 9 delivers 1500 nits of brightness and maximum color saturation thanks to IPS technology. Nano-coated multi-touch screen retains sensitivity when liquids hit the surface. LightHouse 3's intuitive operating system is easy to learn and customize. It is possible to buy an Axiom+ 9 display with various peripherals from Raymarine.

BrandRaymarine Shipping fromCroatia Model numberE70636 Display size, inch9
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
Weight, kg
2.27
EAN
00723193836910
Operating temperature
-25 to +55 °C
Main features
Model number
E70636
Display size, inch
9
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Optional
Installation height, mm
145
Installation width, mm
231
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Resolution, mm
1280 x 720
Brightness, nits
1500
Viewing angle, °
85° top, bottom, left, right
Power consumption, W
8.95
Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
244 x 158 x 77
Find similar

Features of MDF Raymarine Axiom+ 9

Axiom+ 9 all-weather display is powered by a 4-core processor. An instant response from a light touch of a finger on the screen is guaranteed. The advantages of this chartplotter are its versatility and speed thanks to increased memory and processor power, so you can buy a fishfinder with improved features:

  • support for C-MAP, Navionics and an extended set of Lighthouse maps;
  • available options for 3D maps and satellite support;
  • viewing angle from all sides - 85%;
  • seamless and fast creation of maps;
  • excellent color resolution when displaying radar data and transmitting video images;
  • Raymarine's new LightHouse 3 Dartmouth operating system comes with a handy new day/night mode;
  • highly sensitive GPS/GLONASS quickly determines the location of the vessel;
  • reliable protection of the screen from contamination with HydroTough coating , which preserves its touch qualities.

Buying a Raymarine All-Weather Display The Axiom+ 9 makes coastal navigation much easier and helps sea fishing enthusiasts locate schools of fish. You can expand the capabilities of your chartplotter by selecting additional interoperable navigation peripherals from the Raymarine range.

Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]
