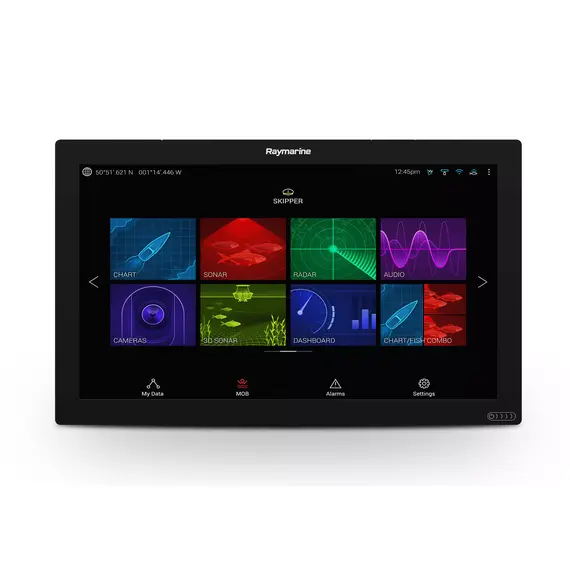

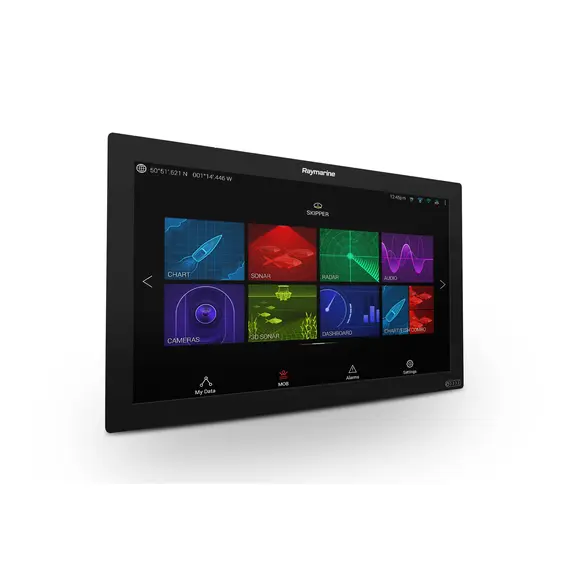

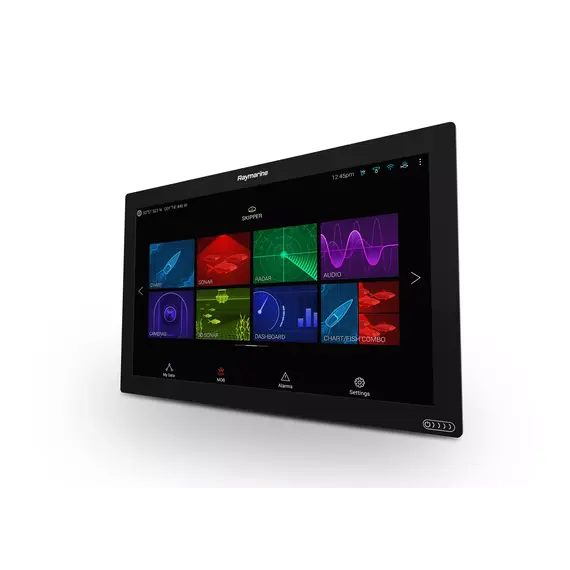

AXIOM XL 16 GlassBridge Multifunction Display - Touch

25303
5,764.66
In stock

AXIOM XL is Raymarine's most advanced line of marine displays to date. If you buy the AXIOM XL 16 GlassBridge, you get the option preferred by superyacht owners. The 16-inch screen in a waterproof case mounts in a panel, on brackets, or in a Glass Bridge system if you prefer multiple displays setup. Speed, quality of navigation information, excellent visualization are the main advantages of AXIOM XL 16 GlassBridge.

BrandRaymarine Shipping fromCroatia Model numberE70399 Display size, inch15.6
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
8 - 32
Weight, kg
5.9
EAN
00723193824214
Operating temperature
-25 to +55 °C
Main features
Model number
E70399
Display size, inch
15.6
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Optional
Installation height, mm
233
Installation width, mm
378
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
1 x Analogue input (BNC) Up to 10 IP Cameras
Resolution, mm
1920x1080 Full HD
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
60

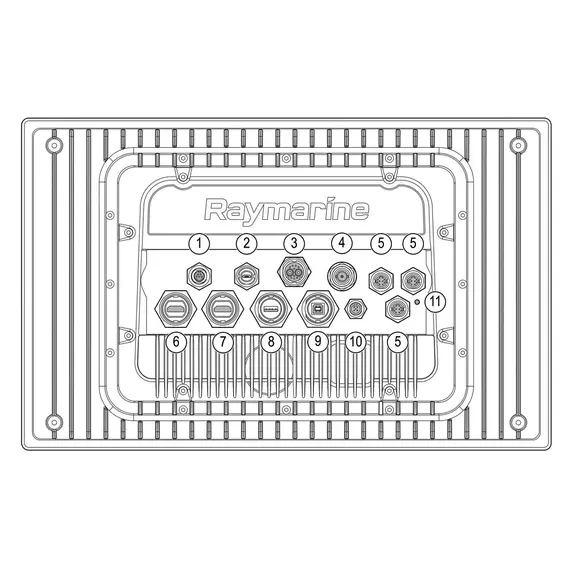

Ethernet, ports
Yes (3x)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
Yes
GPS
Built-in GNSS (GPS / GLONASS) receiver with GA150 External Antenna
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
395 x 78 x 249
Find similar

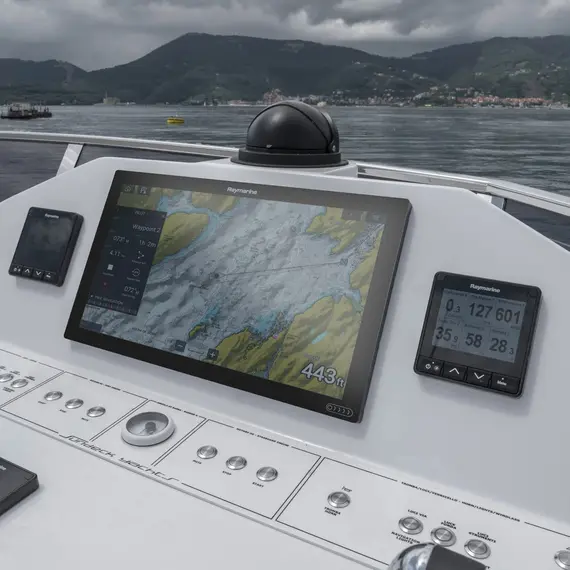

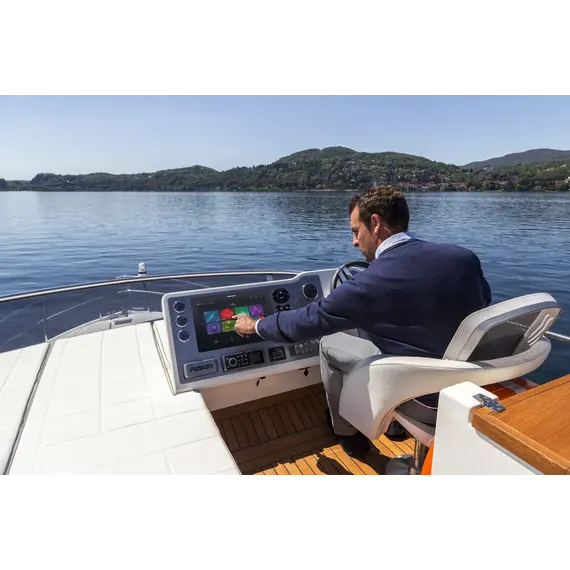

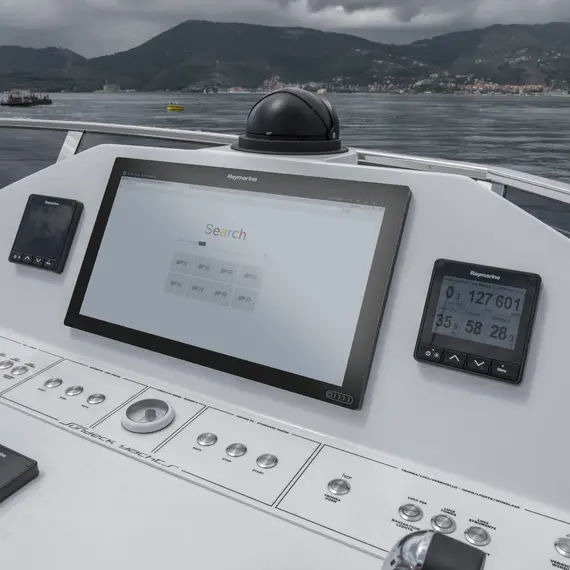

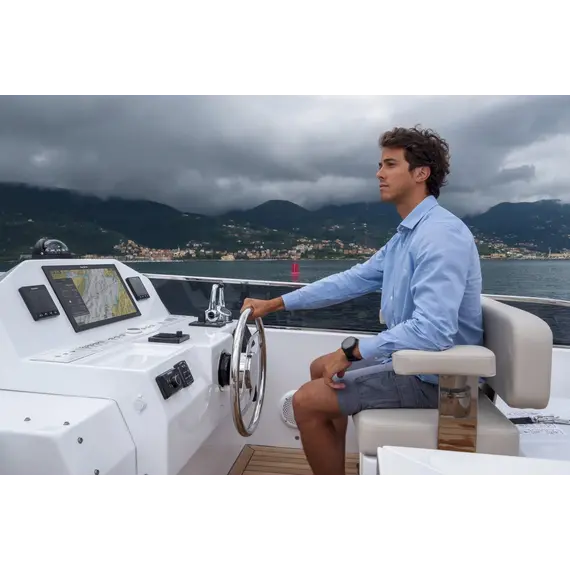

You can install AXIOM XL 16 GlassBridge both in a closed wheelhouse and on an open deck - it is not afraid of any weather conditions, including a storm. The multi-touch coating resists not only water, but also engine oil and other contaminants. In any, including difficult situations, the touch screen quickly responds to touch, a powerful processor responds to commands and quickly performs tasks.

1. Chartplotter.

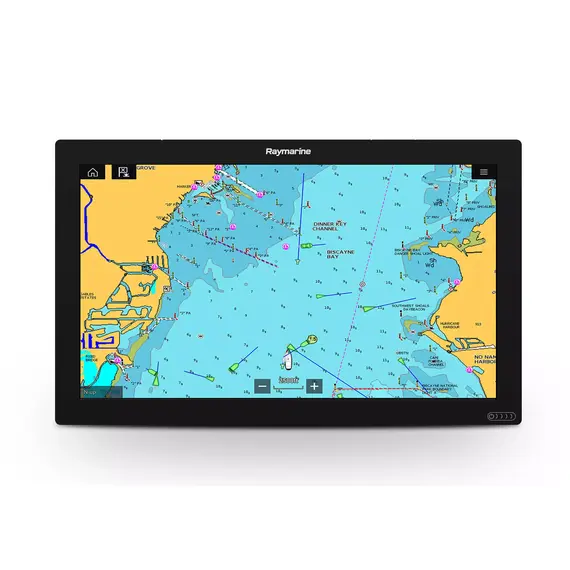

The display supports the best navigation mapping systems - C-MAP and Navionics. Cards are displayed promptly and seamlessly. When scaling, the quality is preserved. The maps provide pilot information about waypoints, which can be more than 2000 depending on the choice. Ports, fairways, currents, shoals, depths with contours and color changes, coastal and water navigation signs - lighthouses, alignments, buoys, etc. are indicated and described.

You can also use LightHouse NC2 display operating system cards.

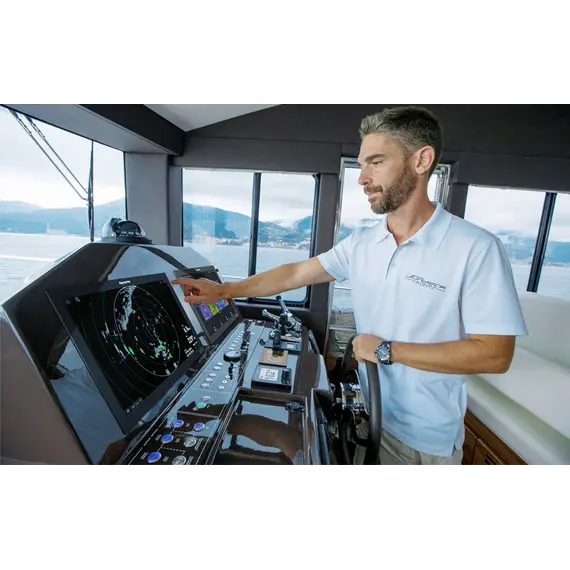

2. Radar.

The built-in GPS/GLONASS transmitter scans the situation in the water area at a frequency of 10 Hz. This is a great opportunity to strictly control the route, avoiding deviations. The passage is recorded in real time with a mark of waypoints, which can be up to 500.

There are options for connecting other antennas and sonars that are compatible with AXIOM XL.

3. Sonar.

The AXIOM XL range of displays is compatible with the following sonar equipment that can be connected to:

  • echolocation unit RVX1000 3D CHIRP;
  • Raymarine CHIRP sonar;
  • sonar with RealVision 3D technology.

Choose an option to search for fish or sunken ships and other objects, explore the bottom topography, or monitor the state of the underwater world.

The cost of the ship display AXIOM XL 16 GlassBridge is indicated for the basic configuration.

Additional materials

Installation instructions (Installation_instructions.pdf, 2,811 Kb) [Download]

Drawing (Drawing.pdf, 136 Kb) [Download]

Datasheet (Datasheet.pdf, 91 Kb) [Download]
