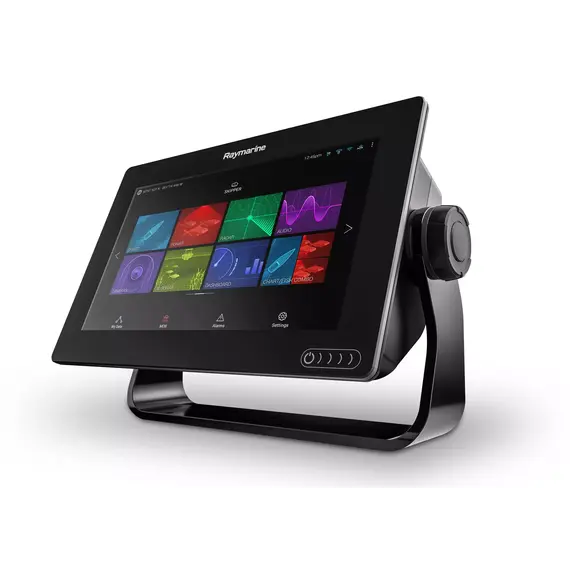

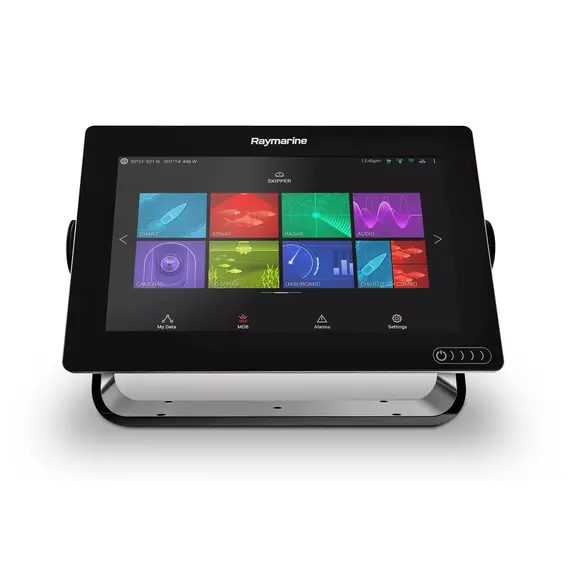

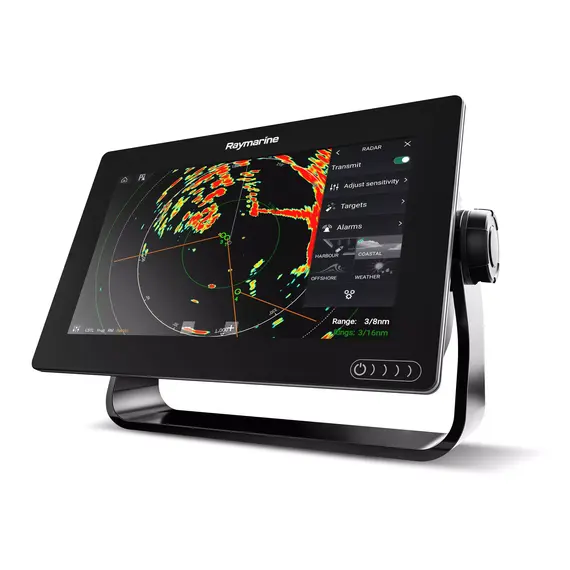

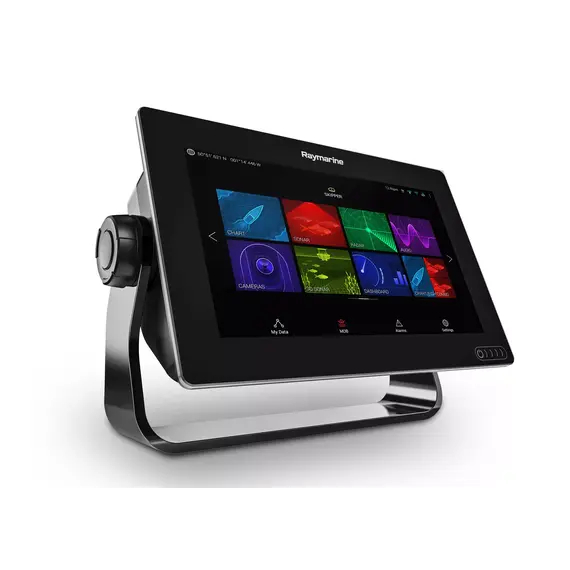

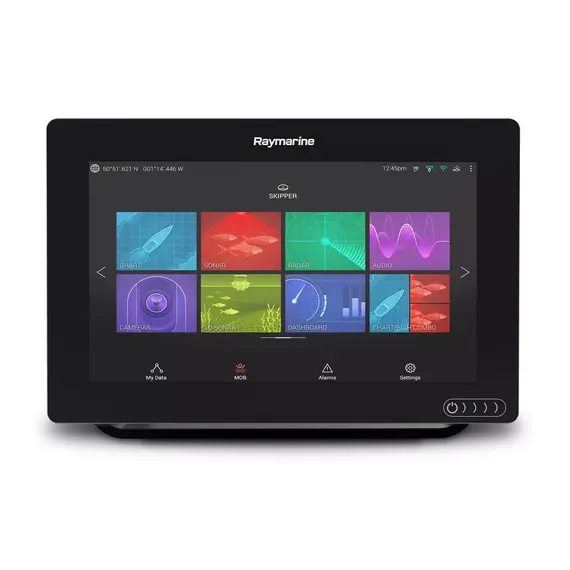

AXIOM 9 Touch with integrated RealVision 3D Sonar

E70366-00-NSD
1,210.04

Raymarine display AXIOM 9 RV 3D performs the functions of a chartplotter, radar and sonar. To do this, it has a built-in GPS/GLONASS receiver and RealVision 3D sonar, which combines CHIRP technologies in one housing. The operating system supports the best navigation mapping applications Navionics and C-MAP. Buy AXIOM 9 RV 3D marine display and get three in one: precise geolocation, seamless maps and 3D underwater views.

Taxes
Delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance Model numberE70366-00-NSD

Raymarine navigation display AXIOM 9 RV 3D will make sailing as safe as possible and make it easier for fishermen to track down fish. This applies to both fishing enthusiasts and those who are engaged in industrial fishing.
A system of echo sounders combined in one sensor will help to detect fish shoals and single fishes:

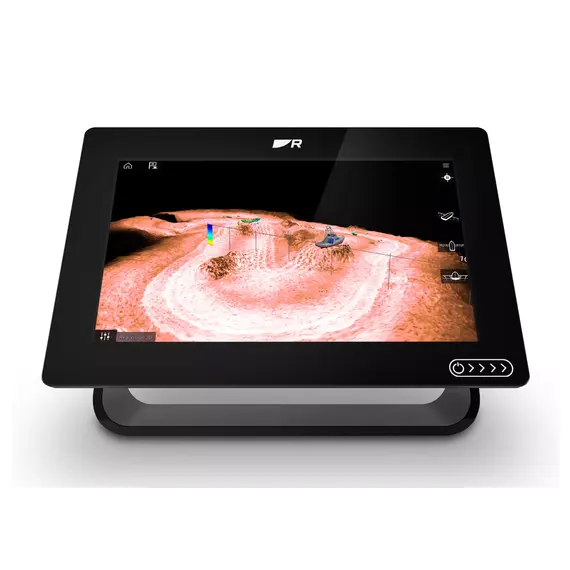

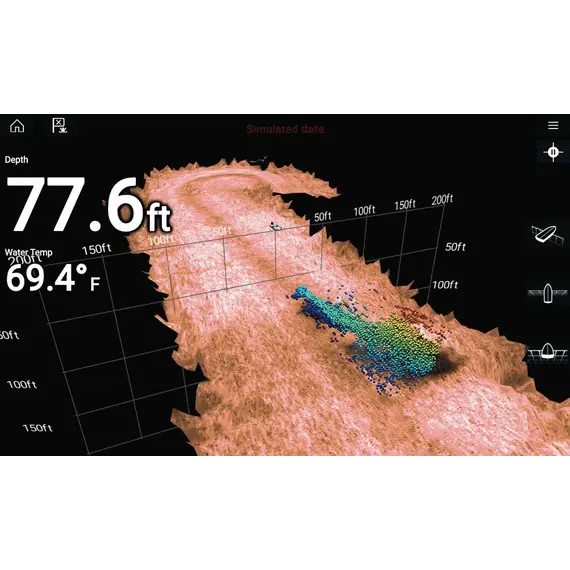

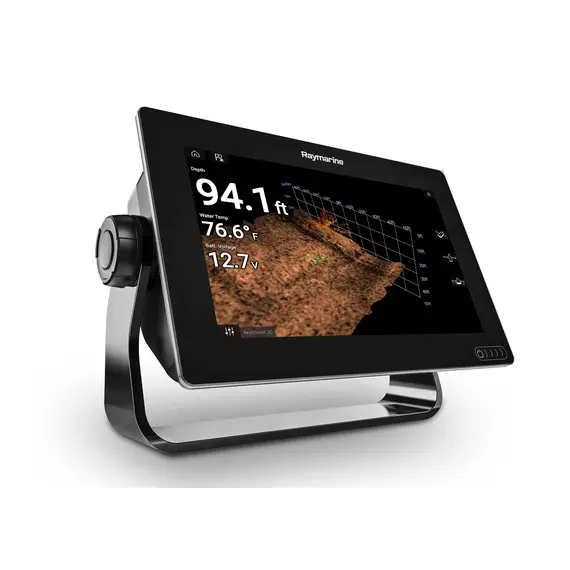

  • RealVision 3D - provides a realistic three-dimensional display of obtained data, including data from CHIRP sonars;
  • CHIRP DownVision technology improves the detail and reliability of the image on the screen, sonar constantly scans the area under the ship;
  • side scan is provided by CHIRP SideVision and the result of its work is the detailing of the structure of the bottom relief and the display of fish congregations;
  • High Frequency CHIRP provides high frequency pulse, configured to detect fish at depths up to 60 meters.

All information is displayed on the screen in real time. The touch screen with anti-reflective coating and bright colors gives a complete picture of the situation both in the underwater space and in the water area.

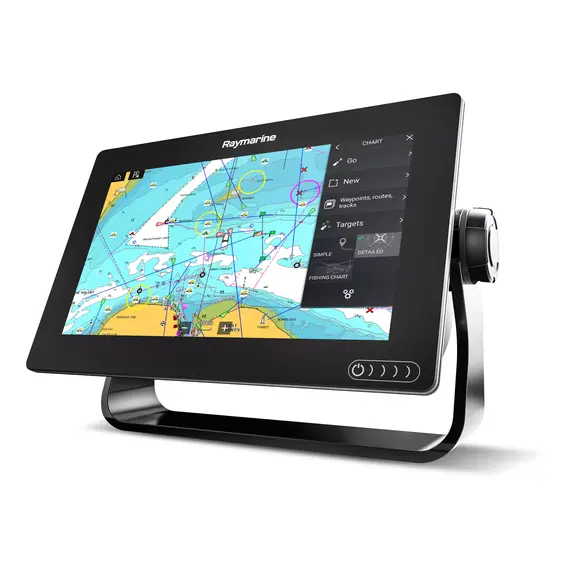

With a light touch, you can display seamless Navionics and C-MAP maps with information about the features of the route, indicating waypoints, depths, currents and navigational equipment. Or switch to views of underwater space.

Raymarine display cost AXIOM 9 RV 3D is listed with RealVision 3D installed sonar. You can expand the display capabilities by purchasing optional Raymarine navigation equipment compatible with the AXIOM platform.

Features of AXIOM 9 Touch with integrated RealVision 3D Sonar

    Brand
    Raymarine
    Voltage, V DC
    12 (8 to 16)
    Weight, kg
    2.04
    EAN
    00723193823293
    Operating temperature
    -25 to +55 °C
    Main features
    Model number
    E70366-00-NSD
    Display size, inch
    9
    With transducer
    No
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    145
    Installation width, mm
    231
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Touch screen
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    Yes
    Nautical chart support
    Yes
    Tablet control
    Yes
    Technical data
    Video/camera
    Compatible with CAM210IP and CAM220IP (max. 10 cameras)
    Resolution, mm
    800 x 480 WVGA
    Brightness, nits
    1,200
    Viewing angle, °
    60 / 70 / 70 / 70 (Top / Bottom / Left / Right)
    Power consumption, W
    11.98

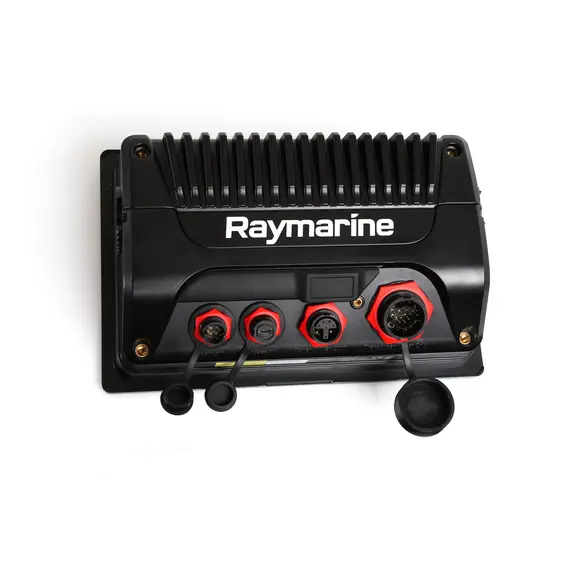

    Ethernet, ports
    Yes, 1x port (RayNet)
    NMEA2000, ports
    Yes, 1x port (Micro C)
    NMEA0183
    No
    SeaTalkNG
    Adapter cable necessary
    USB
    1x USB mircoAB
    GPS
    Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
    Sonar
    Integrated
    Radar
    Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
    AIS
    Yes, via NMEA2000
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C

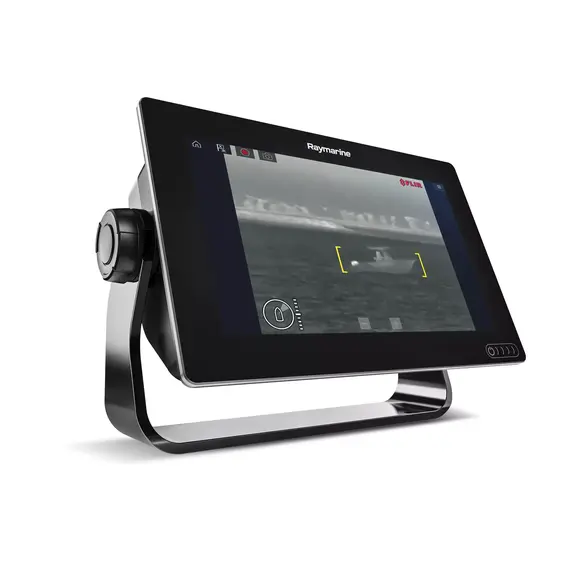

    Thermal image
    FLIR AX8, M232, M300 series, M400, M500
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    244 x 158 x 75
    Find similar
Additional materials about AXIOM 9 Touch with integrated RealVision 3D Sonar
Ask a Question about this product
Articles about AXIOM 9 Touch with integrated RealVision 3D Sonar

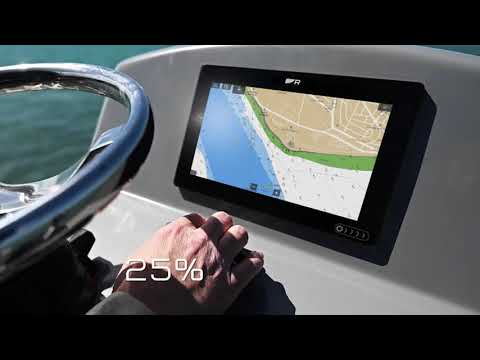

Raymarine AXIOM 9 by Reviewmarine
