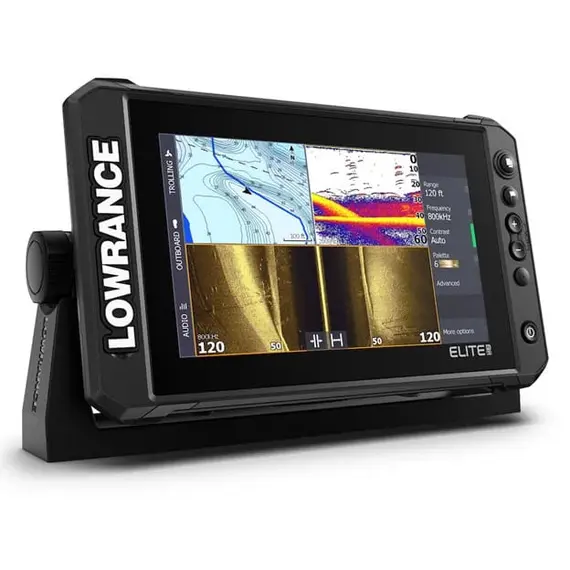

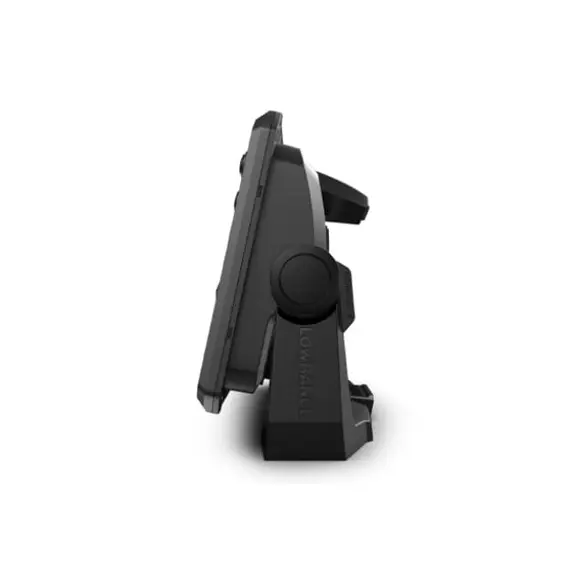

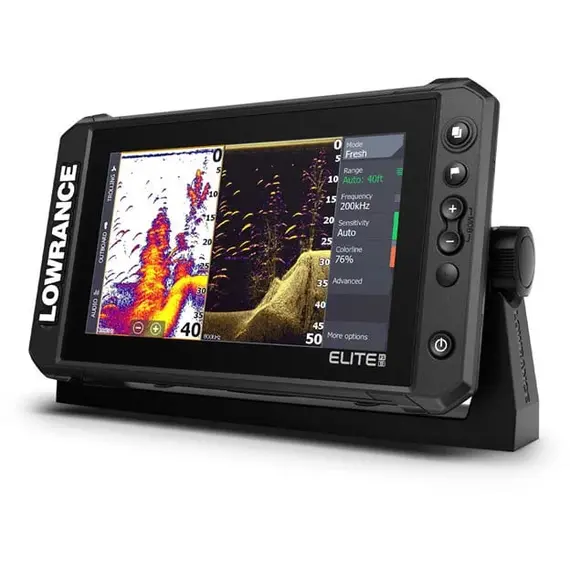

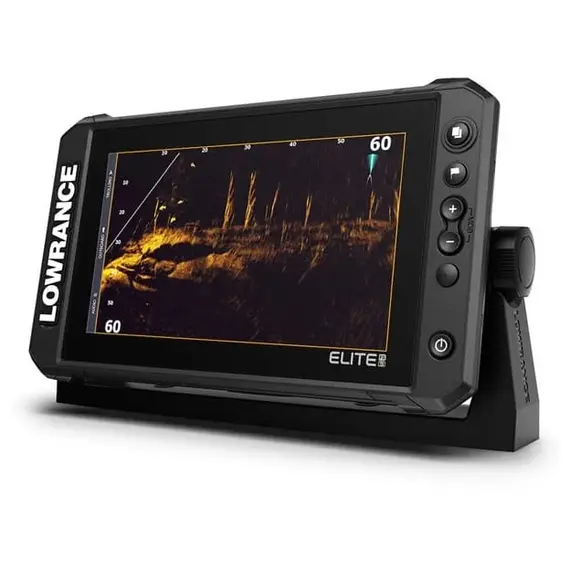

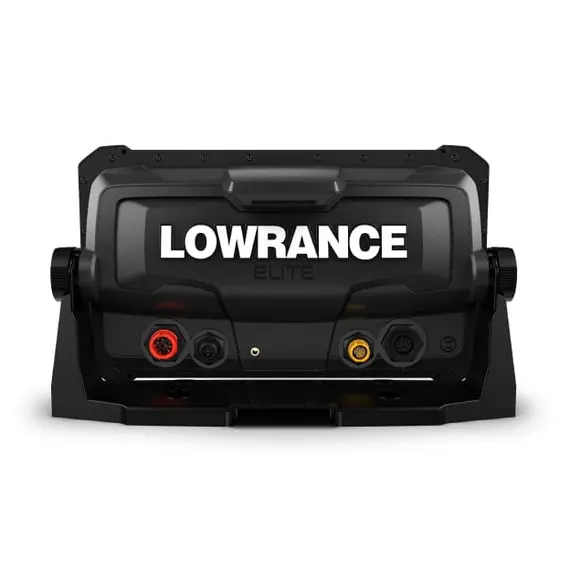

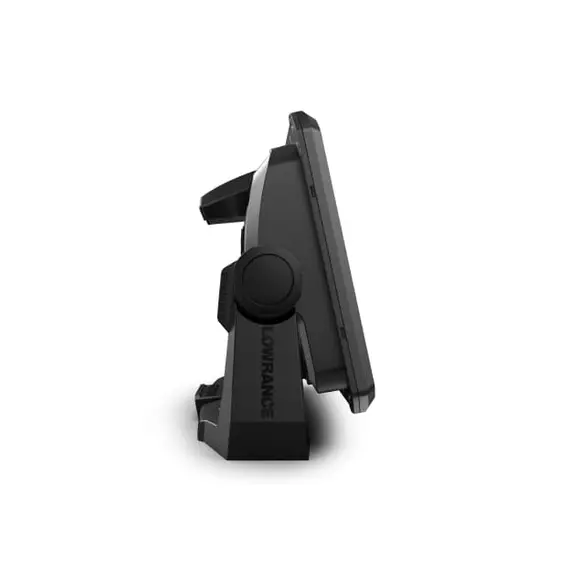

Elite FS™ 9 without Transducer

5605308
806.65
In stock

Live Sonar ActiveTarget, Active Imaging, FishReveal

Advanced multi-touch, non-reflective flat glass screen

Ethernet and NMEA 2000 compatibility for data sharing

FNI
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLowrance Shipping fromCroatia Display size, inch9
Brand
Lowrance
MPN
000-15707-001
Voltage, V DC
10-17
Weight, kg
1.2
EAN
9420064117086
Operating temperature
-15°C to +55°C
Main features
Display size, inch
9
With transducer
No
NMEA0183
Optional
Bluetooth
Yes
Sonar module
Yes
Sea Charts
C-MAP MAX N, C-MAP MAX N+, C-MAP Genesis, C-MAP Precision Contour HD, Naviconics+, Navionics Platinum+, Insight Pro and HD
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
No
Technical data
Resolution, mm
800 x 480
Brightness, nits
1200
Viewing angle, °
70
Ethernet, ports
1
GPS
WAAS, MSAS, EGNOS, GLONASS
Sonar
CHIRP, DownScan, SideScan, ActiveImaging, ActiveTarget
Radar
3G, 4G, HALO20, HALO20+ and HALO24
AIS
Yes
Card slot
1 x microSD
Autopilot operation
Outboard, PilotGhost, Trolling Motor, MotorGuide Xi5/Xi3
Storage temperature
-20°C to +60°C
Waterproof
IPX7

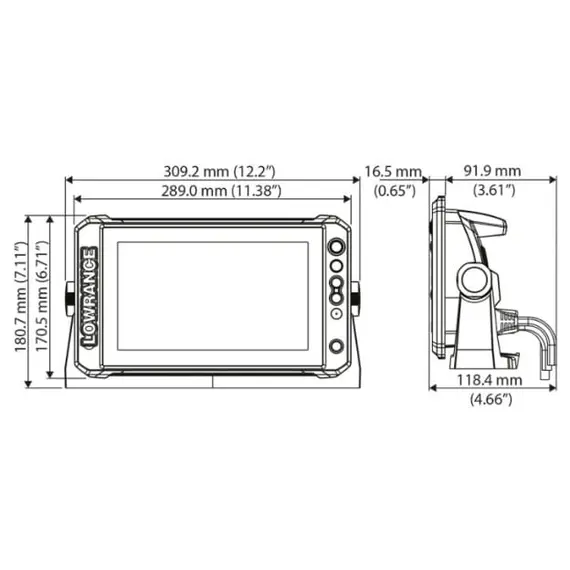

Dimensions, mm
289 x 171 x 118
Find similar

Lowrance's cutting-edge Elite Fishing System (FS) offers an extensive array of fishfinder tools, incorporating Live Sonar ActiveTarget, Active Imaging, and FishReveal functionalities. With an advanced multi-touch, flat glass, and non-reflective screen, this system guarantees superior visibility under lighting conditions. A single, user-programmable button enables swift access to crucial and frequently used functions.

Benefitting from Ethernet compatibility, the Elite FS allows seamless data sharing of sonar, charts, waypoints, and more across multiple displays. NMEA 2000 support empowers users to build a comprehensive Elite Fishing System for fresh and saltwater environments.

Enrich your global map collection with additional C-MAP and Navionics maps while activating Genesis Live ensures real-time mapping. The model boasts numerous features, including direct radar connection, integrated WiFi, full touchscreen control of POWER POLE anchors, and a GHOST Trolling Motor.

The package encompasses essential accessories, like the HDS/Elite/Hook/Mark power only cable, fuse and fuse holder, HDS-9 LIVE/Elite FS™ 9 bracket, and Elite FS™ 9 suncover.

Additional materials

Installation Instructions (Elite-FS_IG_EN.pdf, 1,656 Kb) [Download]

Owner’s Manual (ELITE-FS_UM_EN.pdf, 11,849 Kb) [Download]
