5607217

AXIOM 2 PRO 12 RVM

3,778.25
In stock

Ultra-fast 6-core processor for unparalleled power and performance

Superior display and improved ergonomics for a seamless user experience

HybridTouch control with versatile touchscreen and keypad interface

FNI
+
Add to Wishlist
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Display size, inch12 BrandRaymarine Shipping fromCroatia
Brand
Raymarine
MPN
E70656
Voltage, V DC
12-24
EAN
723193843543
Operating temperature
-25° C to +55° C
Main features
Display size, inch
12
With transducer
No
NMEA0183
Optional
Bluetooth
Yes
Sonar module
Yes
Sea Charts
Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Resolution, mm
1280 x 800
Brightness, nits
1200
Viewing angle, °
88
Power consumption, W
29.9
Ethernet, ports
2 x 10/100 Mbit/s Network (RayNet)
NMEA2000, ports
1 (DeviceNet)
SeaTalkNG
Yes
USB
1 x Micro B
GPS
GPS, Galileo, GLONASS, Beidou
Sonar
CHIRP / Fishfinder, DownVision, SideVision, RealVision 3D
Radar
Quantum, Digital, HD Color and Super HD Color Radars
AIS
Yes, via NMEA2000
Card slot
2 x MicroSDXC
Autopilot operation
Evolution autopilot
Storage temperature
-30° C to +70° C
Thermal image
FLIR
Waterproof
IPX6 / IPX7
Dimensions, mm
246.1x388.5x233.4 (bracket mounting incl. cable) / 222.8x358.0x233.4 (flush mounting incl. cable)
Find similar

Experience unparalleled power and performance with the Raymarine AXIOM 2 Pro, a truly exceptional device. Equipped with an ultra-fast 6-core processor, this advanced unit boasts an array of impressive features. The superior display and improved ergonomics, coupled with the intuitive LightHouse 4 operating system, ensure a seamless user experience. Whether navigating calm waters or enduring rough seas, the AXIOM 2 Pro's HybridTouch control allows for reliable command through its convenient keypad interface.

Adapting to varying lighting conditions, the ambient light sensor automatically adjusts the display brightness for optimal visibility, day or night. Discover the wonders of the underwater world with the integrated sonar module, while the AXIOM 2 Pro series effortlessly handles a wide range of detailed nautical charts. For even greater capabilities, the Pro RVM version includes the cutting-edge RealVision MAX technology, incorporating DownVision, SideVision, and 3D sonar, as well as 1 kW CHIRP sonar technology.

Boosting its performance further, the integrated 6-core processor enables faster start-up times and higher frame rates, resulting in a smoother and more visually immersive experience. The HybridTouch operation ensures versatile control options, allowing users to effortlessly plan and plot their course using the responsive touchscreen or rely on reliable keypad controls when facing turbulent conditions.

Designed to withstand extreme environments, the HydroTough display features nano-coating technology, providing reliable wet and dry touchscreen operation, enhanced colors, and excellent sunlight visibility. Its anti-fingerprint properties ensure a clear screen that can be easily cleaned, maintaining optimal visibility at all times.

Efficiency meets convenience with the automatic screen brightness adjustment. The ambient light sensor intelligently adapts the display's brightness, reducing power consumption and operating temperatures. Users can easily switch to manual operation with a simple touch, gaining full control over the screen's brightness.

Tailor the user experience to your preference with interchangeable keypads. The right side of the display allows for customization, offering a dedicated autopilot keypad or user-programmable soft keys. Both options are included in the package, ensuring quick and hassle-free keypad exchange.

Unlocking vast possibilities, the AXIOM 2 Pro supports a wide range of nautical charts, enabling users to select their preferred brands such as Navionics+ or C-MAP 4D. Integrating two microSD slots, multiple cruising areas or a combination of a sea chart and additional memory can be easily managed. The incorporation of the GPS receiver guarantees accurate and dependable location tracking.

RealVision MAX technology enhances your fishing experience by providing increased range, improved resolution, and sharper fish targets. Combined with 1 kW CHIRP sonar technology, RealVision MAX optimizes DownVision, SideVision, and 3D sonar capabilities. Additionally, backward compatibility allows for seamless integration with older RV transducers.

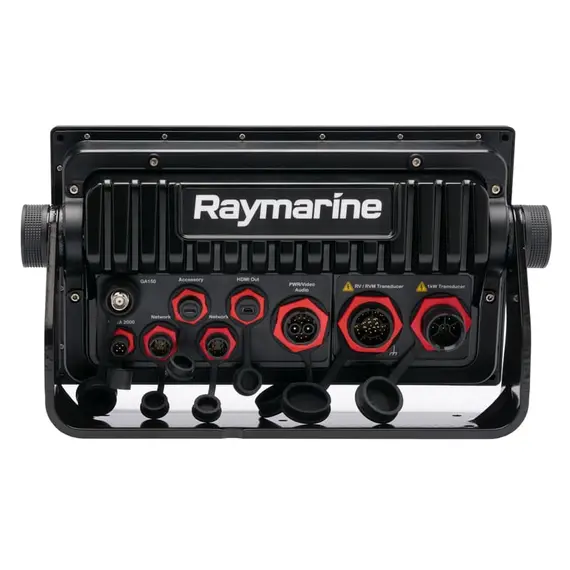

As a true all-rounder, the AXIOM 2 Pro series offers a remarkable array of connection options. Seamlessly integrate various marine electronics, including autopilots, radar antennas, AIS devices, audio systems, sonar detectors, and video cameras, all displayed on the multifunctional display. Enhance your system's capabilities by linking multiple Axiom displays using Raynet/Ethernet connections, or transmitting visuals and audio to distant monitors or TVs using the micro-HDMI output. Enjoy user-friendly operation through the LightHouse 4 operating system, further enhancing your overall experience.
