AXIOM 16 PRO-RVX - Touch & Buttons

E70373
6,399.95

For anglers and wreck seekers, Raymarine has developed the AXIOM 16 PRO-RVX marine display. It has built-in RealVision 3D sonar and supports CHIRP DownVision and SideVision technologies, which scan the underwater area under the boat and to the sides. The satellite navigation system receiver and the support of the best cartography provide full route control. Buy AXIOM 16 PRO-RVX for successful fishing and safety.

Taxes
Delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance Model numberE70373

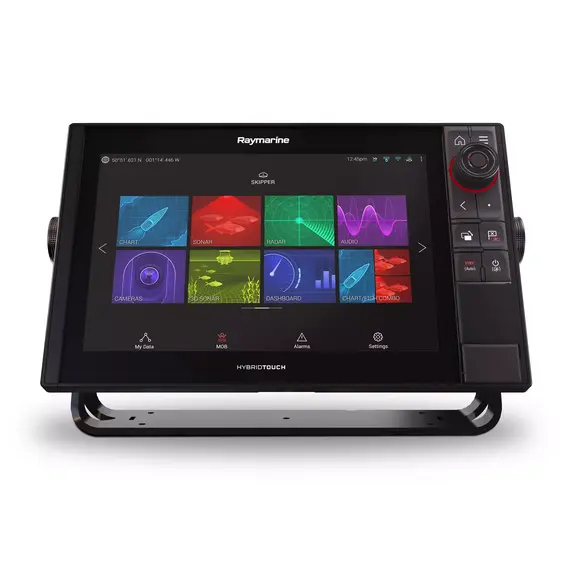

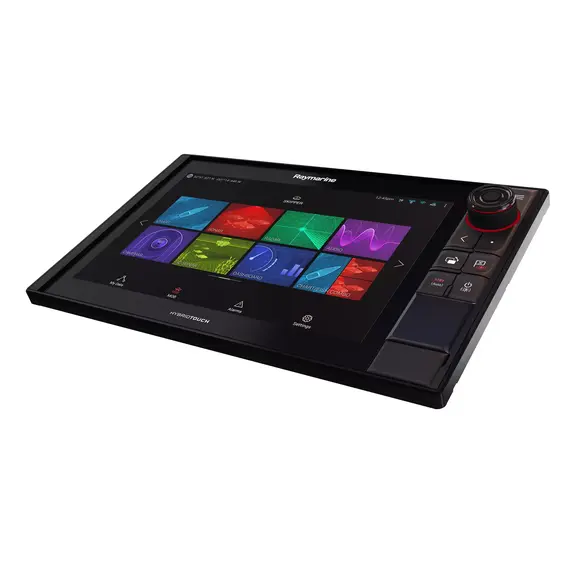

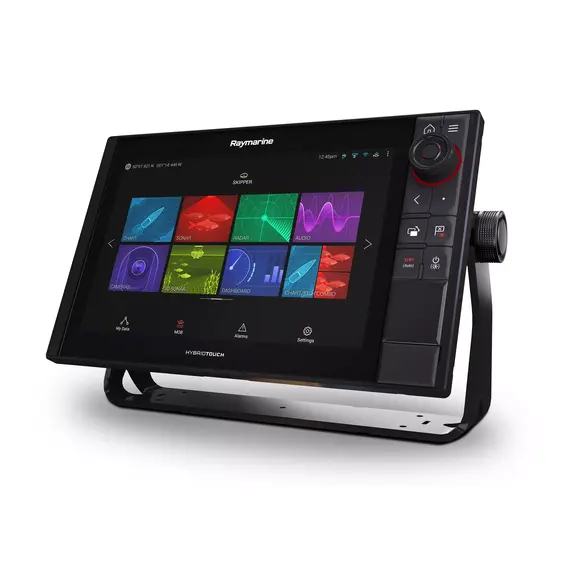

The Raymarine AXIOM 16 PRO-RVX productive multifunction marine display combines radar, sonar and chartplotter in one package:

  • It is equipped with a powerful 4-core processor. It quickly responds to commands that can be given through the touch screen or using the keyboard;

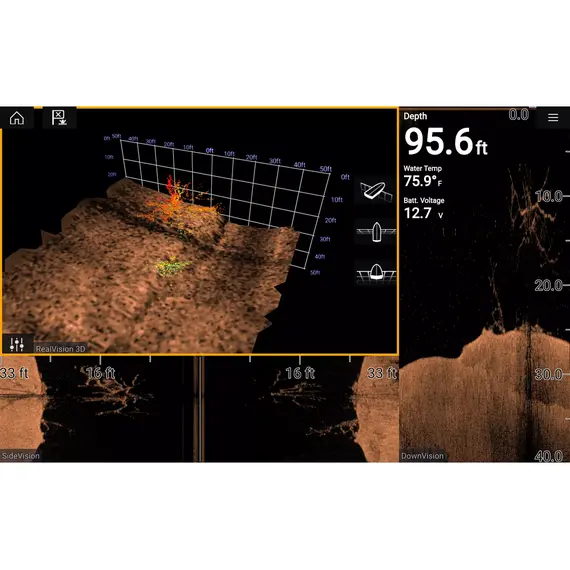

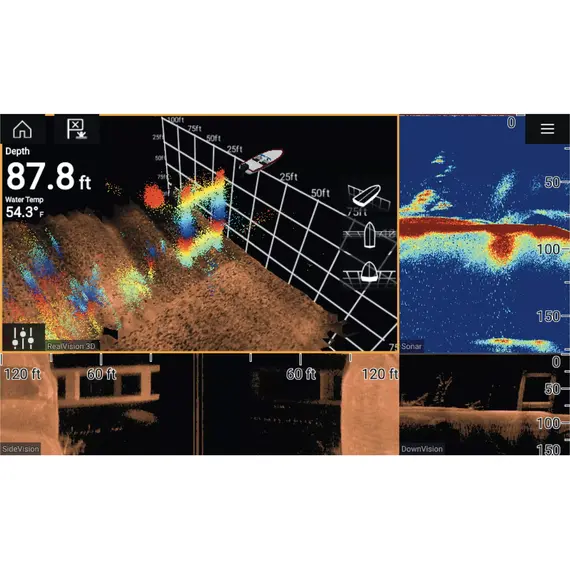

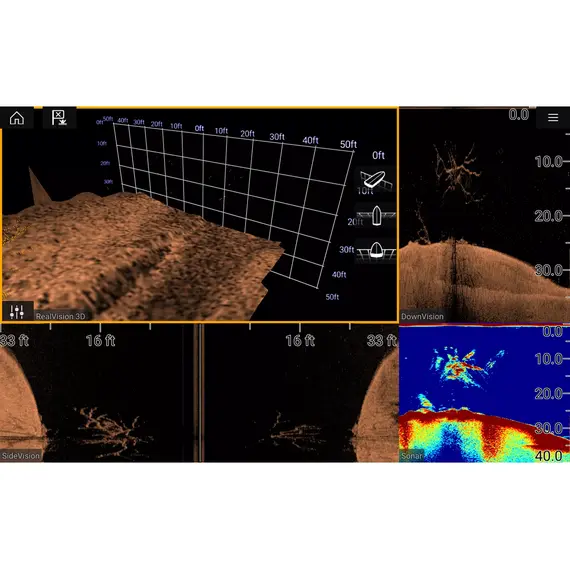

  • RVX sonar combines CHIRP DownVision and SideVision technologies, thanks to which you can see what is happening in the underwater space under the boat and on the sides;

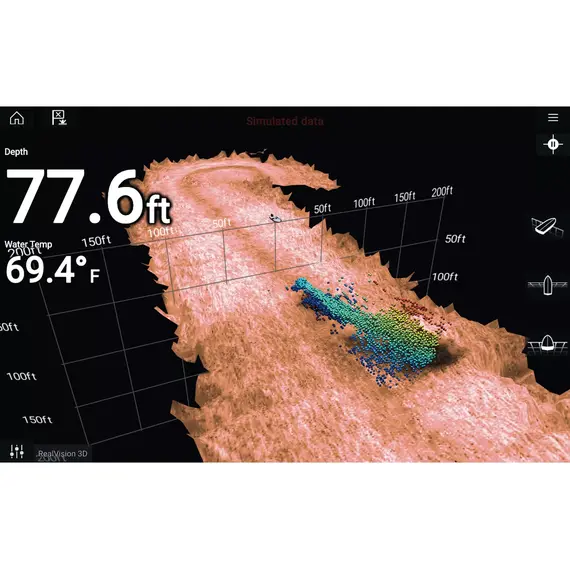

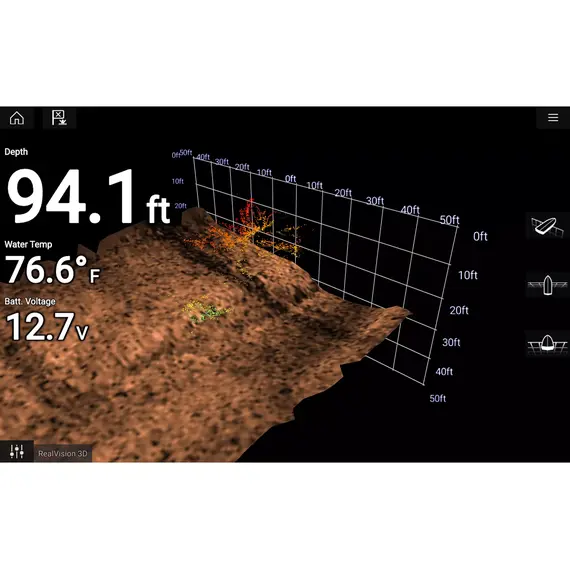

  • thanks to the RealVision 3D sonar and satellite navigation system receiver, you get a real 3D picture of the underwater space in real time with a display of the structure of the seabed, fish, underwater objects;
  • LightHouse 3 operating system supports C-MAP and Navionics navigation cartography;
  • it promptly displays seamless C-MAP 4D, Navionics+, Navionics Platinum+, and LightHouse maps indicating the necessary waypoints with accompanying information on the water area and coast.

The receiver of the satellite navigation system scans the situation in the water area 10 times per second. This provides not only control of the water area (approaching vessels, buoys, alignments), but also helps to control the observance of the route.

You can create a route by adding up to 500 waypoints. GPS/GLONASS also records the passage of the route in real time and displays the image on the screen.

Multi-touch has an anti-reflective coating, so the picture is bright and clear at any time of the day. The touch screen is made of impact-resistant material.
AXIOM 16 PRO-RVX price includes sonar and satellite navigation receiver.

Features of AXIOM 16 PRO-RVX - Touch & Buttons

    Brand
    Raymarine
    Voltage, V DC
    12V and 24V DC (8V to 32 DC)
    Weight, kg
    10.9
    EAN
    00723193815014
    Operating temperature
    -25 to +55 °C
    Main features
    Model number
    E70373
    Display size, inch
    15.6
    With transducer
    No
    NMEA0183
    Yes
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    243
    Installation width, mm
    437
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Touch screen & keys
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    Yes
    Nautical chart support
    Yes
    Tablet control
    Yes
    Technical data
    Video/camera
    1 x Analogue input (BNC) Up to 10 IP Cameras
    Resolution, mm
    1920 x 1080 WXGA IPS Optically Bonded LCD
    Brightness, nits
    1200
    Viewing angle, °
    88° top, bottom, left, right
    Power consumption, W
    45

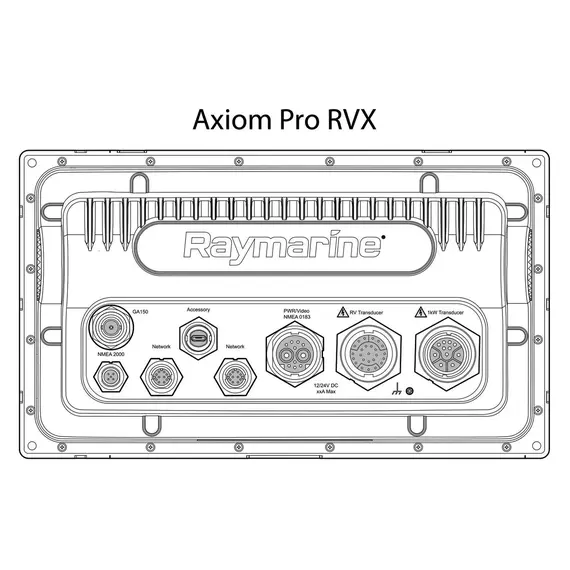

    Ethernet, ports
    2 x 10/100 Mbit/s Network (RayNet)
    NMEA2000, ports
    Yes, 1x port (Micro C)
    NMEA0183
    Yes
    SeaTalkNG
    Requires DeviceNet Female (F) adaptor cable (A06075 1m adaptor included in box)
    USB
    1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
    GPS
    Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288)
    Sonar
    Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
    Radar
    Yes - Quantum, Digital, HD Color and Super HD Color Radars
    AIS
    Yes - N2K compatible
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C
    Thermal image
    Yes - IP or analog
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    447 x 258 x 69
