Element 7 HV with Buttons & HyperVision Sonar without Transducer

E70532
619.28

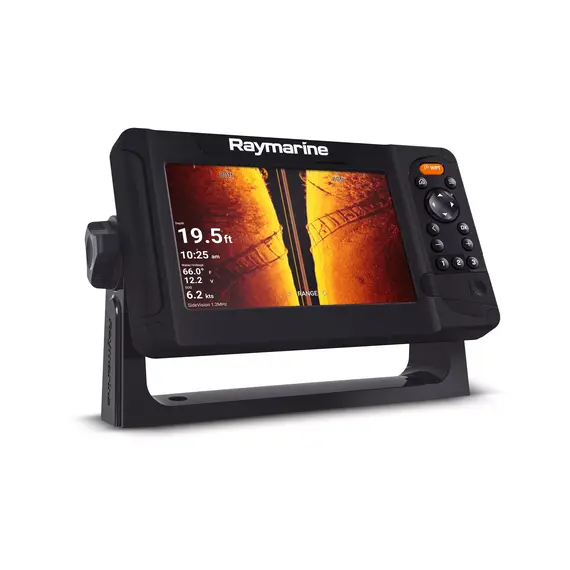

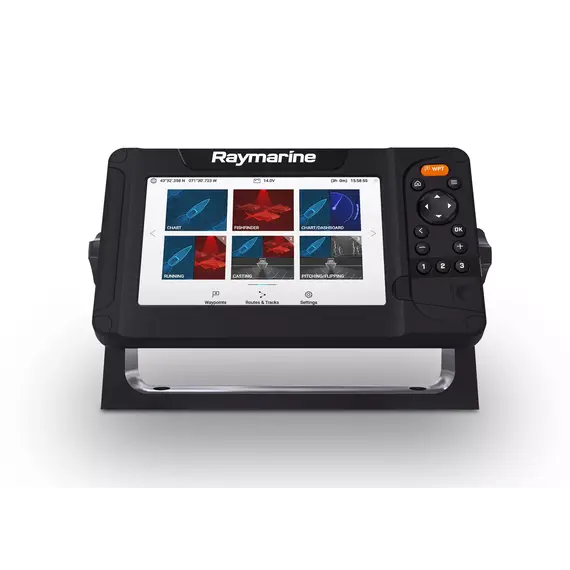

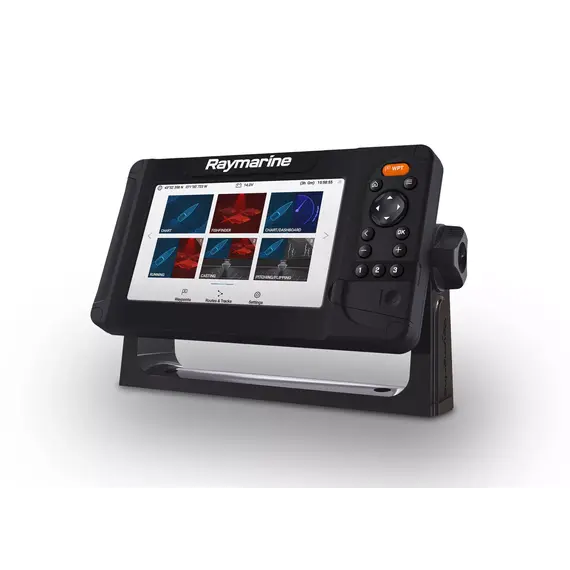

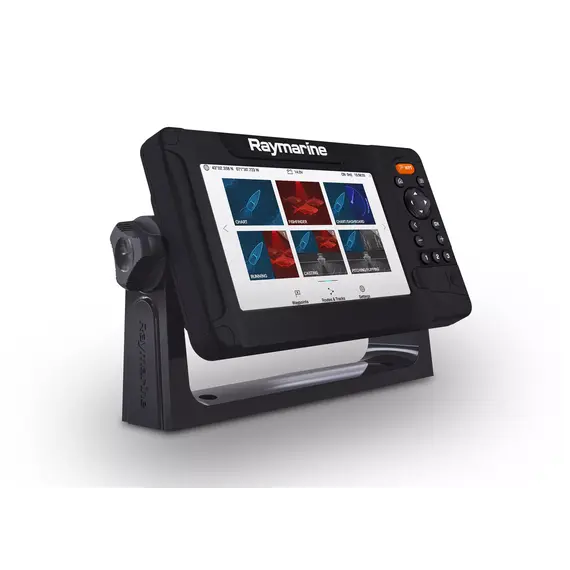

The Element 7 HV marine display acts as both chartplotter and sonar functions. Single-channel CHIRP sonar in combination with RealVision 3D allows you to receive a three-dimensional image on the screen in real time. This allows you to detect and accurately locate fish. Support for C-MAP 4D, Navionics, LightCharts NC2 mapping provides fast chart output in a seamless manner. The price of the marine display Element 7 HV does not include the sensor.

Taxes
Delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance Model numberE70532

When you buy a Raymarine Element 7 HV marine display, you pay a small price for big features. Thanks to the open platform of the display, you can expand its functions and significantly improve the existing ones. This is very convenient: you do not have to pay a significant amount right away, but purchase additional equipment as needed.

1. Since the Element 7 HV shipboard display has a built-in GPS antenna, you can expand its functions by connecting a GPS/GLONASS receiver to scan the situation in the water area. By overlaying the radar pattern with the sonar data, you can pinpoint the location of fish or wrecks with maximum accuracy.

2. By installing the CPT-100 DVS transom transducer, you can get the most out of CHIRP technology by getting images from depths over 180 meters from the space under the boat and on the sides.

3. By installing the HV-100 transducer, you will be able to get images of bottom structure and fish at depths up to 275 meters.

Element marine displays with 1.2 megahertz HyperVision technology and high resolution are designed specifically for fishermen - both hobbyists and those who are engaged in industrial fishing. Therefore, they provide only the most necessary functions to navigate the waters and see what is happening in the underwater space.

For ease of use, the display is equipped with a keypad, the hotkeys of which can be programmed to suit your needs.

Buy the Element 7 HV marine display from Raymarine, the world's leading fish finding devices producer, and upgrade it to your needs.


Features of Element 7 HV with Buttons & HyperVision Sonar without Transducer

    Brand
    Raymarine
    Voltage, V DC
    12V DC (8V - 16V DC)
    Weight, kg
    1.36
    EAN
    00723193827994
    Operating temperature
    -25 to +55 °C
    Main features
    Model number
    E70532
    Display size, inch
    7
    With transducer
    No
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    120
    Installation width, mm
    225
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Keys
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    No
    Nautical chart support
    Yes
    Tablet control
    No
    Technical data
    Resolution, mm
    800x480
    Brightness, nits
    1500
    Viewing angle, °
    88° top, bottom, left, right
    Power consumption, W
    15
    NMEA2000, ports
    Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
    NMEA0183
    No
    SeaTalkNG
    Requires A06045 DeviceNet female (F) adapter cable - 400mm
    GPS
    Integrated GPS / GNSS receiver: GPS / GLONASS
    Sonar
    Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
    Radar
    Quantum wireless CHIRP compatible Wi-Fi only connection
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C
    Thermal image
    Yes - IP or analog
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    240 x 135 x 62
