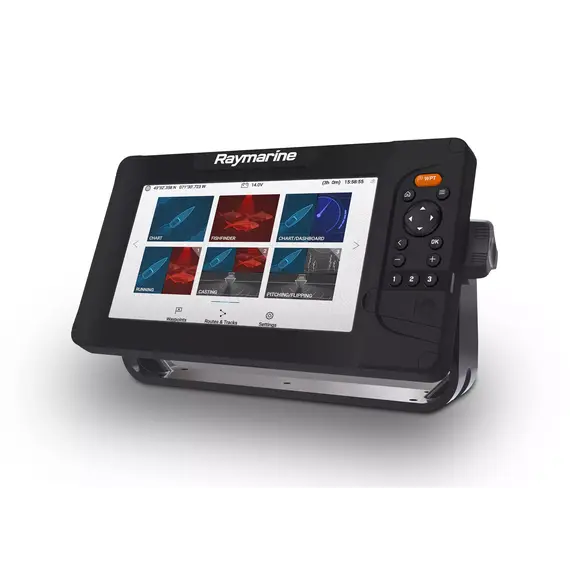

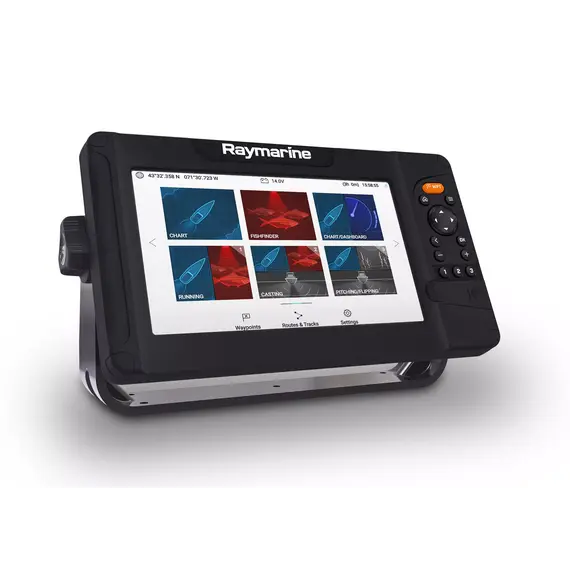

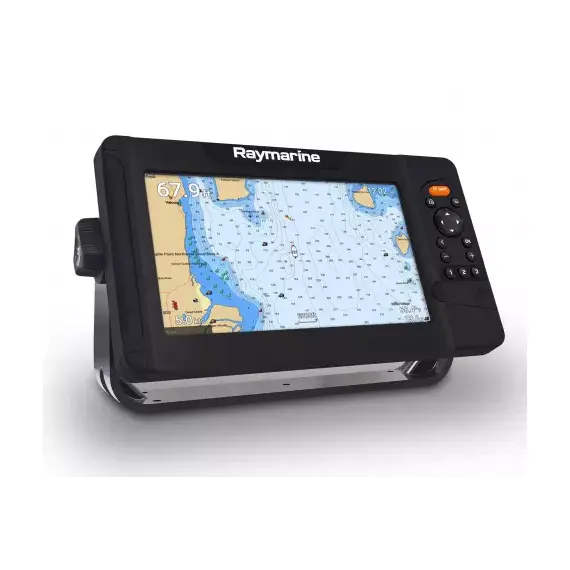

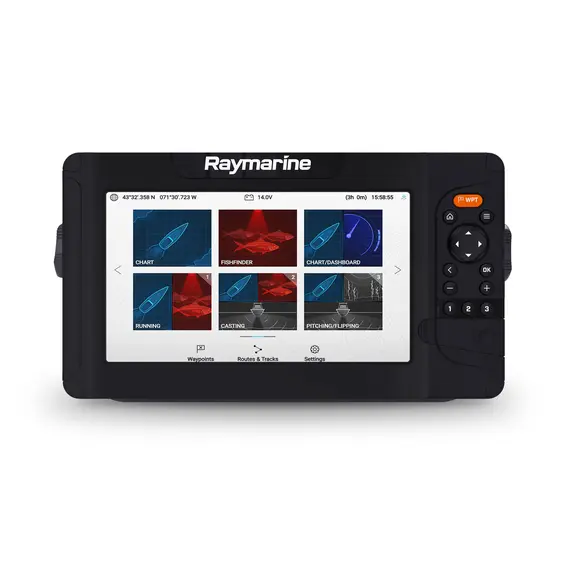

Element 9S with Buttons, CHIRP Sonar Module & Navionics+ Large Blank Chart

81827
955.25
In stock

If all you need from a marine display is uninterrupted and accurate navigation information, buy the Element 9S CHIRP Navionics+. Fill in the empty Navionics+ module with maps of the region you need. The built-in CHIRP sonar module will detect fish and explore bottom structure. Choose the appropriate satellite navigation receiver for your built-in GPS antenna. The price of the Element 9S CHIRP Navionics+ marine display is for the basic package.

BrandRaymarine Shipping fromCroatia Display size, inch9
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12V DC (8V - 16V DC)
Weight, kg
2.5
Operating temperature
-25 to +55 °C
Main features
Display size, inch
9
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
145
Installation width, mm
269
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
No
Nautical chart support
Yes
Tablet control
No
Technical data
Resolution, mm
800 x 480
Brightness, nits
1500
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
20
NMEA2000, ports
Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
NMEA0183, ports
No
SeaTalkNG
Requires A06045 DeviceNet female (F) adapter cable - 400mm
GPS
Integrated GPS / GNSS receiver: GPS / GLONASS
Sonar
Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Radar
Quantum wireless CHIRP compatible Wi-Fi only connection
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
287 x 161 x 62
Find similar

The Element line of marine displays are high performance 9” chartplotters and sonars. All Raymarine display models have an open platform. Therefore, by purchasing Element 9S CHIRP Navionics+, which in its basic configuration is a marine chartplotter and sonar, you can significantly expand its capabilities due to additional peripherals:

  • use it as a radar if you connect a GPS/GLONASS receiver to the built-in GPS antenna;
  • fill an empty slot with C-MAP 4D, Navionics+, Navionics Platinum+ cards;
  • calculate and plot a route with waypoints indication;
  • monitor compliance with the route, receiving information about the location of the vessel;
  • quickly display seamless route maps with information on waypoints;
  • sailing directions on seamless maps;
  • connect transom transducers that can combine several types of sonar, in particular - Raymarine CPT-S sensors;
  • due to additional CHIRP technologies, you get an increase in the scanning area of ​​the underwater space down and along the sides, as well as to great depths;
  • improve the quality of the image on the screen by connecting RealVision 3D, get a three-dimensional image;
  • connect the autopilot and other on-board systems.

Robust, but easy-to-use operating system allows you to use the new LightHouse NC2 maps in addition to the best mapping systems.

Buy the Element 9S CHIRP Navionics+ marine display and expand its capabilities depending on your new needs.

Additional materials

Manual (Element-Manual.pdf, 2,057 Kb) [Download]

Drawing (Element-Drawing.pdf, 2,439 Kb) [Download]

LightHouse Basic Instructions (LightHouse_Basic.pdf, 2,334 Kb) [Download]

LightHouse Advanced Instructions (LightHouse-Advanced.pdf, 6,332 Kb) [Download]

Articles about Element 9S with Buttons, CHIRP Sonar Module & Navionics+ Large Blank Chart

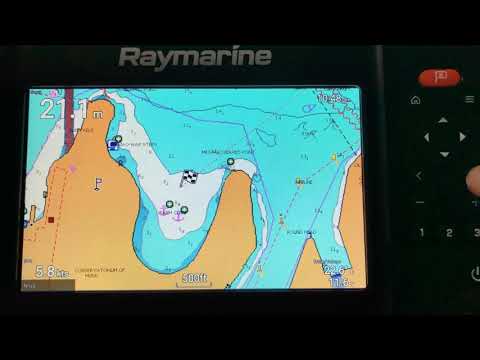

Raymarine Element Series Overview by SonarWars
