Element 9S with Buttons & CHIRP Sonar Module

650.55
In stock

The compact size of the Element 9S marine display allows it to be installed even on small boats. At the same time, it functions as a full-fledged chartplotter with the output of seamless maps, as well as CHIRP sonar for finding fish with a high-quality image on the screen. If you want to receive location data via satellite, just install a GPS/GNSS receiver as the GPS antenna is already built in. Buy the Element 9S marine display - maximum features for the minimum price.

+
Add to Wishlist
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Model numberE70533 Display size, inch9 BrandRaymarine Shipping fromCroatia
Brand
Raymarine
Voltage, V DC
12V DC (8V - 16V DC)
Weight, kg
2.5
EAN
00723193828014
Operating temperature
-25 to +55 °C
Main features
Model number
E70533
Display size, inch
9
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
145
Installation width, mm
269
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
No
Nautical chart support
Yes
Tablet control
No
Technical data
Resolution, mm
800 x 480
Brightness, nits
1500
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
20
NMEA2000, ports
Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
NMEA0183, ports
No
SeaTalkNG
Requires A06045 DeviceNet female (F) adapter cable - 400mm
GPS
Integrated GPS / GNSS receiver: GPS / GLONASS
Sonar

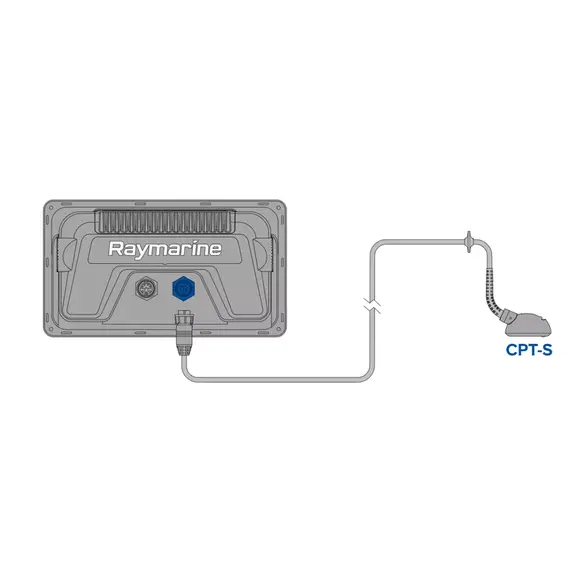

Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Radar
Quantum wireless CHIRP compatible Wi-Fi only connection
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
287 x 161 x 62
Find similar

The Element line of sonar chartplotters is designed for amateur and professional fishermen by the leader in fish finding equipment. Raymarine has taken into account that this equipment can be installed on a small boat, and has kept the simplest push-button controls and the most important features for successful sea fishing.

1. Sonar module for finding fish and displaying the image on the screen.

Built-in RealVision 3D technology is complemented by CHIRP technology, a downwards sonar. This allows you to successfully scan the underwater space and quickly detect fish even in algae.

2. Nautical charts.

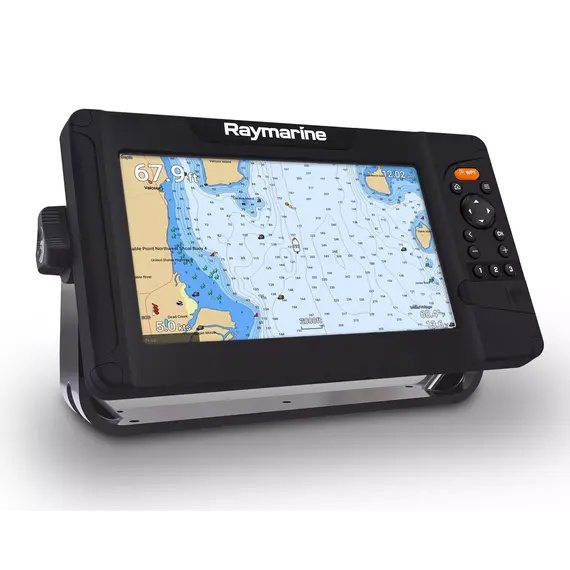

The operating system and powerful processor support the maps of the leaders in navigational cartography C-MAP and Navionics. You can work with Navionics+, Navionics Platinum+, C-MAP 4D charts, as well as LightHouse NC2 charts with a wide range of sailing regions.

Maps with waypoints are displayed quickly and seamlessly. The scale changes without distortion. The maps are provided with the most important information about ports, depths, navigation equipment at sea and along the coast (buoys, lighthouses), currents, shoals, fairway, etc.

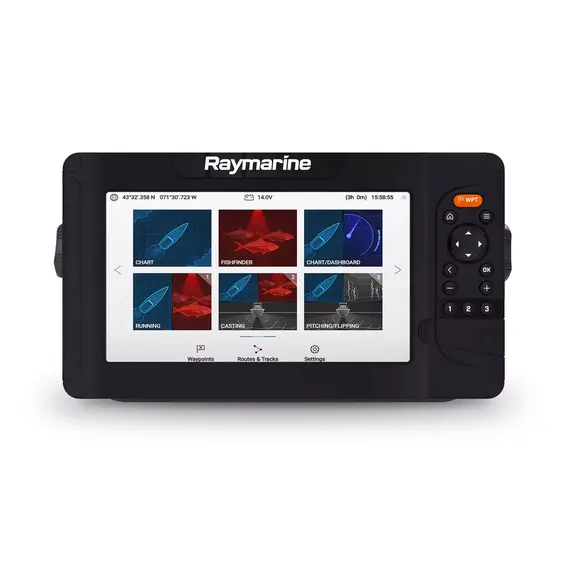

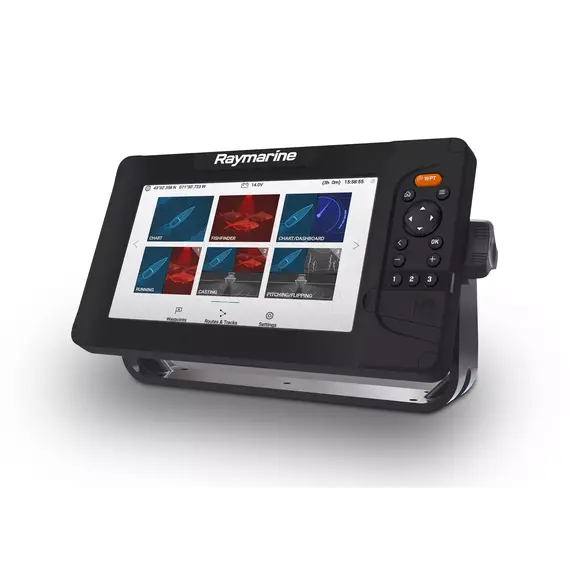

The stylish interface of the operating system is intuitive. Despite the capacity, OS management is simple, it can be customized to fit your needs. Control via the keyboard allows you to set up hotkeys for options that are important for the owner. This greatly speeds up the process of obtaining information.

The screen shows a bright and clear picture, whether it's maps or scanning underwater space. You can simultaneously display information coming from several sources - chartplotter, sonar, radar.

The display has double protection against moisture.

If you think catching fish is better than finding it, buy the Raymarine Element 9S, a marine display for the lucky fisherman.

Articles about Element 9S with Buttons & CHIRP Sonar Module

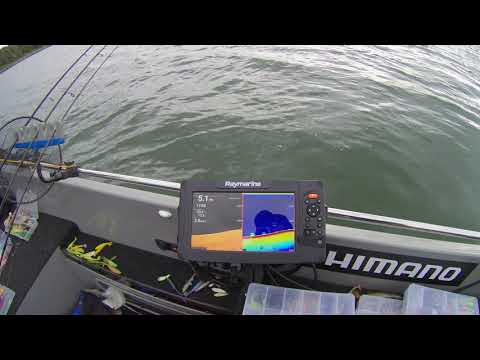

Raymarine Element Series Overview by SonarWars
