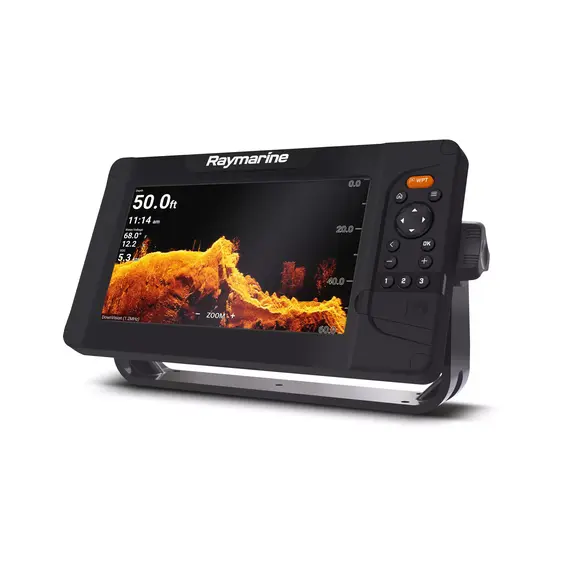

Element 9 HV with Buttons & Hypervision Sonar without Transducer

E70645-05
941.13

If you prefer to find fish quickly and spend the rest of your time actually fishing, buy the Element 9 HV, a marine display designed by Raymarine specifically for anglers. You'll enjoy the latest HyperVision 1200 kHz echosounder technology. You will receive a 3D image from a depth of 30 m and reliable information from the best Navionics and C-MAP mapping systems. Buy the Element 9 HV marine display and forget about wandering the sea in search of fish.

Taxes
Delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance Model numberE70534

Raymarine has significantly reduced the cost of the Element 9 HV marine display by providing it with an LCD screen and a keypad with buttons resembling a joystick. You can use the installed layout or program the hotkeys for yourself.

The main emphasis here is on the functions of the echo sounder and chartplotter.

1. Sonar with HyperVision technology

  • operates at a frequency of 1200 kHz, which allows you to get the highest image quality;
  • detects objects at a depth of 30 meters from the vessel;
  • transmits to the screen a three-dimensional image of fish, sunken objects and bottom structure in real time.

The moment of finding a school of fish or individual fishes can be fixed by pressing the Waypoint button. So you can immediately identify several locations that promise successful fishing, and then return to them and devote the rest of the time to fishing.

2. Cartography from Navionics and C-MAP

The display uses the LightHouse operating system, which supports Navionics+, Navionics Platinum+, C-MAP 4D and LightHouse NC2 charts. You can buy just a single map of the region where you are going to fish. Your route will be recorded with the fixation of the fishing spots you have marked.

The map will also provide information on depths, currents, shoals, tides and tides. Navigational equipment in the water area is depicted by contours in real colors, and depths - in shades of the same color.

3. The speed of the chartplotter, the control of sonar, radar and other equipment is provided by an ergonomic and easy-to-use operating system and a powerful 4-core processor.

Raymarine has taken into account that you may want to expand the capabilities of the display over time. You can buy Element 9 HV in the basic configuration at an affordable price and over time, you can always improve it with new sensors or other compatible Raymarine equipment.

Features of Element 9 HV with Buttons & Hypervision Sonar without Transducer

    Brand
    Raymarine
    Voltage, V DC
    12V DC (8V - 16V DC)
    Weight, kg
    2.5
    EAN
    00723193828014
    Operating temperature
    -25 to +55 °C
    Main features
    Model number
    E70534
    Display size, inch
    9
    With transducer
    No
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    145
    Installation width, mm
    269
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Keys
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    No
    Nautical chart support
    Yes
    Tablet control
    No
    Technical data
    Resolution, mm
    800x480
    Brightness, nits
    1500
    Viewing angle, °
    88° top, bottom, left, right
    Power consumption, W
    20
    NMEA2000, ports
    Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
    NMEA0183
    No
    SeaTalkNG
    Requires A06045 DeviceNet female (F) adapter cable - 400mm
    GPS
    Integrated GPS / GNSS receiver: GPS / GLONASS
    Sonar
    Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
    Radar
    Quantum wireless CHIRP compatible Wi-Fi only connection
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C
    Thermal image
    Yes - IP or analog
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    287 x 161 x 62
