ELEMENT 9 HV with Buttons & CPT-100 Transom Transducer

26122
823.49
In stock

Increase your fishing success by purchasing the Element 9 HV with CPT-100 DVS transom transducer marine display. The transducer supports CHIRP DownVision technology to scan fish, bottom structure, and measures water temperature and depths up to 600 feet. Display a route map using the seamless technology of the world's best Navionics and C-MAP mapping systems. CPT-100 sensor is included in the price.

BrandRaymarine Shipping fromCroatia Display size, inch9
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12V DC (8V - 16V DC)
Weight, kg
2.5
Operating temperature
-25 to +55 °C
Main features
Display size, inch
9
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
145
Installation width, mm
269
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
No
Nautical chart support
Yes
Tablet control
No
Technical data
Resolution, mm
800 x 480
Brightness, nits
1500
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
20
NMEA2000, ports
Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
NMEA0183, ports
No
SeaTalkNG
Requires A06045 DeviceNet female (F) adapter cable - 400mm
GPS
Integrated GPS / GNSS receiver: GPS / GLONASS
Sonar
Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Radar
Quantum wireless CHIRP compatible Wi-Fi only connection
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
287 x 161 x 62
Find similar

Raymarine, the world leader in fishfinding equipment, has developed this marine display for those keen anglers who want to know why the fish bite at the particular place and at particular time. For those who want to know the depths and temperatures at which the fish bite, see the structure of the bottom, the heaps of stones or snags where they can live, the vegetation that they can feed on, or the schools of small fish that their larger counterparts feed on.

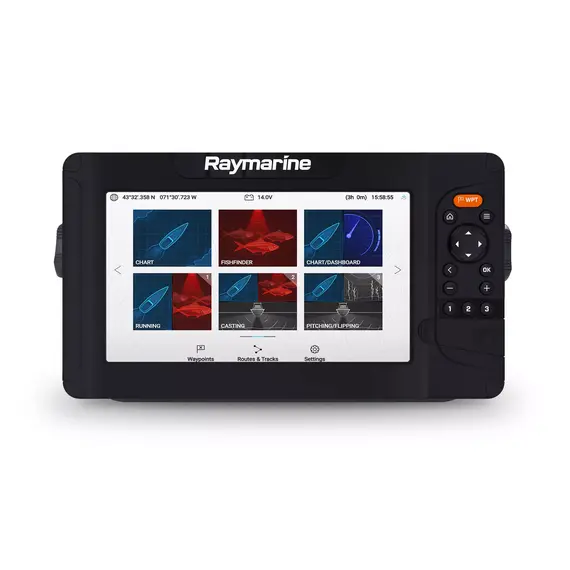

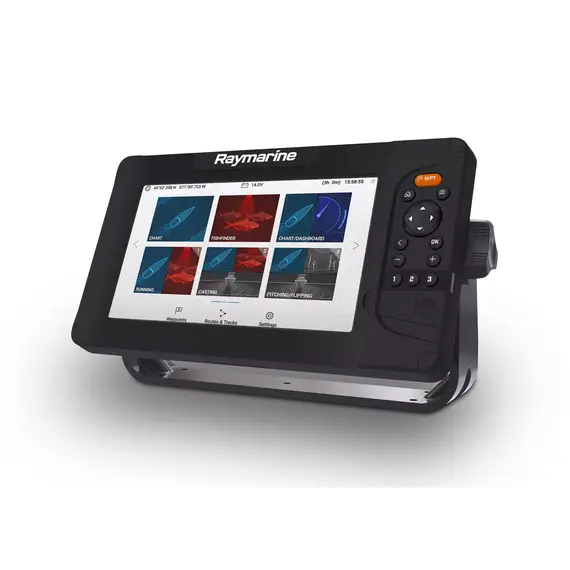

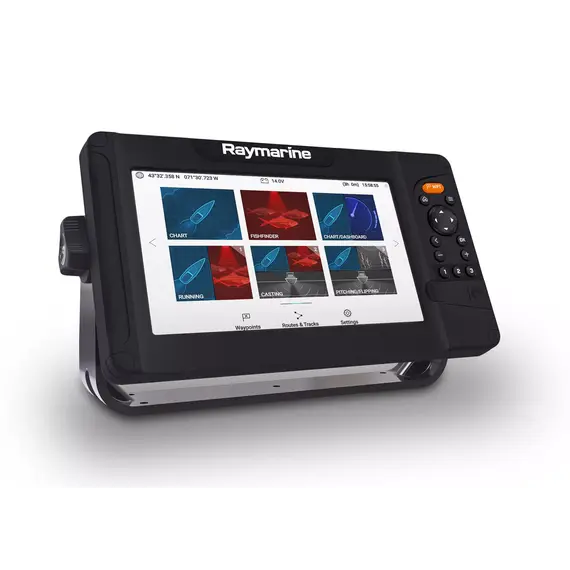

A 9-inch screen with excellent color reproduction, a capacious and ergonomic LightHouse operating system, a powerful 4-core processor and a comfortable keyboard with a small number of large buttons allow you to fulfill all these desires, ensuring fast and high-quality operation of the CPT-100 DVS transducer and cartography provided by Navionics and C-MAP.

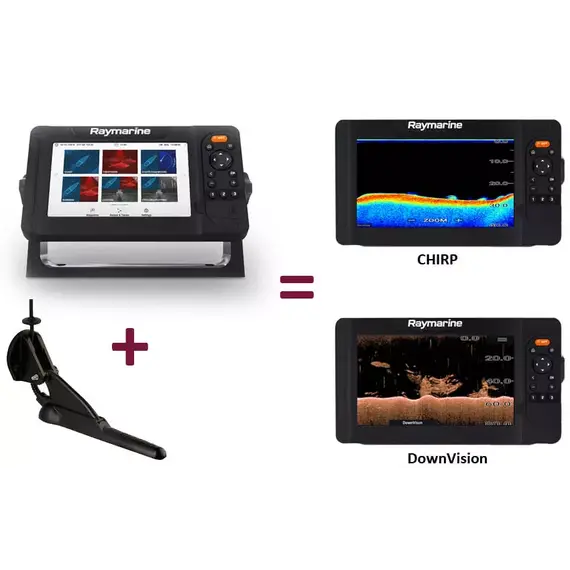

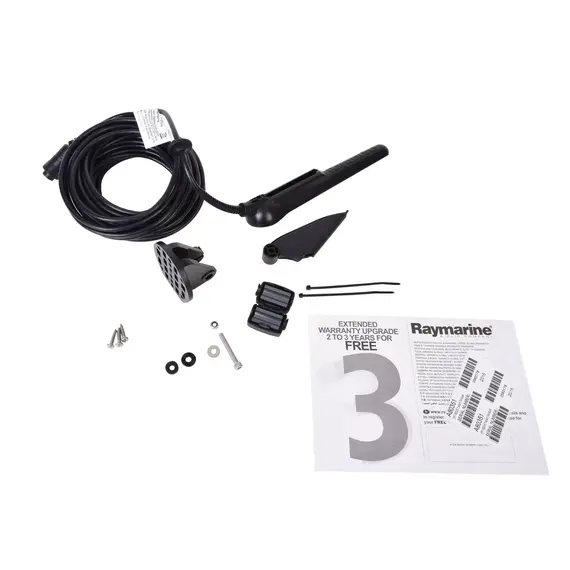

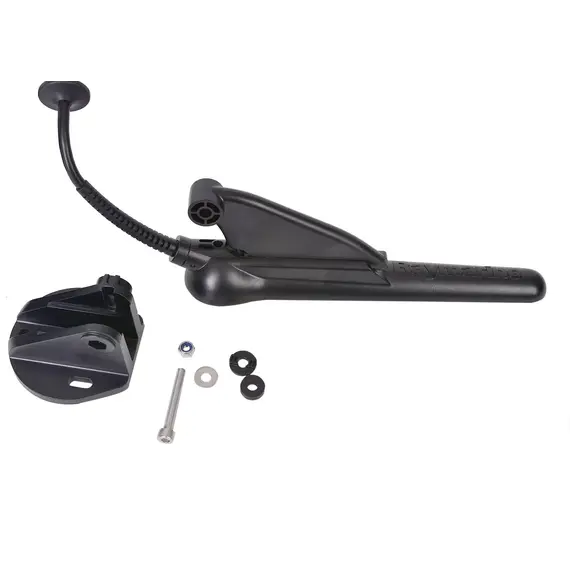

1. Conical sensor CPT-100 DVS with 25° beam provides:

  • scanning the space under the boat using CHIRP DownVision technology;
  • combines DownVision and RealVision 3D technology;
  • measures depths along the route up to 600 feet and the temperature at these depths.

2. Navionics and C-MAP mapping systems:

  • fully compatible with Raymarine chartplotters;
  • C-MAP 4D, Navionics+ and Navionics Platinum+ chart sets are available for the display;
  • withdrawn promptly, using seamless technology;
  • make it possible to mark the required number of waypoints;
  • inform about the features of the selected navigation region - the fairway, currents, shoals, sunken objects, indicate depths and navigational equipment in color and with clear contours.

In addition to this set of cards, you can use LightHouse NC2 cards.

The display has a built-in GPS antenna, and you can always add a sat-nav receiver - this is a great opportunity to improve the accuracy of fixing the location of the fish, so that you can easily find it later.

Buy Element 9 HV with CPT-100 DVS - a marine display that knows everything about fish and quickly finds it.

Additional materials

Manual (Element-Manual.pdf, 2,057 Kb) [Download]

Drawing (Element-Drawing.pdf, 2,439 Kb) [Download]

LightHouse Basic Instructions (LightHouse_Basic.pdf, 2,334 Kb) [Download]

LightHouse Advanced Instructions (LightHouse-Advanced.pdf, 6,332 Kb) [Download]

CPT-100 Installation Instructions 1 (RAY_CPT-60,CPT-100_ENG.pdf, 1,513 Kb) [Download]

CPT-100 Installation Instructions 2 (raymarine-cpt-90dvs-cpt-100dvs-installation-guide.pdf, 839 Kb) [Download]
