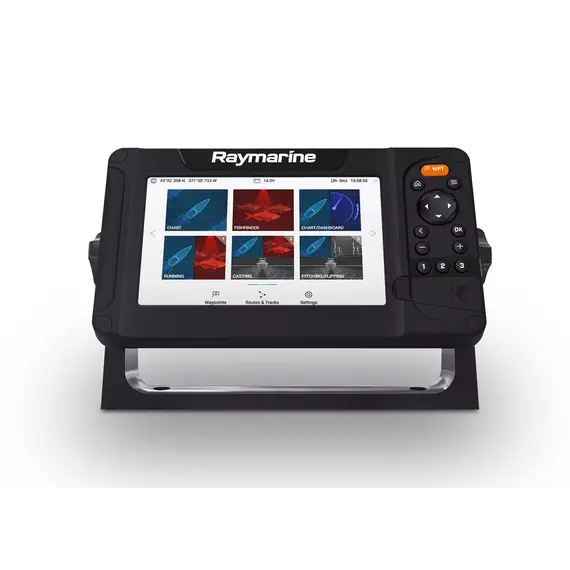

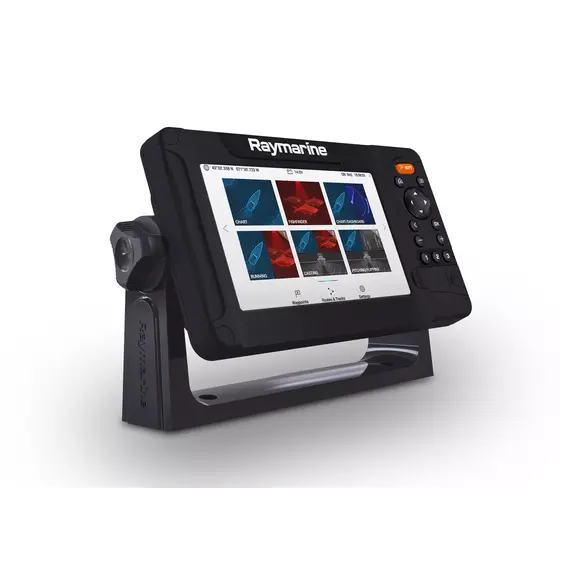

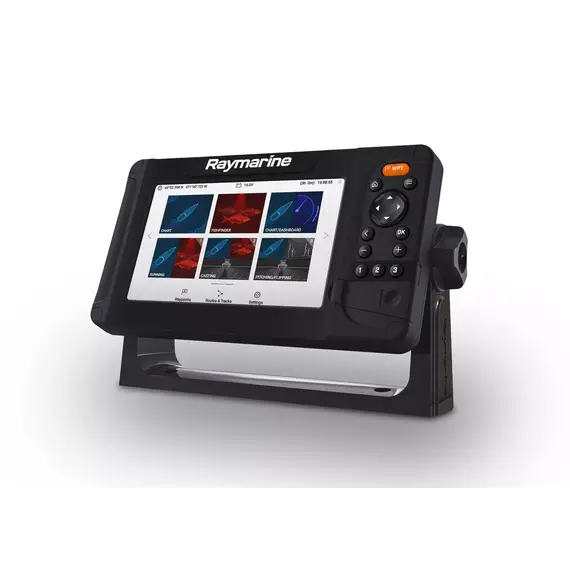

Element 7S with Buttons & CHIRP Sonar Module

E70531
560.95

The compact 7” Element 7S marine sonar chartplotter can also perform radar functions when a GPS/GNSS receiver is connected to the built-in GPS antenna. The built-in CHIRP sonar provides high quality images, even detecting small fishes or a school in seaweed. The operating system supports C-MAP and Navionics charts. The display is controlled using the keyboard. The price of Raymarine Element 7S does not include a GPS receiver.

Taxes
Delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance Model numberE70531

Despite its compact size, the Element 7S marine display fully performs the functions of a chartplotter with a prompt output of seamless maps, a CHIRP technology sonar and, if desired, a radar. An optimal set of features, especially for a small boat, where every square centimeter counts.

1. CHIRP sonar scans and transmits images of fish and sunken objects, bottom structures to the screen.
The resolution of the high-quality liquid crystal screen is 800x480 pixels, which provides a clear, bright picture at any time of the day.

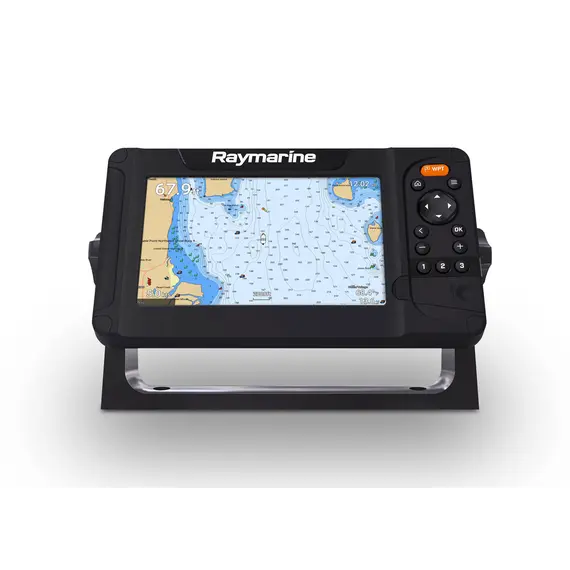

2. A simple yet powerful operating system supports LightHouse's own charts as well as maps from top mapping systems: C-MAP 4D, Navionics+, Navionics Platinum+.

Depending on the type of maps you select, you can calculate a route with more than 200 waypoints.

Maps at the same time act as short sailing directions, since each object (port, lighthouse, marina, etc.) has a description. You have clear depictions of currents, shoals and the fairway, depths are decorated with shades of color.

3. The 4-core processor provides fast response to commands, their processing and execution of tasks, the main of which is the uninterrupted display of navigation information.

4. The display is compatible with Raymarine Chart Store app charts.

The marine display is protected from moisture, withstands temperature differences from - 25 to + 50 ° C.

No need to pay more for bigger models when you can buy a compact Raymarine Element 7S and get a similar sonar and chartplotter for safe sailing and fishing.

Features of Element 7S with Buttons & CHIRP Sonar Module

    Brand
    Raymarine
    Voltage, V DC
    12V DC (8V - 16V DC)
    Weight, kg
    1.36
    EAN
    0723193827987
    Operating temperature
    -25 to +55 °C
    Main features
    Model number
    E70531
    Display size, inch
    7
    With transducer
    No
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    120
    Installation width, mm
    225
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Keys
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    No
    Nautical chart support
    Yes
    Tablet control
    No
    Technical data
    Resolution, mm
    800x480
    Brightness, nits
    1500
    Viewing angle, °
    88° top, bottom, left, right
    Power consumption, W
    15
    NMEA2000, ports
    Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
    NMEA0183
    No
    SeaTalkNG
    Requires A06045 DeviceNet female (F) adapter cable - 400mm
    GPS
    Integrated GPS / GNSS receiver: GPS / GLONASS
    Sonar

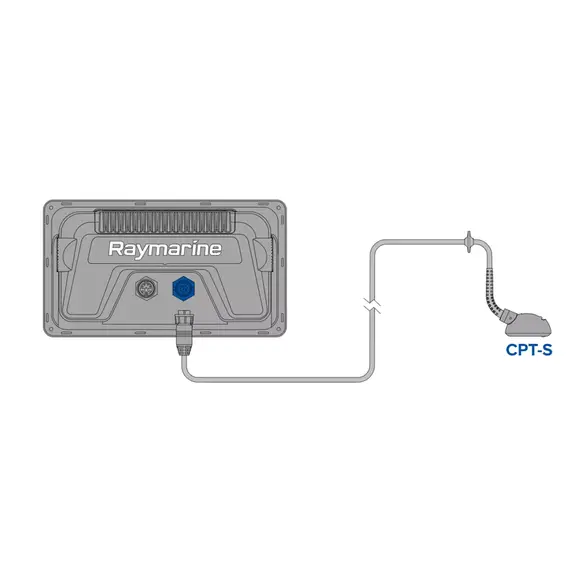

    Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
    Radar
    Quantum wireless CHIRP compatible Wi-Fi only connection
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C
    Thermal image
    Yes - IP or analog
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    240 x 135 x 62
