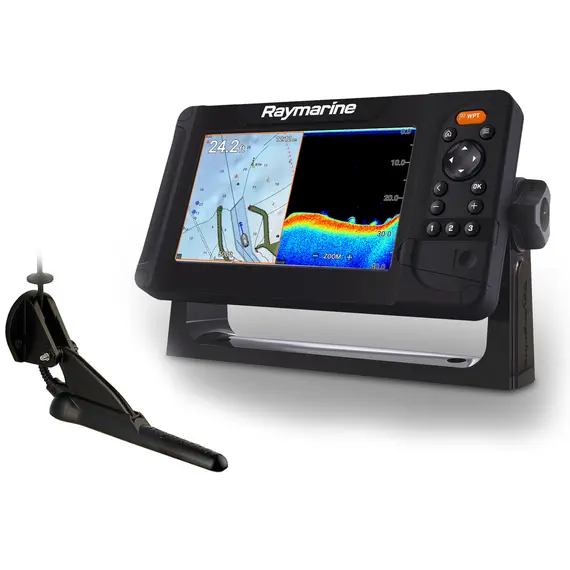

ELEMENT 7 HV with Buttons & CPT-100 Transom Transducer

26121
913.00

Raymarine, developer of the finest fishfinder equipment, has once again updated its 7” ELEMENT line of displays. This time, the CPT-100 transom transducer has been added to the base model in addition to RealVision 3D and HyperVision technology. The transducer combines CHIRP technologies and provides a high resolution 3D image. If you want to spend more time catching fish than looking for it, buy the ELEMENT 7 HV CPT-100 marine display.

Taxes
Fast delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance

With a variety of ELEMENT display configurations, finding fish is now easy. The updated ELEMENT 7 HV CPT-100 will help you quickly and reliably find schools or individual individuals, thanks to:

  • built-in FishFinder module;
  • built-in RealVision 3D sonar;

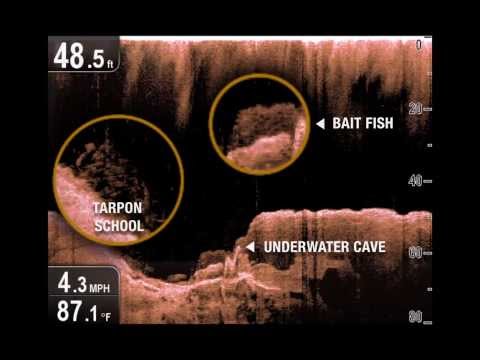

  • CHIRP DownVision technologies

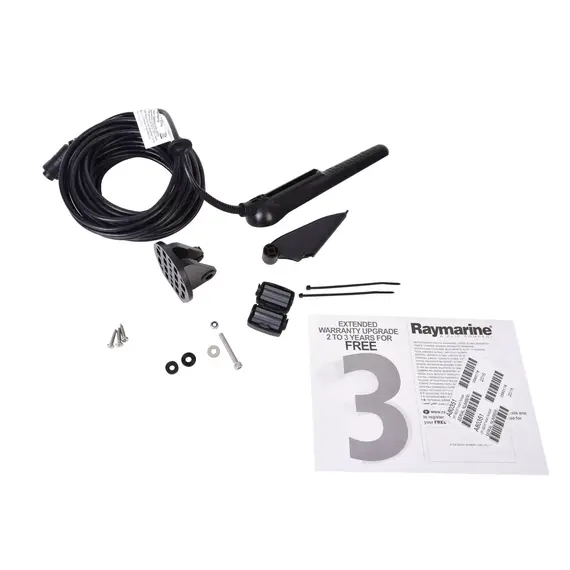

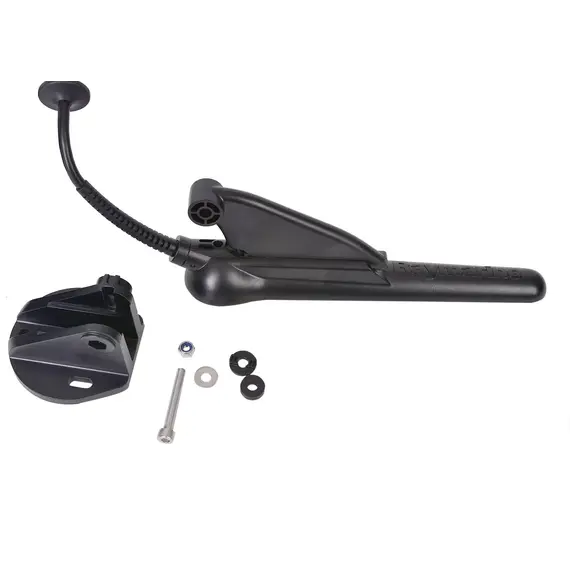

  • the CPT-100 DVS transom transducer, which combines all of these technologies to provide the optimum combination of signals for fast fish detection and real-time 3D imaging on the screen in the highest possible quality.

The operating system and quad-core processor provide support and fast, seamless output of Navionics+, Navionics Platinum+, C-MAP 4D and LightHouse maps.

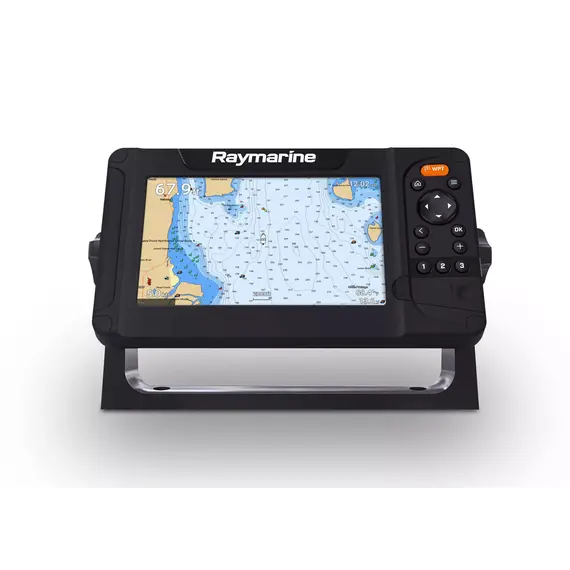

The maps show the features of the location: fairway, currents, shoals, sunken objects, depths, etc.

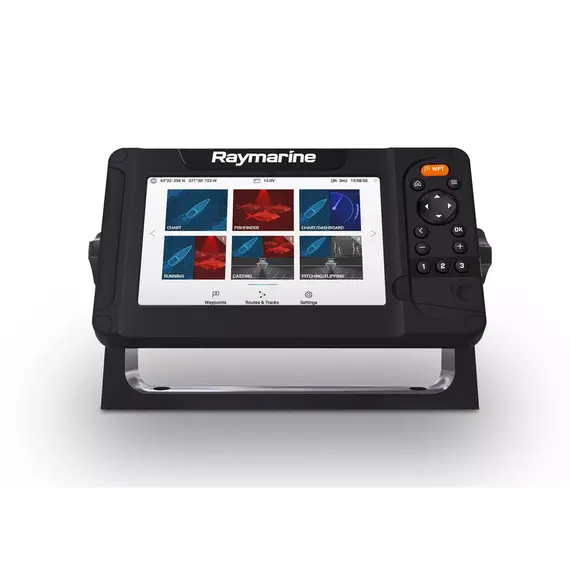

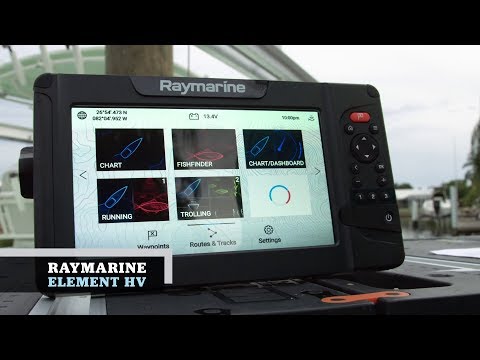

The display is controlled by a keypad with buttons of different sizes for ease of use. Choose hotkeys and program them to your needs. The operating system is very easy to manage, despite the significant capacity.

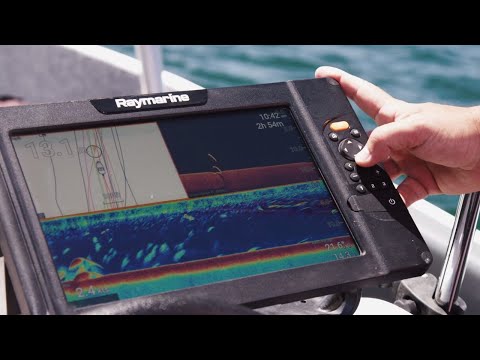

On a split screen, you can simultaneously display a location map and transmit its underwater space in real time with excellent quality - you watch the progress in the water area and what is happening under water at that time.

The capabilities of the budget marine display Element 7 HV CPT-100 can be expanded by adding peripherals - all Raymarine navigation equipment is compatible.

The price of Element 7 HV CPT-100 includes transom transducer.

Features of ELEMENT 7 HV with Buttons & CPT-100 Transom Transducer

    Brand
    Raymarine
    Voltage, V DC
    12V DC (8V - 16V DC)
    Weight, kg
    1.36
    EAN
    0723193827987
    Operating temperature
    -25 to +55 °C
    Main features
    Display size, inch
    7
    With transducer
    Yes
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    120
    Installation width, mm
    225
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Keys
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    No
    Nautical chart support
    Yes
    Tablet control
    No
    Technical data
    Resolution, mm
    800x480
    Brightness, nits
    1500
    Viewing angle, °
    88° top, bottom, left, right
    Power consumption, W
    15
    NMEA2000, ports
    Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
    NMEA0183
    No
    SeaTalkNG

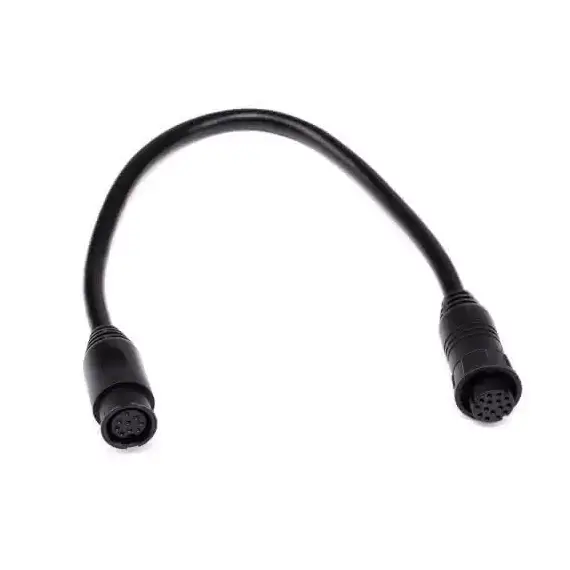

    Requires A06045 DeviceNet female (F) adapter cable - 400mm
    GPS
    Integrated GPS / GNSS receiver: GPS / GLONASS
    Sonar
    Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
    Radar
    Quantum wireless CHIRP compatible Wi-Fi only connection
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C
    Thermal image
    Yes - IP or analog
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    240 x 135 x 62
