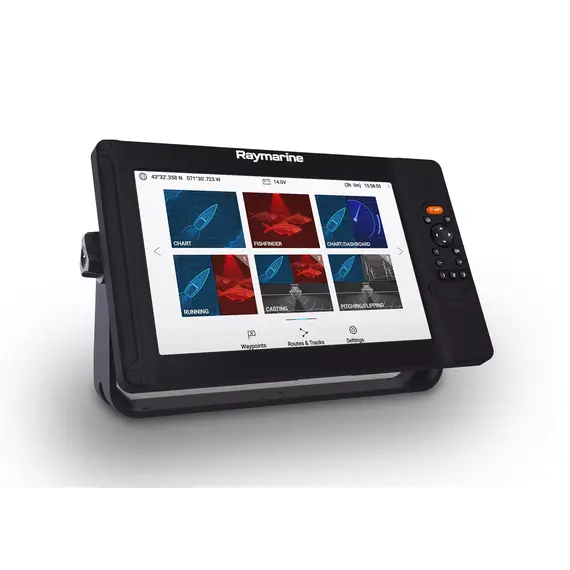

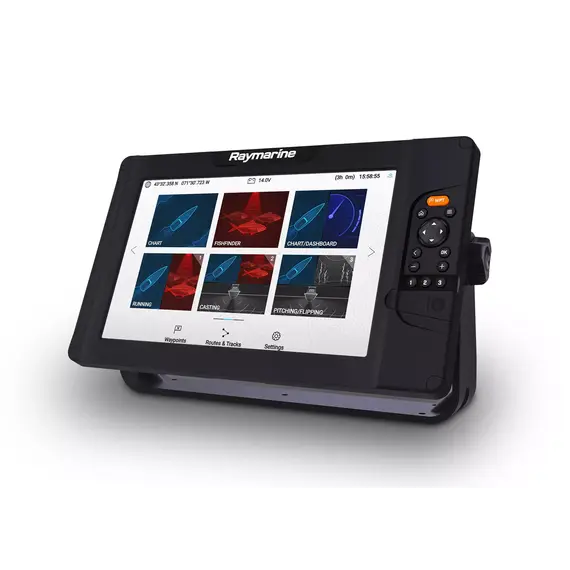

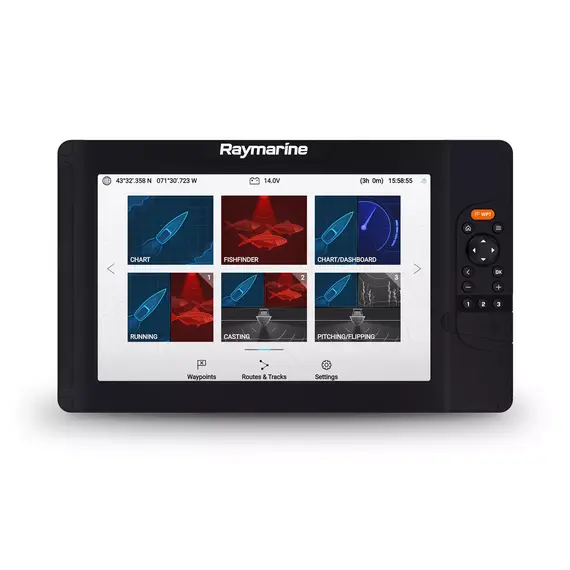

Element 12 HV with Buttons, Hypervision CHIRP Sonar and HV-100 transducer

E70646-05
1,428.53

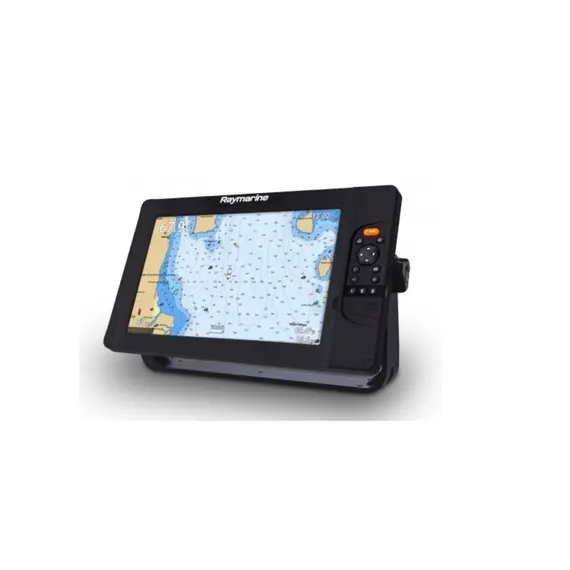

Raymarine knows that fishing is more fun than looking for fish. We offer to buy the Element 12 HV HV-100 display - one of the best budget sonars for a quick fish search with chartplotter functions. The transducer combines several CHIRP technologies to provide photographic clarity. Mark fish spots along your route using LightHouse NC2, C-MAP, Navionics or GPS maps. The price of Element 12 HV HV-100 is indicated taking into account the transducer.

Taxes
Delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance Model numberE70646-05

If the fish is out there, you will definitely find it and quickly thanks to Element 12 HV HV-100 marine display, the transom sensor of which simultaneously implements several of the most advanced CHIRP technologies with scanning underwater space using multiple different frequencies.

1. The sensor uses frequencies of 1.2 MHz, 350 kHz, 200 kHz, due to which RealVision 3D and CHIRP scanning technologies are implemented: DownVision, HyperVision, SideVision.

2. CHIRP and RealVision 3D technologies, which combine and integrate the HV-100 transducer, provide horizontal and vertical scanning:

  • RealVision 3D - three-dimensional image of scanned objects;

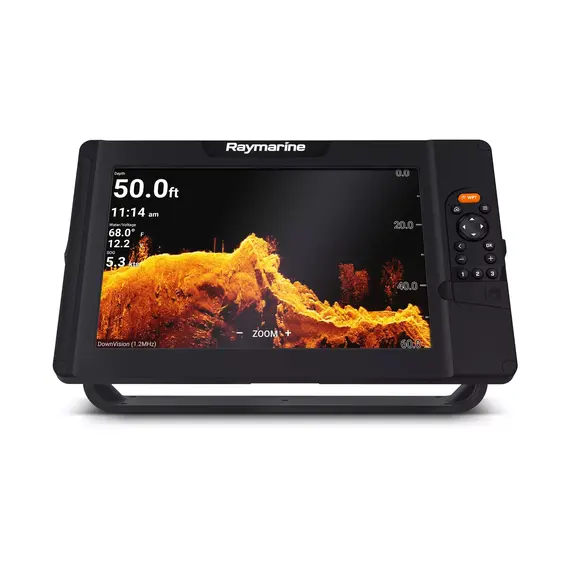

  • DownVision - scanning the area under the boat;
  • SideVision - scanning the area along the sides.

3. Due to the variety of frequencies, scanning can be performed at various depths:

  • in frequency mode 1.2 MHz - 30 meters;
  • in frequency mode 350 kHz - 180 meters;
  • in the high-frequency range of 200 kHz - more than 270 meters.

Pay attention to the comfortable keyboard with large buttons. You can program several of them as hotkeys to reduce the time for display commands. One such

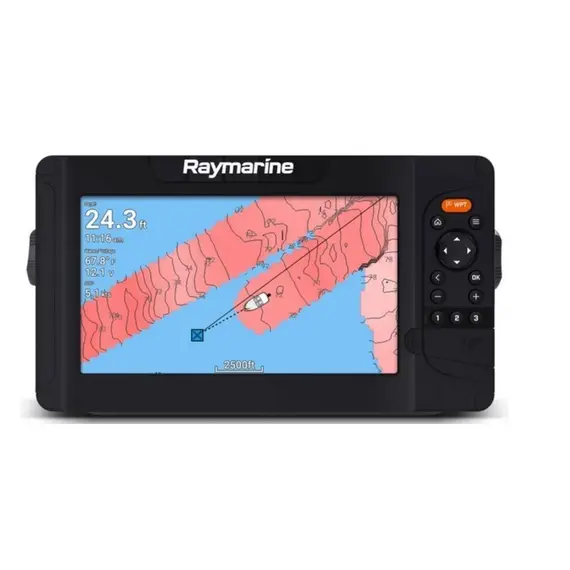

Waypoint button is designed to quickly fix the places where fish are found. Combined with LightHouse NC2, C-MAP, Navionics, or GPS capabilities, you can easily find these places when you're done searching and fishing.

Buy an economical sonar Element 12 HV HV-100 - it saves not only the time for fish searching, but also your money.

Features of Element 12 HV with Buttons, Hypervision CHIRP Sonar and HV-100 transducer

    Brand
    Raymarine
    Voltage, V DC
    12V DC (8V - 16V DC)
    Weight, kg
    2.94
    EAN
    00723193828069
    Operating temperature
    -25 to +55 °C
    Main features
    Model number
    E70646-05
    Display size, inch
    12
    With transducer
    Yes
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    199
    Installation width, mm
    331
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Keys
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    No
    Nautical chart support
    Yes
    Tablet control
    No
    Technical data
    Resolution, mm
    1280 x 800 WXGA IPS Optically Bonded LCD
    Brightness, nits
    1500
    Viewing angle, °
    88° top, bottom, left, right
    Power consumption, W
    25
    NMEA2000, ports
    Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
    NMEA0183
    No
    SeaTalkNG
    Requires A06045 DeviceNet female (F) adapter cable - 400mm
    GPS
    Integrated GPS / GNSS receiver: GPS / GLONASS
    Sonar
    CHIRP / Fishfinder, DownVision, SideVision, RealVision 3D, HyperVision 3D
    Radar
    Quantum wireless CHIRP compatible Wi-Fi only connection
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C
    Thermal image
    Yes - IP or analog
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    357 x 215 x 62
