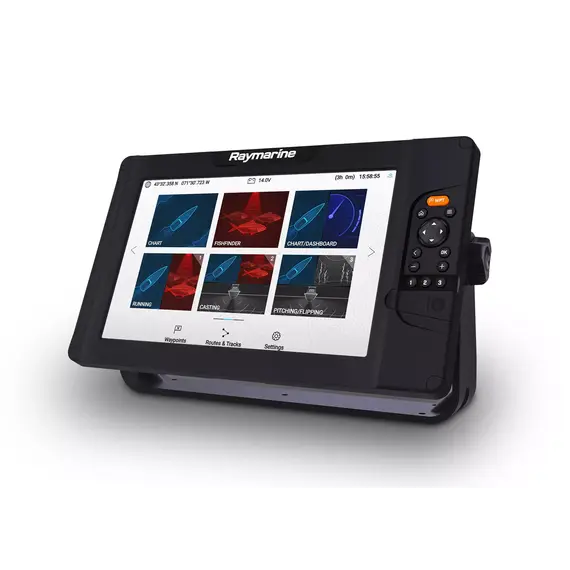

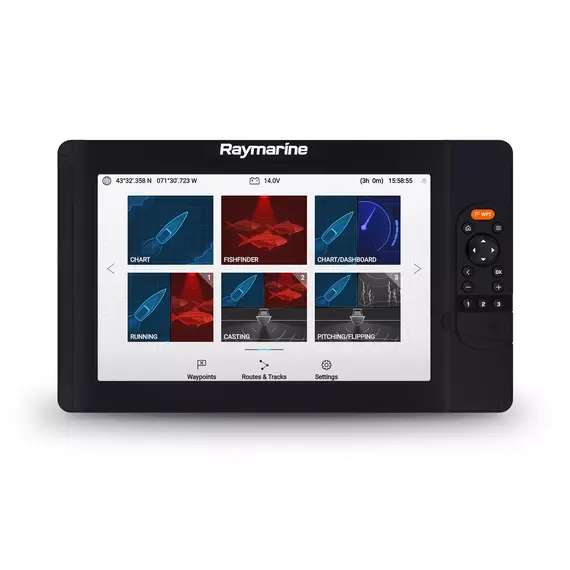

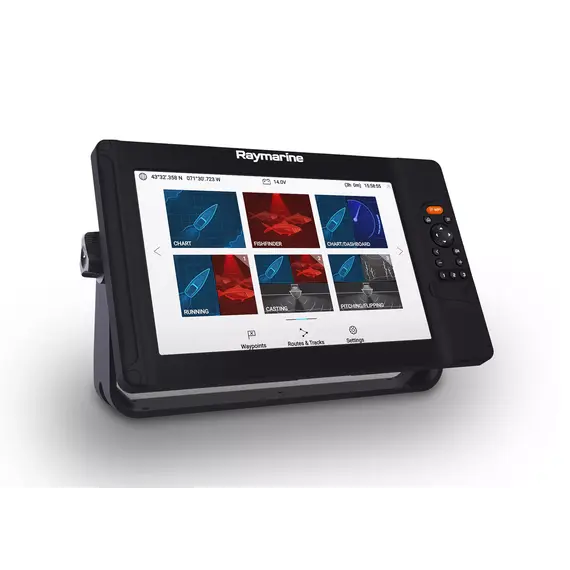

Element 12 HV with Buttons and Hypervision CHIRP Sonar without Transducer

81719
1,310.88
In stock

Save money and time looking for fish with the Element 12 HV fish finder, which transmits signals to depths of more than 270 m, with chartplotter functions and a built-in GPS antenna. Comfortable keyboard with large colored buttons resembles a joystick. You can set up hotkeys, optimizing the control speed, which is very important during active fishing. The price of Element 12 HV is indicated without transom transducer.

BrandRaymarine Shipping fromCroatia Model numberE70536 Display size, inch12
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12V DC (8V - 16V DC)
Weight, kg
2.94
EAN
00723193828038
Operating temperature
-25 to +55 °C
Main features
Model number
E70536
Display size, inch
12
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
199
Installation width, mm
331
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
No
Nautical chart support
Yes
Tablet control
No
Technical data
Resolution, mm
1280 x 800 WXGA IPS Optically Bonded LCD
Brightness, nits
1500
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
25
NMEA2000, ports
Data input: engine, tank sensor, compass, AIS, depth, wind and speed data Data output: GPS data for radios, waypoints and routes for autopilot
NMEA0183, ports
No
SeaTalkNG
Requires A06045 DeviceNet female (F) adapter cable - 400mm
GPS
Integrated GPS / GNSS receiver: GPS / GLONASS
Sonar
CHIRP / Fishfinder, DownVision, SideVision, RealVision 3D, HyperVision 3D
Radar
Quantum wireless CHIRP compatible Wi-Fi only connection
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
357 x 215 x 62
Find similar

Economical marine displays of the Element series were originally intended for recreational fishing. But over time, their speed and ultra-high-definition image quality have also attracted professional fishermen.

Raymarine achieved this photographic quality and realistic image by:

  • use of Hypervision CHIRP Sonar with a signal frequency of 1.2 MHz;
  • built-in technology RealVision 3D;
  • a combination of RealVision 3D and CHIRP HyperVision technologies, which provided a high-resolution three-dimensional image in real time.

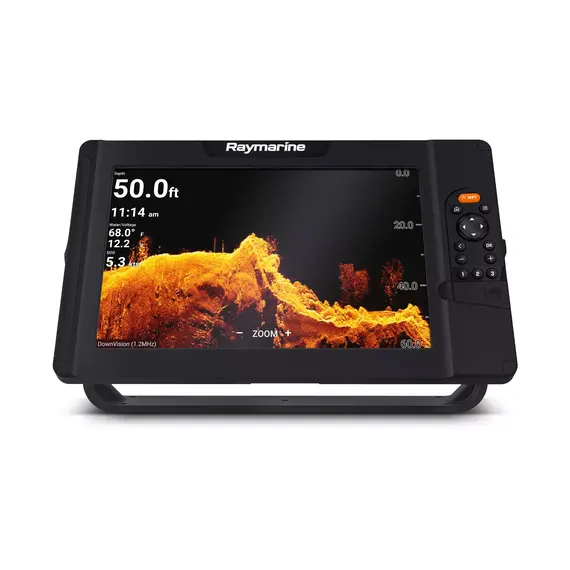

The single-channel Hypervision CHIRP Sonar sends a signal to a depth of 30 meters and displays a detailed picture of the underwater space on the screen: shoals of fish and individual fishes even in thickets, the structure of the sea or river bottom, sunken and other objects.

A very clear picture on the screen is provided thanks to high brightness (1500 nits) and resolution (1280 x 800).

Viewing angles approach 90 degrees, which allows you to fix it and not change position during the entire process of finding fish and fishing.

Choose the three most frequently used commands and program hotkeys for them. And with the red button, fix the location of the fish or the places of its possible location. The GPS system will mark these places, which you can return to at any time with great accuracy.

To plot the route, use the maps of various cartographic systems. This chartplotter supports the best charts: Navionics+, Navionics Platinum+, C-MAP 4D and LightHouse NC2.

To buy an Element 12 HV echo sounder with chartplotter functions, just add it to the cart using "Buy" button.

Additional materials

Manual (Element-Manual.pdf, 2,057 Kb) [Download]

LightHouse Basic Instructions (LightHouse_Basic.pdf, 2,334 Kb) [Download]

LightHouse Advanced Instructions (LightHouse-Advanced.pdf, 6,332 Kb) [Download]
