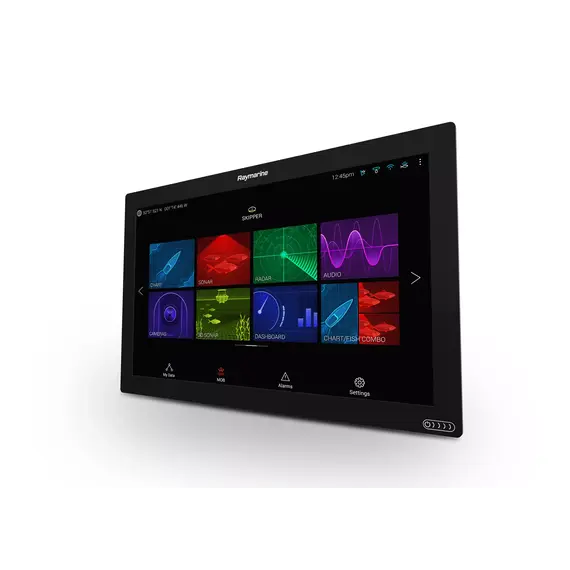

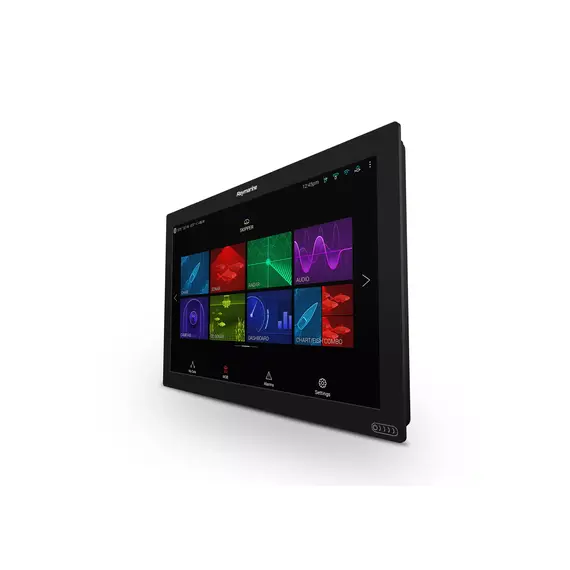

AXIOM XL 19 GlassBridge Multifunction Display - Touch

8,907.52
In stock

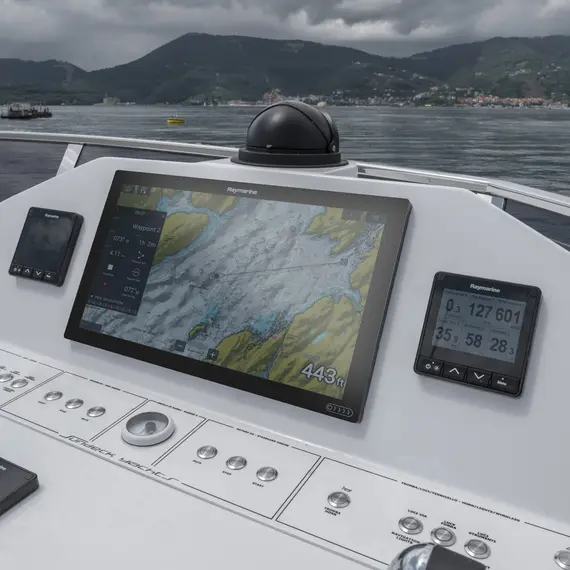

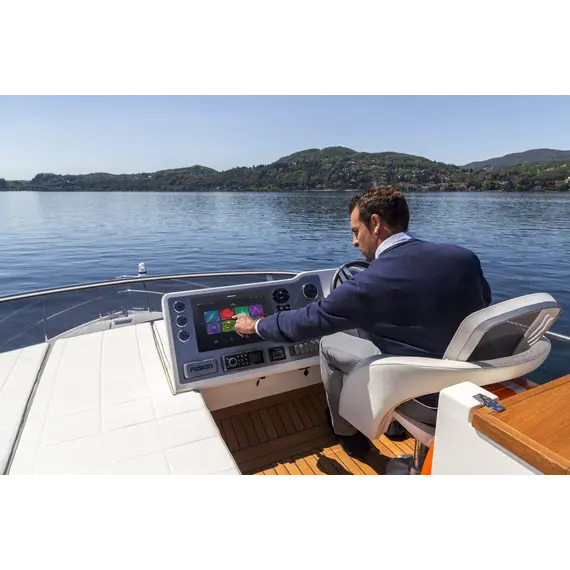

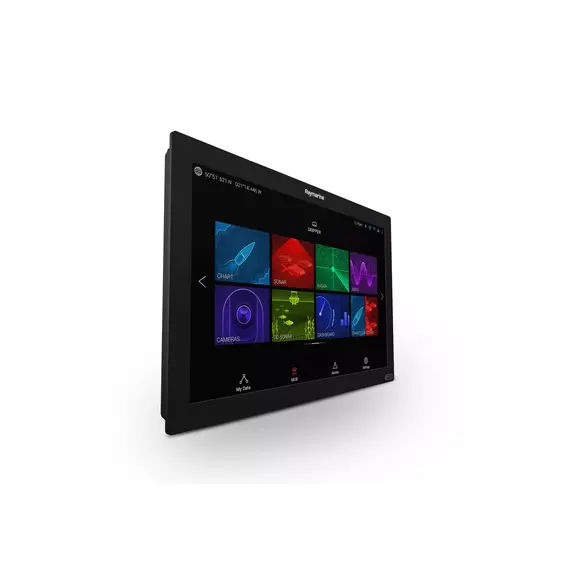

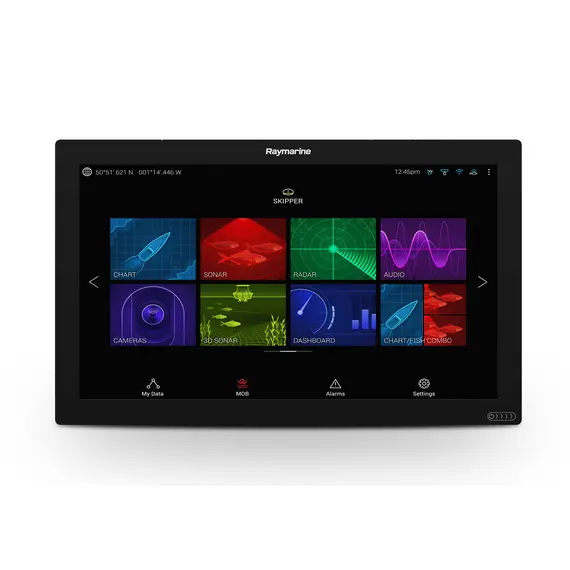

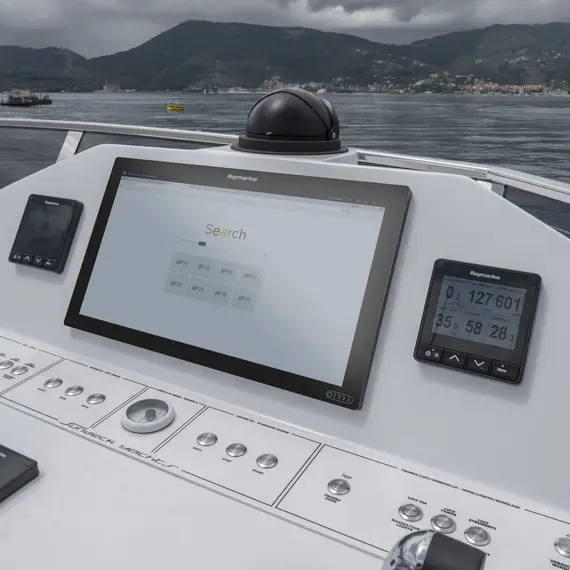

A new entry in premium marine displays for yachts, this time with a 19” screen - the AXIOM XL 19 GlassBridge. Unlimited possibilities in receiving, transmitting and visualizing navigational information. In addition - control over all equipment on the ship with data output to the screen. Install multiple displays on a GlassBridge panel or split one screen into multiple information windows. The price of AXIOM XL 19 GlassBridge is specified for the base package.

+
Add to Wishlist
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Model numberE70400 Display size, inch18.5 BrandRaymarine Shipping fromCroatia
Brand
Raymarine
Voltage, V DC
8 - 32 V DC
Weight, kg
7.9
Operating temperature
-25 to +55 °C
Main features
Model number
E70400
Display size, inch
18.5
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Optional
Installation height, mm
274
Installation width, mm
445
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
1 x Analogue input (BNC) Up to 10 IP Cameras
Resolution, mm
1920x1080 Full HD
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
72
Ethernet, ports
Yes (3x)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
Yes
GPS
Built-in GNSS (GPS / GLONASS) receiver with GA150 External Antenna
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
462 x 77 x 290
Find similar

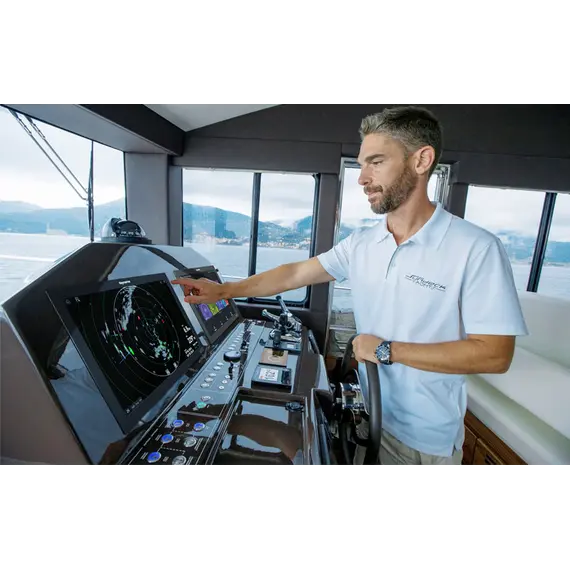

Chartplotter, radar and sonar are just the main tasks that the AXIOM XL 16 GlassBridge marine display performs. As part of these functions, it provides:

  • support for Navionics and C-MAP maps - the best navigation cartographic systems that allow you to get seamless maps of the required region with short sailing directions;
  • scanning of the water area with a frequency of 10 Hz, which helps to monitor compliance with the route at previously defined waypoints, determining the location of the vessel, recording the progress along the route in real time;
  • scanning of the underwater space in order to search for fish, sunken objects, study the structure of the bottom, etc. using various sensors combining RealVision 3D sonar, RVX1000 3D CHIRP, CHIRP technologies: DownVision, SideVision, High Frequency, etc.

Only these three functions perform the maximum task of ensuring the safety of the longest cruise and leave most of the time for catching fish, not for finding it.

The open platform allows you to expand the display and multiply its functions by connecting any Raymarine navigation equipment.

In-Plane Switching (IPS) technology and Raymarine screen protector provide wide viewing angles, high contrast, image quality and glare-free performance even in bright sunlight.

Buy the AXIOM XL 19 GlassBridge marine display - a powerful center of navigational information, a reliable assistant in the sea.
