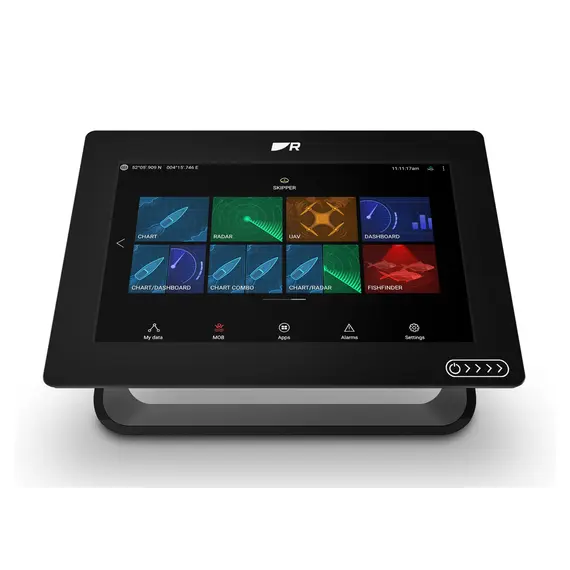

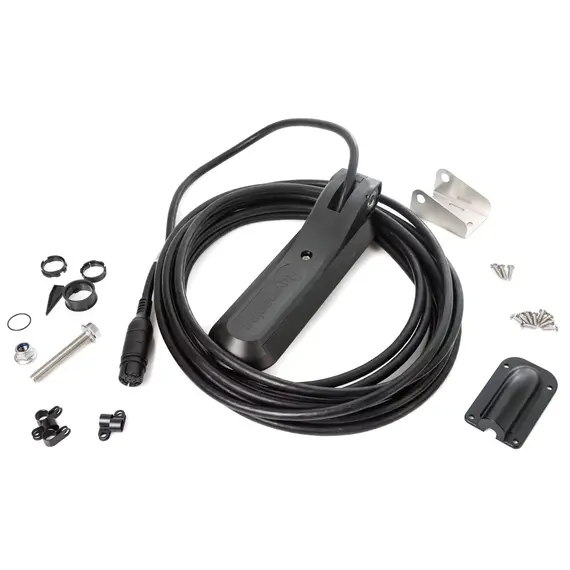

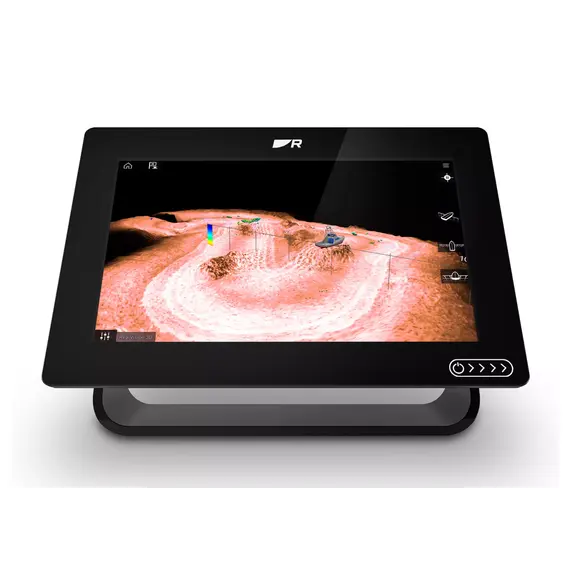

AXIOM+ 9 Touch with integrated RealVision 3D Sonar, RV-100 transducer and AIS 700

93902
2,742.31
In stock

Marine chartplotter Raymarine AXIOM +9 AIS 700 is equipped with a powerful processor, which ensures fast, seamless map drawing. Fast touch speed is the same in any weather conditions and doesn't depend on how dirty the screen or your hands are thanks to the HydroTough coating. You would be wise to buy AXIOM+ 9 with AIS transceiver (automatic identification system) – it enhances maritime situational awareness, enhancing sailing safety.

BrandRaymarine Shipping fromCroatia Display size, inch9
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
Weight, kg
2.27
Operating temperature
-25 to +55 °C
Main features
Display size, inch
9
With transducer
Yes
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
145
Installation width, mm
231
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes,1x port
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Resolution, mm
1280 x 720
Brightness, nits
1500
Viewing angle, °
85° top, bottom, left, right
Power consumption, W
11.98
Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
244 x 158 x 77
Find similar

AXIOM+ 9 AIS 700 all-weather display is shipped with the easy-to-learn and use LightHouse 3 operating system. The OS supports C-MAP mapping, Navionics, an extended set of Lighthouse maps, and day and night mode. The ship's position is determined by highly sensitive GPS/GLONASS.

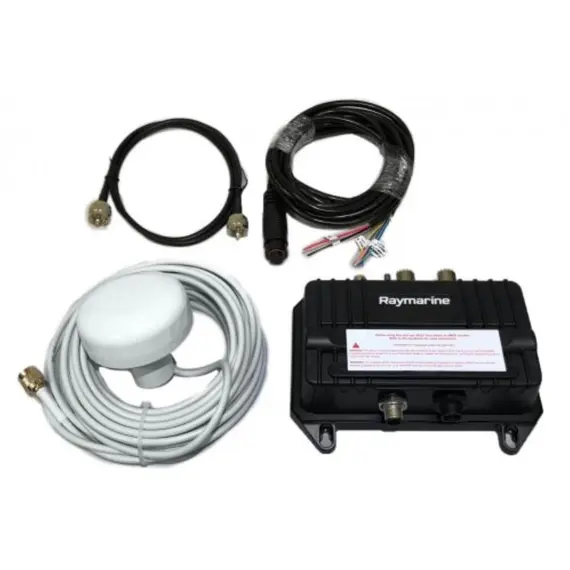

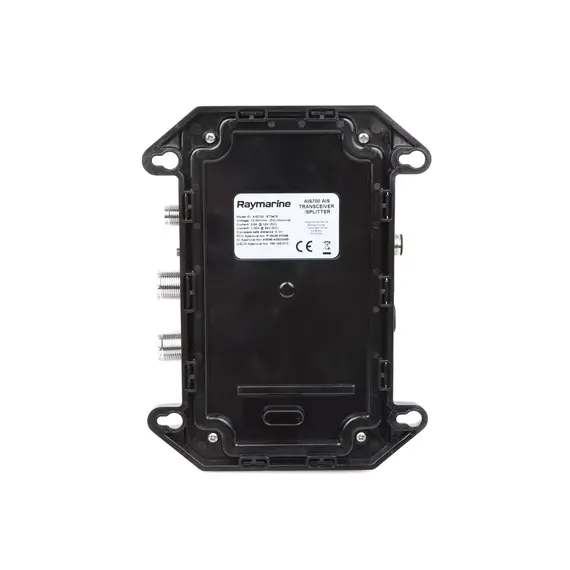

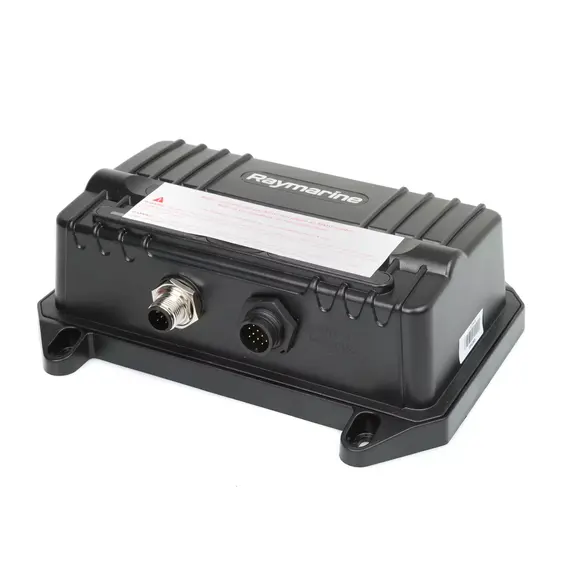

Raymarine AXIOM+ 9 AIS 700’s features are enhanced thanks to a class B automated identification system transceiver that provides:

  • receipt of information from ships at sea;
  • transmission of data about your ship to the systems of other ships;
  • stopping the transmission of information with the identification of your vessel, but maintaining the reception of data about surrounding vessels using the Silent mode, which is important in fishing competitions or in dangerous areas with pirates;
  • increasing the speed of information transfer and range using SOTDMA technology.

SOTDMA AIS transponders are not suppressed by Class A devices. Another advantage of the AIS 700 transceiver is that it can use the same antenna as the VHF voice radiotelephone, since they operate on the same bandwidth.

Raymarine's navigation display platform is designed for future expansion - you can buy a marine chartplotter AXIOM+ 9 AIS 700 with many additional peripherals.

Additional materials

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]
