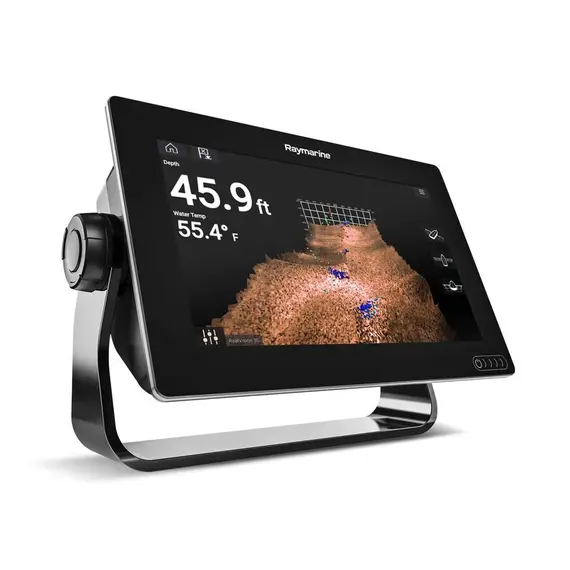

AXIOM+ 9 Touch with Integrated RealVision 3D Sonar

26178
1,399.96
In stock

The AXIOM+ 9 RV fish finder with RealVision 3D technology is compatible with all Raymarine navigation equipment. The 9" network display provides an 85° viewing angle for a realistic view of the area of interest. Sonar with 4 channels supports RealVision 3D, high frequency CHIRP, as well as CHIRP DownVision and CHIRP SideVison. This allows you to explore in 3D both the bottom and coastal areas, as well as identify fish gathering places.

BrandRaymarine Shipping fromCroatia Model numberE70637 Display size, inch9
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
EAN
00723193836934
Operating temperature
-25 to +55 °C
Main features
Model number
E70637
Display size, inch
9
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
145
Installation width, mm
231
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Resolution, mm
1280 x 720
Brightness, nits
1500
Viewing angle, °
85° top, bottom, left, right
Power consumption, W
11.98
Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
244 x 158 x 77
Dimensions in packaging
Weight, kg
2.27
Find similar

Multifunctional chartplotter AXIOM+ 9 RV 3D has a number of undeniable advantages that are appreciated not only by fishing enthusiasts:

  1. The MDF touch screen is coated to prevent stains from liquids and oils, allowing it to be used in any navigational situation.
  2. The built-in 10G GPS receiver is compatible with all other equipment, their interaction can be easily configured from the general menu.
  3. Raymarine offers the LightHouse 3 operating system with a simple and user-friendly interface in this line of fish finders.
  4. Display OS supports a wide range of options for charts and charts: Raymarine Lighthouse, Navionics, C-MAP.

The display system also integrates a gyroscopic stabilizer that regulates the roll of the vessel, providing the most realistic image of the underwater space. Underwater structures, fish shoals, type of fish - you can see everything with 60 different frequencies, giving you incredible precision during you fishing experience.

Also easy to customize for your personal needs and no lags thanks to lightning fast processor.
