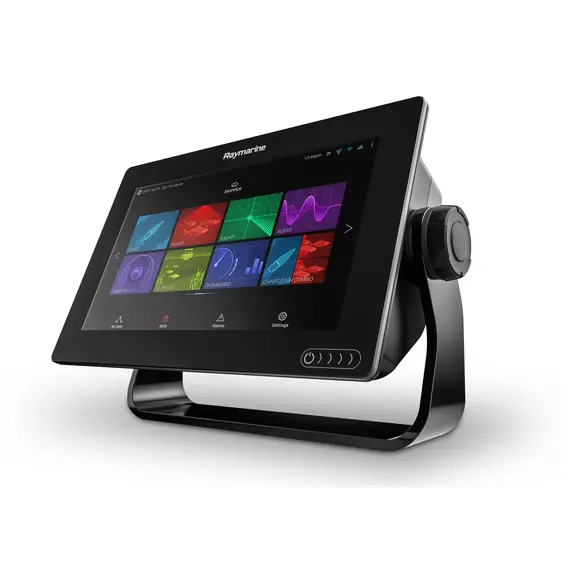

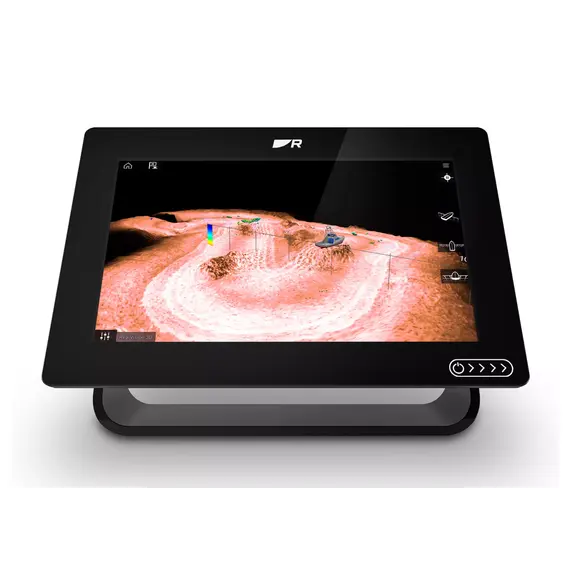

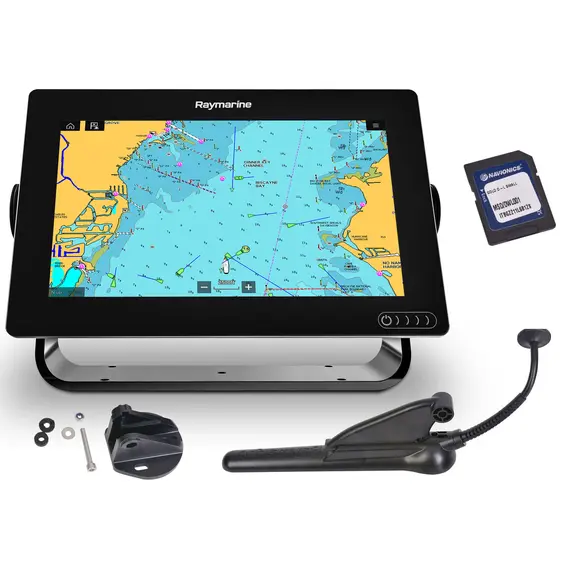

AXIOM 9 Touch with integrated RealVision 3D Sonar, CPT-100 DVS Transducer and Navionics+ SMALL Chart Download

E70367-02-NSD
1,789.53

AXIOM 9 RV CPT-100 DVS Navionics+ SMALL Chart Download is based on the characteristics of a chartplotter with an extension for scanning the bottom and underwater space with PV 3D and CHIRP sonars and a high quality version of maps from the best Navionics mapping navigation system. Buy marine display AXIOM 9 RV CPT-100 DVS with Navionics+ chart and get high-performance radar, advanced sonar and chartplotter with seamless charting.

Taxes
Delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance Model numberE70367-02-NSD

AXIOM 9 RV navigation display CPT-100 DVS with Navionics+ SMALL charts ensures safe coastal sailing and successful fish finding by providing the right equipment and applications.

1. Built-in GNSS receiver:

  • allows you to enter and save up to 500 waypoints of the selected route;
  • determines and visualizes the three-dimensional (latitude, longitude, height above sea level) coordinates of the vessel in the water area 10 times per second to control and correct the passage along a pre-calculated route;
  • displays the passage of selected waypoints on the screen in real time;
  • determines the speed, time, track angle and distance traveled.

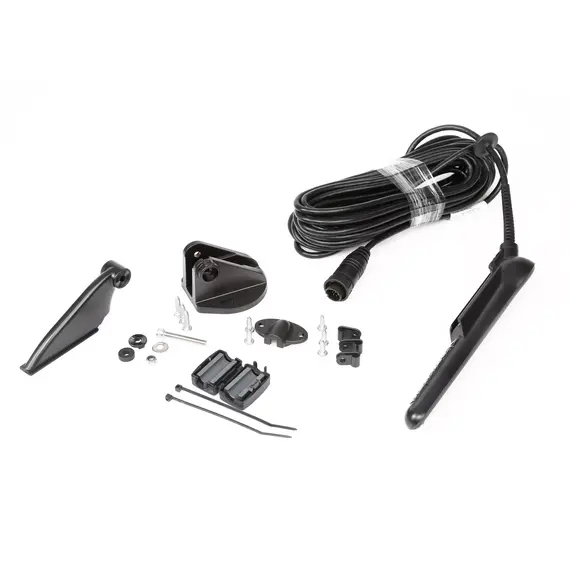

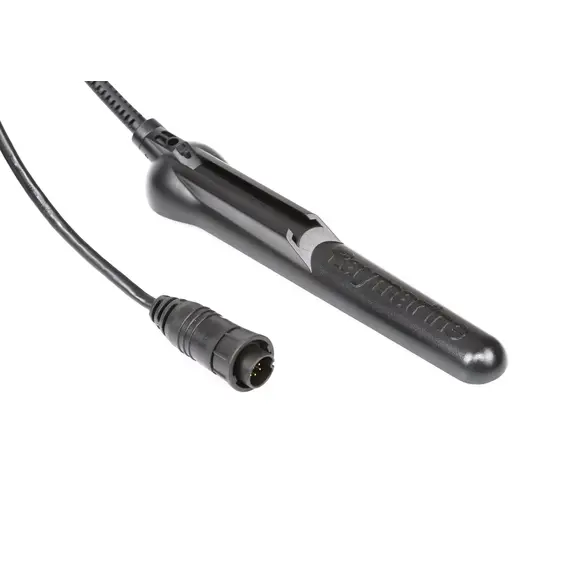

2. Transducer CPT-100 DVS :

  • uses CHIRP technology DownVision down to 600 feet;
  • explores the relief of the seabed at depths of more than 180 meters;
  • measures water temperature at different depths;
  • finds and displays in detail the fish flocks on the screen.

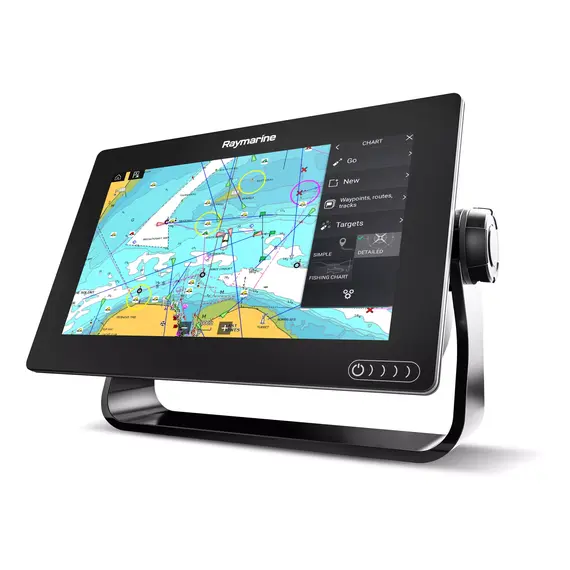

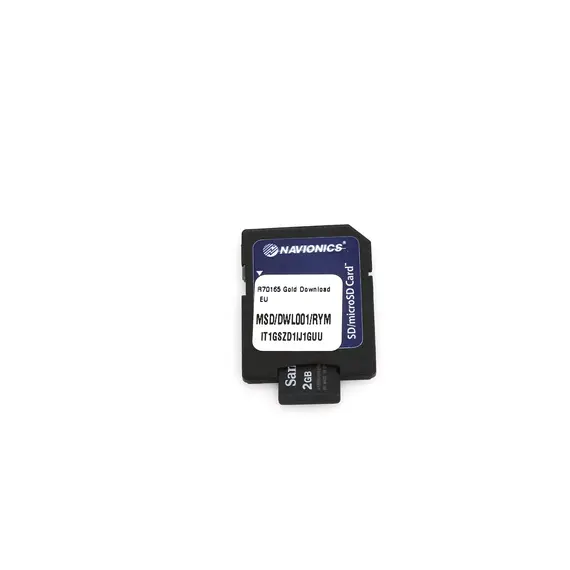

3. Navigation electronic charts from Navionics in Navionics+ SMALL chart version:

  • minimum coverage area with the most necessary information;
  • the ability to scale without loss of quality;
  • you have access to depth measurements, currents, tides, anchorages, coastal and floating aids to navigation, ports and other data important for the safety of navigation;
  • seamless maps are displayed indicating waypoints with all the necessary parameters.

These are not all the features of the ship's display. If you are going to buy AXIOM 9 RV CPT-100 DVS Navionics+ SMALL chart, check out the detailed specifications and video reviews on this page.

Features of AXIOM 9 Touch with integrated RealVision 3D Sonar, CPT-100 DVS Transducer and Navionics+ SMALL Chart Download

    Brand
    Raymarine
    Voltage, V DC
    12 (8 to 16)
    Weight, kg
    2.04
    EAN
    00723193819760
    Operating temperature
    -25 to +55 °C
    Main features
    Model number
    E70367-02-NSD
    Display size, inch
    9
    With transducer
    No
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    145
    Installation width, mm
    231
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Touch screen
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    Yes
    Nautical chart support
    Yes
    Tablet control
    Yes
    Technical data
    Video/camera
    Compatible with CAM210IP and CAM220IP (max. 10 cameras)
    Resolution, mm
    800 x 480 WVGA
    Brightness, nits
    1,200
    Viewing angle, °
    60 / 70 / 70 / 70 (Top / Bottom / Left / Right)
    Power consumption, W
    11.98
    Ethernet, ports
    Yes, 1x port (RayNet)
    NMEA2000, ports
    Yes, 1x port (Micro C)
    NMEA0183
    No
    SeaTalkNG
    Adapter cable necessary
    USB
    1x USB mircoAB
    GPS
    Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
    Sonar
    Integrated

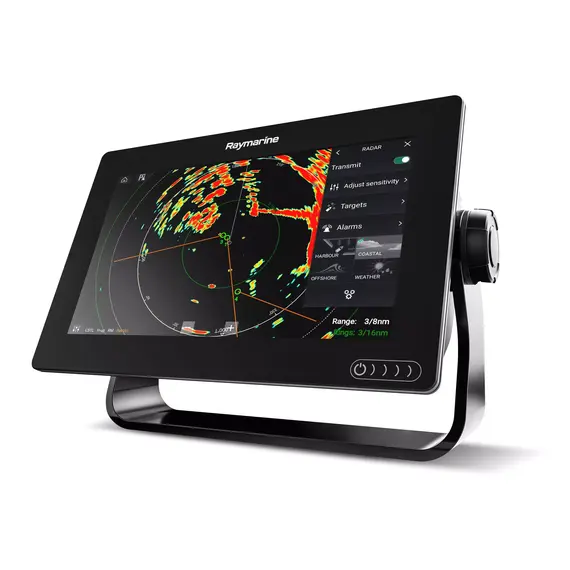

    Radar
    Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
    AIS
    Yes, via NMEA2000
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C

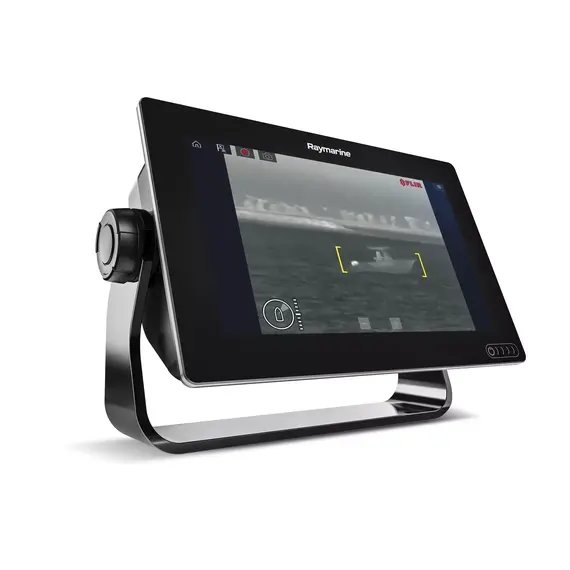

    Thermal image
    FLIR AX8, M232, M300 series, M400, M500
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    244 x 158 x 75
