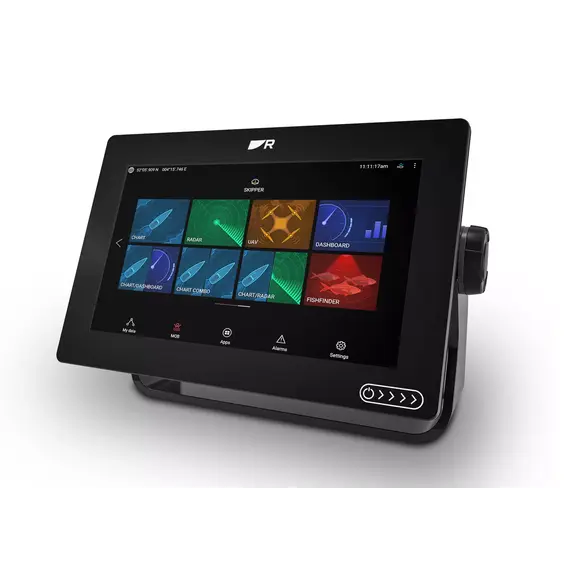

AXIOM 9 Touch with integrated RealVision 3D Sonar and RV-100 Transducer

E70367-03
1,470.55

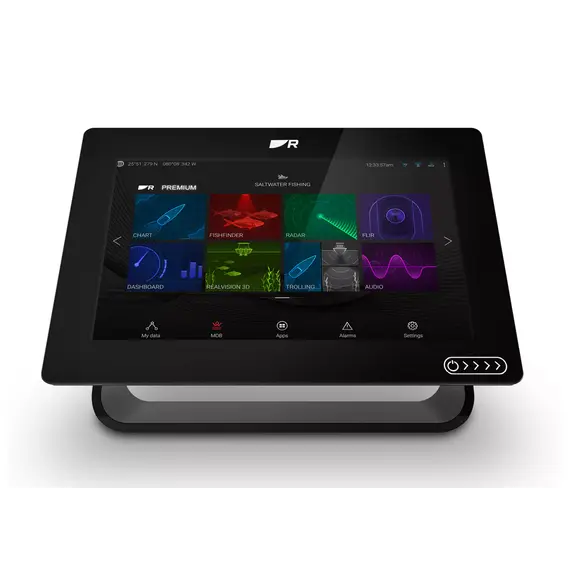

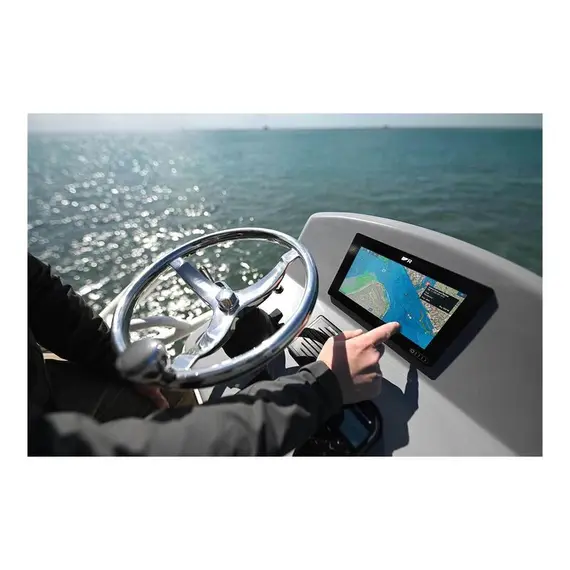

Marine multifunctional display AXIOM 9 RV 3D RV -100 can be used as a chartplotter, radar and sonar at the same time. The shock-resistant anti-reflective screen and powerful processor provide fast touch interaction. Touch responsiveness is further enhanced by the easy-to-use LightHouse 3 operating system, which supports many applications and the best navigation mapping systems C-MAP, Navionics, as well as its own maps.

Taxes
Fast delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance Model numberE70367-03

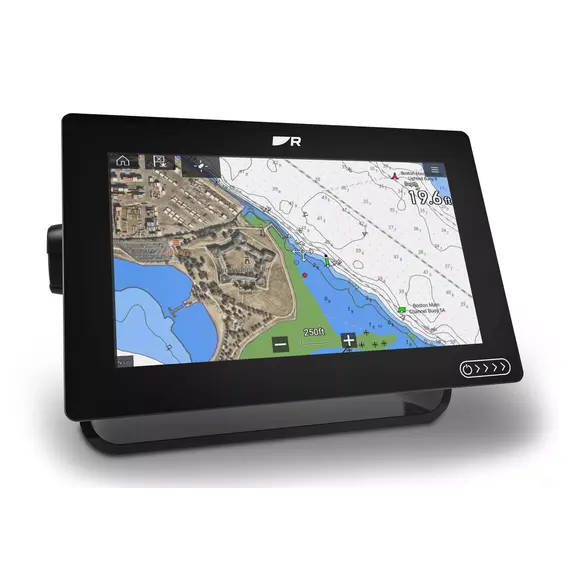

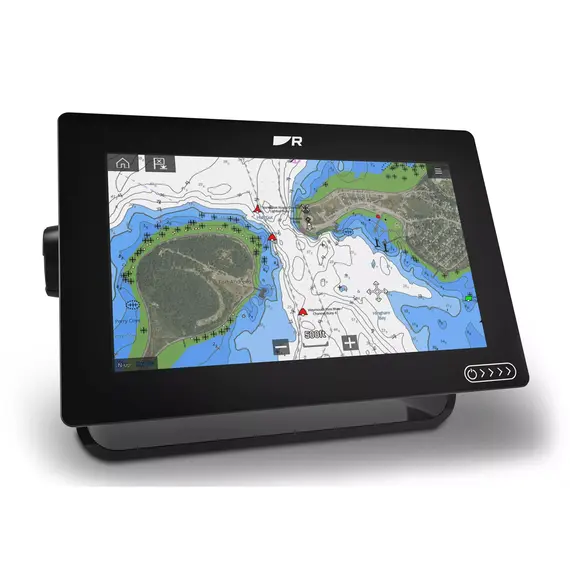

Navigation display AXIOM 9 RV 3D RV-100, acting as a chartplotter, supports C-MAP 4D, Navionics+, Navionics charts Platinum+, LightHouse. C-MAP and Navionics mapping systems are designed for small fleet and are compatible with all Raymarine displays. They provide:

  • fast creation of seamless maps of the selected water area with maximum detail;
  • information about the surface and underwater situation in the selected region, indicating depths, high and low tides, currents, shoals, ports, lighthouses, buoys, leading marks and other means of navigation equipment, both coastal and floating;
  • high-quality image in color: depth maps are displayed in shades with delineation of contours and navigation equipment is depicted in strong colors and contours;
  • the ability to change the scale without losing quality.
  • The radar function is performed by the built-in 72-channel GPS/GLONASS satellite navigation system receiver, providing:
  • high accuracy of geolocation with a refresh rate of 10 Hz;
  • route calculation;
  • monitoring compliance with the route and correcting deviations;
  • route record.

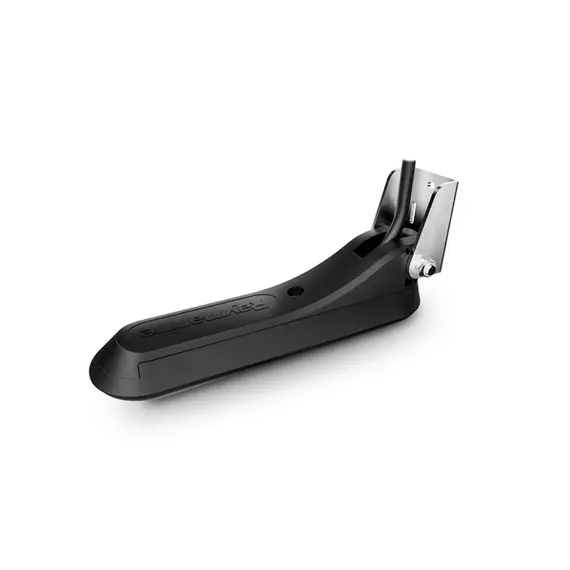

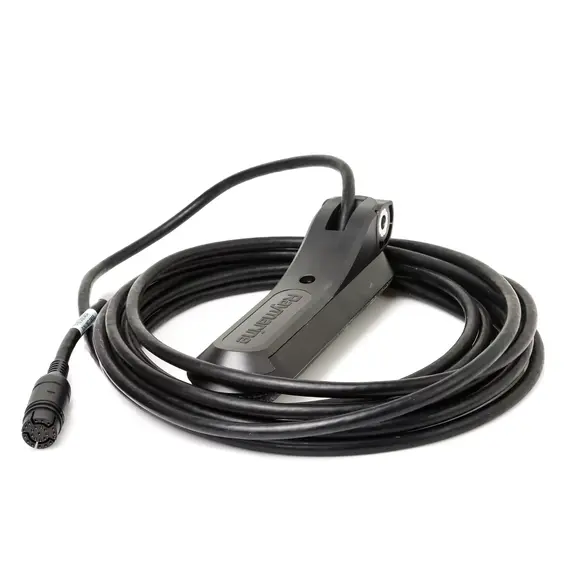

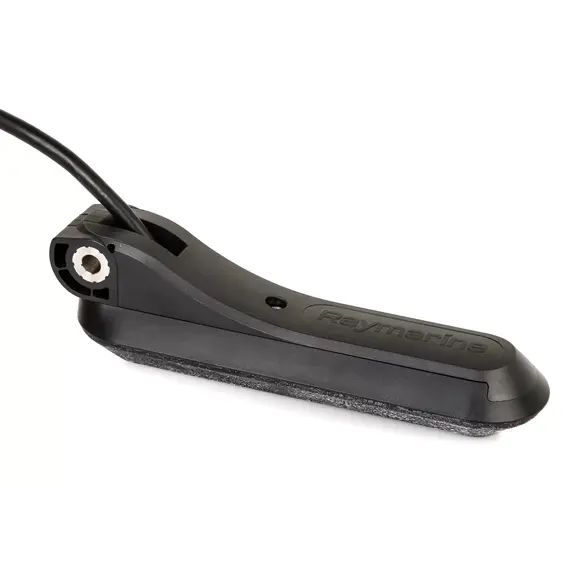

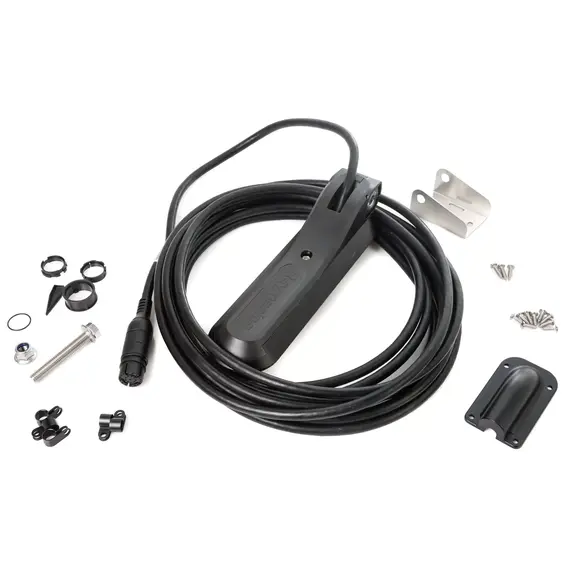

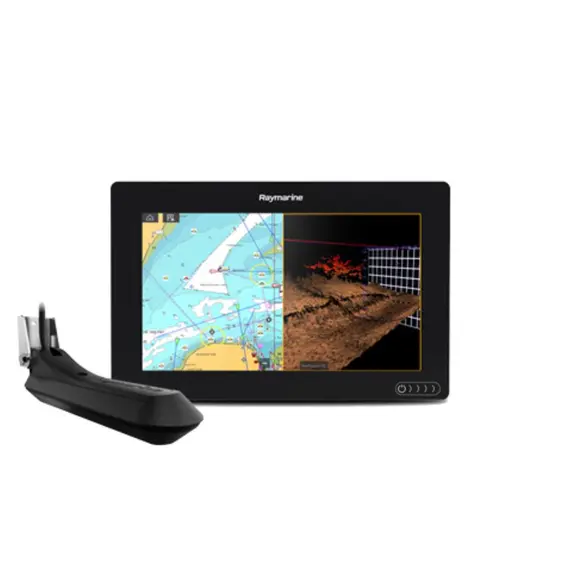

Transom transducer RV-100 emits sound signals towards the bottom and receives reflected signals from the bottom, flora and fauna of the underwater world, as well as sunken objects. The RV-100 transducer operates with a side view to the right and left of 90.5 m. In one frame, the transducer combines CHIRP (Fishfinder, DownVision, SideVision) and RealVision 3D, which allows you to:

  • find shoals of fish or individuals, display them in 3D in real time;
  • determine the structure of the bottom, revealing shallows;

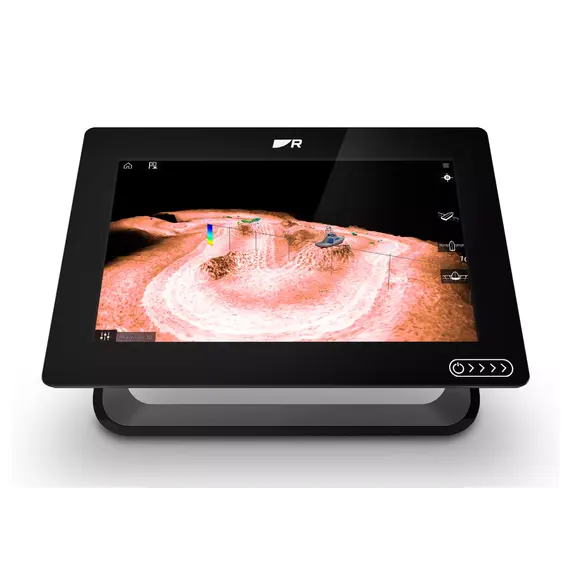

  • show the structure of the bottom in three-dimensional space;
  • detect sunken obstacles – shipwrecks and snags.

Raymarine display cost AXIOM 9 RV 3D RV-100 is specified taking into account the built-in GPS/GLONASS receiver and transom transducer RV-100 with CHIRP and 3D technologies.

Features of AXIOM 9 Touch with integrated RealVision 3D Sonar and RV-100 Transducer

    Brand
    Raymarine
    Voltage, V DC
    12 (8 to 16)
    Weight, kg
    2.04
    EAN
    00723193817759
    Operating temperature
    -25 to +55 °C
    Main features
    Model number
    E70367-03
    Display size, inch
    9
    With transducer
    Yes
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    145
    Installation width, mm
    231
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Touch screen
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    Yes
    Nautical chart support
    Yes
    Tablet control
    Yes
    Technical data
    Video/camera
    Compatible with CAM210IP and CAM220IP (max. 10 cameras)
    Resolution, mm
    800 x 480 WVGA
    Brightness, nits
    1,200
    Viewing angle, °
    60 / 70 / 70 / 70 (Top / Bottom / Left / Right)
    Power consumption, W
    11.98

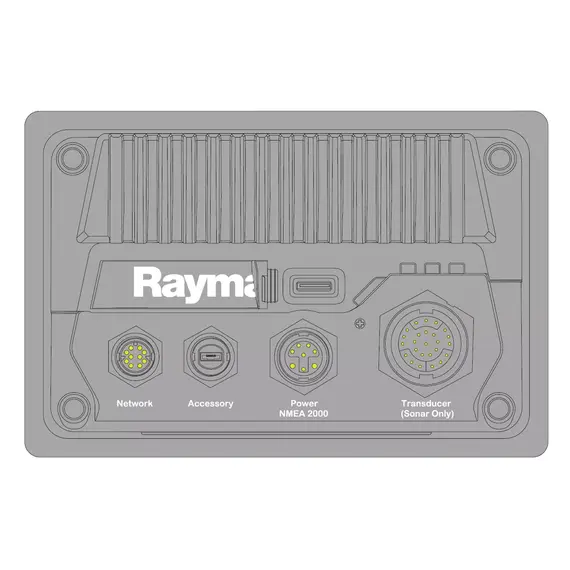

    Ethernet, ports
    Yes, 1x port (RayNet)
    NMEA2000, ports
    Yes, 1x port (Micro C)
    NMEA0183
    No
    SeaTalkNG
    Adapter cable necessary
    USB
    1x USB mircoAB
    GPS
    Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
    Sonar
    Integrated

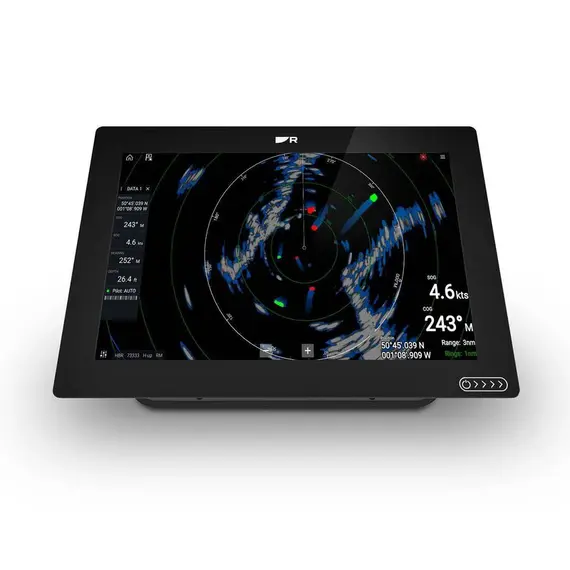

    Radar
    Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
    AIS
    Yes, via NMEA2000
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C
    Thermal image
    FLIR AX8, M232, M300 series, M400, M500
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    244 x 158 x 75
