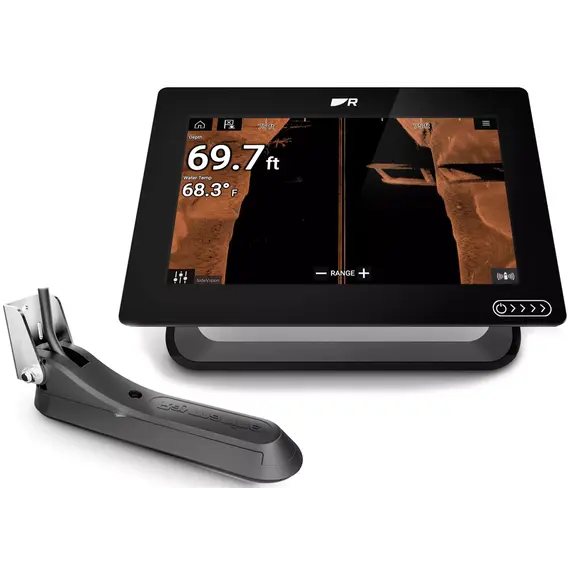

AXIOM+ 9 Touch with Integrated RealVision 3D Sonar and RV-100 Transducer

26179
1,679.96
In stock

Multifunctional 9" chartplotter Raymarine AXIOM+ 9 RV 3D RV-100 supports the most advanced underwater scanning technologies during coastal navigation, allowing you to explore the seabed, detect the presence of fish schools and observe the underwater world. Purchase of AXIOM+ 9 RV 3D RV-100 display achieves several goals at once: safe sea travel, successful fishing, relaxation with an overview of marine life.

BrandRaymarine Shipping fromCroatia Model numberE70637-03 Display size, inch9
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
EAN
00723193839935
Operating temperature
-25 to +55 °C
Main features
Model number
E70637-03
Display size, inch
9
With transducer
Yes
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
145
Installation width, mm
231
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Resolution, mm
1280 x 720
Brightness, nits
1500
Viewing angle, °
85° top, bottom, left, right
Power consumption, W
11.98
Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
244 x 158 x 77
Dimensions in packaging
Weight, kg
2.27
Find similar

Echo sounder AXIOM+ 9 RV 3D RV-100 is effective in any weather at any time of the day. The reliability of multi-touch is provided by nano-coating, which retains the touch characteristics of the screen even in contact with water, oil and other contaminants. Settings for the new LightHouse OS Dartmouth's colors can be adjusted to provide the perfect picture in any conditions.
RealVision 3D sonar module combines the most advanced sonar technologies in one device, which provides the most realistic representation of the underwater space:

  • RealVision 3D sonar easily detects both underwater obstacles and the location of fish schools, while providing realistic clarity;
  • CHIRP wide spectrum technology transmits 60 different frequencies;
  • detail and fidelity enhanced with CHIRP technology Down Vision;
  • echolocation module CHIRP SideVision conveys detailed bottom structure, displays the accumulation of fish schools and individuals;
  • high frequency CHIRP - effectively displays objects (bottom topography, fish) at depths of less than 60 m.

CHIRP and RealVision 3D modes are provided by the new RV-100 transducer.

Thanks to the built-in gyro stabilization technology, the ship's roll is compensated, which improves the realistic 3D display of the underwater space.

This variety of advanced sonar technologies allows you to quickly create the most realistic seabed maps, which is very important for coastal navigation, especially in adverse weather conditions. It also makes sense for fans of sea fishing to buy the AXIOM+ 9 RV 3D RV-100 display to detect schools of fish.

The display platform can be expanded by using Raymarine navigation peripherals.

Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]
