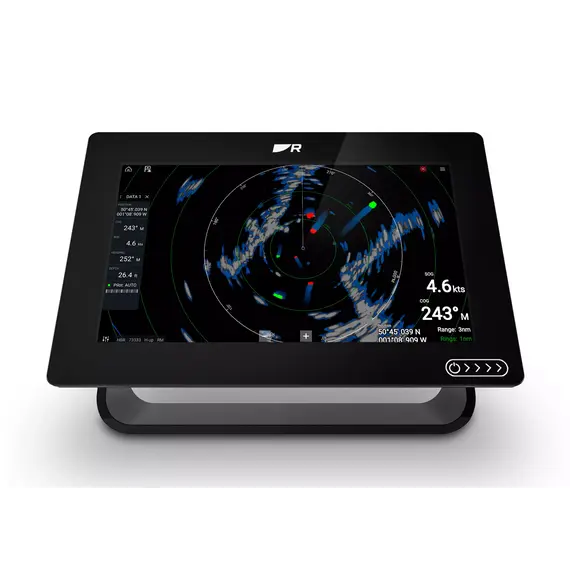

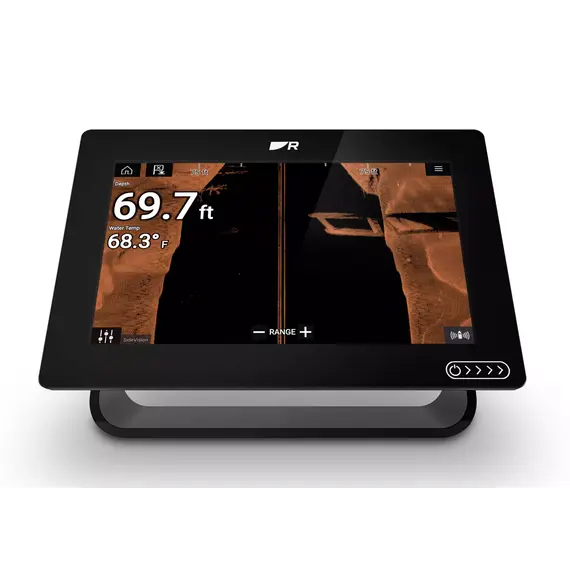

AXIOM+ 9 Touch with integrated RealVision 3D Sonar and AIS 700

93901
2,470.55
In stock

All-weather marine display AXIOM+ 9 RV AIS 700 doubles as a chartplotter and echo sounder. The powerful processor allows you to quickly display scanned information as seamless C-MAP, Navionics or Lighthouse maps. We offer to enhance the safety of navigation and buy a ship computer AXIOM+ 9 RV AIS 700 with RealVision 3D sonar and Class B automated identification system transponder with SOTDMA technology.

BrandRaymarine Shipping fromCroatia Display size, inch9
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
Weight, kg
2.27
Operating temperature
-25 to +55 °C
Main features
Display size, inch
9
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Optional
Installation height, mm
145
Installation width, mm
231
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes,1x port
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Resolution, mm
1280 x 720
Brightness, nits
1500
Viewing angle, °
85° top, bottom, left, right
Power consumption, W
8.95
Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
244 x 158 x 77
Find similar

Raymarine's latest generation of AXIOM+ navigation displays come with an impact-resistant nano-coated screen. HydroTough coating repels water, oil and other contaminants. Regardless of the weather and the cleanliness of the user's hands, the multi-touch responds to commands at the same high speed. This is especially important in difficult sailing conditions - during competitions, bad weather, breakdowns, etc.

AXIOM+ 9 RV marine display AIS 700 with a diagonal of 9 inches is aimed precisely at ensuring the safety of navigation:

  • the functions of the chartplotter allow you to accurately calculate the route from start to finish, taking into account data on the water area along which it will run;

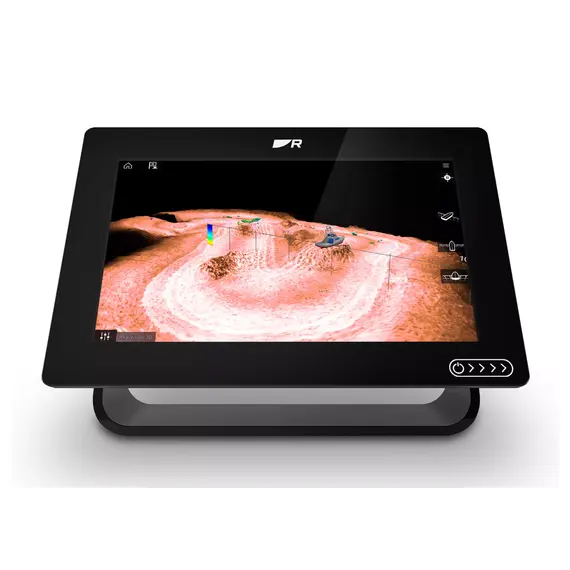

  • 5-channel RealVision 3D sonar creates a detailed three-dimensional image of the underwater world in real time;
  • the gyrostabilizer built into the sonar ensures the creation of absolutely realistic 3D models, regardless of weather conditions;

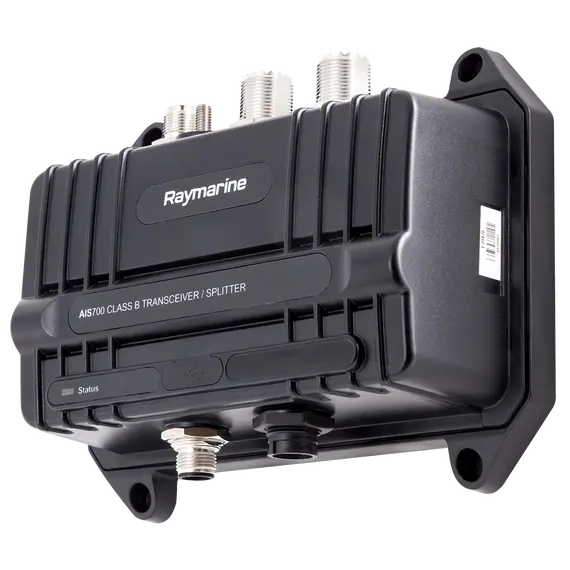

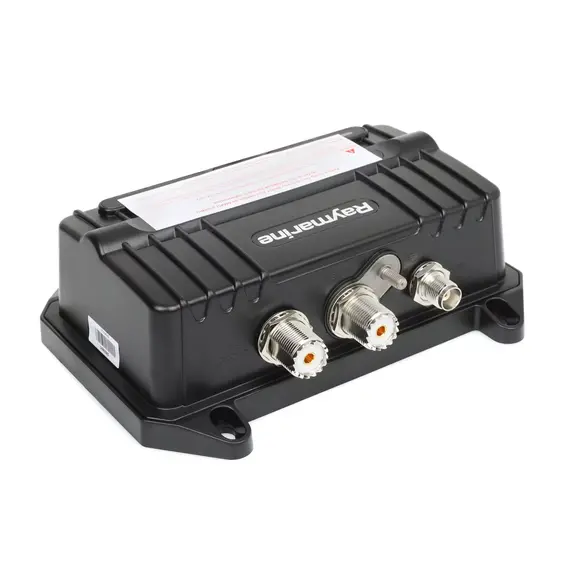

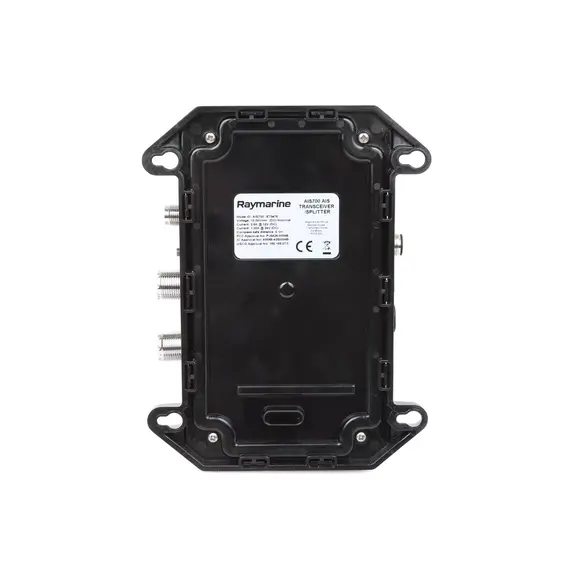

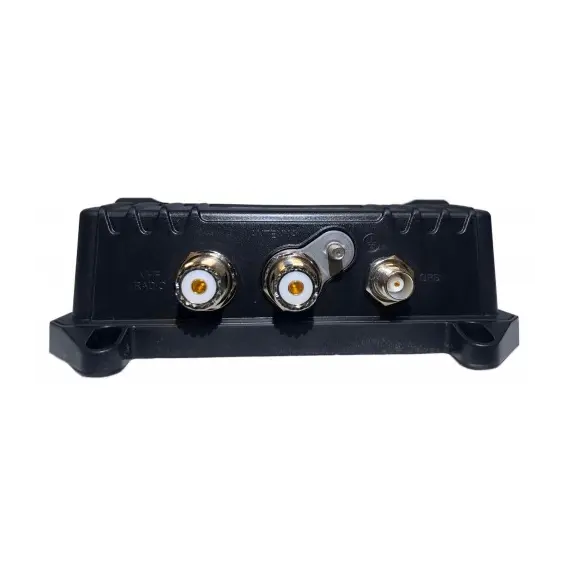

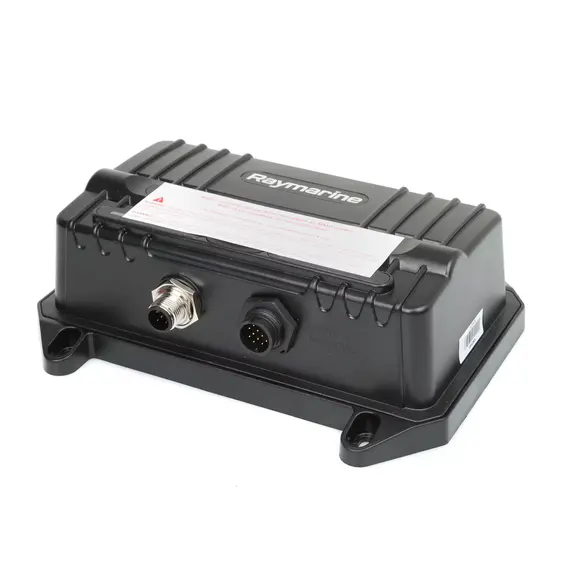

  • SOTDMA technology will increase the range and speed of the AIS 700 transponder for transmitting and receiving information about the situation at sea;

Silent mode stops transmitting information about the ship, but continues to receive data about surrounding ships, which is important when you are in waters where there is a danger of pirate attacks, or to hide your location from rivals during fishing competitions.

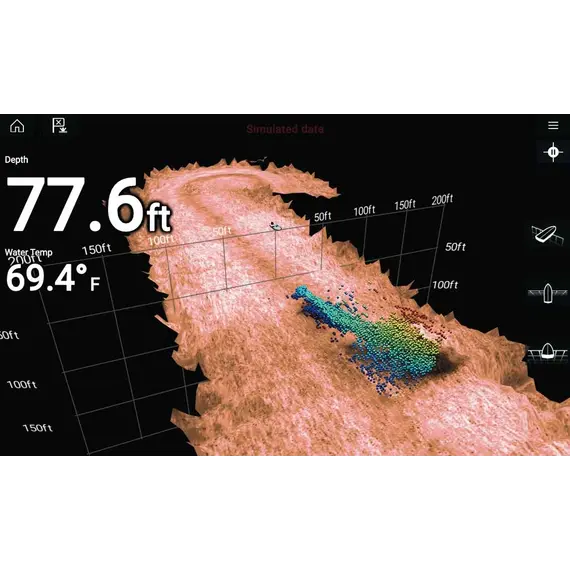

Displaying underwater space in 3D on a computer screen helps to effectively detect fish schools and even sunken ships. For relaxation lovers this is a great opportunity to keep track of what’s underneath.

AXIOM+ 9 RV AIS 700 can be even more effective if you take advantage of the platform addons and select optional Raymarine navigation equipment.

Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]

Articles about AXIOM+ 9 Touch with integrated RealVision 3D Sonar and AIS 700

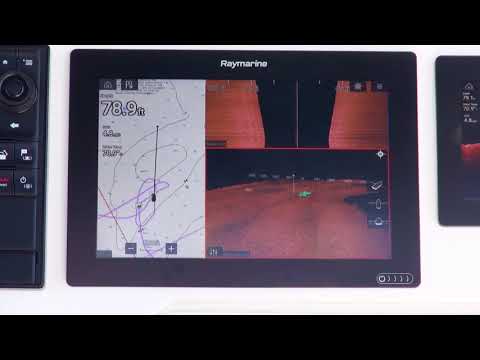

Raymarine AXIOM 9 by Reviewmarine
