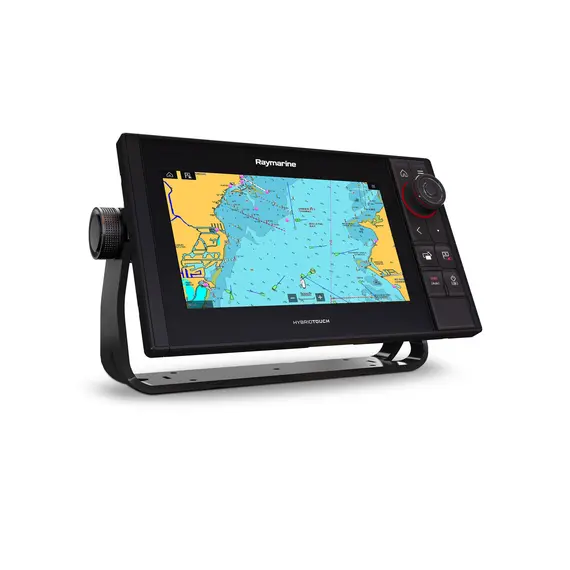

AXIOM 9 PRO-S - Touch & Buttons

24118
1,971.25
In stock

The AXIOM 9 PRO-S marine display performs the functions of a chartplotter, radar and single-channel CHIRP sonar. Intuitive to operate, the ergonomic LightHouse 3 operating system supports Navionics and C-MAP mapping, as well as custom maps. The shock-resistant multi-touch is complemented by a keyboard for ease of use. The built-in 72-channel GPS/GLONASS receiver provides high-quality navigation. If you buy MDF AXIOM 9 PRO-S, you get 3 devices at once.

BrandRaymarine Shipping fromCroatia Model numberE70481 Display size, inch9
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12V and 24V DC (8V to 32 DC)
Weight, kg
1.52
EAN
00723193822227
Operating temperature
-25 to +55 °C
Main features
Model number
E70481
Display size, inch
9
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
158
Installation width, mm
284
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
1 x Analogue input (BNC) Up to 10 IP Cameras
Resolution, mm
1280 x 720 WXGA IPS Optically Bonded LCD
Brightness, nits
1200
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
20
Ethernet, ports
2 x 10/100 Mbit/s Network (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
Yes
SeaTalkNG
Requires DeviceNet Female (F) adaptor cable (A06075 1m adaptor included in box)
USB
1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288)
Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS
Yes - N2K compatible
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
300 x 174 x 65
Find similar

The 9-inch multifunctional marine display AXIOM 9 PRO-S differs from the AXIOM line not only by the screen size.

1. AXIOM 9 PRO-S is equipped with a single channel CHIRP - Compressed High Intensity Radar Pulse Sonar, an improved version of traditional 2D sonar. While traditional 2D sonar uses a single frequency to collect information, CHIRP uses a combination of different frequencies to provide richer, more detailed information.

2. Depending on the weather, water conditions and the preference of the captain or skipper, the chartplotter can be controlled using the touch screen or the keyboard.

3. In addition to its own mapping application, LightHouse 3 operating software supports the best navigation mapping from Navionics and C-MAP, namely Navionics+, C-MAP 4D, Navionics Platinum+. Thanks to Wi-Fi and Bluetooth applications, the operating system allows you to work with the display remotely via a tablet or smartphone.

Like all Raymarine AXIOM marine displays, this model has a built-in GPS/GLONASS receiver that functions as a radar. It allows you to calculate the route with up to 500 waypoints, determines the coordinates 10 times per second and reports information about the situation in the water area.

The shock-resistant multi-touch with anti-reflective coating provides a bright picture in all weather conditions, while the powerful processor ensures quick response and task completion.

Buy AXIOM 9 PRO-S to quickly receive seamless maps with detailed information about the state of the underwater space and the situation in the water area.

Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]
