AXIOM 9 PRO-RVX - Touch & Buttons

2,322.31
In stock

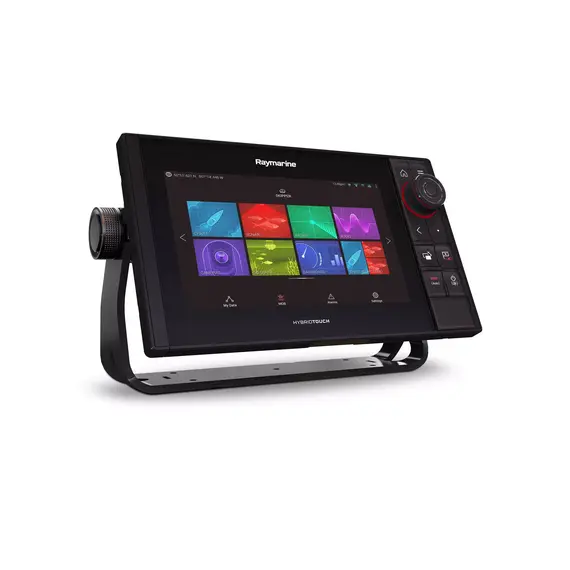

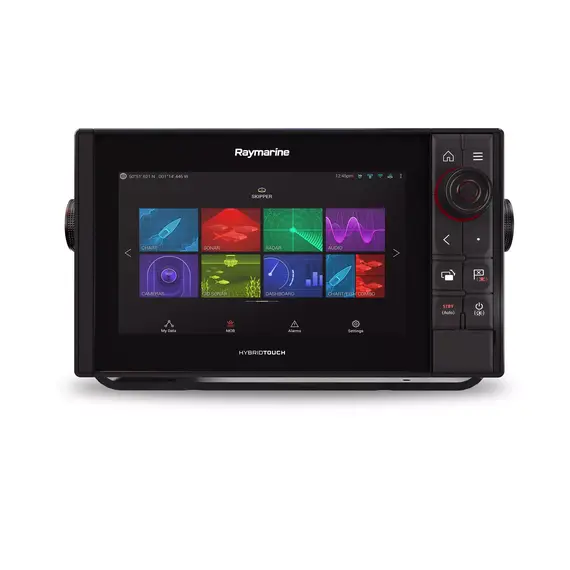

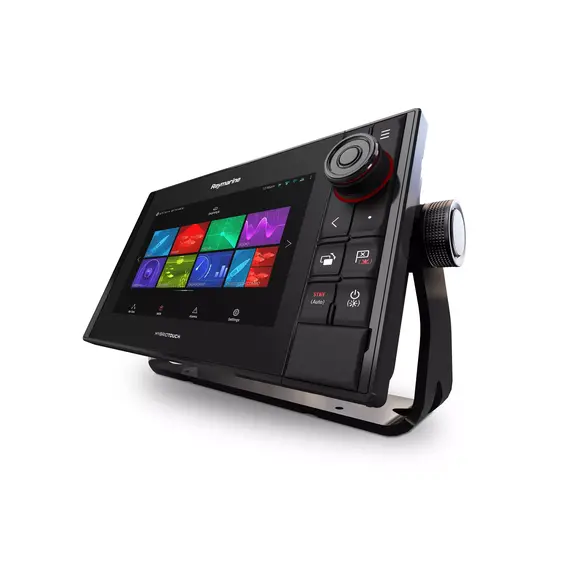

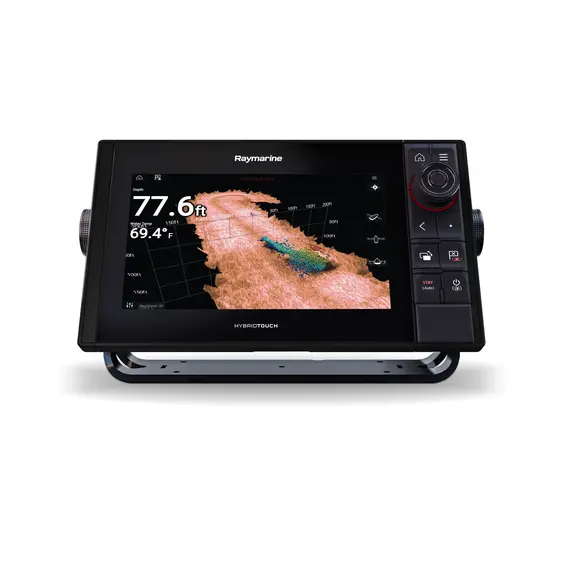

The multifunctional marine display AXIOM 9 PRO-RVX is a sonar, radar and chartplotter combined in one device. All information is presented on a shock-resistant touch screen with anti-reflective coating. You can control it both through multitouch and using the buttons. The 4-core processor provides fast feedback and task solving. The operating system supports the best nautical cartography with seamless maps output. The GNSS receiver is included in the price.

+
Add to Wishlist
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Model numberE70371 Display size, inch9 BrandRaymarine Shipping fromCroatia
Brand
Raymarine
Voltage, V DC
12V and 24V DC (8V to 32 DC)
Weight, kg
1.52
EAN
00723193814994
Operating temperature
-25 to +55 °C
Main features
Model number
E70371
Display size, inch
9
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
158
Installation width, mm
284
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
1 x Analogue input (BNC) Up to 10 IP Cameras
Resolution, mm
1280 x 720 WXGA IPS Optically Bonded LCD
Brightness, nits
1200
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
20

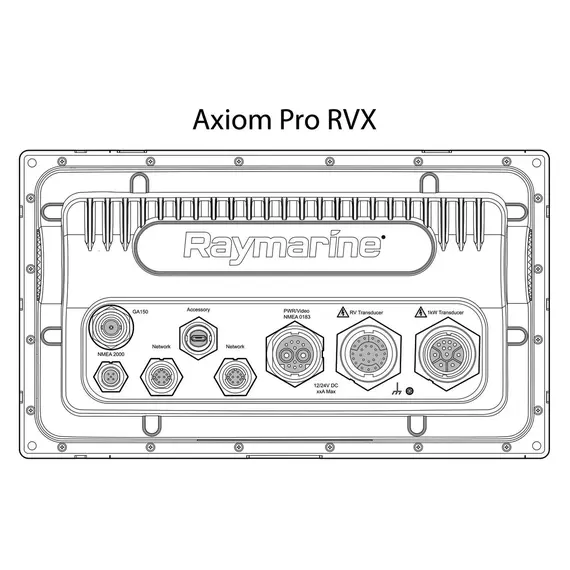

Ethernet, ports
2 x 10/100 Mbit/s Network (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
Yes
SeaTalkNG
Requires DeviceNet Female (F) adaptor cable (A06075 1m adaptor included in box)
USB
1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288)
Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS
Yes - N2K compatible
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
300 x 174 x 65
Find similar

The advantages of the Raymarine AXIOM 9 PRO-RVX marine display, which combines a chartplotter, sonar and radar in one housing, have already been appreciated by a lot of captains and skippers.

1. The high performance of AXIOM 9 PRO-RVX  chartplotter is provided by a powerful processor, responsive multi-touch, and an operating system specially designed for the Raymarine line. It is easy to manage, has all the necessary applications for successful navigation, including its own cartography. The OS also supports C-MAP 4D, Navionics+ and Navionics Platinum+ charts.

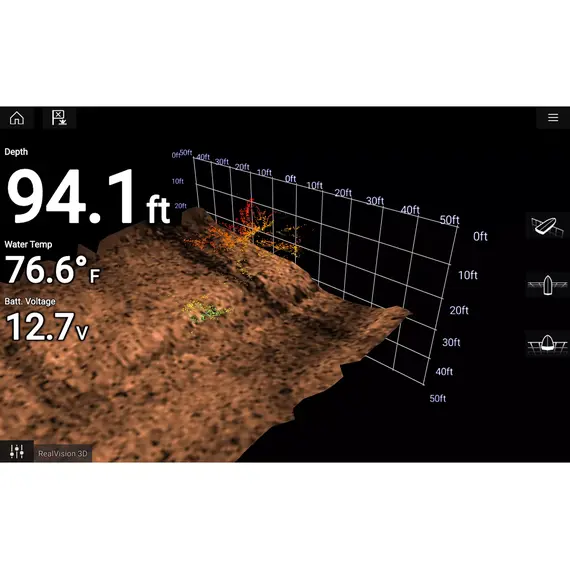

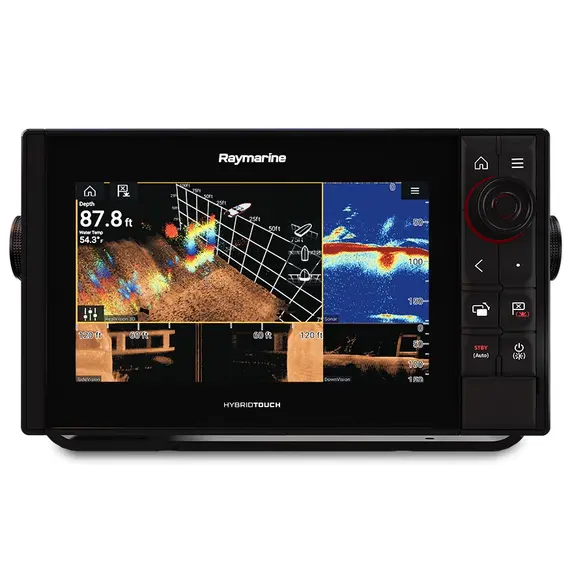

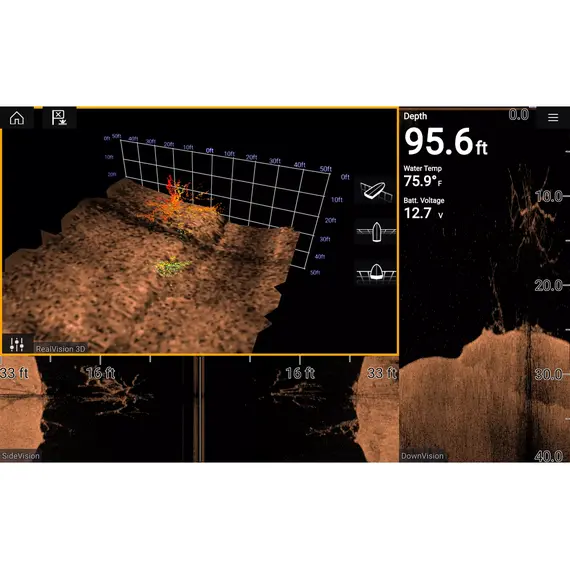

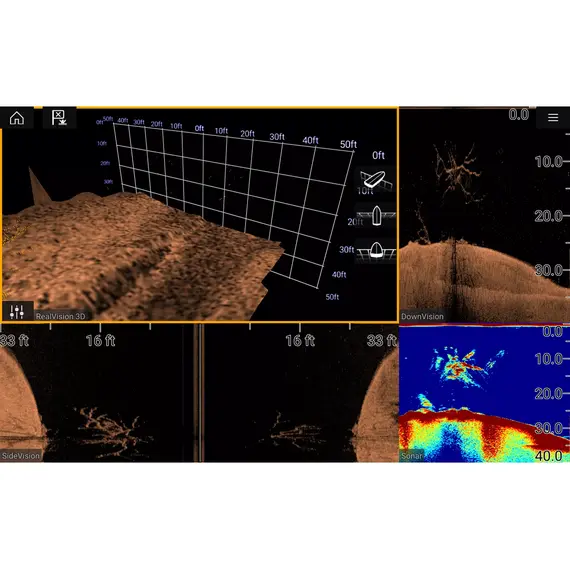

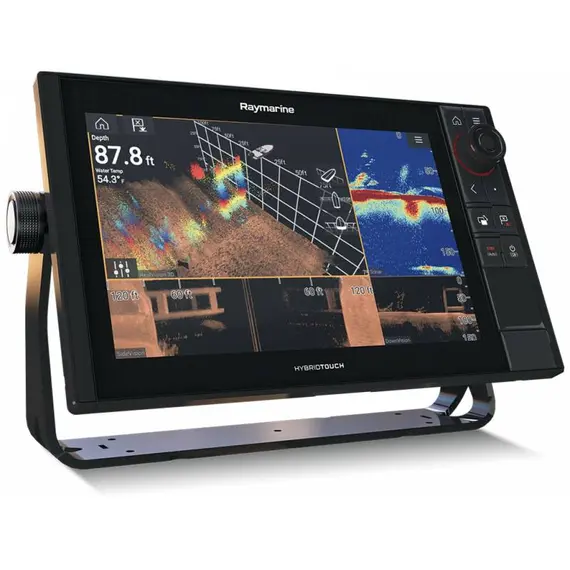

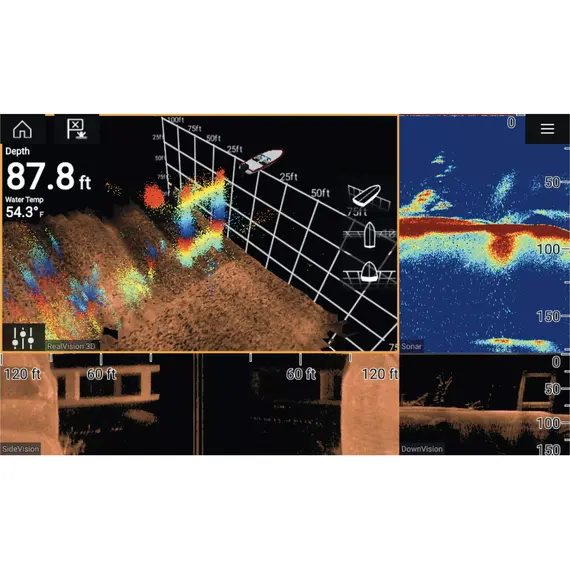

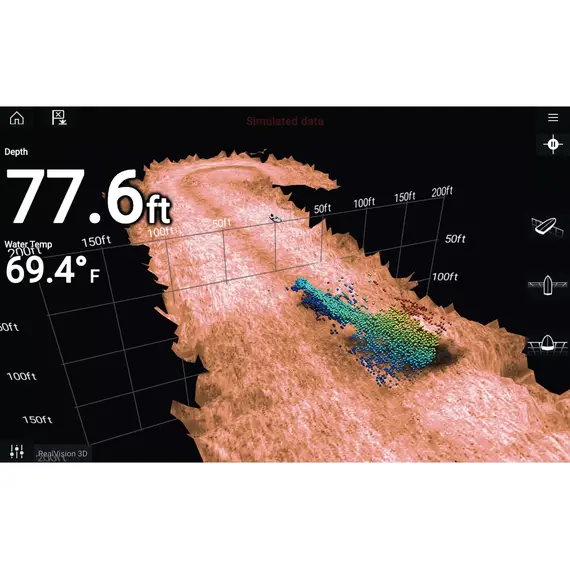

2. RealVision 3D and 1kW CHIRP sonars transmit real-time and 3D data about the situation in the underwater space, including fish schools, bottom topography, sunken objects, etc. to the screen.

3. You promptly receive seamless maps of the required region with waypoints and detailed information about ports, marinas, depths (with color outlines), currents, shoals, etc.

4. Information about the situation in the water area is read and transmitted to the screen by the built-in GNSS receiver for 72 channels at a frequency of 10 Hz.

Thanks to all these functions, in a few clicks you get seamless maps of the selected area, calculate the route with all the necessary waypoints (GNSS allows up to 500) and always have comprehensive information about the state of the underwater space and the situation in the water area in real time.

Buy AXIOM 9 PRO-RVX if you want to have reliable navigation information at any point of the route, make cruising as safe as possible, and fishing as lucrative as it can be.
