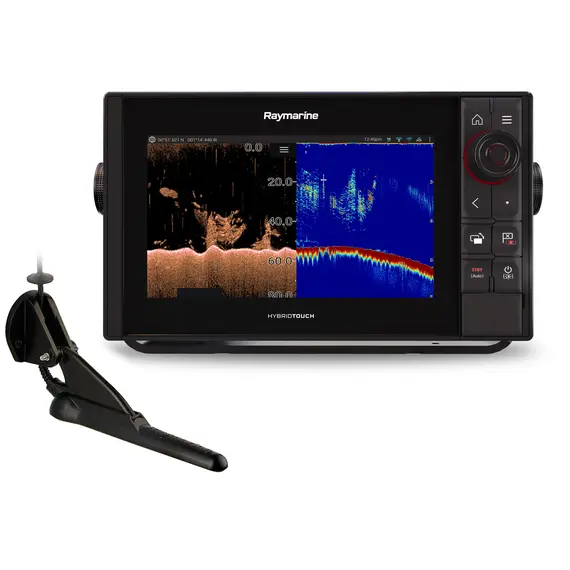

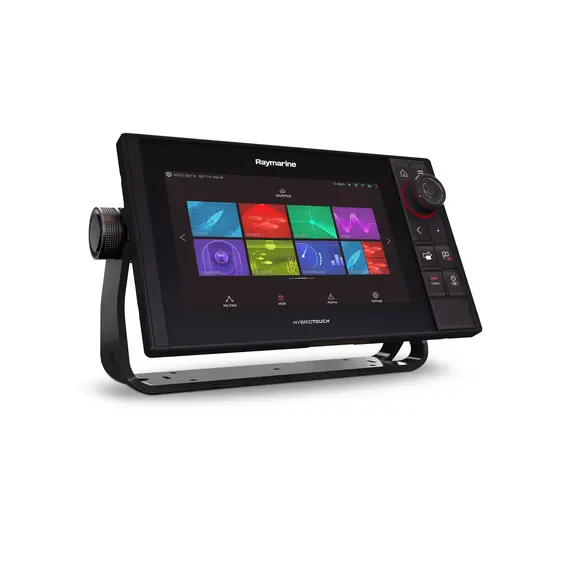

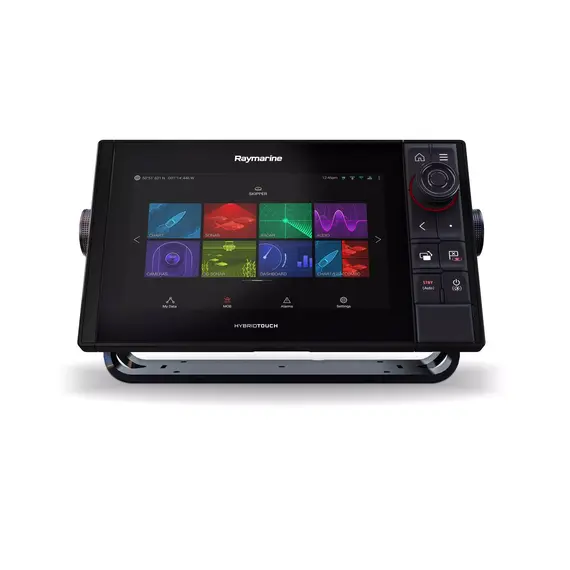

The AXIOM 9 PRO-RVX CPT-100 marine multifunction display provides advanced features beyond the chartplotter.

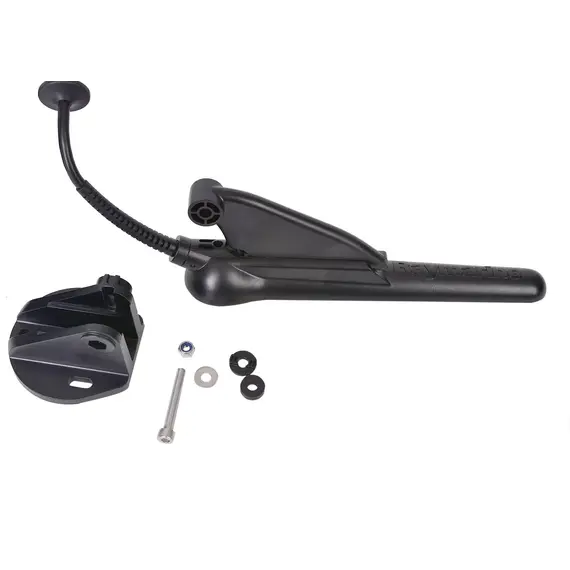

1. The transducer combines RealVision 3D, 1kW CHIRP and CHIRP DownVision sonar data to provide:
- data transmission from a depth of more than 270 meters thanks to CHIRP DownVision technology;
- detailed scanning of the bottom relief in a three-dimensional image;
- output of the bottom relief image with indication of depths and temperatures with the image of contours in color;
- detection of schools of fish and individual fishes with a detailed image in real time.
2. The LightHouse 3 operating system, specifically designed for Raymarine displays, supports a wide range of required applications and provides the ability to:
- use the best navigation charts - Navionics and C-MAP, namely: Navionics+, Navionics Platinum+ and C-MAP 4D;
- use your own LightHouse charts;
- customize maps easily;
- display data of one character on a large screen or divide the screen into several windows and simultaneously view information from the radar, echo sounder and chartplotter;
- remotely control the fish finder from a smartphone or tablet via Bluetooth and Wi-Fi, etc.
3. Marine display AXIOM 9 PRO-RVX CPT-100 allows you to quickly display seamless maps of required regions from Navionics and C-MAP with detailed directions along the route.
4. The 72-channel GNSS receiver transmits information about the situation in the water area 10 times per second and provides for the indication of up to 500 waypoints when plotting a route.
The shock-resistant touchscreen with anti-reflective coating provides a clear picture at any time of the day and in any weather. The high-performance 4-core processor quickly responds to commands via multi-touch or keyboard.

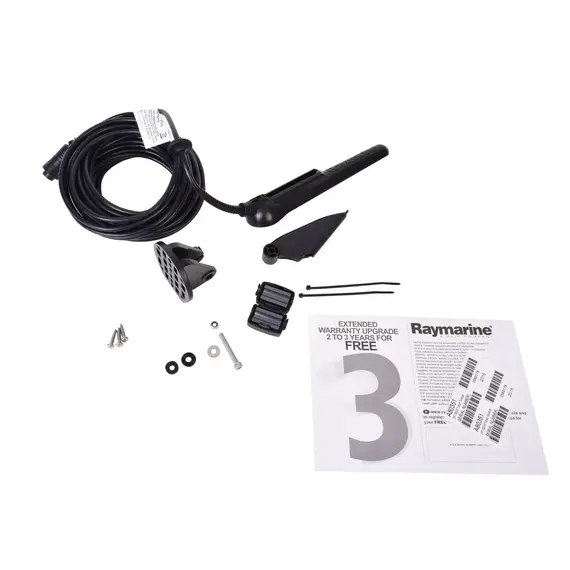

The price of AXIOM 9 PRO-RVX CPT-100 includes transducer and built-in GNSS receiver.
NMEA 0183 is a combined electrical and data specification for communication between marine electronics such as echo sounder, sonars, anemometer, gyrocompass, autopilot, GPS receivers and many other types of instruments.
The Raymarine Axiom Pro Is A Game Changer! - Flats Class YouTube
Applying Axiom Pro's incredible functions in real life situations.

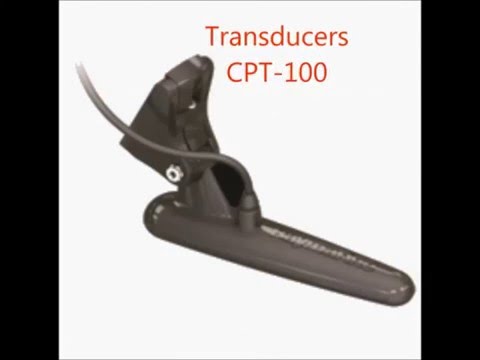

CPT-100 Transducers mati 600 wat
