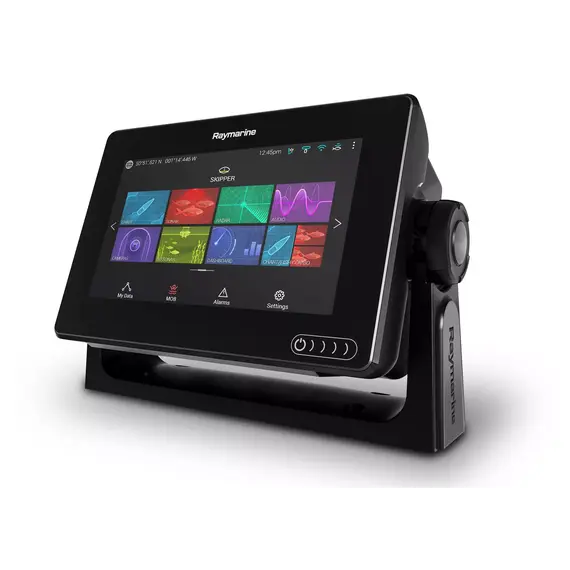

AXIOM 7 Touch with Navionics+ Small Download Chart

21839
716.43
In stock

MFD Axiom 7 supports the best mapping from Navionics, providing a realistic depiction of radar readings. Easy-to-manage LightHouse 3 operating system, multi-touch and 4-core processor allow you to quickly create seamless maps of the bottom and underwater space, inform about the situation in the surface part of the water area in real time. When you buy the AXIOM 7 display with several modes: simple map, detailed map or fishing map.

BrandRaymarine Shipping fromCroatia Model numberE70363-00-NSD Display size, inch7
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
Weight, kg
1.52
EAN
00723193819463
Operating temperature
-25 to +55 °C
Main features
Model number
E70363-00-NSD
Display size, inch
7
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Optional
Installation height, mm
122
Installation width, mm
188
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Resolution, mm
800 x 480 WVGA
Brightness, nits
1200
Viewing angle, °
85° top, bottom, left, right
Power consumption, W
8.95
Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
250.4 x 133 x 76.4
Find similar

To ensure the safety of navigation, the crew must have comprehensive information about the situation in the water area at your location, both below and above the waterline. Complete data for situational analysis is a guarantee of successful fishing.

All this information, including the graphical version, will be provided by the multifunctional ship display AXIOM 7 with Navionics+ Small Download chart .

  1. Operational GPS/GLONASS receiver with 72 channels at a frequency of 10 Hz (updating 10 times per second) accurately detects the change in location and displays it on the screen, allowing you to precisely control the movement along the route.
  2. Radar settings are displayed in real time.
  3. Waypoints, routes and Axiom maps can be synchronized with Navionics+ mobile apps.
  4. Navionics+ charts contain information about guaranteed depths, leading marks, anchorages, hazards and other important navigational information.
  5. Navionics+ cartography provides convenient seamless technology, ease of management and use, precise visual depiction on the chartplotter screen.

Axiom marine computers are based on an extensible platform. They are compatible with all Raymarine navigation accessories and equipment. You can buy additional tools for MFD Axiom 7 with Navionics+ Small Download Chart: a radar, thermal imaging camera, autopilot and other peripherals.

Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]
