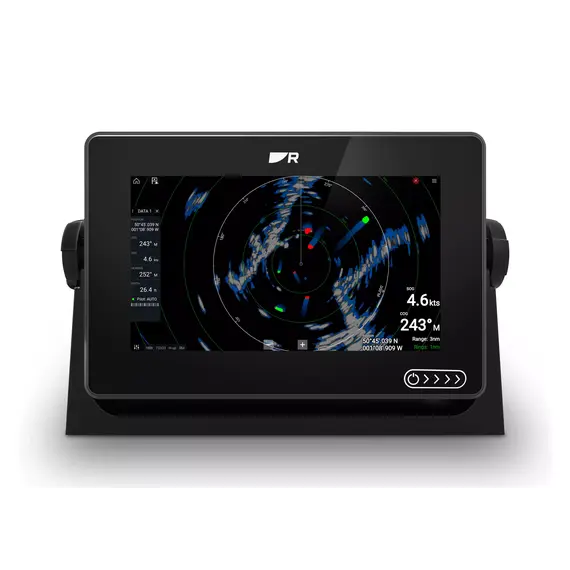

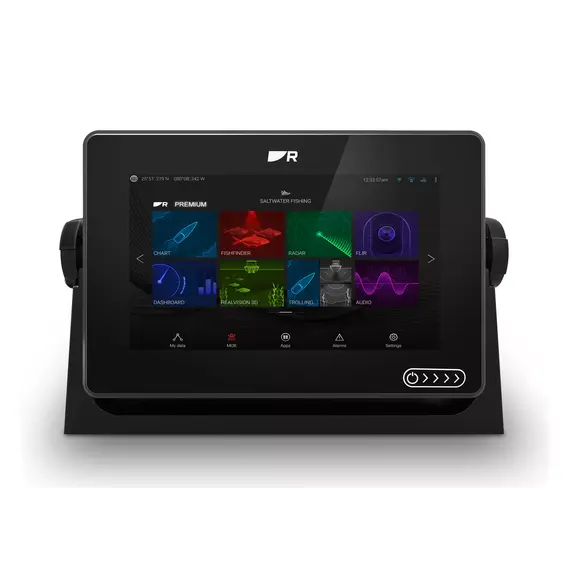

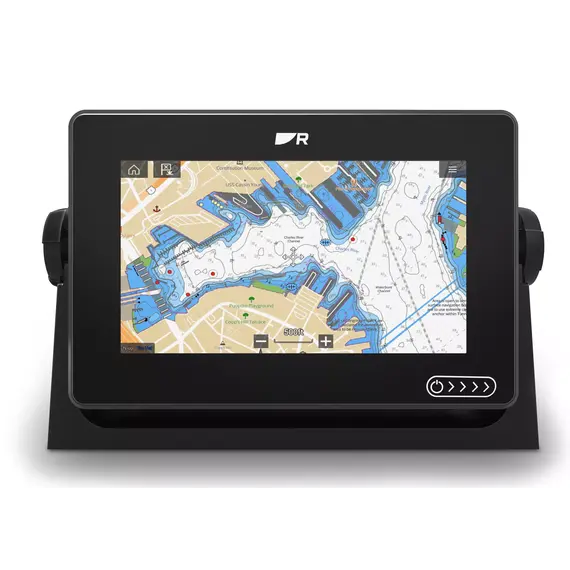

AXIOM+ 7 Touch with Integrated RealVision 3D Sonar

26175
889.37
In stock

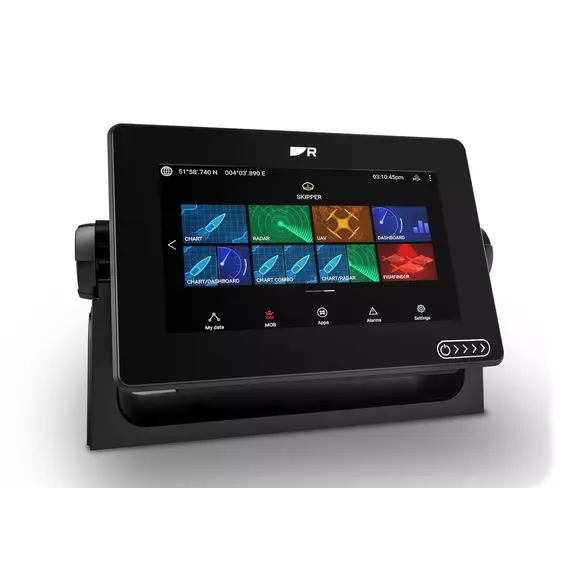

Raymarine AXIOM+ 7 RV is a feature rich 7-inch quad-core display with an intuitive LightHouse 3 operating system and a powerful built-in RealVision 3D™ fish finder. The sonar is fully compatible with all Raymarine navigation equipment. The expandable MDF platform of AXIOM+ 7 RV allows you to increase the capacity by attaching new equipment. The chartplotter is mounted on brackets or in a dashboard.

The price provided is NET-price, meaning shipment and VAT are not included. Payments of additional duties and taxes might be required in case of shipment to countries outside of the EU.

BrandRaymarine Shipping fromCroatia Model numberE70635 Display size, inch7
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
Weight, kg
1.36
EAN
00723193836897
Operating temperature
-25 to +55 °C
Main features
Model number
E70635
Display size, inch
7
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
120
Installation width, mm
188
Sea Charts

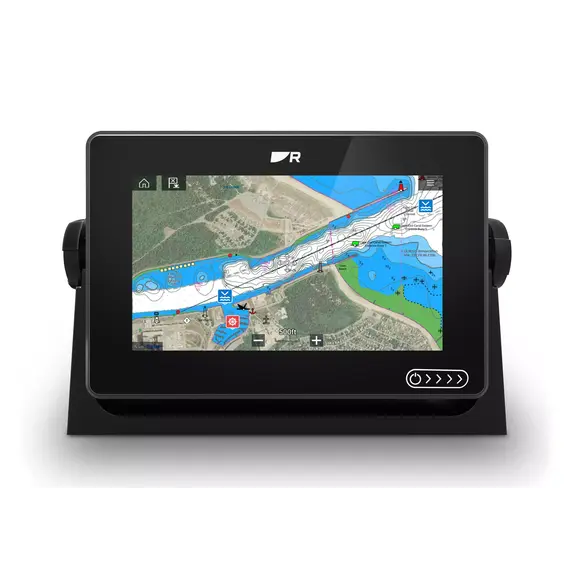

C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Resolution, mm
1024 x 600
Brightness, nits
1500
Viewing angle, °
85° top, bottom, left, right
Power consumption, W
9.84
Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Optional
Radar

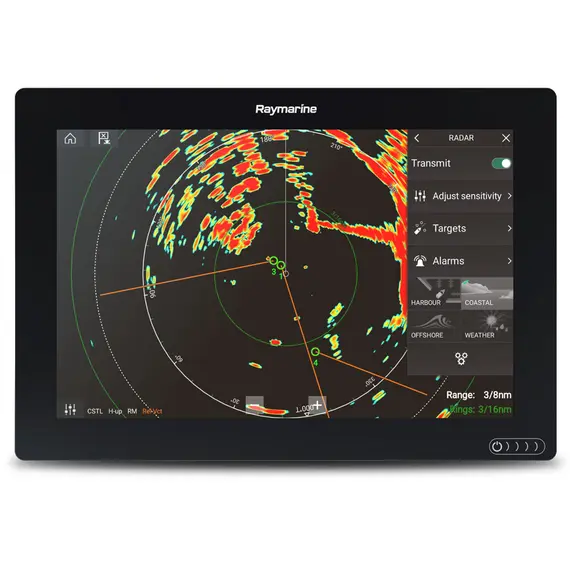

Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
210 x 142 x 77
Find similar

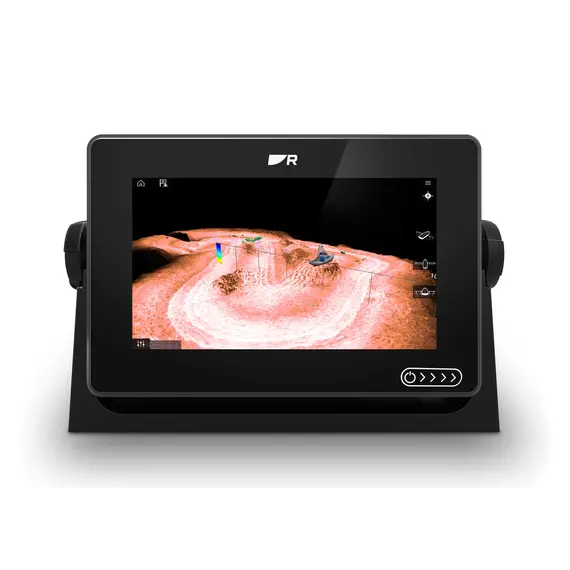

One of three AXIOM+ 7 configurations offers all the benefits of the base configuration with the added benefits of RealVision 3D™ sonar. As a result of this arrangement, you buy a navigation display with the following added benefits:

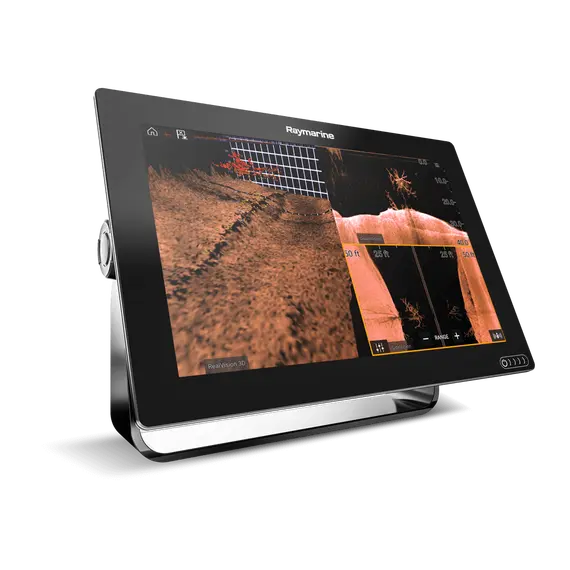

  • interferometric side-scan sonar with 3D function allows you to explore the bottom topography;

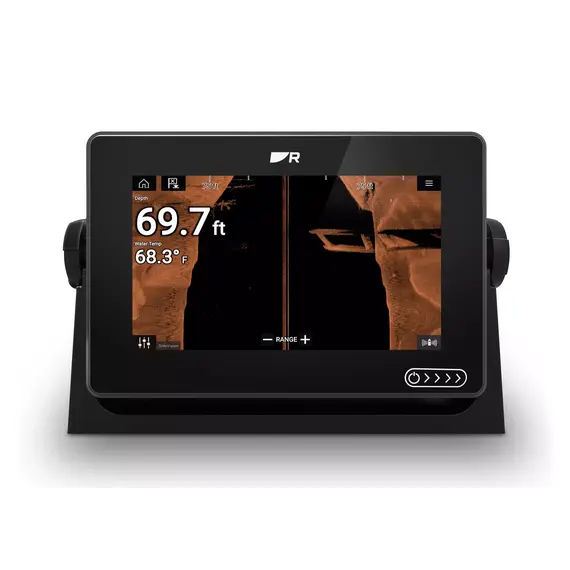

  • available advanced technology echolocation: RealVision 3D, CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP;
  • sensor gyrostabilizer allows you to eliminate roll when creating maps;
  • excellent visualization thanks to the HydroTough screen coating that prevents water or oil stains.

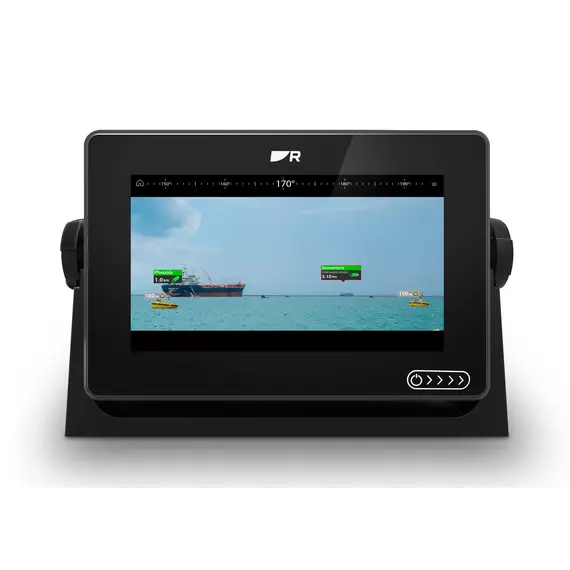

AXIOM+ 7 RV also retains all the benefits of the basic package, including the use of ClearCruise augmented reality technology, which helps you make the best decision in navigation conditions.

The display is compatible with latest Raymarine applications for smartphones and tablets, which allows you to synchronize all data comfortably. Mounting kits and mounting hardware are included.




Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]
