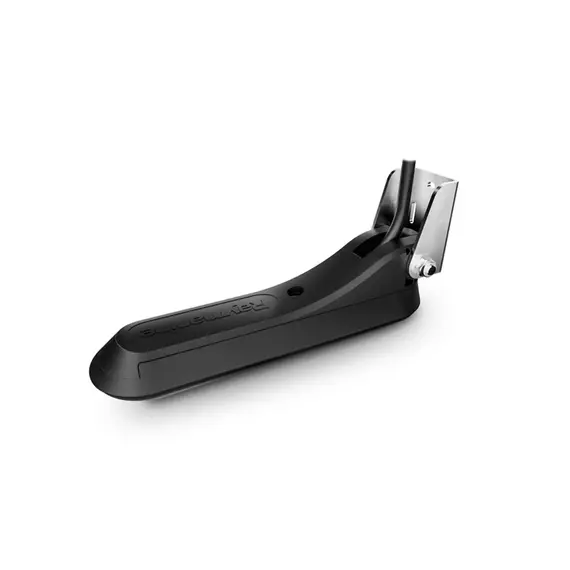

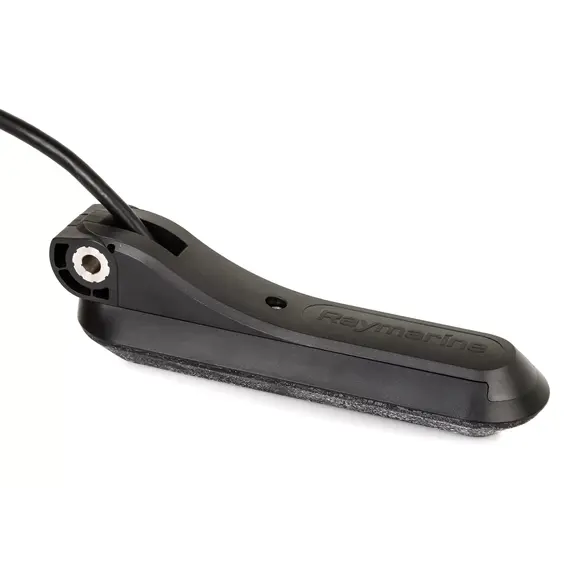

In one housing, the sensor combines the following technologies:
- CHIRP DownVision - improved detail and image fidelity;

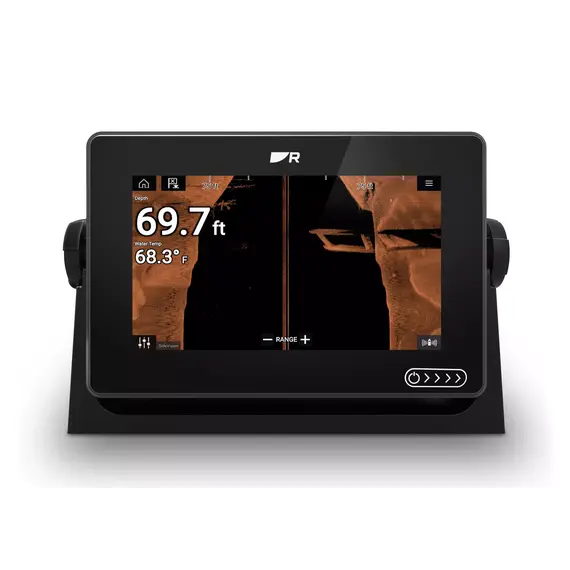

- CHIRP SideVision - provides detailed bottom structure, displays the accumulation of fish shoals;
- High Frequency CHIRP - high-frequency pulse to detect fish at depths less than 60 m;

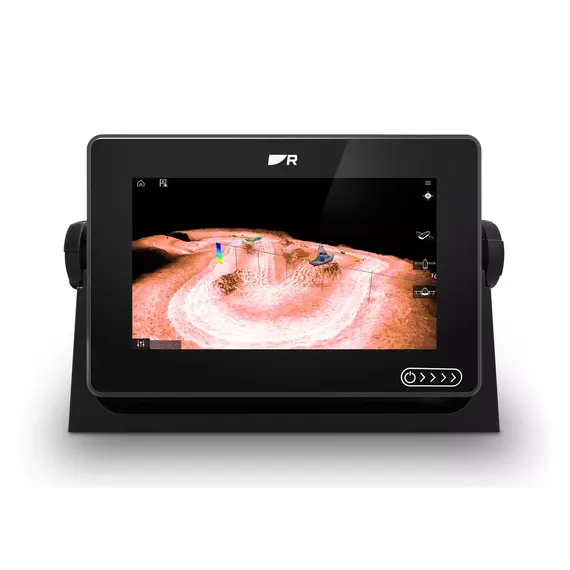

- RealVision 3D - provides realistic clarity of sonar data.

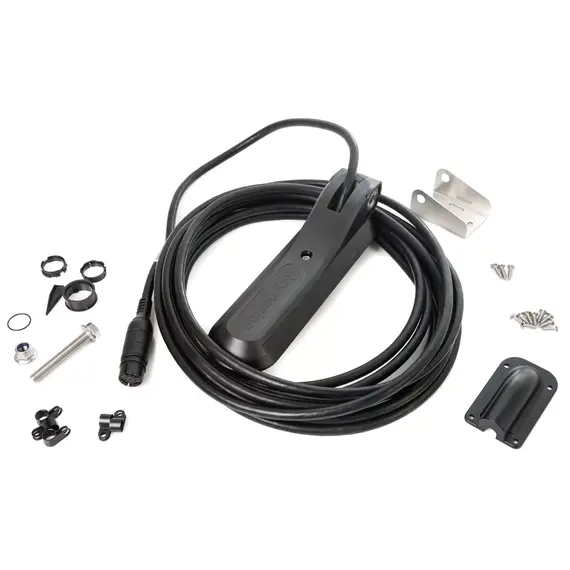

Transducer comes with a cable to connect to a chartplotter.

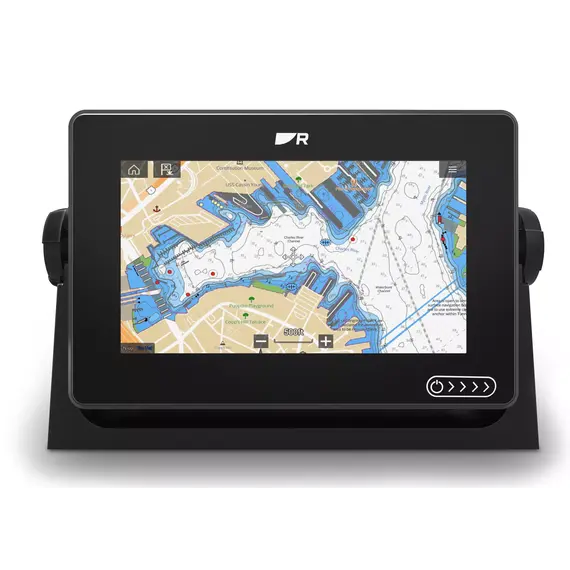

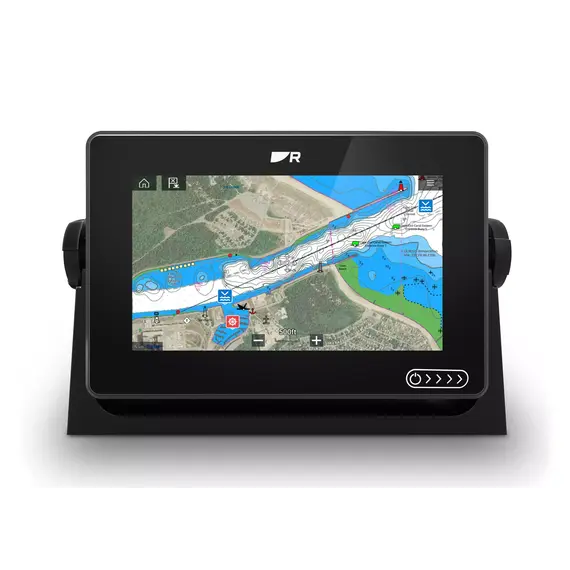

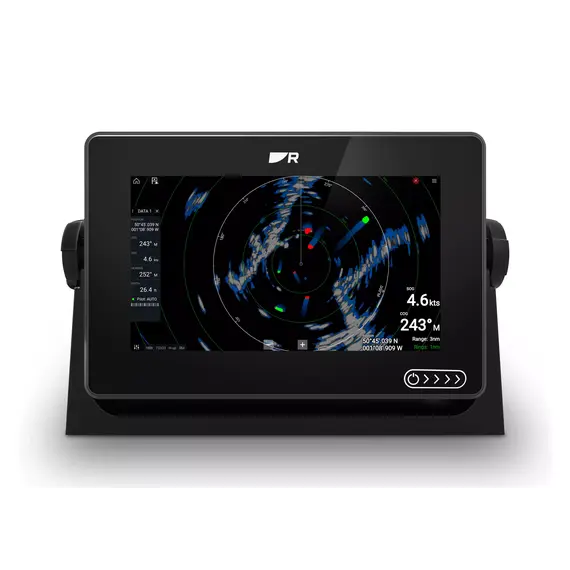

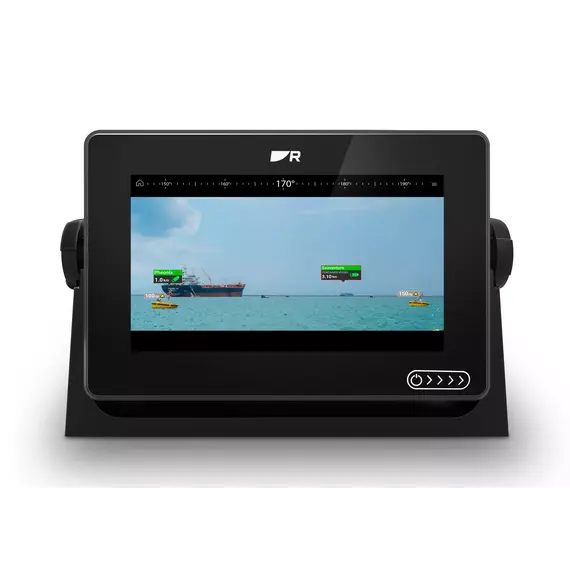

Raymarine display AXIOM+ 7 RV 3D and The RV-100 retains all the benefits of the base model. Operating system Dartmouth allows you to adjust the color settings for the best image at any time of the day in any light. The screen coating repels incoming liquids without staining.

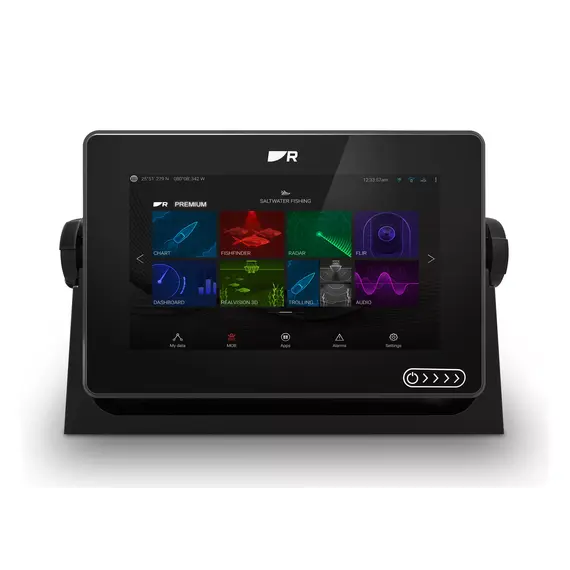

The interface is very easy to understand and use - great UI with clear app icons. Drag and drop functions, personal customization and very responsive touchscreen makes user experience complete.
NMEA 0183 is a combined electrical and data specification for communication between marine electronics such as echo sounder, sonars, anemometer, gyrocompass, autopilot, GPS receivers and many other types of instruments.

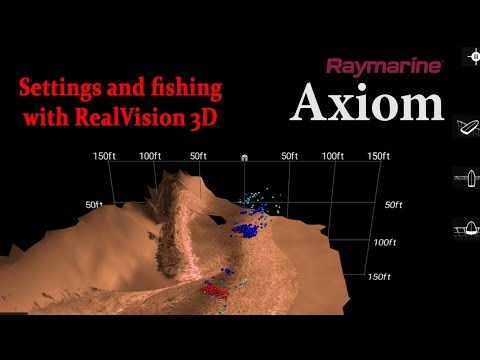

Settings and fishing with Raymarine Axiom RealVision 3D sonar
Quick overview by Brad Wiegmann - features and functionality

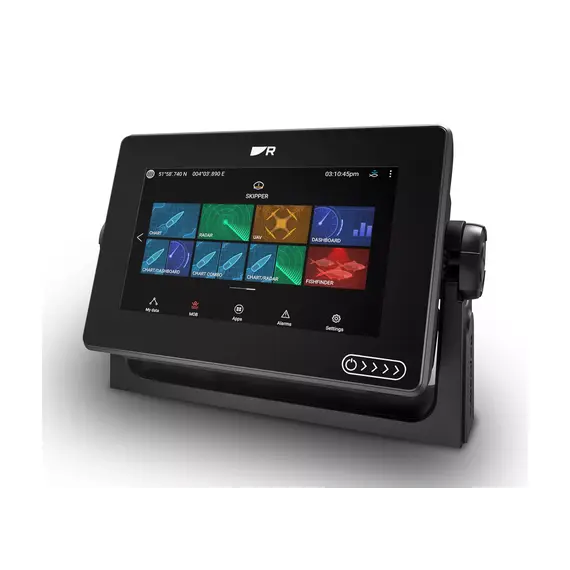

Axiom+ Multifunction Navigation Displays
Commercial teaser by Raymarine - showcasing main functions

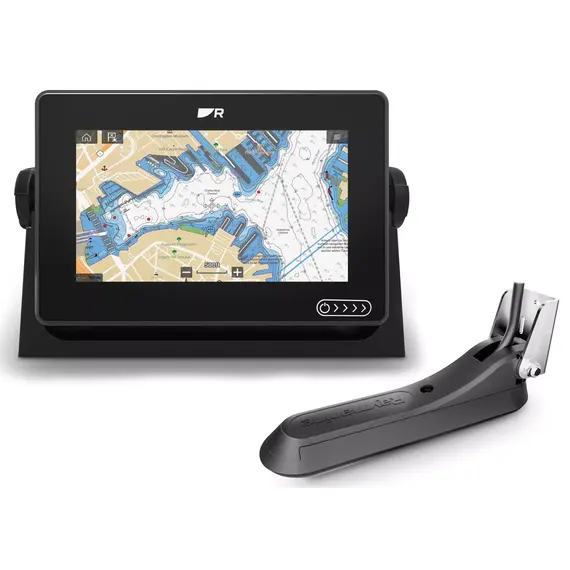

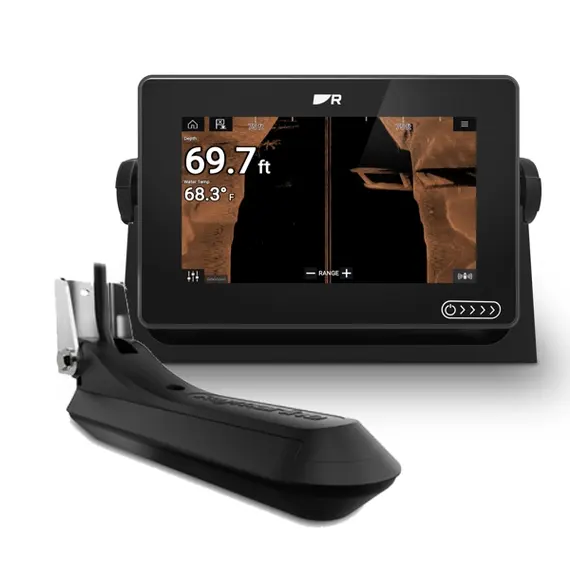

Raymarine Axiom is a all-in-one multifunction display unit with one RV-100 transducer
Specific talk about one RV-100 transducer - very convenient feature
Raymarine Axiom Plus
Quick but very informative test of Axiom 7 with Integrated RealVision 3D Sonar and RV-100 Transducer
Articles about AXIOM+ 7 Touch with Integrated RealVision 3D Sonar and RV-100 Transducer
AXIOM 7 REVIEW by FishFinderTech
Axiom 7 Review by Reviewmarine
No reviews found
