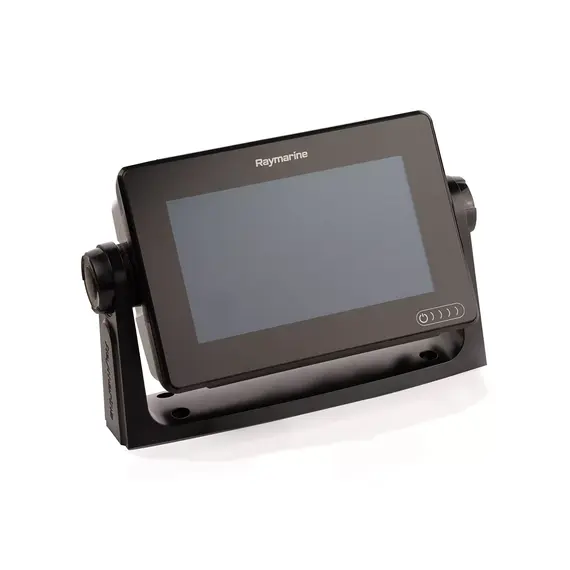

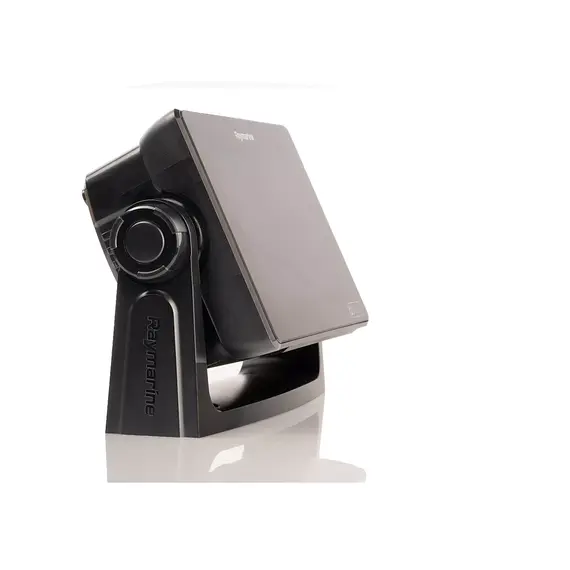

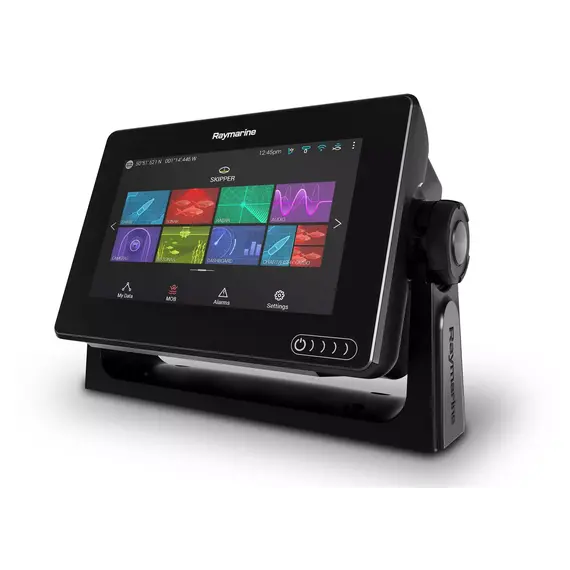

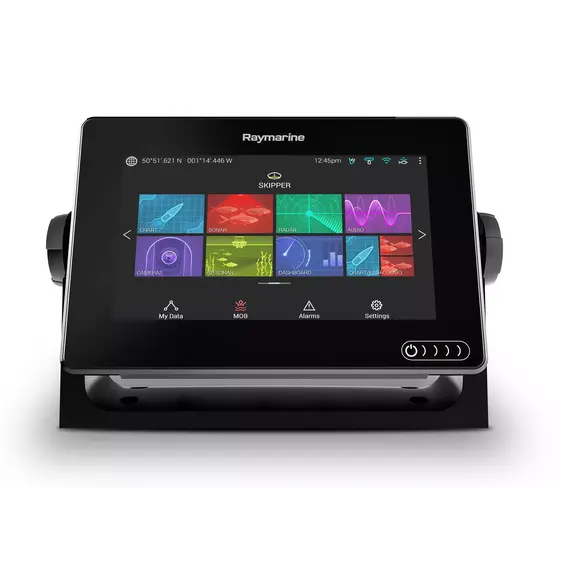

Benefits of the Raymarine Display Axiom+ 7
- Chartplotter Axiom+ 7 uses the powerful LightHouse 3 operating system with an intuitive interface and internal storage for apps and personal data.
- Designed for future network expansion with the same high performance.
- Provides fast redrawing of LightHouse, Navionics and C-MAP electronic maps.

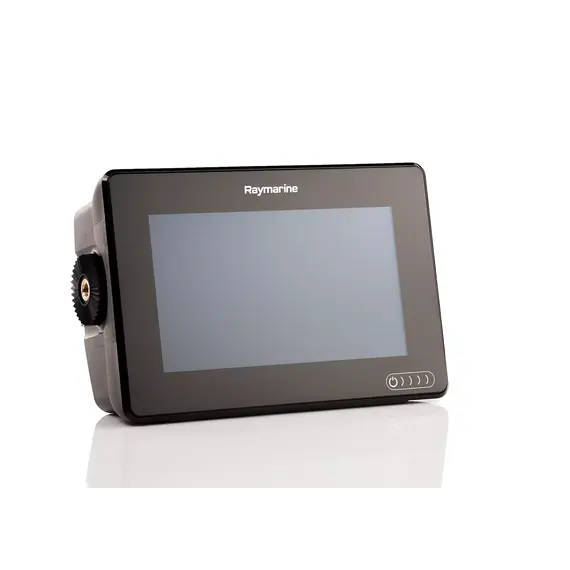

- Raymarine IPS display Axiom+ 7 delivers improved visibility in any light with higher resolution, optimized brightness, and new day/night color palettes.
Nano-coated glass screen provides better visibility and precise touch control while repelling water, oil and smudges. HD imaging leaves nothing to imagination - clear and concise data is the priority for Raymarine.
The amount chart options is truly impressive, device compatibility and great networking provide you with a lot of possible combinations with other devices.
Voltage, V DC
12 (8 to 16)
Operating temperature
-25 to +55 °C
Brand
Raymarine
EAN
00723193836873
Main features
Model number
E70634
Display size, inch
7
With transducer
No
NMEA0183
NMEA 0183 is a combined electrical and data specification for communication between marine electronics such as echo sounder, sonars, anemometer, gyrocompass, autopilot, GPS receivers and many other types of instruments.
No
Bluetooth
Yes
Sonar module
Optional
Installation height, mm
120
Installation width, mm
188
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Resolution, mm
1024 x 600
Brightness, nits
1500
Viewing angle, °
85° top, bottom, left, right
Power consumption, W
7.34

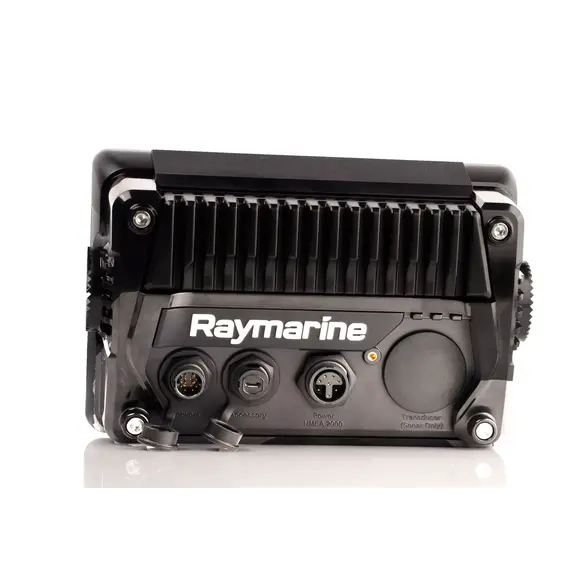

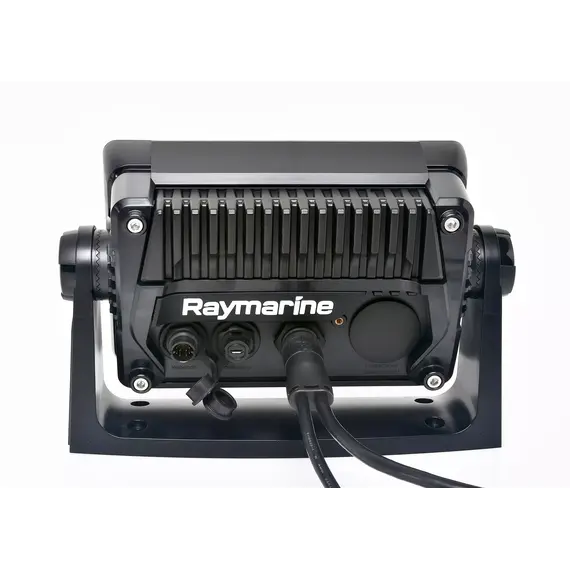

Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG

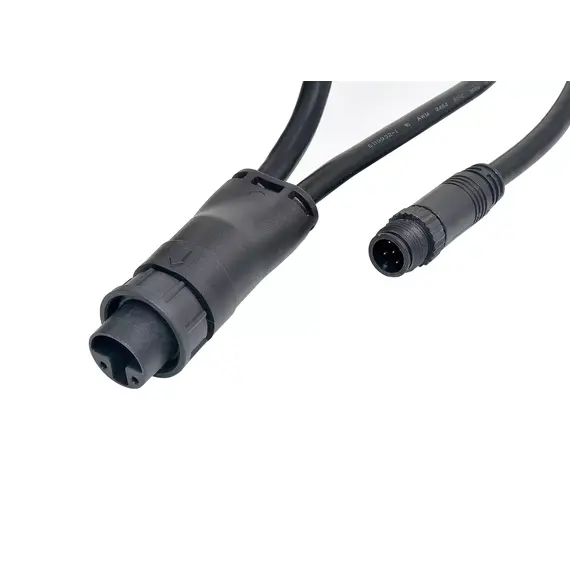

Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Optional
Radar

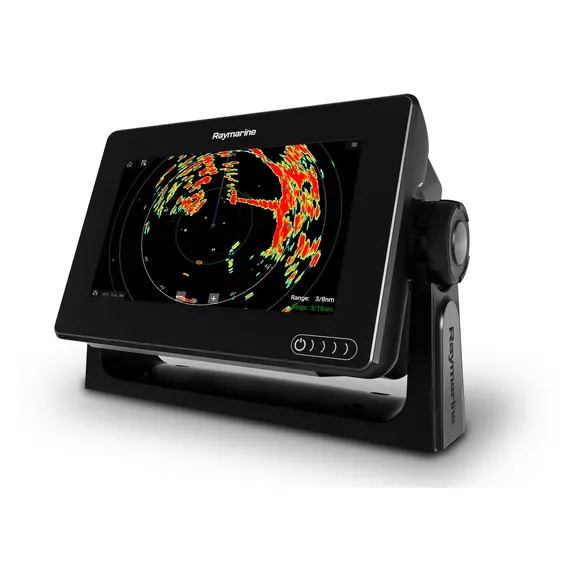

Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
210 x 142 x 77
Dimensions in packaging
Weight, kg
1.36

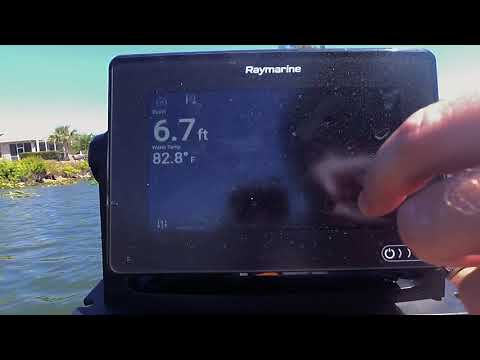

Youtube video reviews
