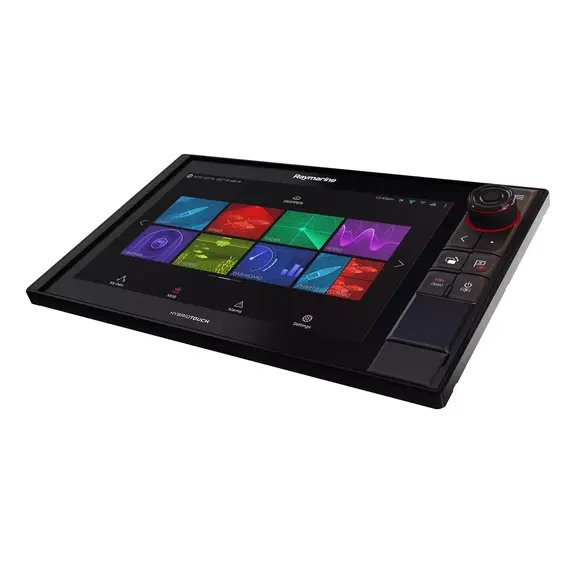

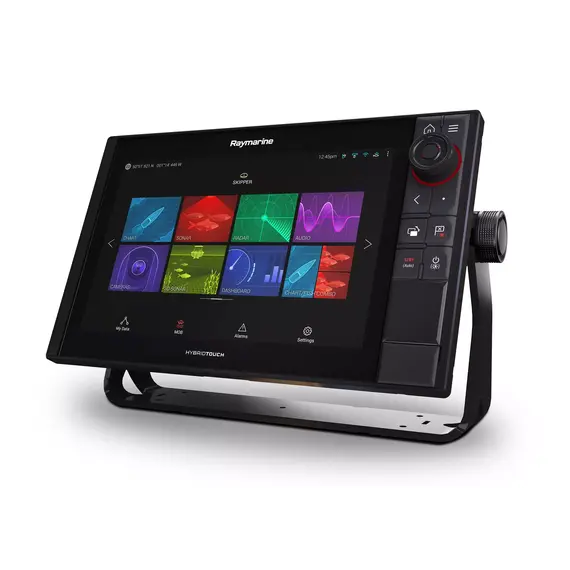

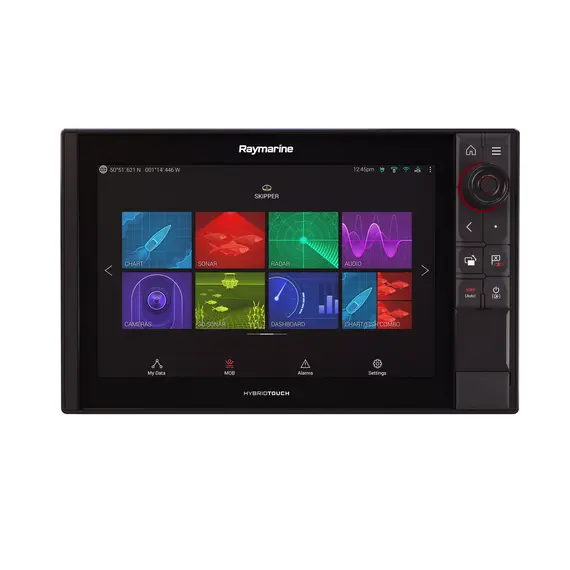

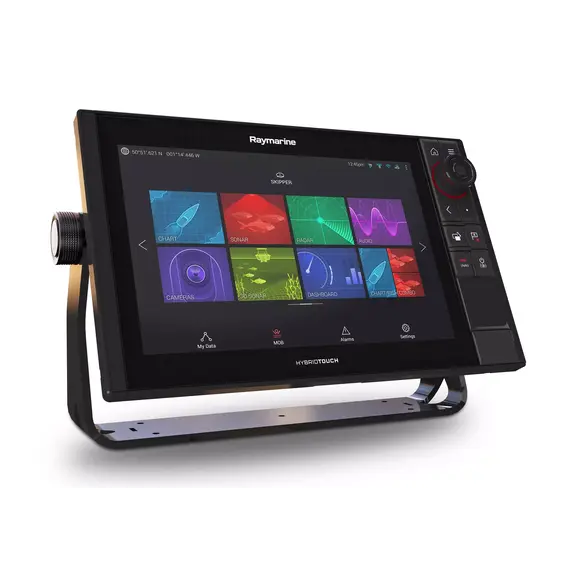

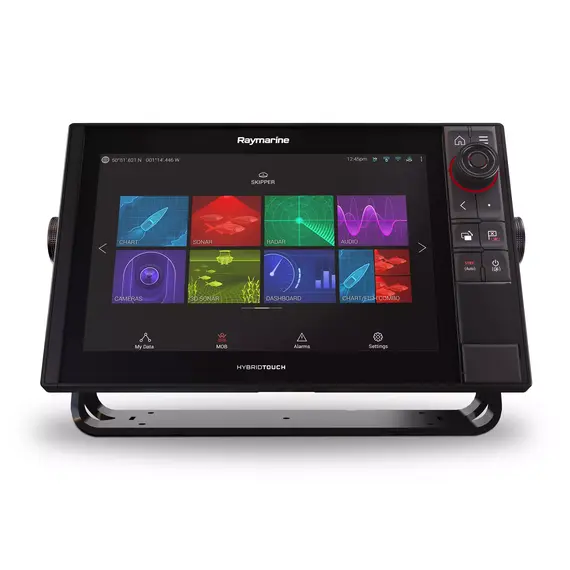

AXIOM 16 PRO-S - Touch & Buttons

24136
6,299.95
In stock

The 16-inch AXIOM 16 PRO-S multi-profile marine display provides an 88% viewing angle from 4 sides and works as a sonar, radar and chartplotter. It scans the situation in the water area and underwater space, displays images in real time and quickly creates seamless maps. Buy the AXIOM 16 PRO-S open platform marine display and expand its functionality with any compatible Raymarine navigation equipment.

BrandRaymarine Shipping fromCroatia Model numberE70483 Display size, inch15.6
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12V and 24V DC (8V to 32 DC)
Weight, kg
10.9
EAN
00723193822241
Operating temperature
-25 to +55 °C
Main features
Model number
E70483
Display size, inch
15.6
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
243
Installation width, mm
437
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
1 x Analogue input (BNC) Up to 10 IP Cameras
Resolution, mm
1920 x 1080 WXGA IPS Optically Bonded LCD
Brightness, nits
1200
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
45

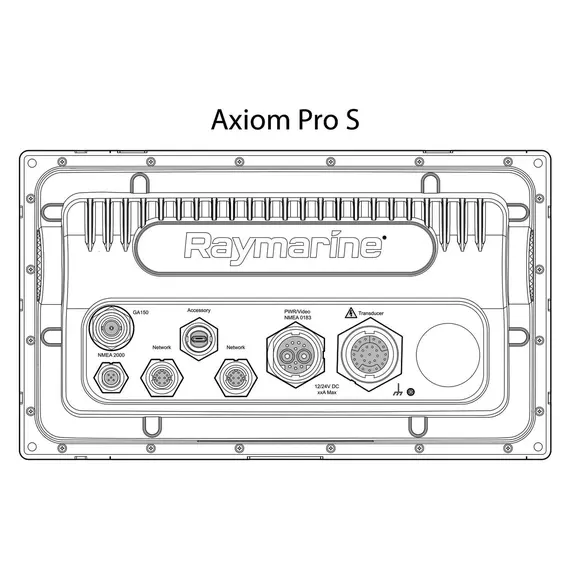

Ethernet, ports
2 x 10/100 Mbit/s Network (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
Yes
SeaTalkNG
Requires DeviceNet Female (F) adaptor cable (A06075 1m adaptor included in box)
USB
1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288)
Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS
Yes - N2K compatible
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
447 x 258 x 69
Find similar

Raymarine's AXIOM 16 PRO-S multi-profile marine display provides the captain with all the navigational information they need.

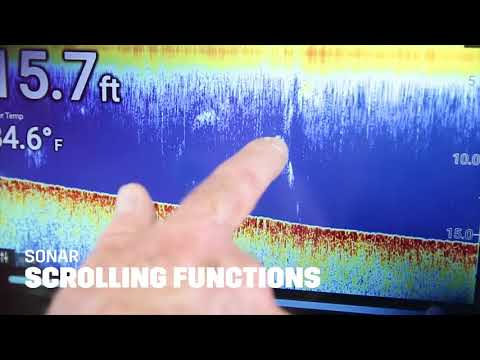

1. Improved single-channel CHIRP sonar.
CHIRP technology provides more detailed information about the state of the underwater space, as it combines several frequencies when exploring it.
Now you can go back to earlier recordings and view sonar history, find hidden schools of fish or bottom topography of a desired area, add plot waypoints.
You can connect different CHIRP sonar ranges to detect fish at different depths.

2. A powerful processor and an operating system specially designed for Raymarine displays allow you to work with the best charting systems.

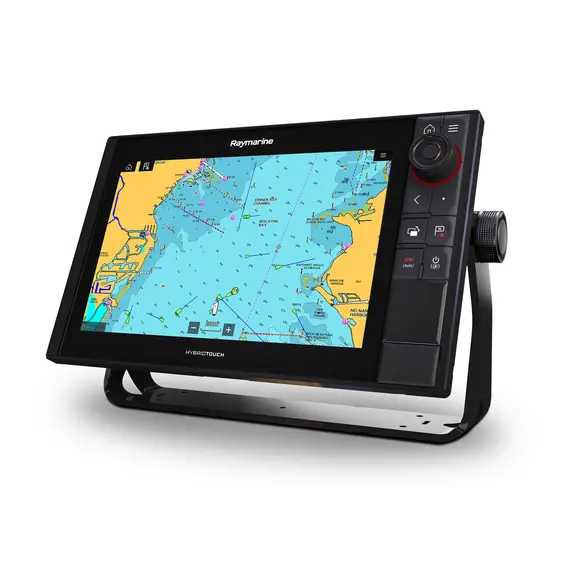

Navionics+, C-MAP 4D, Navionics Platinum+ maps are available to you. A seamless map of the desired region is quickly displayed on the screen with the ability to zoom. This is not only a route map with waypoints, but a detailed location map indicating water and coastal navigation facilities, ports, currents, depths and other information. The number of waypoints depends on the choice of mapping system.

3. Built-in 72-channel satellite navigation receiver.

The GNSS system provides 10-fold fixation of geolocation every second, records the route in real time. This allows you to control the route by waypoints, which can be up to 500.

The shock-resistant, anti-reflective multi-touch LCD provides fast response and a bright, clear picture anytime, in any weather. You can always connect a keyboard and also control the display from a remote keyboard.

Buy the AXIOM 16 PRO-S marine display to get high-quality navigation information that will secure your sea voyage and ensure successful fishing.

Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]
