AXIOM 12 Touch

2,141.14
In stock

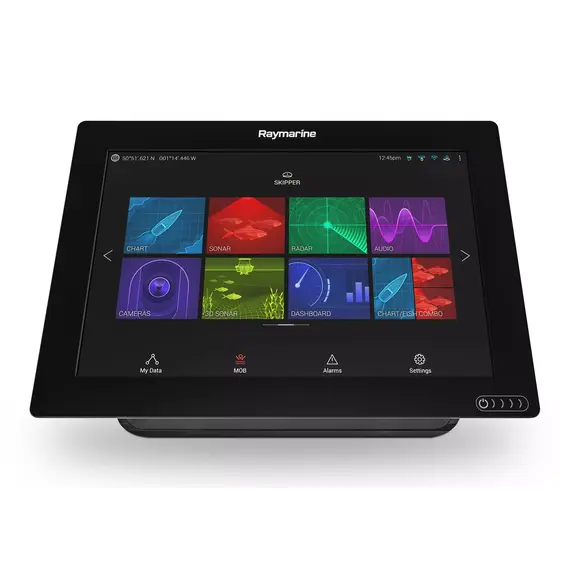

Raymarine AXIOM 12 multifunction navigation display is a radar and chartplotter combined in one tool. This set of functions ensures maximum sailing safety. No buttons - just touches and quick response to commands. Multi-touch and 4-core processor provide high performance. If you buy a Raymarine AXIOM 12 display, you can enjoy the best Navionics and C-MAP navigation mapping systems.

+
Add to Wishlist
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Model numberE70368-00 Display size, inch12 BrandRaymarine Shipping fromCroatia
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
Weight, kg
2.84
EAN
00723193823316
Operating temperature
-25 to +55 °C
Main features
Model number
E70368-00
Display size, inch
12
With transducer
No
NMEA0183
No
Bluetooth
Yes
Sonar module
Optional
Installation height, mm
145
Installation width, mm
231
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Up to 10 IP cameras
Resolution, mm
1,280 x 800 WVGA (HD) IPS
Brightness, nits
1200
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
15.48
Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
314 x 217 x 77
Find similar

Raymarine's largest 12-inch anti-glare screen with vibrant colors delivers crisp color images. The LightHouse 3 operating system allows you to adjust colors and lighting to the level you want.

LightHouse 3 operating system is easy to manage and personalize according to the user's preferences. OS supports the best mapping systems in small fleet navigation Navionics+, Navionics Platinum+, C-MAP 4D, and built-in LightHouse app charts. Depending on the chosen type of cards, the user will have the opportunity to:

  • display an accurate high-quality seamless map of the required water area;
  • get a detailed route guidance with an indication and description of waypoints, features of the water area (ports, lighthouses, buoys) and underwater space (depths, currents, shoals);
  • display a map indicating depth contours in shades, as well as water and coastal aids to navigation equipment – in clear contours and vivid colors;
  • use options for 3D maps and satellite support;
  • display the map in full screen or use different maps on multiple screens.

The basic built-in GPS/GLONASS receiver with a 10Hz update rate provides excellent navigation as it reflects geolocation changes 10 times per second. This makes it possible to control and correct the calculated route.

The option of recording the passage along the route in real time is available.

Raymarine AXIOM 12 chartplotter includes the built-in GPS/GLONASS satellite navigation system receiver and the LightHouse application charts. Maps like Navionics+, Navionics Platinum+, C-MAP 4D for AXIOM 12 chartplotter can be purchased separately.
