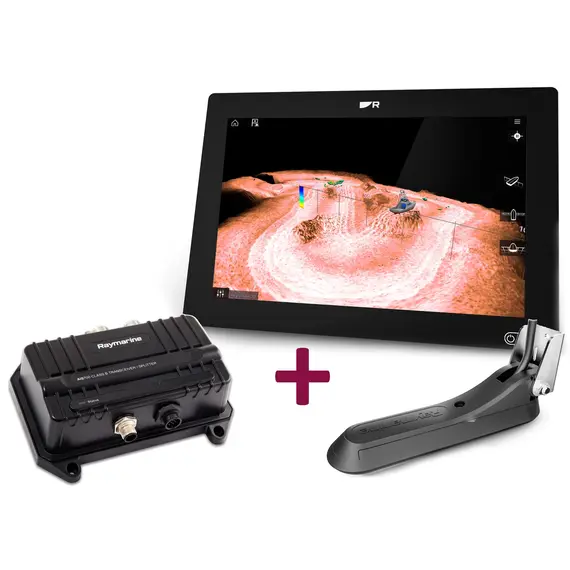

AXIOM+ 12 Touch with RV-100 Transducer AIS 700

93907
3,788.19
In stock

Marine multifunctional display AXIOM+ 12 RV 3D RV-100 is bought for ensuring the safety of coastal navigation, as well as by lovers of sea fishing. The 4-channel sonar supports 600W RealVision 3D sonar and CHIRP fish finders for unparalleled realism underwater. A powerful 4-core processor allows you to quickly load seamless terrain maps and displaying the places of accumulation of fish.

BrandRaymarine Shipping fromCroatia Model numberE70639-03 Display size, inch12
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
Operating temperature
-25 to +55 °C
Main features
Model number
E70639-03
Display size, inch
12
With transducer
Yes
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
205
Installation width, mm
302
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Resolution, mm
1280 x 800
Brightness, nits
1500
Viewing angle, °
85° top, bottom, left, right
Power consumption, W
19.96
Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
No
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
314 x 217 x 77
Dimensions in packaging
Weight, kg
2.72
Find similar

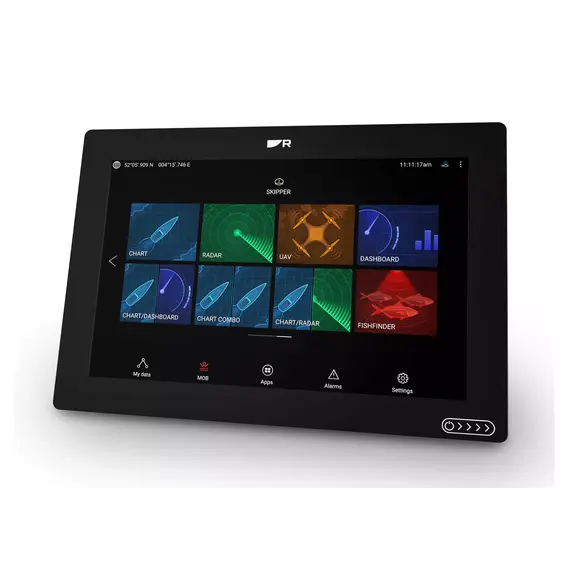

Multifunctional chartplotter AXIOM+ 12 RV-100 AIS 700 has all the advantages of the basic model:

  • a powerful 4-core processor that allows you to quickly create seamless maps in a few touches;
  • multi-touch with nano-coating, which allows you to give commands in any weather and even with dirty hands;

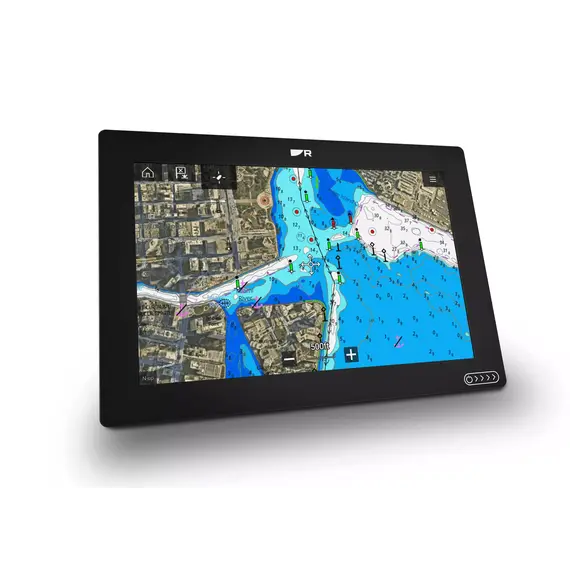

  • a very easy-to-use and easy-to-learn operating system that supports, in addition to its own maps, the most advanced Navionics+ and C- Map cartography;
  • impact-resistant 12-inch screen providing 88 degrees viewing angle.

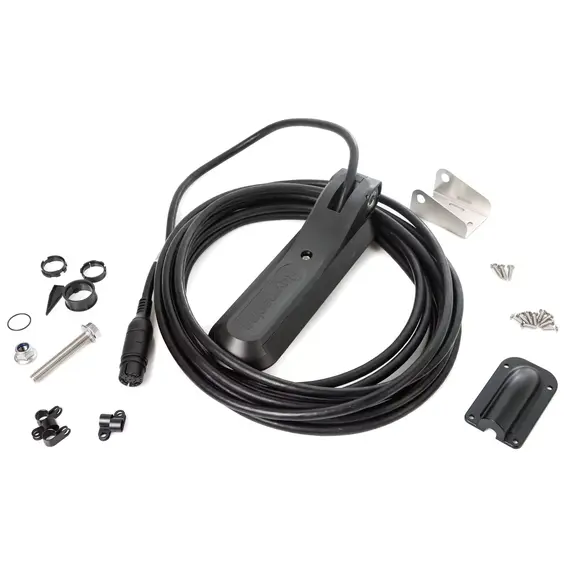

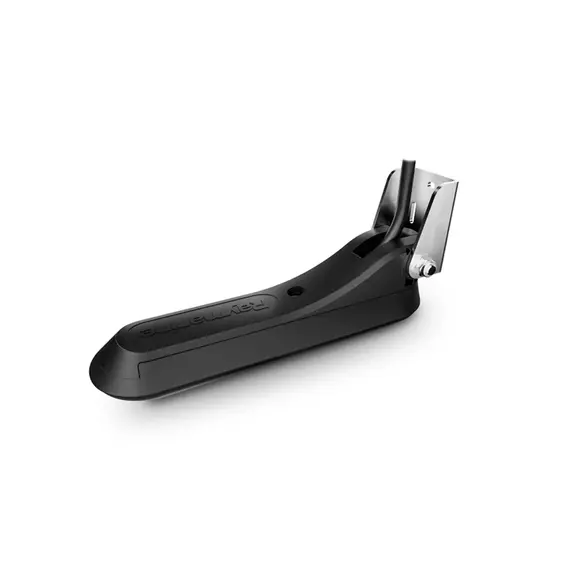

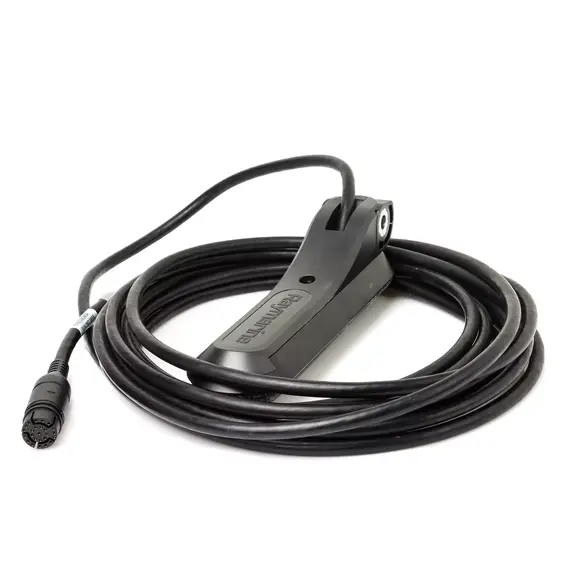

In addition to the basic characteristics, the AXIOM+ 12 RV-100 AIS 700 marine display has additional unique features due to the RV-100 transom transducer and AIS 700 transponder.

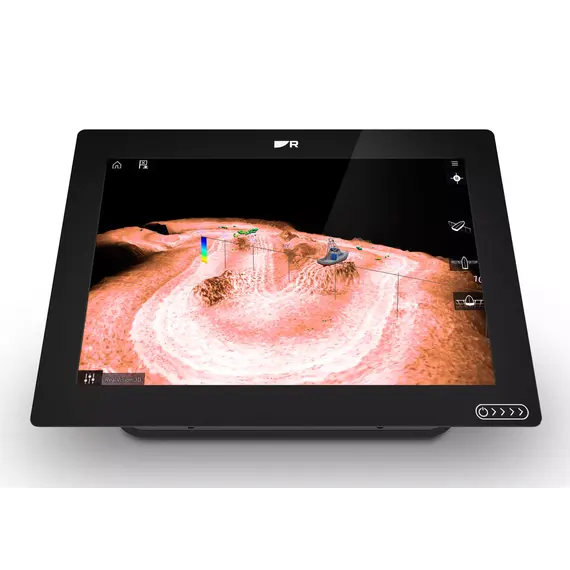

All in one frame, the sensor combines such technologies as CHIRP DownVision, CHIRP SideVision, High Frequency. This makes it possible to display the underwater space as realistically as possible in 3D and real time.

The screen will display all the features and structure rendering of the bottom, as well as possible obstacles and shoals, vegetation and inhabitants of the underwater world - in particular, fish schools and individual fishes, which is of interest to both amateur anglers and industrial fishing professionals.

The transducer has built-in gyro stabilization technology. Roll compensation makes the 3D representation of the underwater space even more realistic.

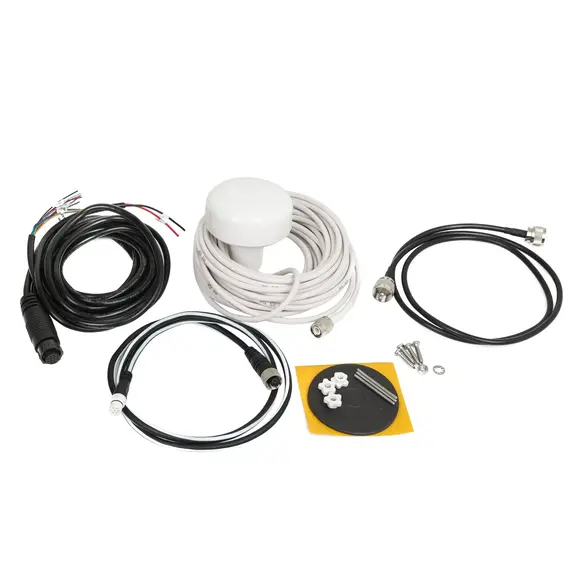

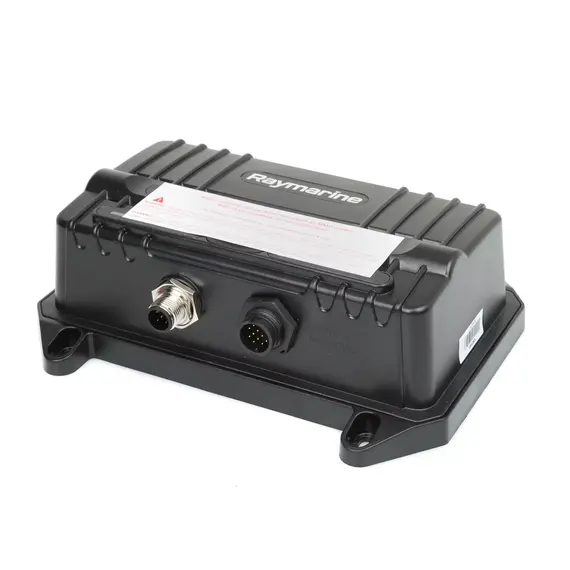

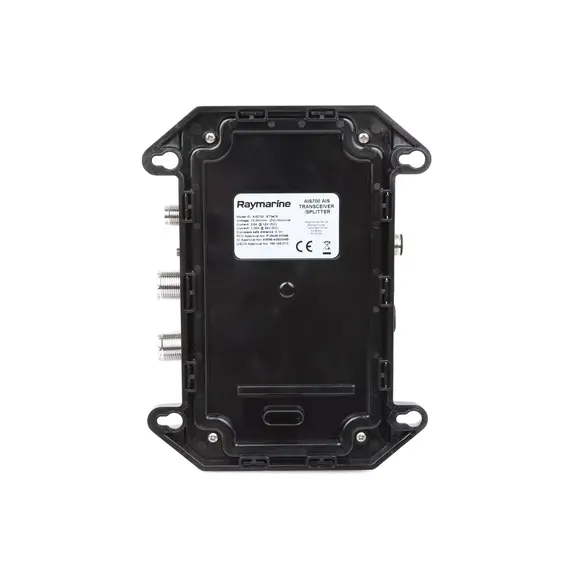

AIS 700 transponder monitors the situation in the water area, transmitting and collecting information from ships located there. AIS 700 modes allow you to amplify the signal, increase its range, cancel the transmission of data on the location of your own ship while maintaining data reception from the water area. The latter technique is used during sports competitions or during travelling through waters that are known for pirate attacks on ships.

Raymarine display price AXIOM+ 12 RV-100 AIS 700 is offered with transom transducer and transponder.

Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]
