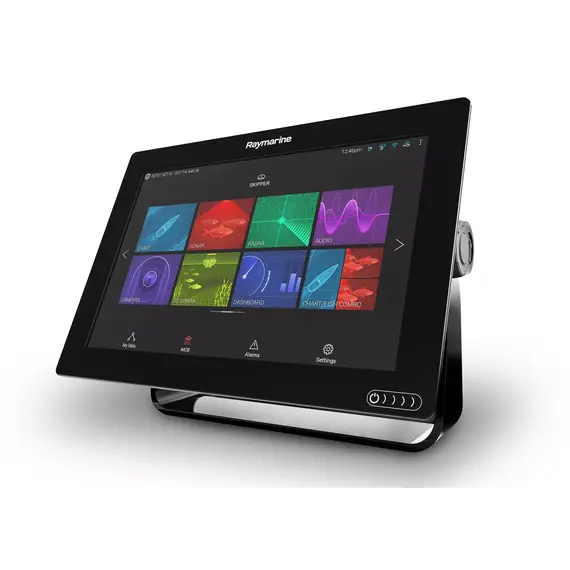

AXIOM 12 Touch with integrated RealVision 3D Sonar, RV-100 Transducer and Navionics+ SMALL Download Chart

E70369-03-NSD
3,199.95

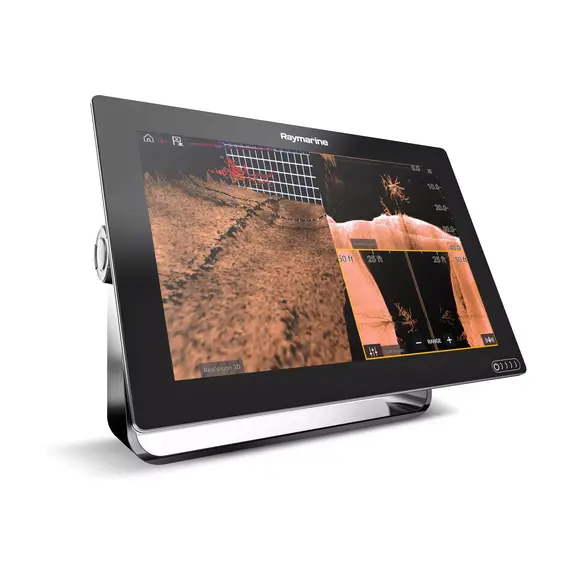

The AXIOM 12 RV 3D RV-100 Navionics+ multi-profile display combines chartplotter, sonar and radar in one device. The base AXIOM 12 marine sonar platform is enhanced with the RV-100 transom transducer, which combines RealVision 3D and CHIRP technologies in one package, as well as the Navionics+ SMALL Download Chart application, which displays seamless maps. Buy the AXIOM 12 RV 3D RV-100 Navionics+ and you won't have to worry about transducer, sonar and mapping.

Taxes
Fast delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance Model numberE70369-03-NSD

The main advantage of the AXIOM 12 RV 3D RV-100 Navionics+ is its versatility, which satisfies all the navigation information needs of a yacht captain.

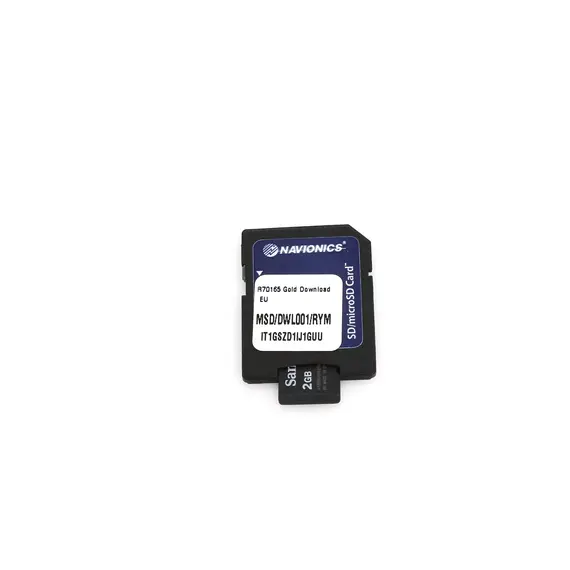

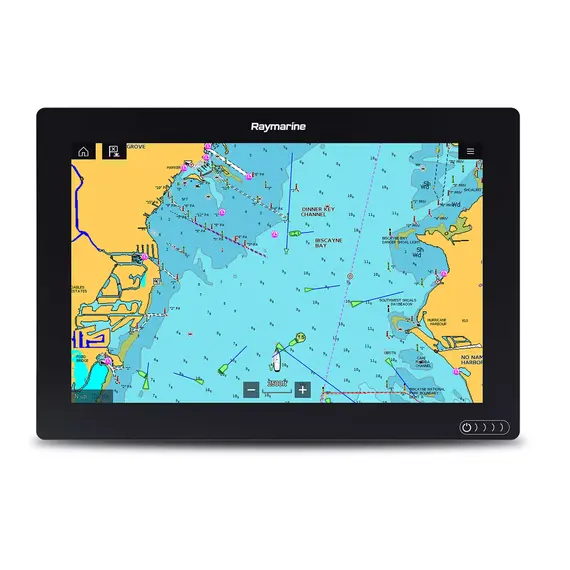

1. Navionics+ SMALL Cartography:

  • quickly displays seamless maps of the ordered region;
  • indicates waypoints providing brief description of ports and marinas;
  • informs about the means of navigation in the water area and on the shore - buoys, lighthouses, etc.;
  • gives brief information about depths in contours and color, currents, tides, fairways.
  • eliminates distortion when changing the scale.

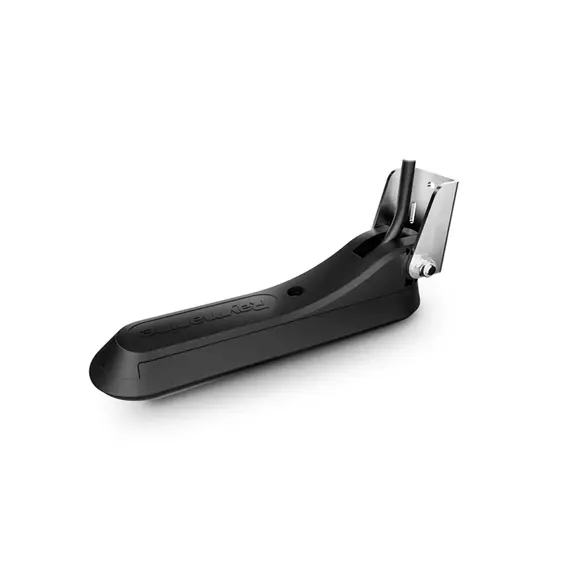

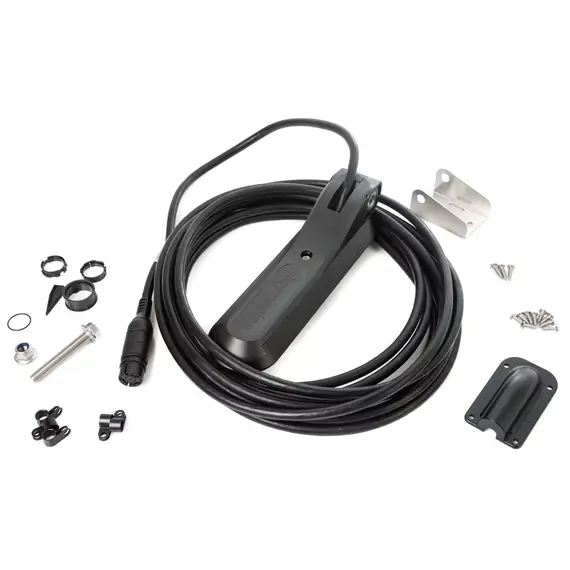

2. Transom transducer RV-100:

  • combines RealVision 3D and CHIRP technologies;
  • transmits an impulse 90.5 meters down, to the right and left of the sides;
  • receives impulses reflected from the flora and fauna of the underwater space, bottom topography;

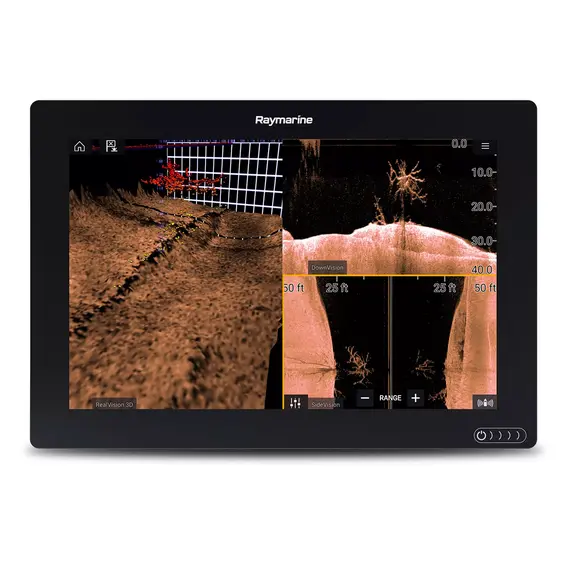

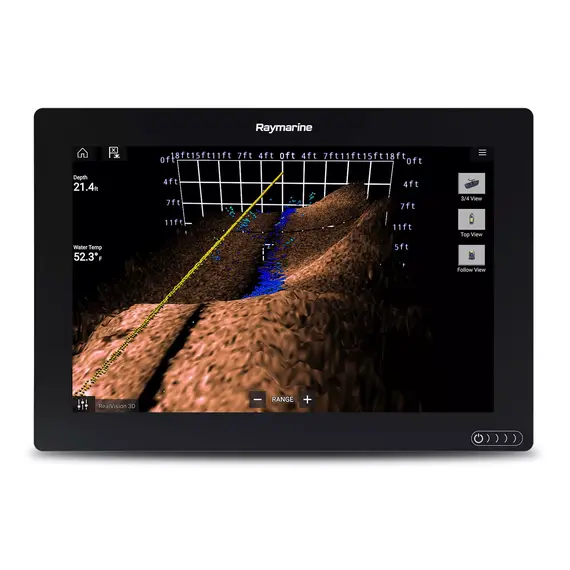

  • shows the structure of the bottom and the objects located there in three dimensions;
  • finds fish.

3. Built-in GPS/GLONASS receiver:

  • determines the coordinates of the vessel in the water area 10 times per second, which provides operational control of the route with the possibility of correcting it in case of deviation;
  • provides input of 500 waypoints of the planned route;
  • displays the passage along the route in real time;
  • determines the speed, time, track angle and distance traveled.

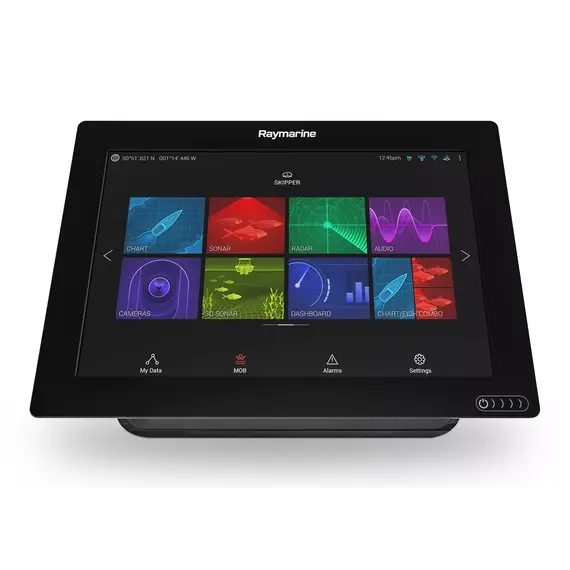

The multi-touch screen and powerful processor allow you to quickly send, receive, process commands and complete tasks.

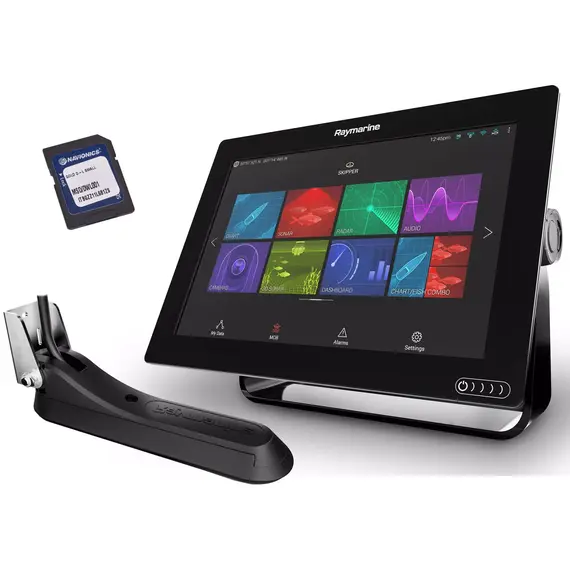

Raymarine AXIOM 12 RV 3D RV-100 Navionics+ display price includes RV-100 transom transducer, built-in GPS/GLONASS receiver and mapping application.

Features of AXIOM 12 Touch with integrated RealVision 3D Sonar, RV-100 Transducer and Navionics+ SMALL Download Chart

    Brand
    Raymarine
    Voltage, V DC
    12 (8 to 16)
    Weight, kg
    2.84
    EAN
    00723193819821
    Operating temperature
    -25 to +55 °C
    Main features
    Model number
    E70369-03-NSD
    Display size, inch
    12
    With transducer
    Yes
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    205
    Installation width, mm
    302
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Touch screen
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    Yes
    Nautical chart support
    Yes
    Tablet control
    Yes
    Technical data
    Video/camera
    Up to 10 IP cameras
    Resolution, mm
    1,280 x 800 WVGA (HD) IPS
    Brightness, nits
    1200
    Viewing angle, °
    88° top, bottom, left, right
    Power consumption, W
    18.96
    Ethernet, ports
    Yes, 1x port (RayNet)
    NMEA2000, ports
    Yes, 1x port (Micro C)
    NMEA0183
    No
    SeaTalkNG
    Adapter cable necessary
    USB
    1x USB mircoAB
    GPS
    Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
    Sonar
    Integrated
    Radar
    Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
    AIS
    Yes, via NMEA2000
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C
    Thermal image
    FLIR AX8, M232, M300 series, M400, M500
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    314 x 217 x 77
