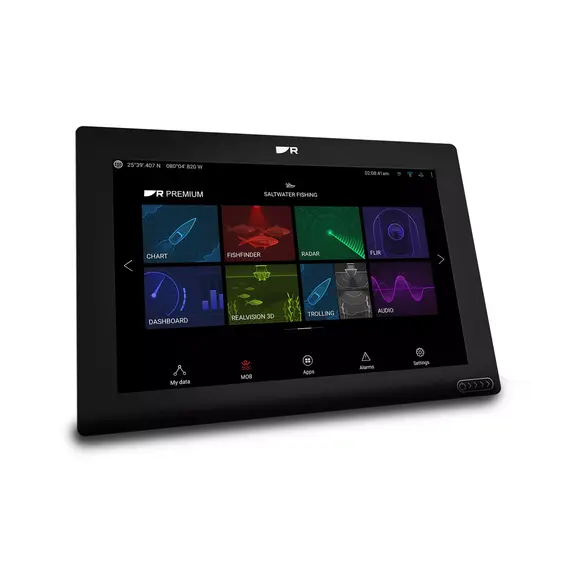

AXIOM+ 12 Touch with integrated RealVision 3D Sonar including AIS 700

4,270.54

MDG 12” screen of AXIOM+ 12 RV 3D AIS 700 provides four sides (bottom, top, left, right) viewing angle of 88 degrees. Together with a powerful 4-core processor and the mapping capabilities of C-Map and Navionics, this guarantees the rapid receipt of seamless maps with accurate data on the situation in the water area around the vessel and in underwater space. We offer to buy AXIOM+ 12 RV 3D AIS 700 with transceiver and built-in 4-channel sonar.

Taxes
Delivery
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandRaymarine Shipping fromFrance

If you combine all the numerous functions of the navigation display AXIOM+ 12 RV 3D AIS 700, then they all come down to three main ones:

  • ensure maximum safety along the route of the vessel, controlling both the water area in current location and the underwater space;
  • calculate and display the route and position of the vessel on seamless maps in real time;
  • to detect the habitats of schools of fish or individual fishes;
  • allow you to admire the beauty of the underwater world as a pastime activity.

This means that the ship's display must not only have a sufficient viewing angle and excellent cartography. In order for all this to work for the safety of navigation, obtaining accurate data and displaying them correctly on the screen in the form of maps and diagrams, a high-quality sonar and a surface transceiver are also required.

Display AXIOM+ 12 RV 3D AIS 700 has a built-in 4-channel sonar that supports RealVision 3D and echo sounders with CHIRP technology: SideVision, DownVision, Wide Spectrum, which display the most realistic underwater space in three dimensions, and also aim at fish schools.

AIS 700 transponder transmits and receives information that allows you to analyze the situation in the water area. This transceiver supports SOTDMA technology, allowing it to increase its speed and range in order to increase the reception of data on ships and other objects from the area of interest to the captain.

With Silent mode, you can interrupt the transmission of your own ship's position, while receiving information about the situation in the water area. This mode can be useful during competitions, including fishing, as well as when you suspect the danger of an attack.

Cost of Marine Display AXIOM+ 12 RV 3D AIS 700 comes with transponder and built-in 4-channel sonar.

Features of AXIOM+ 12 Touch with integrated RealVision 3D Sonar including AIS 700

    Brand
    Raymarine
    Voltage, V DC
    12 (8 to 16)
    Weight, kg
    2.72
    Operating temperature
    -25 to +55 °C
    Main features
    Display size, inch
    12
    With transducer
    No
    NMEA0183
    No
    Bluetooth
    Yes
    Sonar module
    Yes
    Installation height, mm
    205
    Installation width, mm
    302
    Sea Charts
    C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
    Radar capable
    Yes
    Operating mode
    Touch screen
    NMEA2000
    Yes
    WiFi
    Yes
    Ethernet / Network
    Yes
    Nautical chart support
    Yes
    Tablet control
    Yes
    Technical data
    Video/camera
    Compatible with CAM210IP and CAM220IP (max. 10 cameras)
    Resolution, mm
    1280 x 800
    Brightness, nits
    1800
    Viewing angle, °
    88° top, bottom, left, right
    Power consumption, W
    19.96
    Ethernet, ports
    Yes, 1x port (RayNet)
    NMEA2000, ports
    Yes, 1x port (Micro C)
    NMEA0183
    No
    SeaTalkNG
    No
    USB
    1x USB mircoAB
    GPS
    Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
    Sonar
    Integrated
    Radar
    Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
    AIS
    Yes, via NMEA2000
    Card slot
    1x
    Autopilot operation
    Evolution autopilot
    Storage temperature
    -30 to +70 °C
    Thermal image
    FLIR AX8, M232, M300 series, M400, M500
    Waterproof
    IPX6 / IPX7
    Dimensions, mm
    314 x 217 x 77
