AXIOM 12 Touch with integrated RealVision 3D Sonar and RV-100 Transducer

21857
2,588.19
In stock

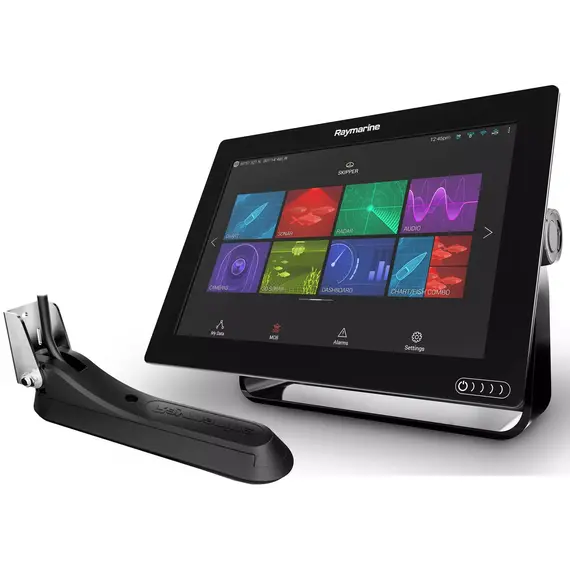

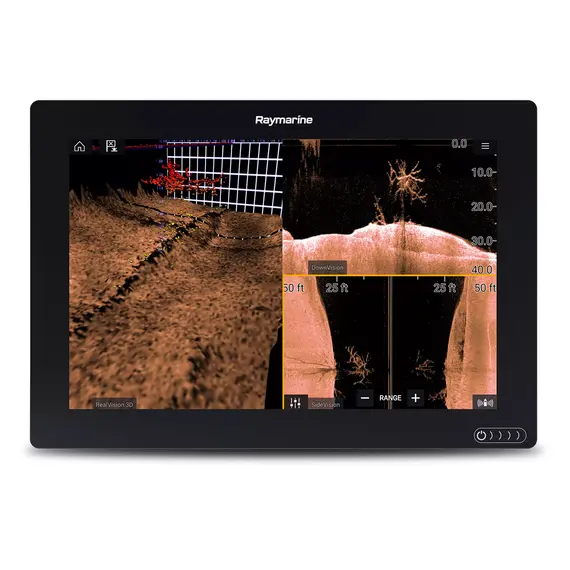

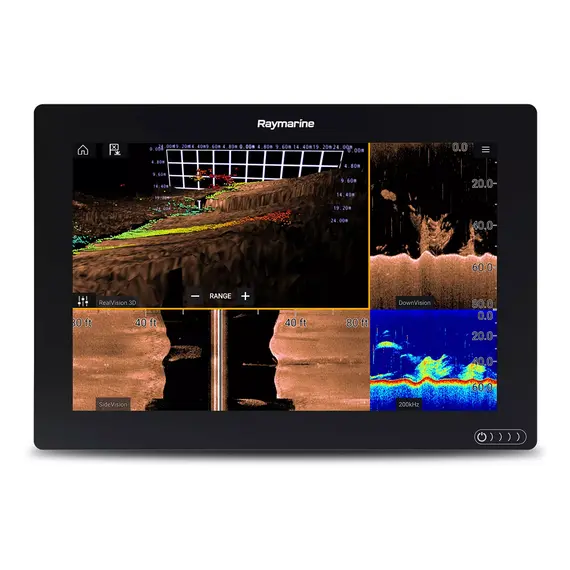

If you want to get sonar, radar and chartplotter all in one device, then buy the AXIOM 12 RV 3D marine multifunctional display RV-100. The transom transducer combines RealVision 3D and CHIRP's DownVision, SideVision and Fishfinder technologies in one package. Operating system supports built-in LightHouse app Charts, as well as the best navigation charts from C-MAP and Navionics. The built-in GPS/GLONASS receiver provides satellite navigation.

BrandRaymarine Shipping fromCroatia Model numberE70369 Display size, inch12
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
Weight, kg
2.84
EAN
00723193817803
Operating temperature
-25 to +55 °C
Main features
Model number
E70369
Display size, inch
12
With transducer
Yes
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
205
Installation width, mm
302
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Up to 10 IP cameras
Resolution, mm
1,280 x 800 WVGA (HD) IPS
Brightness, nits
1200
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
18.96

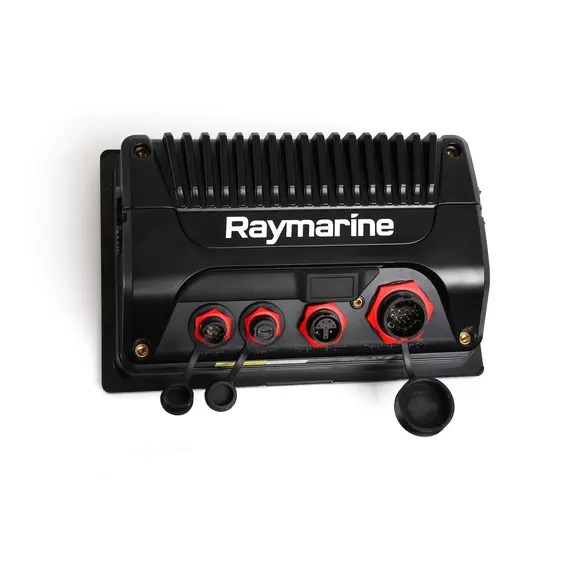

Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Radar

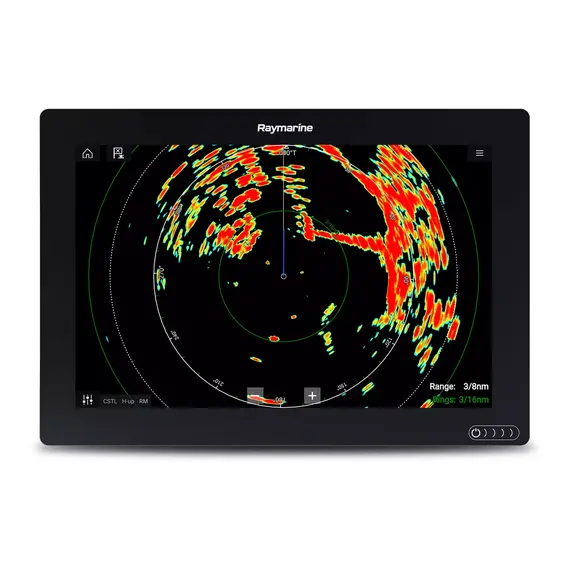

Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
314 x 217 x 77
Find similar

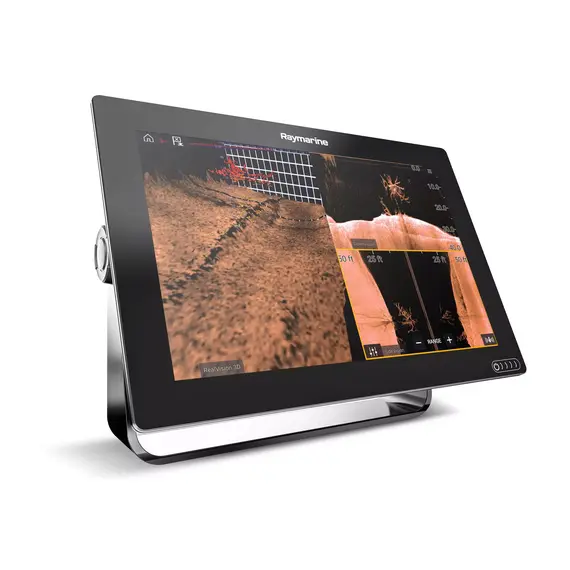

AXIOM 12 RV 3D RV-100 marine sonar’s base platform is improved with addition of transom transducer RV-100, which:

  • emits and receives reflected impulses from the bottom relief, plants and inhabitants of the underwater space, sunken objects;
  • transmits an impulse to a depth of 90.5 m and to the same distance - to the right and left along the sides;
  • combines CHIRP and RealVision 3D technologies in one case;

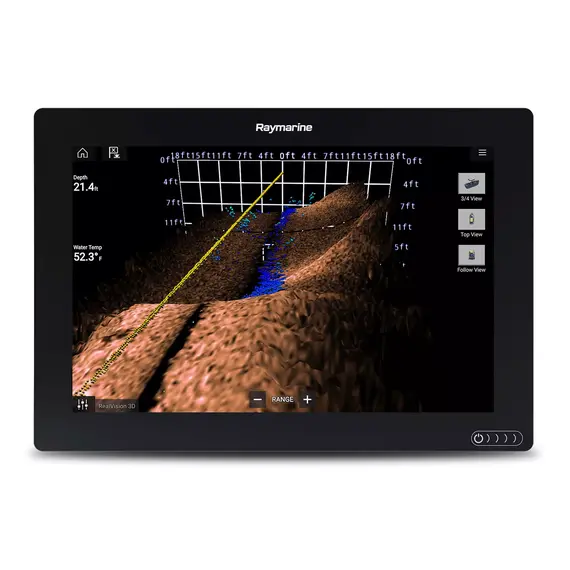

  • shows the structure of the bottom in three-dimensional space;
  • detects sunken debris, snags, shallows, ensuring the safety of navigation;

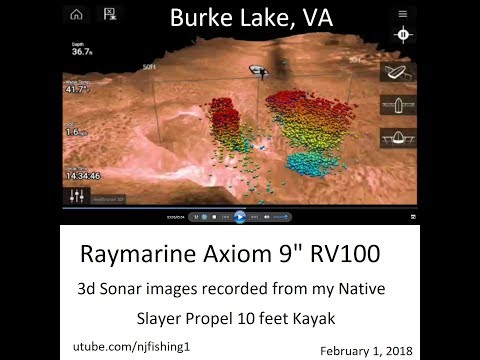

  • finds the fish, displaying it in real time in 3D, ensuring successful fishing.

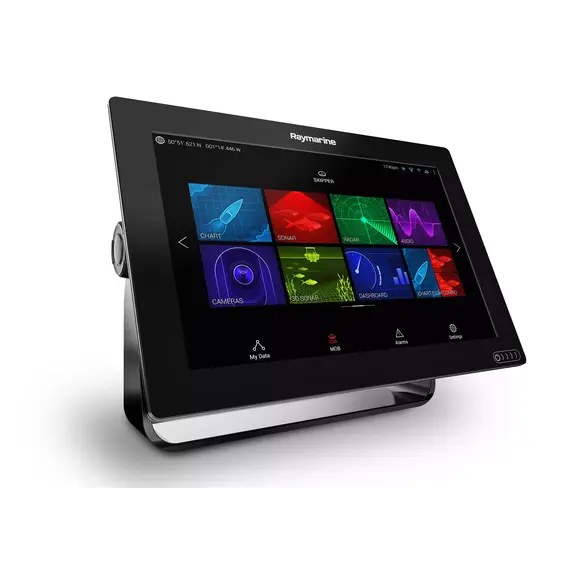

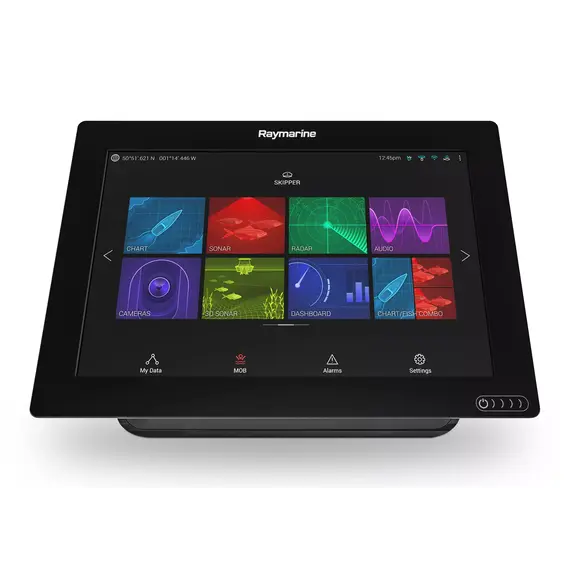

Anti-glare multi-touch responds quickly to touch commands, aided by a high-performance quad-core processor. The LightHouse 3 operating system combines powerful features and simple operation, which also contributes to high-speed performance.

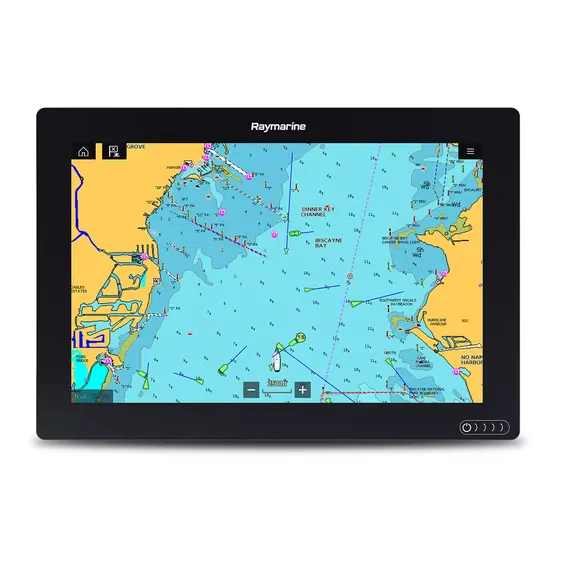

Navigation display AXIOM 12 RV 3D RV-100 supports the following mapping systems:

  • LightHouse Charts is an application of its own operating system;
  • C-MAP - maps C-MAP 4D;
  • Navionics - maps Navionics+, Navionics Platinum+.

Using these systems, you can quickly display seamless maps of the selected region for planning a route or for studying the water area along which the route passes in real time.

Maps from Navionics and C-MAP also provide you with detailed directions and important information on the features of surface, water and underwater space. You can visualize in vivid colors depths, shoals, currents, ports and other waypoints, as well as floating and coastal aids to navigation - buoys, lighthouses, etc.

Raymarine display price AXIOM 12 RV 3D RV-100 is specified taking into account the transom transducer RV-100 with CHIRP technologies and 3D , as well as a built-in GPS/GLONASS receiver.

Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]
