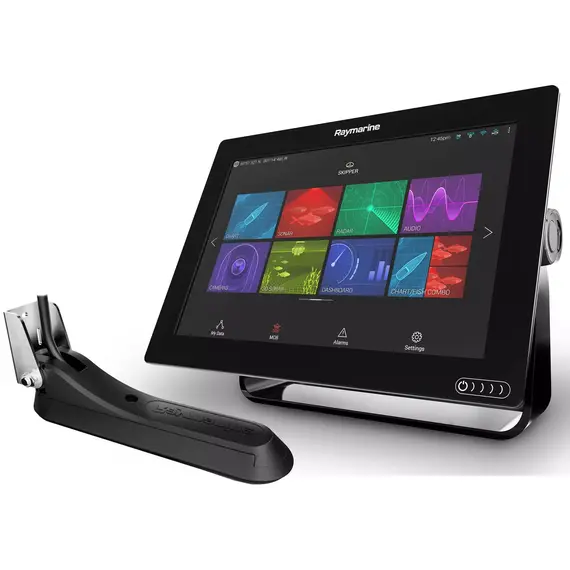

AXIOM+ 12 Touch with Integrated RealVision 3D Sonar and RV-100 Transducer

21858
2,705.84
In stock

Marine multifunctional display AXIOM+ 12 RV 3D RV-100 is bought for ensuring the safety of coastal navigation, as well as by lovers of sea fishing. The 4-channel sonar supports 600W RealVision 3D sonar and CHIRP fish finders for unparalleled realism underwater. A powerful 4-core processor allows you to quickly load seamless terrain maps and displaying the places of accumulation of fish.

BrandRaymarine Shipping fromCroatia Display size, inch12
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12 (8 to 16)
Weight, kg
2.72
EAN
00723193839942
Operating temperature
-25 to +55 °C
Main features
Display size, inch
12
With transducer
Yes
NMEA0183
No
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
205
Installation width, mm
302
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Resolution, mm
1280 x 800
Brightness, nits
1500
Viewing angle, °
85° top, bottom, left, right
Power consumption, W
19.96
Ethernet, ports
Yes, 1x port (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
No
SeaTalkNG
No
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Waterproof
IPX6 / IPX7
Dimensions, mm
314 x 217 x 77
Find similar

Navigation chartplotter AXIOM+ 12 RV 3D RV-100 is a worthy successor to the line of marine displays from one of the best suppliers of navigation equipment Raymarine. This model is another improvement with the following advantages:

  • echolocation of RealVision 3D sonar and echo sounders in CHIRP mode is supported by the new RV-100 transducer;
  • RV-100 sensor works at depths up to 90.5 m;
  • the transducer transmits and receives an impulse at distances up to 90.5 m to the left and right of the ship's sides;
  • technologies such as RealVision 3D, CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP are all combined together inside sensor’s frame.

The presence of a transducer expands the capabilities of ship echolocation - as a result you can quickly create seamless maps with incredibly accurate rendering of the underwater space, including the topography of the bottom and the underwater part of the coast, schools of fish and individual fishes.

You can use the navigation chartplotter in the most inclement weather, as the impact-resistant glass is safe from water stains and any contaminants, including engine oil. This is achieved by a special coating. Multi-touch equally quickly perceives and transmits touch commands in excellent weather, in rain or storm or in a situation where it is impossible to sustain the hands cleanliness.

Raymarine marine display AXIOM+ 12 RV 3D The RV-100 is a great choice for its price for both avid fishermen and those boat owners who seek to ensure maximum safety for coastal navigation. The presence of the RV-100 Transducer even allows you to organize a search for sunken ships.

Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]

Articles about AXIOM+ 12 Touch with Integrated RealVision 3D Sonar and RV-100 Transducer

Axiom 12 multi-function display review by Fishing World

Raymarine Axiom 12 Review: Is It Worth All the Hype? by OneFish
