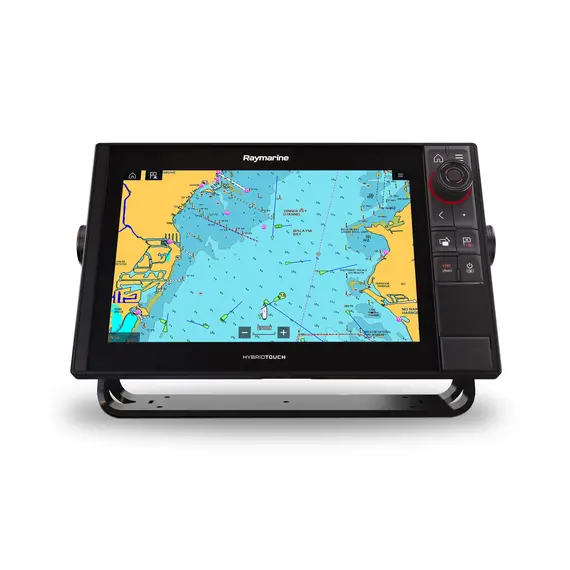

AXIOM 12 PRO-S - Touch & Buttons

24132
2,470.55
In stock

The 12-inch screen of the AXIOM 12 PRO-S multi-profile marine display provides an 88% viewing angle from bottom, top, left and right. This expands its capabilities in the field of navigation information such as radar, echo sounder and chart plotter. You can always push them even further as all Raymarine navigation equipment is compatible. Buy the AXIOM 12 PRO-S open platform marine display and keep improving.

BrandRaymarine Shipping fromFrance Model numberE70482 Display size, inch12
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12V and 24V DC (8V to 32 DC)
EAN
00723193822234
Operating temperature
-25 to +55 °C
Main features
Model number
E70482
Display size, inch
12
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
208
Installation width, mm
343
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
1 x Analogue input (BNC) Up to 10 IP Cameras
Resolution, mm
1280 x 800 WXGA IPS Optically Bonded LCD
Brightness, nits
1200
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
30
Ethernet, ports
2 x 10/100 Mbit/s Network (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
Yes
SeaTalkNG
Requires DeviceNet Female (F) adaptor cable (A06075 1m adaptor included in box)
USB
1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288)
Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS
Yes - N2K compatible
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
358 x 223 x 65
Dimensions in packaging
Weight, kg
2.04
Find similar

Raymarine marine displays give you the freedom to choose the configuration that best suits your requirements for navigation information both underneath and above the water surface.

The AXIOM 12 PRO-S marine display is not limited to chartplotter functions. It has a built-in 72-channel 1-Hz satellite navigation receiver and a single-channel CHIRP sonar. As a result, it is a chartplotter, sonar and radar. Combining these features is possible thanks to a powerful 4-core processor and a specially designed LightHouse 3 operating system. This hardware and OS provides:

  • study of the water area with the information updating 10 times per second;
  • the ability to calculate a detailed route with a maximum of 500 waypoints;
  • scanning of underwater space with clear visualization on the screen;
  • fast output of seamless maps of the best navigation cartographic systems Navionics+, C-MAP 4D, Navionics Platinum+;
  • detailed directions on the displayed maps along the route or any other selected region, indicating and describing ports, marinas, lighthouses, buoys and other navigational equipment in the water area and along the coast.

The anti-reflective coating of the shock-resistant multi-touch provides a clear picture at any time of the day. In addition to the responsive touch screen, you can control the display using the keyboard.

Buy AXIOM 12 PRO-S and get radar, sonar and chartplotter in one unit. The price is indicated taking into account CHIRP sonar and a satellite navigation system receiver.

Additional materials

Installation instructions (axiom_series.pdf, 3,215 Kb) [Download]

Advanced operation instructions (libble-eu.pdf, 9,001 Kb) [Download]
