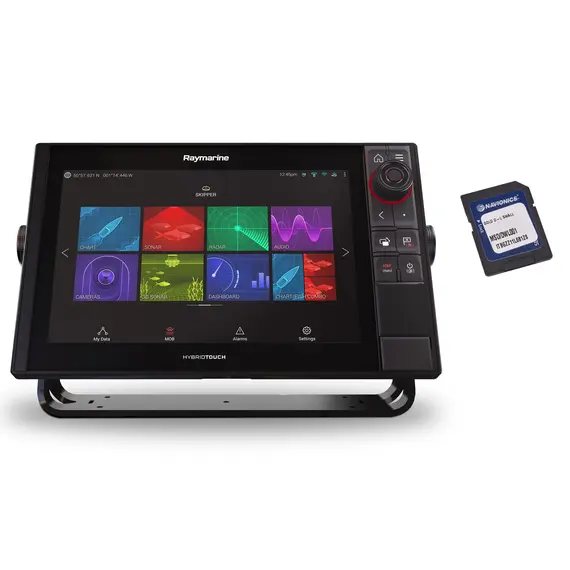

AXIOM 12 PRO-RVX - Touch & Buttons incl. Navionics + Small Charts

24135
3,639.96
In stock

The productive AXIOM 12 PRO-RVX marine display supports Navionics+ Small Charts navigational charting. You are provided with a quick output of seamless maps with maximum information along the route. The presence of Real Vision 3D sonar and sonar with CHIRP technologies allows you to observe the underwater space under the boat and on the sides in real time in 3D on the screen. We offer to buy AXIOM 12 PRO-RVX Navionics+ Small Charts for travelers and fishermen.

BrandRaymarine Shipping fromCroatia Model numberE70372-00-NSD Display size, inch12.1
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Raymarine
Voltage, V DC
12V and 24V DC (8V to 32 DC)
Weight, kg
2.04
EAN
00723193822449
Operating temperature
-25 to +55 °C
Main features
Model number
E70372-00-NSD
Display size, inch
12.1
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Installation height, mm
208
Installation width, mm
343
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
1 x Analogue input (BNC) Up to 10 IP Cameras
Resolution, mm
1280 x 800 WXGA IPS Optically Bonded LCD
Brightness, nits
1200
Viewing angle, °
88° top, bottom, left, right
Power consumption, W
35
Ethernet, ports
2 x 10/100 Mbit/s Network (RayNet)
NMEA2000, ports
Yes, 1x port (Micro C)
NMEA0183, ports
Yes
SeaTalkNG
Requires DeviceNet Female (F) adaptor cable (A06075 1m adaptor included in box)
USB
1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288)
Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS
Yes - N2K compatible
Card slot
1x
Autopilot operation
Evolution autopilot
Storage temperature
-30 to +70 °C
Thermal image
Yes - IP or analog
Waterproof
IPX6 / IPX7
Dimensions, mm
358 x 223 x 65
Find similar

Raymarine's AXIOM range of navigational equipment provides the opportunity to find the perfect display that will perform the functions required by the boat owner's goals.

The AXIOM 12 PRO-RVX Navionics+ Small Charts Marine Display is the ideal chartplotter and radar for the boater who loves sea travel and sonar with real-time 3D video display for the fishermen with many additional features.

1. The RVX in the name indicates that the display has a built-in RealVision 3D sonar that, together with a GPS receiver, provides a real three-dimensional image of fish, wrecks and seabed topography.

 2. CHIRP technologies scan the underwater space under the boat (CHIRP DownVision) and along the sides (CHIRP SideVision), which allows you to have comprehensive information about the situation in the underwater space and detect fish schools or individual fish.

3. Video can be recorded and, if necessary, scrolled back, viewing the locations of interest.

4. The functions of the chartplotter are expanded by supporting the best Navionics navigational cartography - Navionics+ Small charts are available to you, detailed sailing directions indicating fairways, currents, depth contours in shades, port plans, a database of sunken objects, navigation equipment on the coast and in the water area (lighthouses, buoys, alignments, etc.)

5. Navionics+ series charts are made using seamless technology, with the ability to move from one chart to another without traces of stitching, change the scale without image distortion.

The 72-channel receiver of the satellite navigation system with a frequency of 10 Hz scans the situation in the water area and records the route with the ability to specify up to 500 waypoints. This allows you to control the observance of the route without deviations, to notice approaching ships in time, to indicate your presence in the region.

The price of the AXIOM 12 PRO-RVX Navionics+ Small Charts marine display includes built-in GPS/GLONASS, RVX sonar and Navionics charts.
