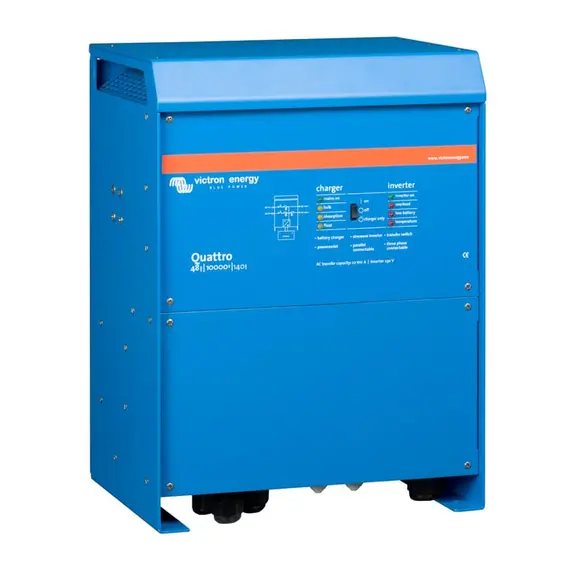

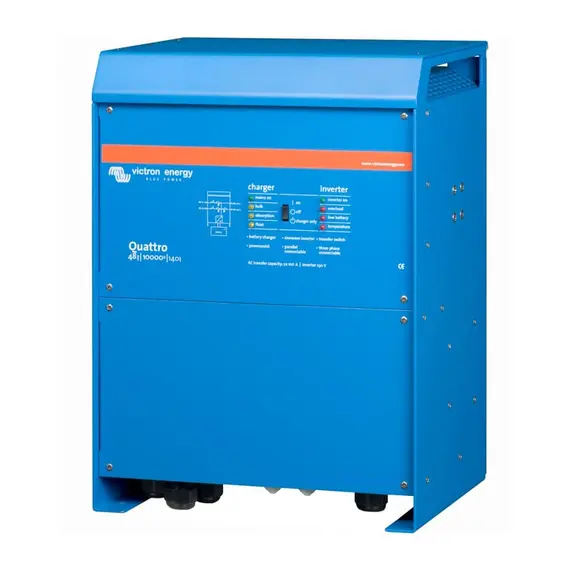

Quattro 48/10000/140-100/100

Similar to the MultiPlus, the Quattro is a versatile combined inverter and charger with enhanced capabilities. It accommodates two AC inputs, automatically connecting to the active source from options like the grid, generator, or dual generators.

Featuring two AC outputs, the main output ensures no-break functionality during grid failure, seamlessly taking over supply to connected loads. The second output is active when AC is available on either input, suitable for loads like water heaters.

The Quattro offers split-phase options with an autotransformer for 240V/60Hz output and supports three-phase capability, allowing up to four sets of three 15kVA units to parallel connect for 144kW/180kVA inverter power and 2400A charging capacity.

PowerControl optimizes charging from limited generator or grid power, preventing overload. PowerAssist supplements alternative sources, compensating for insufficient mains or generator power with battery power during peak demand.

Suitable for off-grid and grid-connected PV systems, the Quattro includes loss of mains detection software.

Configuring options include DIP switch settings for stand-alone applications and VE.Bus Quick Configure and VE.Bus System Configurator software for parallel and three-phase setups. Assistants provide configurations for off-grid, grid interactive, and self-consumption applications.

Monitoring and control options on-site include Battery Monitor, Multi Control Panel, Color Control GX, or other GX devices. Remote monitoring and control use Color Control GX or other GX devices, with data accessible on the VRM (Victron Remote Management) website.

For remote configuration, systems connected to Ethernet with Color Control GX or other GX devices enable access and setting adjustments remotely.
