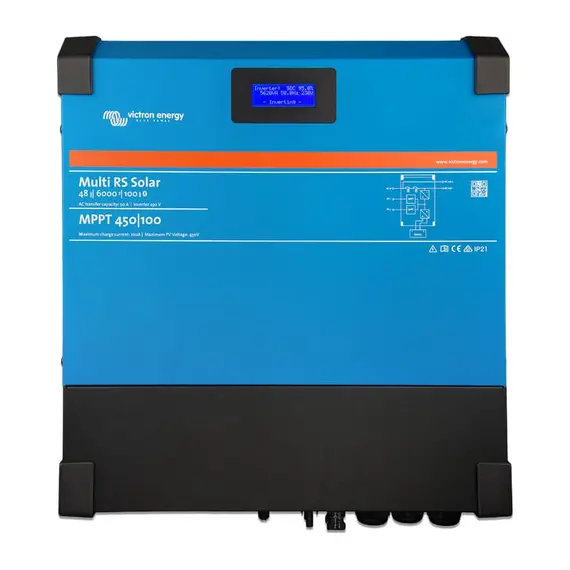

The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with dual independent 3kWp PV 450V MPPT tracker inputs, offering a total of 6kWp PV capacity. Weighing just 11kg, this inverter boasts high-frequency technology, ensuring excellent efficiency, low standby power, and quiet operation.
Equipped with a display, it reads battery, inverter, and solar parameters. Access to the same parameters is available via Bluetooth using the VictronConnect app. The recent revision introduced a shift from a single to a dual MPPT tracker model.
Operating modes include Hybrid mode for storing excess solar energy, Backup mode during grid outages, Off-grid mode, and Generator mode to control generator run-hours efficiently.
PowerControl and PowerAssist functionalities optimize grid or generator usage, preventing overload. PowerAssist compensates insufficient grid or generator power by utilizing battery power, recharging during load reduction.
The display, Bluetooth, and VictronConnect app provide easy access to parameters, ensuring user-friendly monitoring.
Extensible PV capacity is possible through additional solar chargers or PV Inverters, automatically controlled by integrated frequency shift power control.
Communication ports include VE.Can for system monitoring and remote firmware updates, and VE.Direct for remote data monitoring via GlobalLink 520.
I/O connections support programmable relay, temperature sensor, and voltage sensor connections, enhancing versatility and adaptability in various applications.
