AC-connection
Bolts M6
Battery-connection
Four M8 bolts (2 plus and 2 minus connections)
Charge voltage ‘absorption’,V (DC)
28,8
Charge voltage ‘float’,V (DC)
27,6
Depth, mm
280
Device type
Charger + Inverter
Frequency, Hz
50
Humidity (non condensing)
max 95%
Input voltage, V (AC)
187 - 265
Input voltage, V (DC)
19 - 33
Protection
a-g
Protection category, IP
IP 21
Temperature sensor
Yes
Width, mm
350
Brand
Victron Energy
MPN
QUA248020010
Weight, kg
45
EAN
8719076024194
Operating temperature
-40 to +65ºC
Main characteristics
Height, mm
470

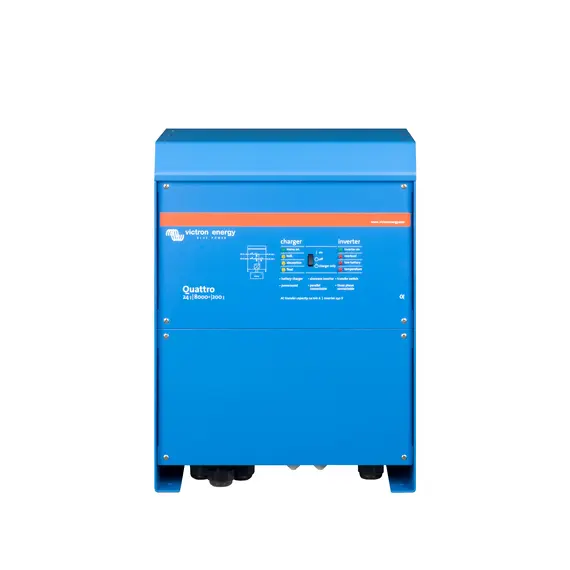

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
