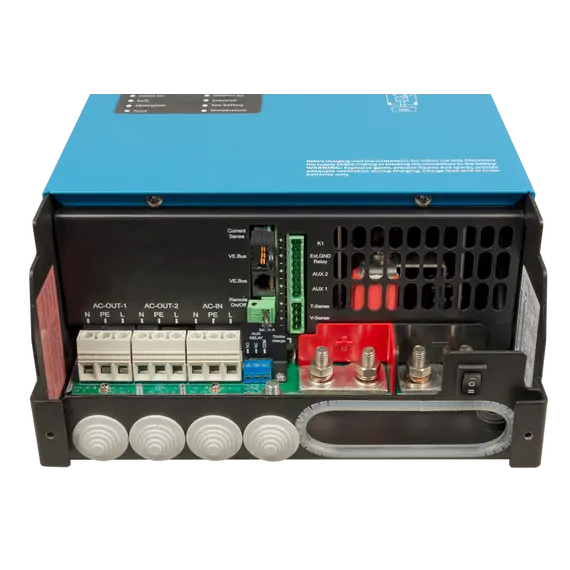

AC-connection
Screw terminals 13 mm² (6 AWG)
Battery-connection
M8 bolts
Charge voltage ‘absorption’,V (DC)
14,4
Charge voltage ‘float’,V (DC)
13,8
Charging Current, A
32
Depth, mm
147
Device type
Charger + Inverter
Frequency, Hz
50
Humidity (non condensing)
max 95%
Input voltage, V (AC)
187 - 265
Input voltage, V (DC)
9,5–17
Protection
a-g
Protection category, IP
IP22
Temperature sensor
Yes
Width, mm
275
Brand
Victron Energy
MPN
PMP122305010
Weight, kg
19
EAN
8719076048916
Operating temperature
-40 to +65ºC
Main characteristics
Height, mm
546

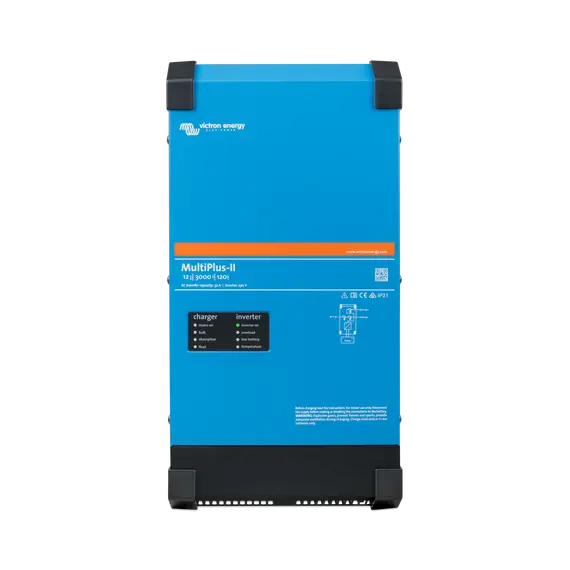

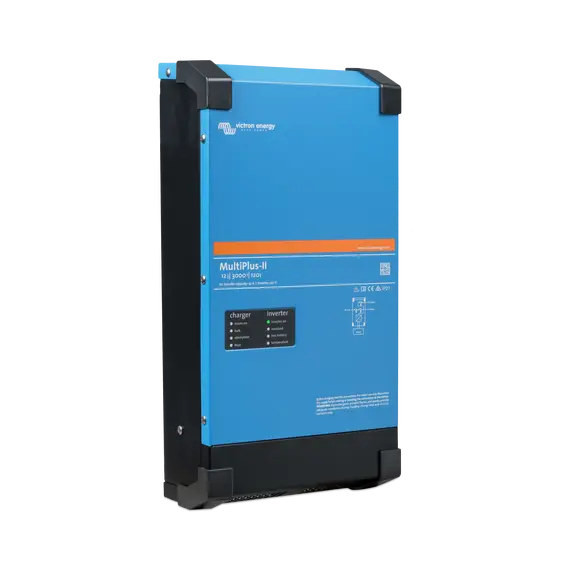

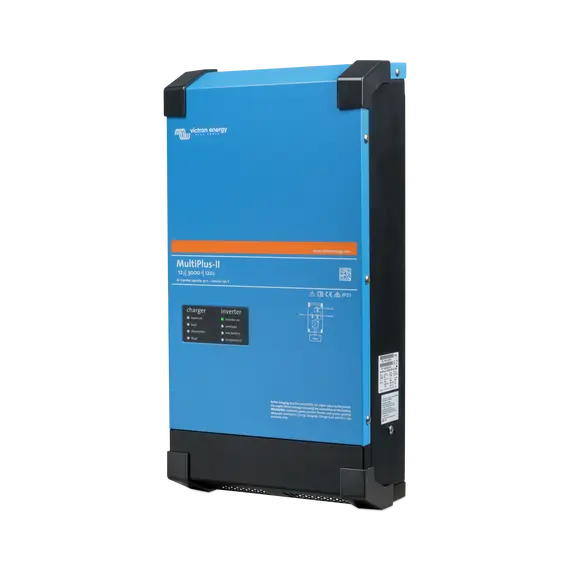

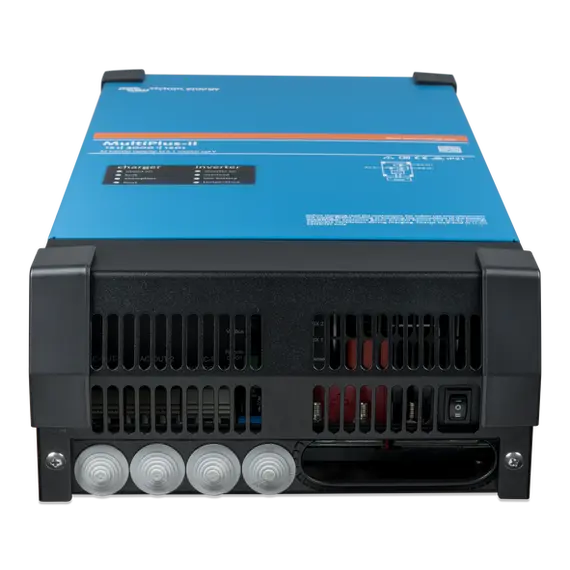

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
Note: for a short period of time this product was called MultiGrid-II.
