Inverter RS 48/6000 230V Smart

PIN482600000
1,141.00
In stock

Modern, efficient design with high-frequency technology

Lightweight at 11 kg with low standby power

User-friendly display, Bluetooth, and VE.Can Port for monitoring and connectivity

Uflex s.r.l.
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandVictron Energy Shipping fromItaly

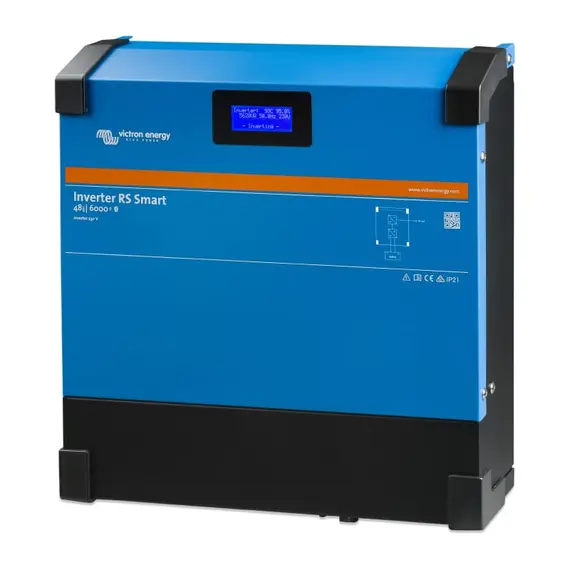

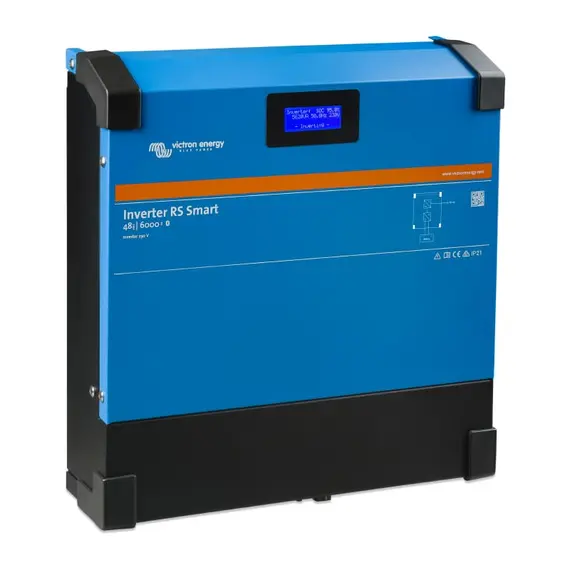

The Inverter RS Smart, a robust 48 VDC, 6 kVA 230 VAC inverter, combines modern design with high-frequency technology, delivering exceptional efficiency at a mere 11 kg. Its features include low standby power, ensuring optimal energy conservation, and remarkably quiet operation.

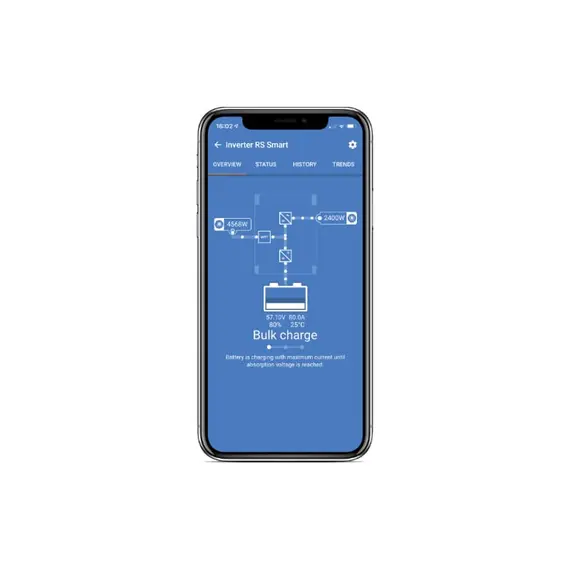

Equipped with a user-friendly display for convenient access to battery and inverter details, these parameters can also be wirelessly retrieved via Bluetooth using the VictronConnect app. Additionally, the inverter boasts a VE.Can Port, facilitating connection to a GX device for comprehensive system monitoring.

Weighing only 11 kg, this powerful inverter, with its high-frequency technology and sleek design, stands out for its efficiency, low standby power, and silent operation. The user-friendly display provides quick access to battery and inverter parameters, with the option to wirelessly retrieve data via Bluetooth using the VictronConnect app. The inclusion of a VE.Can Port allows seamless connection to a GX device for thorough system monitoring.

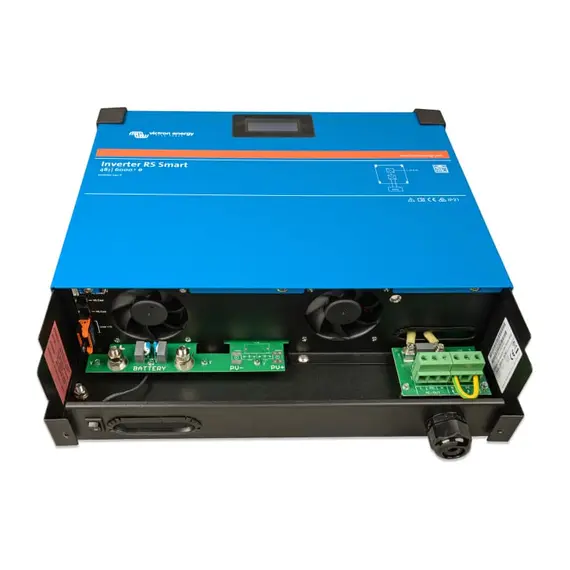

Furthermore, the inverter features VE.Direct and VE.Can ports, enabling flexible connectivity for system monitoring, data logging, and remote firmware updates. I/O connections include a programmable relay, temperature sensor, and voltage sensor, with the remote input configurable to accept the Victron smallBMS.

AC-connection
Screw terminals 10 mm² (6 AWG)
Battery-connection
M8 bolts
Charge voltage ‘absorption’,V (DC)
57.6
Charge voltage ‘float’,V (DC)
55.2
Charging Current, A
88
Depth, mm
125
Device type
Charger + Inverter
Frequency, Hz
50 Hz ± 0,1 %
Humidity (non condensing)
max 95 %
Input voltage, V (DC)
38 - 62
Integrated fan
Yes
Optional remote display/operation
Yes
Protection
Output short circuit, Overload, Battery voltage too high, Battery voltage too low, Temperature too high, 230VAC on inverter output, Solar earth leakage
Protection category, IP
IP21
Temperature sensor
Yes
Width, mm
440
Operating temperature
-40 to +65°C (fan assisted cooling)
Brand
Victron Energy
EAN
8719076046059
Dimensions in packaging
Weight, kg
11
Main characteristics
Height, mm
425
Additional Information
MPN
PIN482600000
Additional materials

Datasheet (Datasheet-Inverter-RS-Smart.pdf, 148 Kb) [Download]

User Manual (Manual-Inverter-RS-Smart.pdf, 2,696 Kb) [Download]

Connection Manual (VictronConnect_Manual-en.pdf, 3,475 Kb) [Download]
