PICO Standard Set Standalone - Silver
The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.
PICO Standard set is for you if you want to monitor 1 main battery or battery bank, up to 4 starter or auxiliary batteries, and up to 6 tanks or temperatures. It features three main devices.

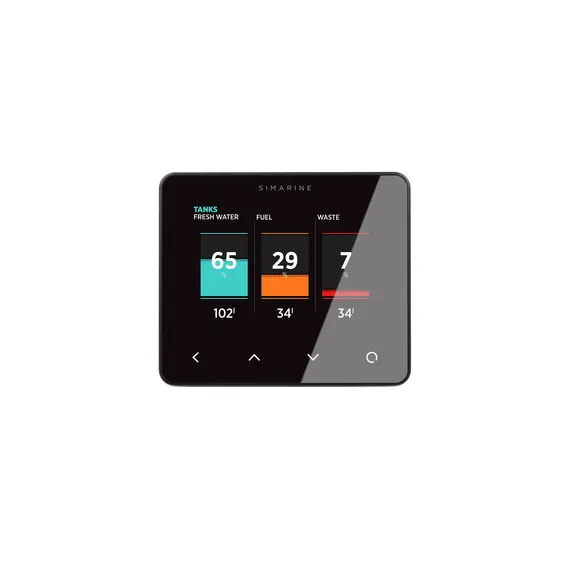

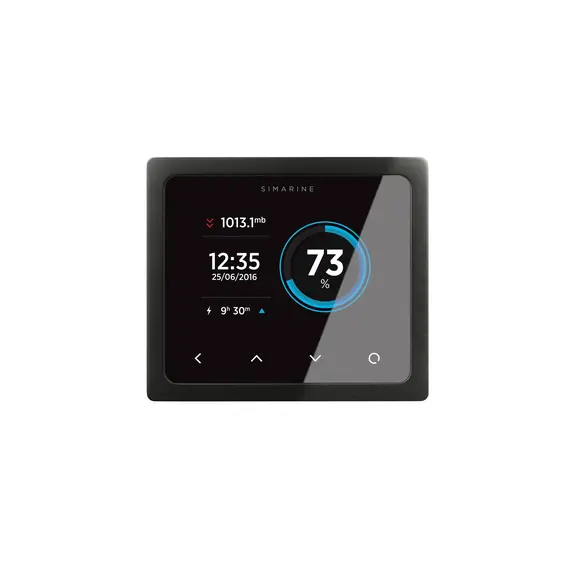

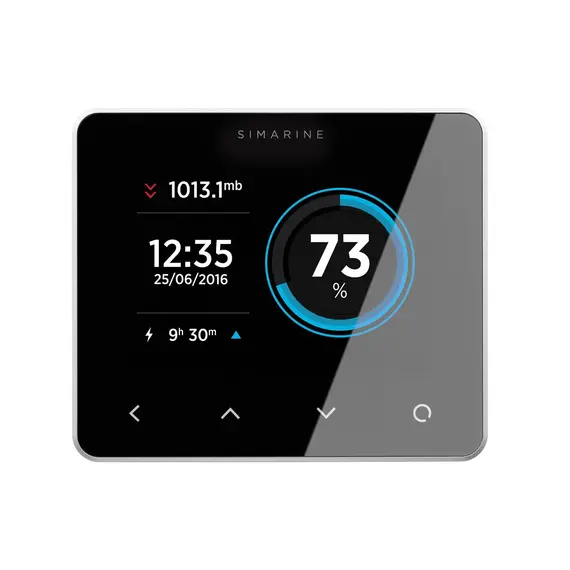

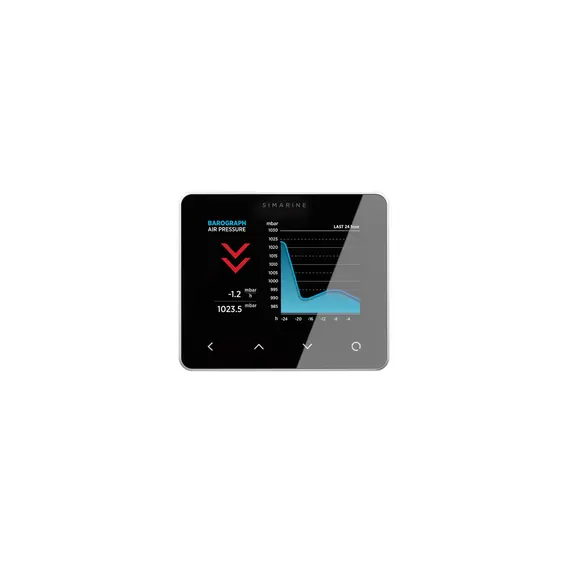

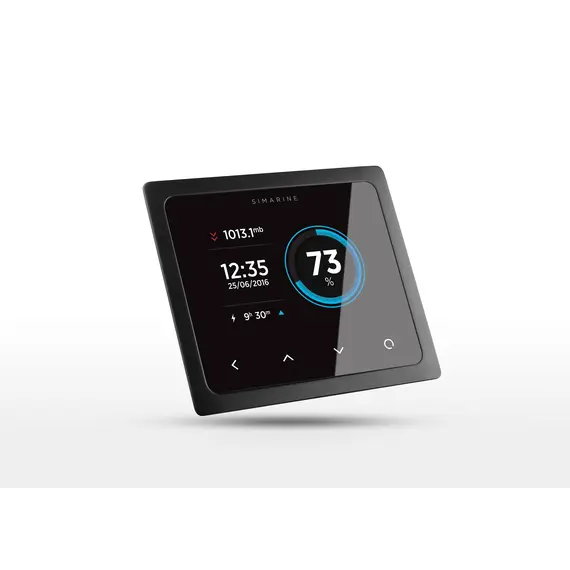

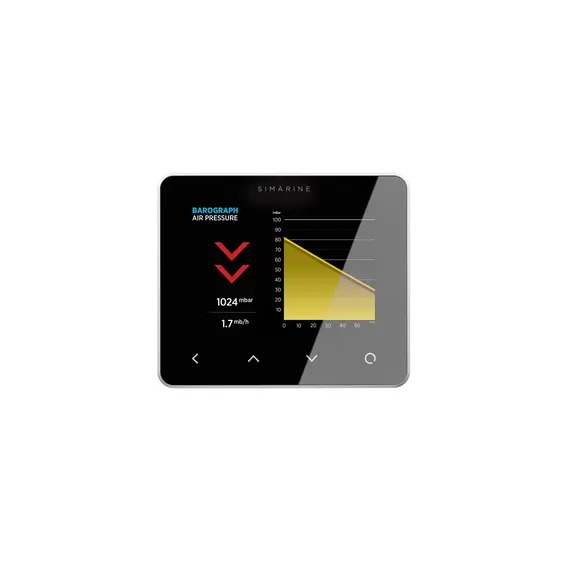

PICO battery monitor that displays data about batteries, tank levels, temperatures, fridge, solar, it helps you level your campervan, and even includes a barograph.
The SC303 shunt, which is included in this set, allows for a continuous current up to 300 amps. It has 2 resistance and 2 voltage inputs, and 1 socket for a temperature sensor.

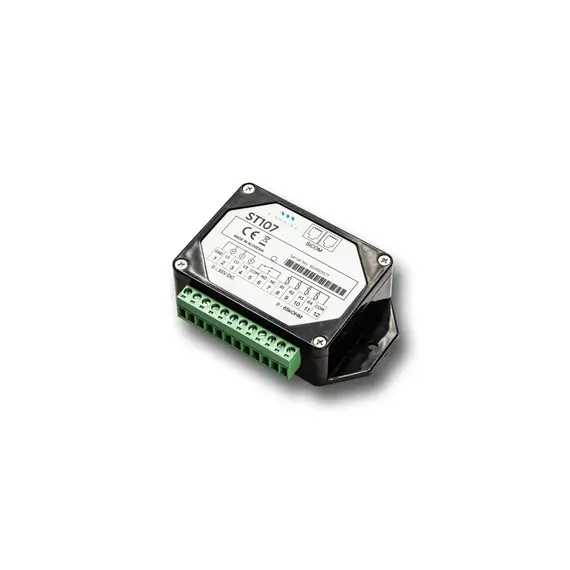

Additionally, the ST107 tank level and voltage module provides the system with 4 resistance and 3 voltage inputs. Its main purpose is to measure water, fuel, or other liquid levels, but you can also use it to measure voltage or temperature.
One of this module’s special features is a built-in, programmable alarm signal relay, which you can configure to output a signal of 1 amp if an alarm is triggered.
Technical specifications:
| Operating voltage | 6 - 35 V DC |
| Temperature range | -10 to +70°C |
| Power consumption WiFi on, 100% lighting | 90 mA |
| Power consumption WiFi off, 70% lighting | 35mA |
| Power consumption WiFi off, 0% lighting | 18mA |
| Dimensions stand-alone (without connections) | 98 x 84 x 10 mm |
| Dimensions of built-in installation (without connections) | 108.5 x 94 x 20 mm |
The PICO sets in comparison:
| PICO one set | PICO standard set | PICO Blue Set | |
| Battery banks | 1x up to 300A | 1x up to 300A | 1x up to 500A |
| Battery voltage monitoring | 2x | 4x | 4x |
| Tanks | up to 2 tanks | up to 4 tanks | up to 7 tanks |
| Temperatures | up to 2 temperatures | up to 4 temperatures | up to 4 temperatures |
| Barograph | ✔ | ✔ | ✔ |
| Smartphone App / Wi-Fi | ✔ | ✔ | ✔ |
| Consumption / charging current monitoring via four 25 A measuring shunts | ✘ | ✘ | ✔ |
| Casing | aluminum | aluminum | aluminum |
| Anti-reflection Gorilla® glass | ✔ | ✔ | ✔ |
| Waterproof and dus tproof | ✔ | ✔ | ✔ |
| 4 water-resistant CapSense® buttons | ✔ | ✔ | ✔ |
| Expandable with other modules | ✘ | ✔ | ✔ |
With a free Android and iOS app, you can connect your PICO to your smartphone via Wifi. This allows you to conveniently monitor the battery from your smartphone and change the settings of your PICO.
Note
- When the shunt is mounted in the battery's NEGATIVE line, the state of charge (SOC) of a 12, 24, 36, 48, 60, or 72 volt battery system can be monitored. ONLY with 12 or 24 volt battery systems, the shunt can also be mounted in the battery's POSITIVE line.
- In addition to other measuring modules, up to 6 shunts can be connected to the PICO Standard or PICO Blue, which can independently detect the state of charge (SOC) of different battery systems, e.g. of a 12 volt and a 24 volt battery bank.

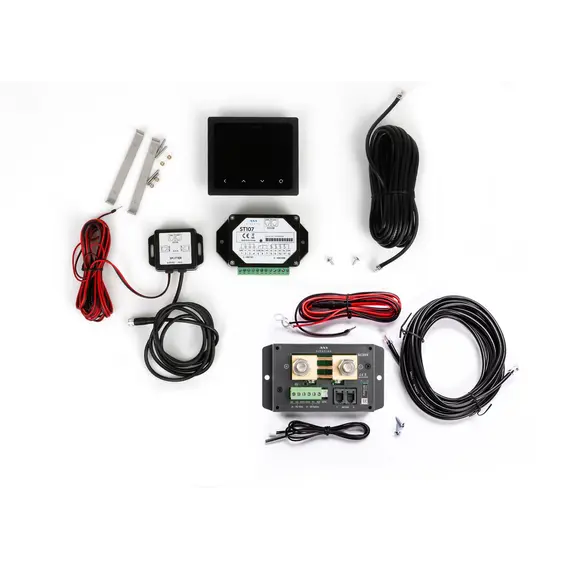

1x PICO battery monitor - Silver
1x SC303 shunt
1x ST107 tank level and voltage module
