- This set is for you if you want to dive deep into monitoring and see precisely what is happening in your system. With the PICO Blue set you can monitor 1 main battery or battery bank, up to 4 auxiliary batteries, and up to 6 tanks or temperatures. It features 4 devices.

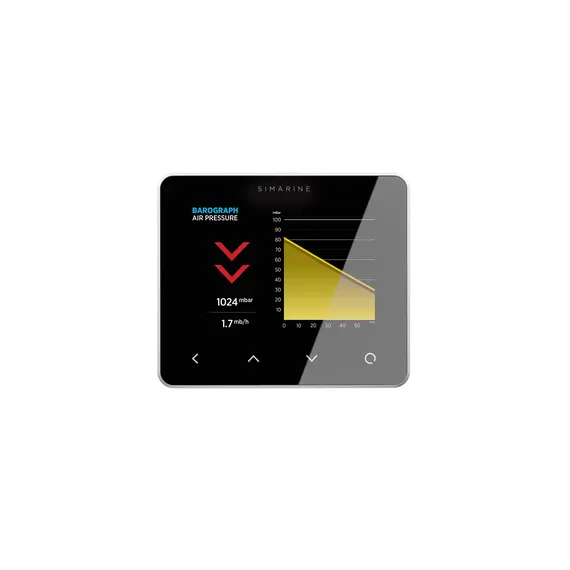

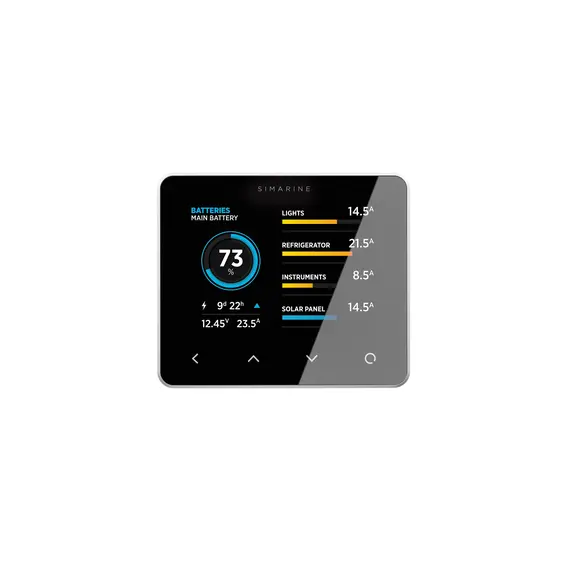

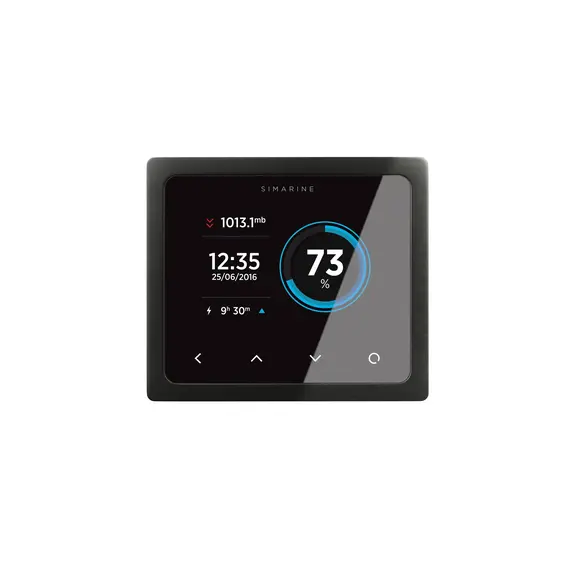

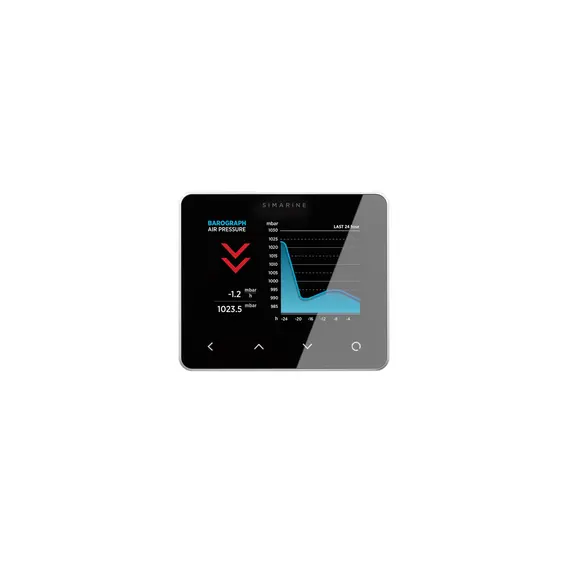

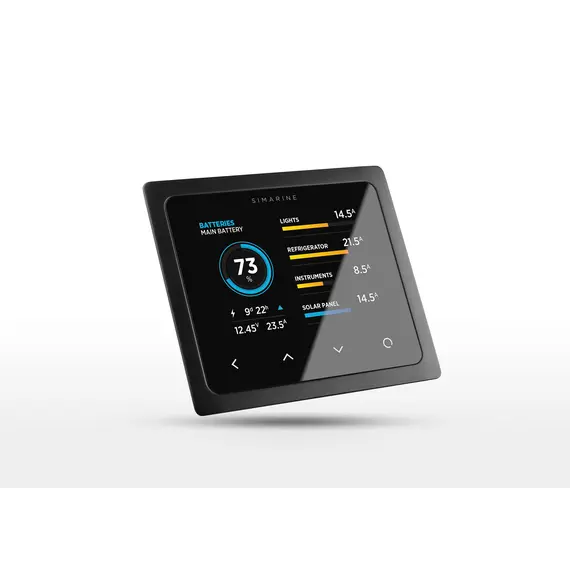

PICO battery monitor that displays data about batteries, tank levels, temperatures, fridge, solar, it helps you level your campervan, and even includes a barograph.

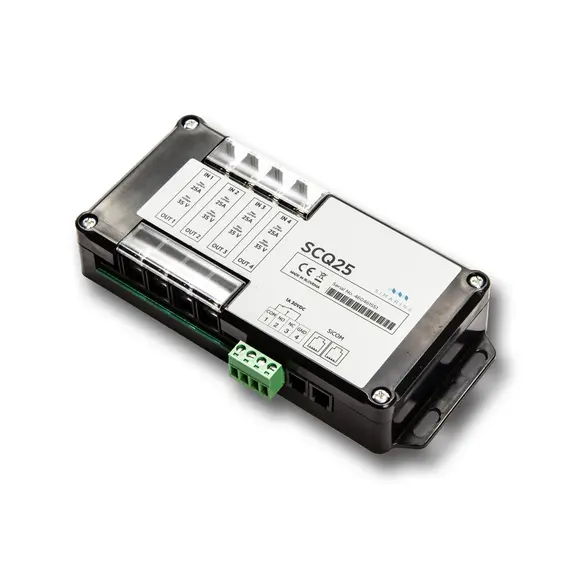

- What makes this set a unique solution on the market is the SCQ25 module, which monitors the current flow of the 4 individual devices. So, if you want to know how much your fridge is using or how much your solar panels are charging, this set is what you need.
The SCQ25 module is here to reveal the truth. It allows for a maximum continuous current of 25 amps per channel. If you need more, you can wire the device in parallel across 2 channels and configure this setting in PICO.

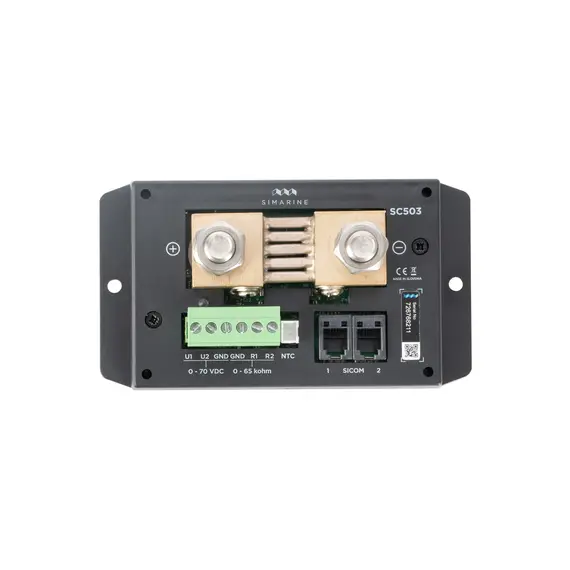

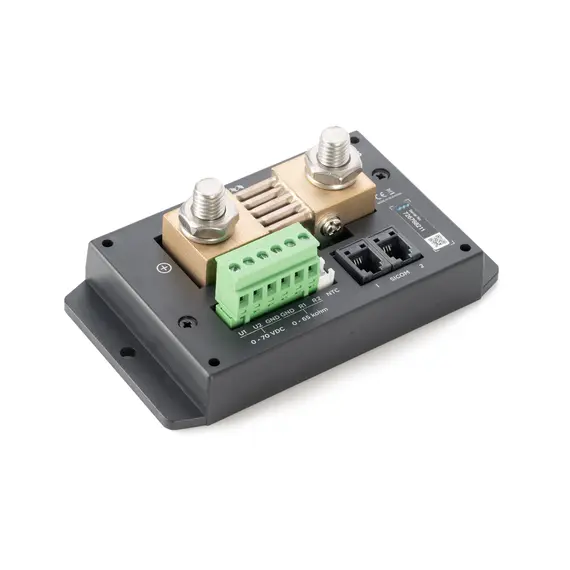

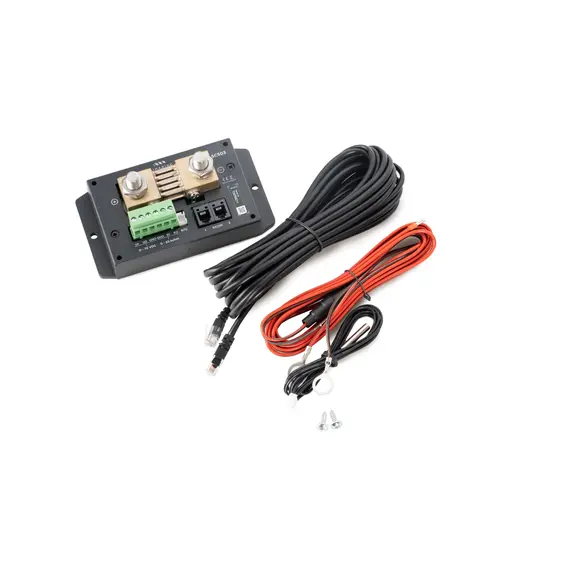

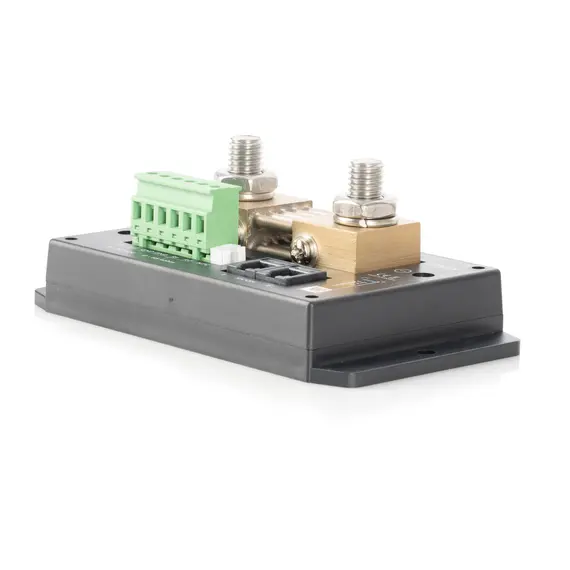

- The SC503 shunt, which is included in this set, allows for a continuous current up to 500 amps. It has 2 resistance and 2 voltage inputs, and 1 socket for a temperature sensor.
It offers complete battery monitoring. You can use it to measure tank levels, temperatures, current of heavy consumers like inverters.

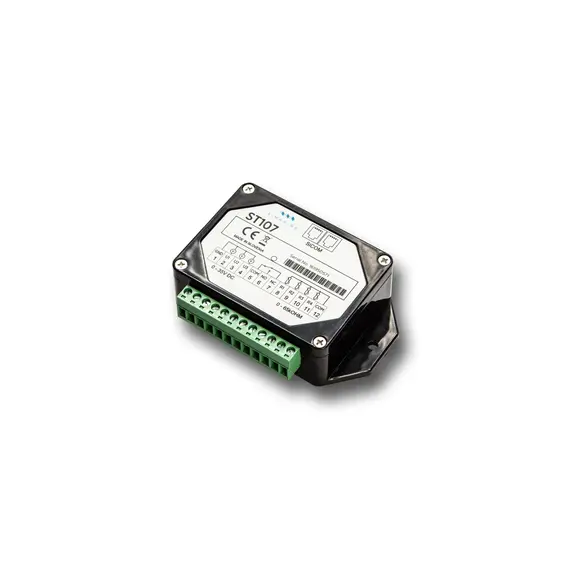

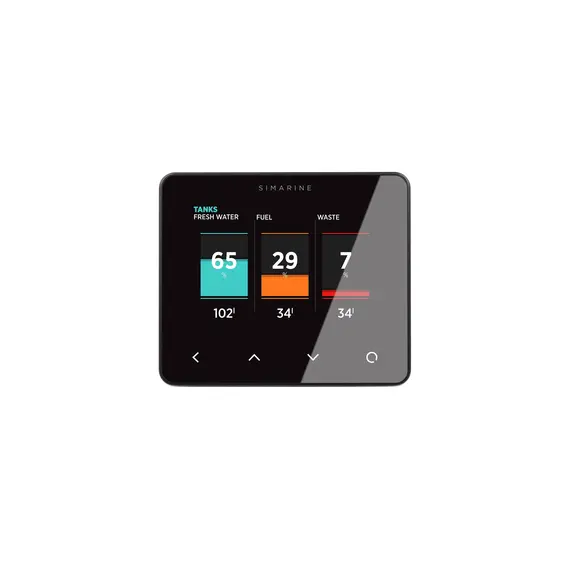

- Additionally, the ST107 tank level and voltage module provides the system with 4 resistance and 3 voltage inputs. Its main purpose is to measure water, fuel, or other liquid levels, but you can also use it to measure voltage or temperature.
But, the features don’t end here. Both the ST107 and SCQ25 have 1 built-in programmable alarm signal relay that you can configure to output a signal of 1 amp when an alarm is triggered.
Technical specifications:
| Operating voltage | 6 - 35 V DC |
| Temperature range | -10 to +70°C |
| Power consumption WiFi on, 100% lighting | 90 mA |
| Power consumption WiFi off, 70% lighting | 35mA |
| Power consumption WiFi off, 0% lighting | 18mA |
| Dimensions stand-alone (without connections) | 98 x 84 x 10 mm |
| Dimensions of built-in installation (without connections) | 108.5 x 94 x 20 mm |
The PICO sets in comparison:
| PICO one set | PICO standard set | PICO Blue Set | |
| Battery banks | 1x up to 300A | 1x up to 300A | 1x up to 500A |
| Battery voltage monitoring | 2x | 4x | 4x |
| Tanks | up to 2 tanks | up to 4 tanks | up to 7 tanks |
| Temperatures | up to 2 temperatures | up to 4 temperatures | up to 4 temperatures |
| Barograph | ✔ | ✔ | ✔ |
| Smartphone App / Wi-Fi | ✔ | ✔ | ✔ |
| Consumption / charging current monitoring via four 25 A measuring shunts | ✘ | ✘ | ✔ |
| Casing | aluminum | aluminum | aluminum |
| Anti-reflection Gorilla® glass | ✔ | ✔ | ✔ |
| Waterproof and dus tproof | ✔ | ✔ | ✔ |
| 4 water-resistant CapSense® buttons | ✔ | ✔ | ✔ |
| Expandable with other modules | ✘ | ✔ | ✔ |
With a free Android and iOS app, you can connect your PICO to your smartphone via Wifi. This allows you to conveniently monitor the battery from your smartphone and change the settings of your PICO.
Note
- When the shunt is mounted in the battery's NEGATIVE line, the state of charge (SOC) of a 12, 24, 36, 48, 60, or 72 volt battery system can be monitored. ONLY with 12 or 24 volt battery systems, the shunt can also be mounted in the battery's POSITIVE line.
- In addition to other measuring modules, up to 6 shunts can be connected to the PICO Standard or PICO Blue, which can independently detect the state of charge (SOC) of different battery systems, e.g. of a 12 volt and a 24 volt battery bank.

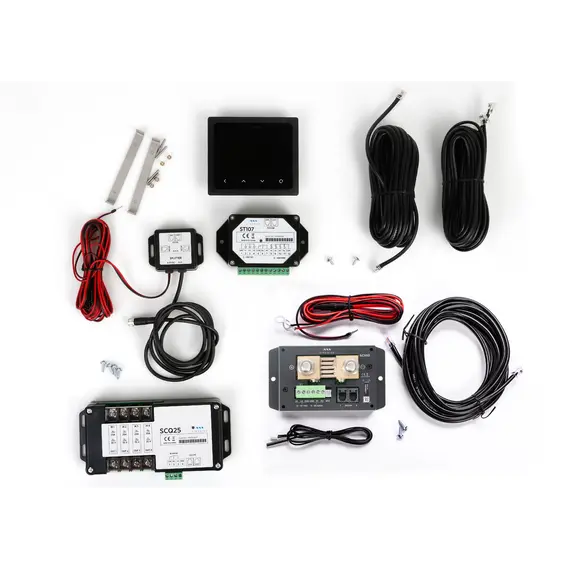

1x PICO battery monitor - Silver
1x SC503 shunt
1x ST107 tank level and voltage module
1x SCQ25 quadro shunt module
