Input voltage, V (DC)
60 - 385
Protection category, IP
IP55
Brand
Victron Energy
MPN
BAM010700100
EAN
8719076020080
Operating temperature
-40°C to +50°C
Main characteristics
Diameter Ø, mm
63
The BMV-710H is a high-precision battery monitor designed specifically for systems with elevated battery voltages, ranging from 60 to 385 Volts. Supplied with a shunt mounting box, it is suitable for systems with grounded negative only, as the battery monitor is not isolated from the shunt.

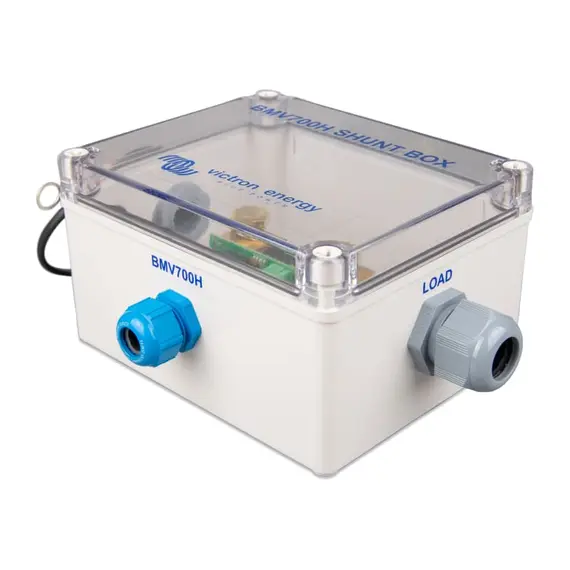

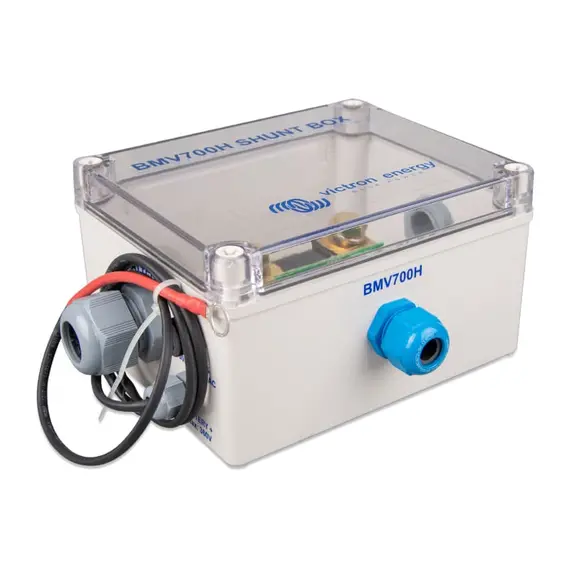

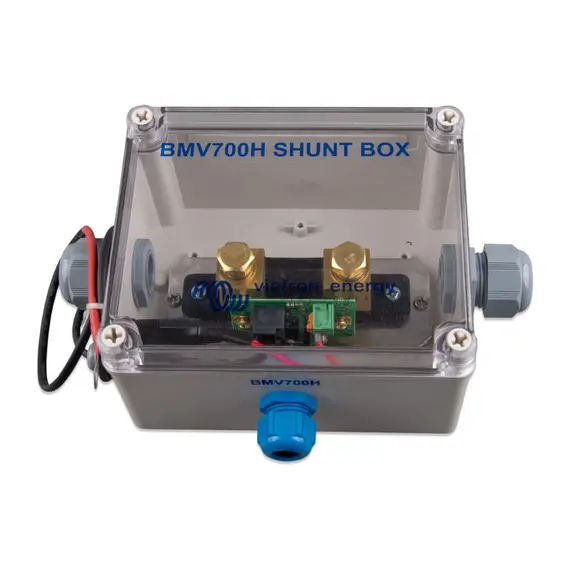

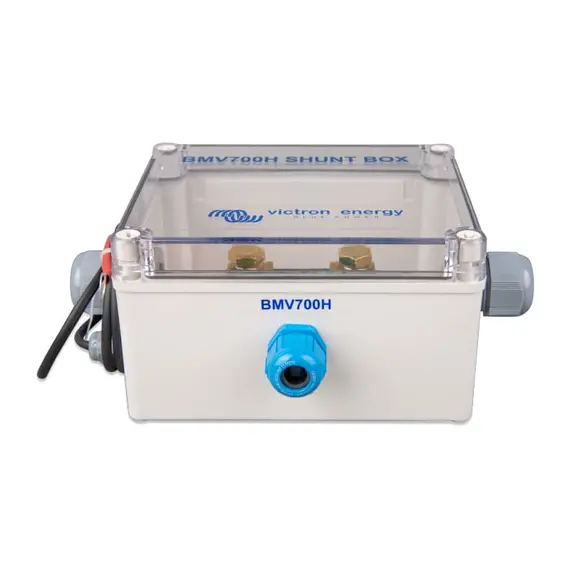

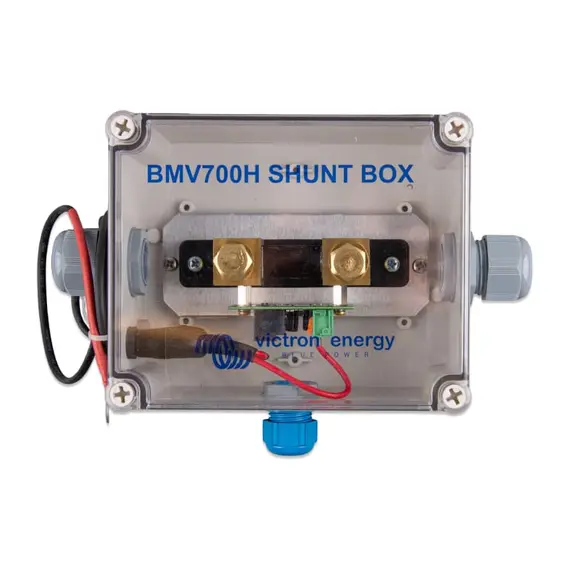

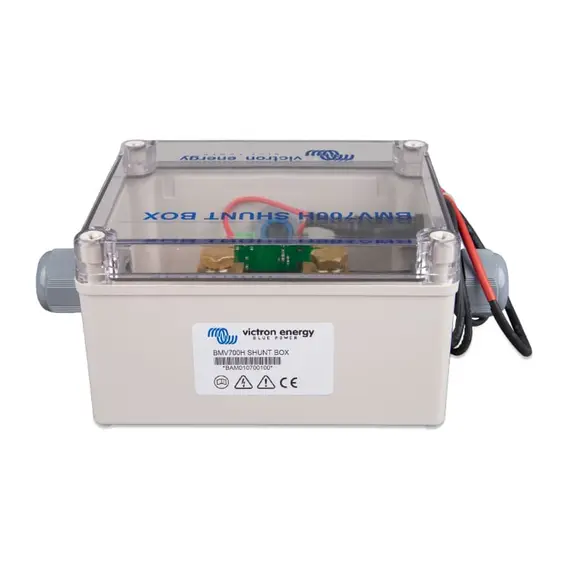

These battery monitors perform precise calculations of the state of charge and track ampere hours consumed by integrating the current flowing in or out of the battery. The package includes a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a 500A/50mV shunt. Due to the high voltage application, the shunt is enclosed in a specialized housing.
